Garland MST4T-E Master Gas Ranges
Description

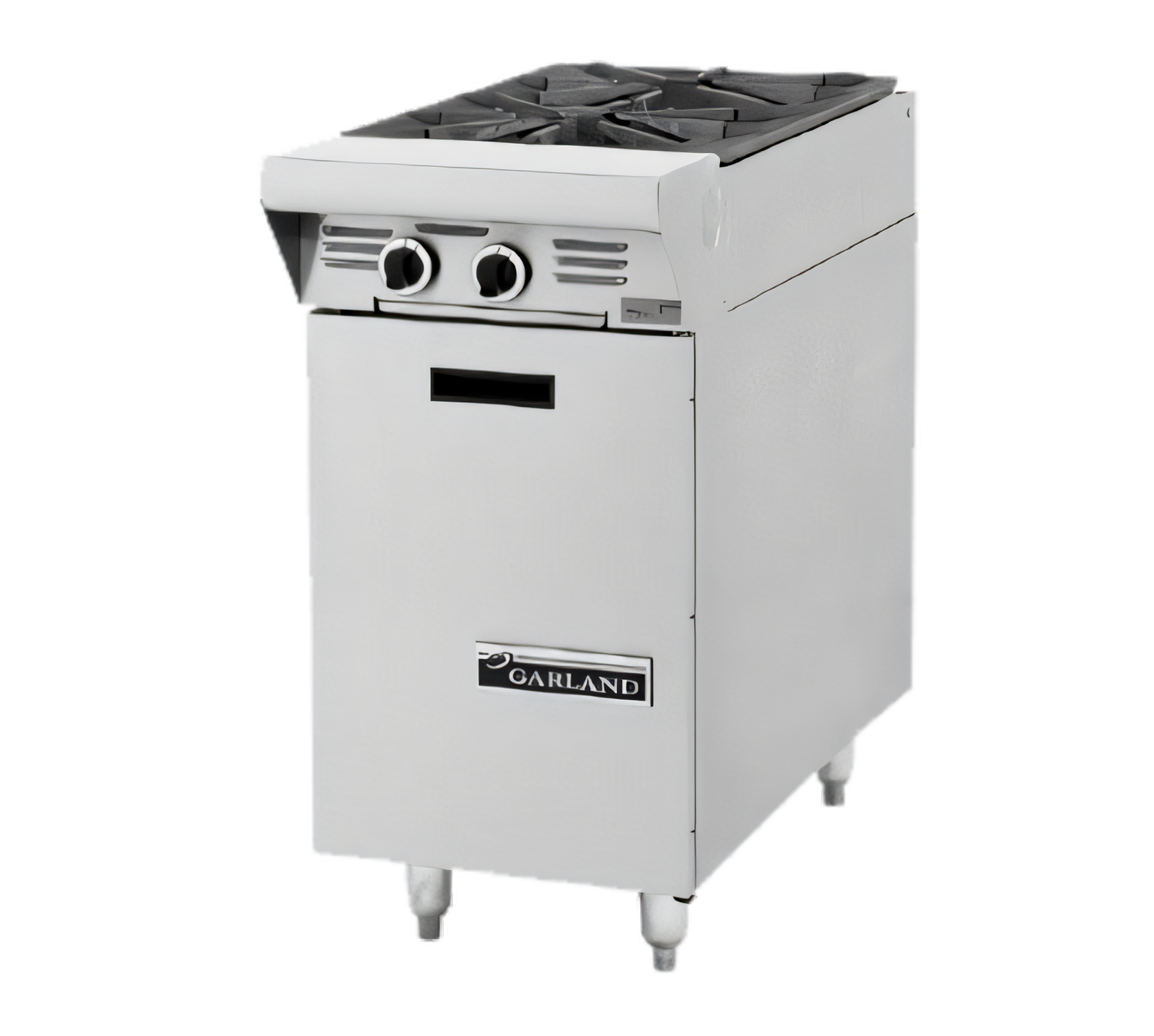

Garland Master Series 17" Modular Open Burner Range Attachment – 70,000 BTU
Model MST4T-E | Add-A-UnitDrop powerhouse performance into any existing Master Series battery without expanding your footprint. The 17" Garland Master Series Add-A-Unit delivers two high-output Starfire burners, electronic ignition and full flame-failure safety in a rugged, low-profile module built for the busiest commercial kitchens.
Key Advantages

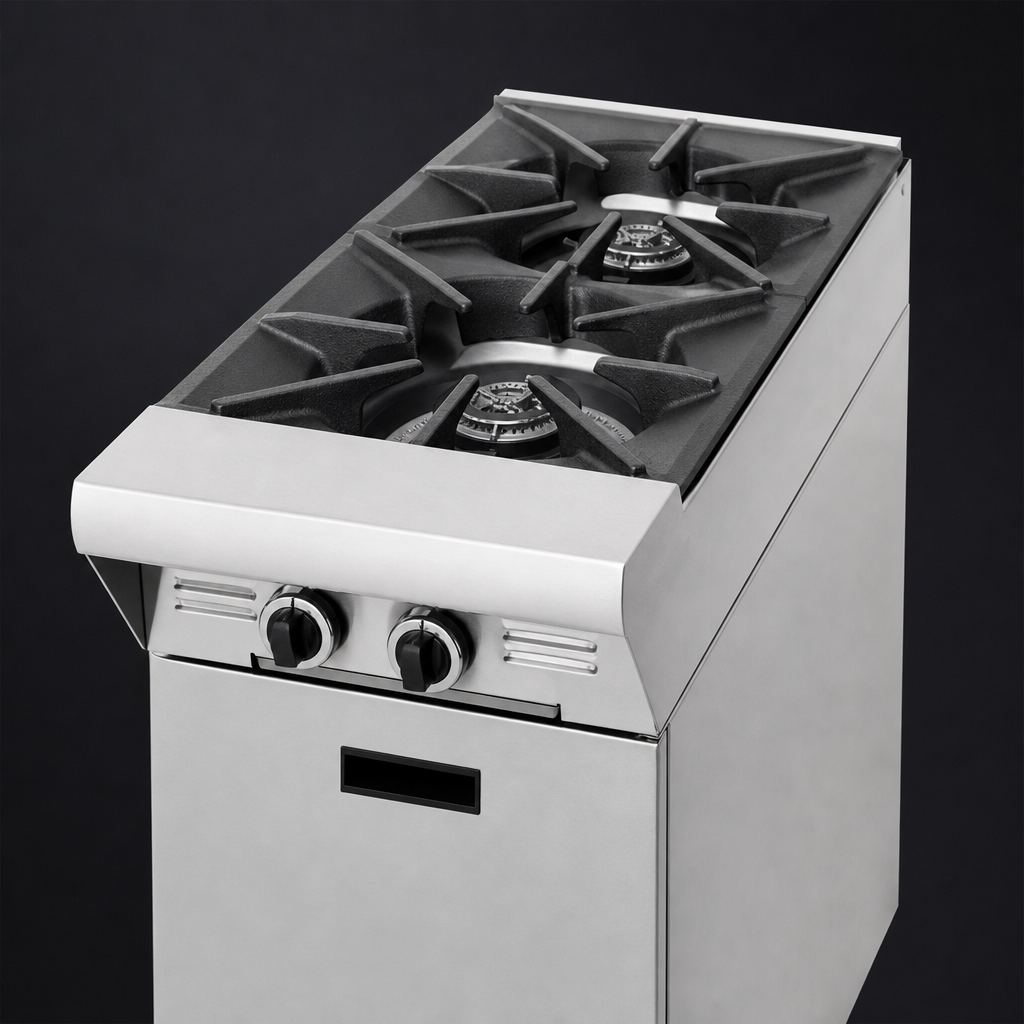

- 70,000 BTU/h total – two 35,000 BTU Starfire burners for rapid boil, sauté and sear.
- Electronic spark ignition on every pilot saves gas and provides instant start-up.
- Sentry flame-failure system automatically cuts gas if the flame is lost.
- Heavy-duty cast-iron top grates and removable ring-grate bowls withstand constant abuse.

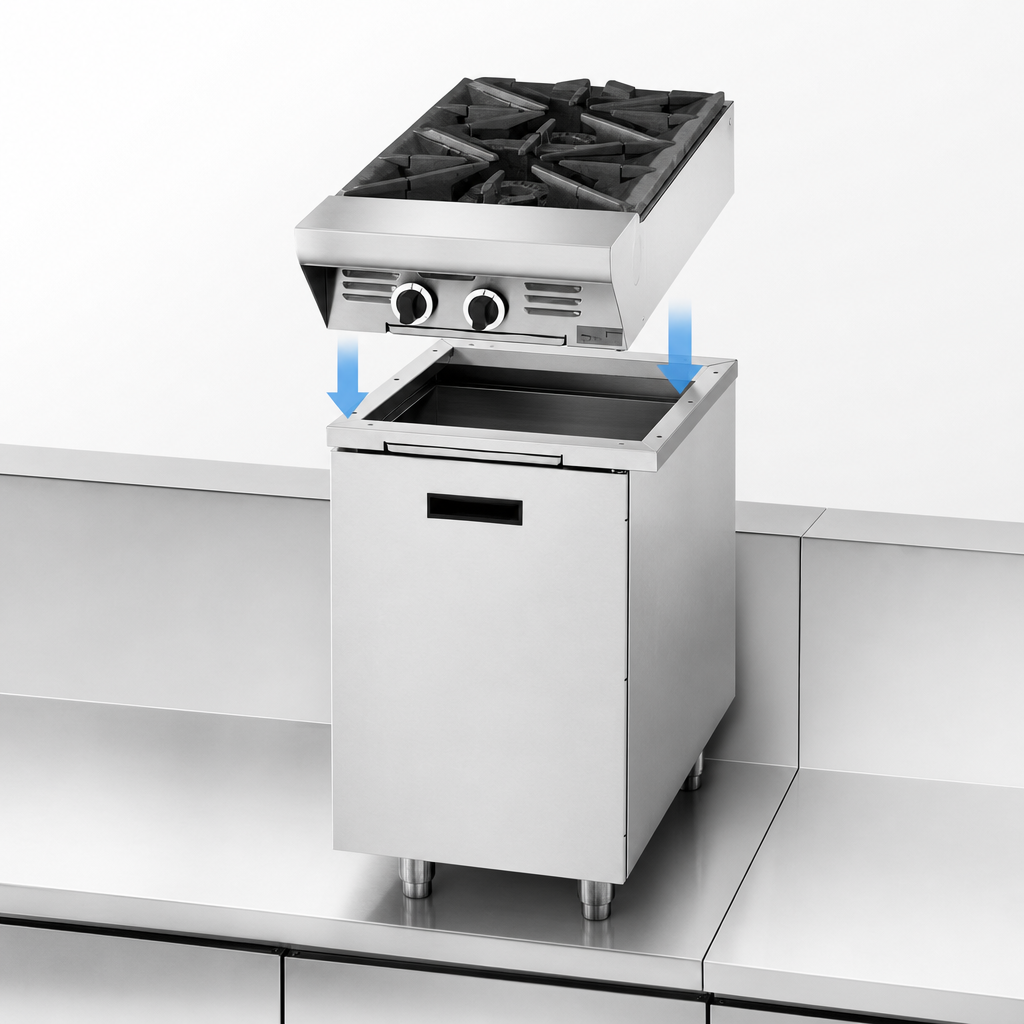

- Low 9-½" (241 mm) profile with 1-½" seating flanges for seamless modular installation.
- Stainless steel front & sides resist corrosion and make wipe-downs fast.
- Full-width stainless steel drip tray keeps the cookline clean.
- Certified to NSF, CE, CSA Flame and CSA Star standards for broad code compliance.
Performance You Can Trust
- Individual burner valves provide precise low-to-high control.
- Two-piece Starfire burner heads lift off without tools for quick cleaning.
- Optimised air-mix design promotes complete combustion and higher efficiency.
- Front 1-¼" NPT gas inlet simplifies hook-up; rear connection available.
Technical Specifications
| Configuration | 17" (432 mm) modular open-burner Add-A-Unit |
|---|---|
| Model | MST4T-E (natural or propane) |
| Total Input | 70,000 BTU/h (20.5 kW) |
| Burners | 2 × Starfire open burners, 35,000 BTU each |
| Ignition | Electronic spark |
| Safety | Sentry total flame-failure protection |
| Gas Connection | 1-¼" NPT front (rear optional) |
| Operating Pressure | Natural 6" WC (15 mbar) | Propane 10" WC (25 mbar) |
| Dimensions (W × D × H) | 17" × 38" × 9-½" (432 × 965 × 241 mm) without stand |
| Shipping Weight | Approx. 120 lb (55 kg) |
| Construction | Stainless steel front & sides, cast-iron grates, stainless drip tray |
| Certifications | NSF, CE, CSA Flame, CSA Star |
Popular Options & Accessories
- Stainless steel backguards: 10", 17" or 33" heights
- Single or double-deck tubular high shelves
- Modular stand or 6" adjustable stainless steel legs
- Polyurethane non-marking swivel casters with front brakes
- Gas regulators, shut-off valves, flex hoses and quick-disconnect kits (¾", 1" or 1-¼")
- End caps and covers for a seamless battery appearance
Garland Master Series equipment is engineered for commercial use only and is not approved for residential installation.
