Garland  |  Master  |  SKU: MST47T-E

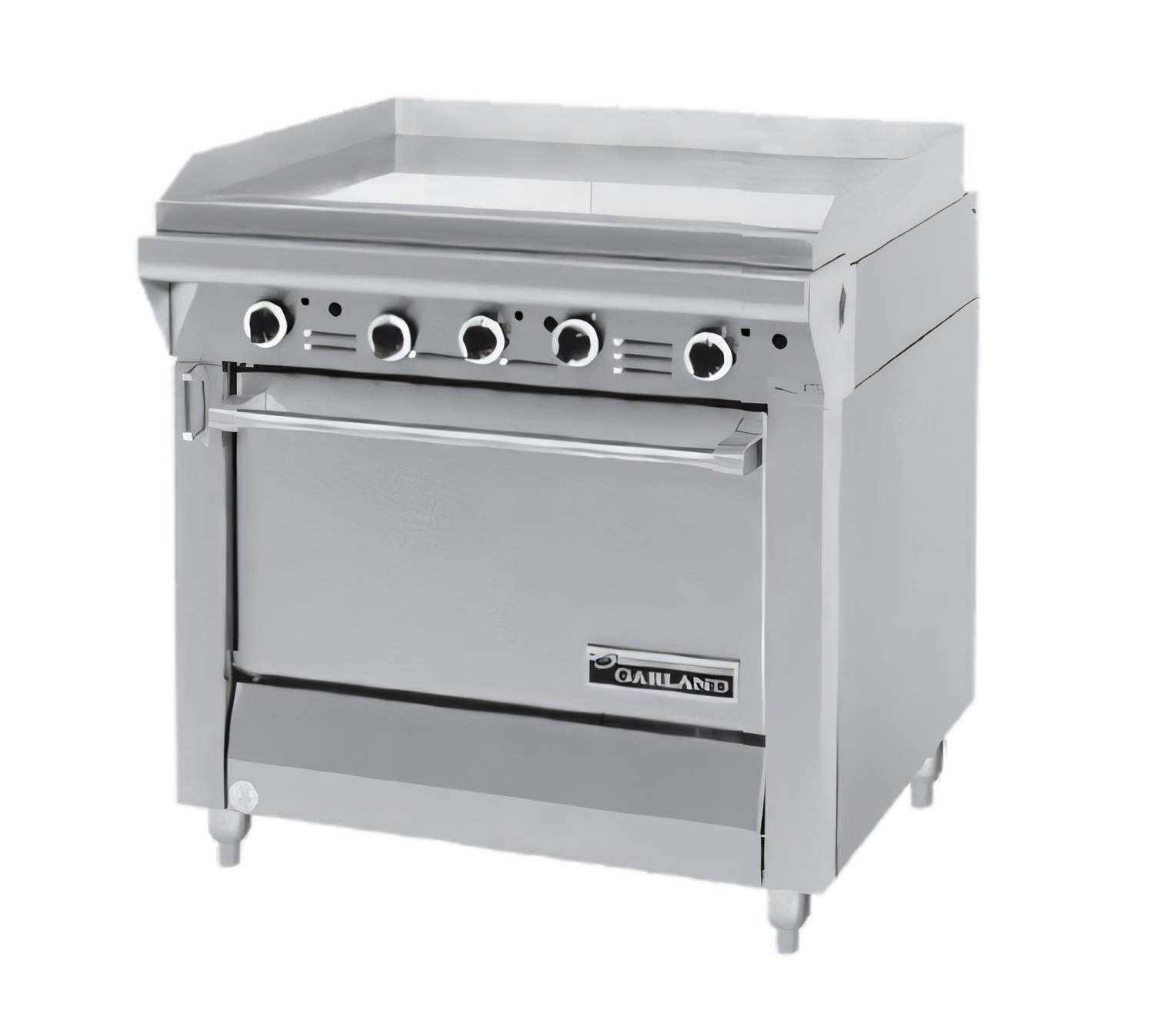

Garland MST47T-E Master Gas Ranges

$6,901.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Check list Owner's manual
Related Searches
Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Garland Master Series 34" Heavy-Duty Modular Gas Griddle

99,000 BTU • Manual Hi-Lo Controls • Electric Ignition & Total Flame Failure

Built for the toughest production lines, the Garland Master Series 34" modular griddle drops seamlessly onto a chef base, equipment stand or refrigerated counter to create the exact cook suite you need—without the footprint of a full range.

Key benefits

  • 1" (25 mm) thick polished steel griddle plate delivers fast recovery and even heat.
  • Three high-performance “H” burners put out 99,000 BTU/hr (≈33 kBTU each).
  • Manual Hi-Lo valves let you fine-tune each zone independently.
  • Electric spark ignition—no standing pilots to waste gas or time.
  • Sentry total flame-failure protection instantly shuts off gas if a pilot is lost.
  • Durable stainless-steel front & sides plus welded 2-5/16" (59 mm) splash guards.
  • 7-1/2" (191 mm) deep front rail doubles as a staging/plate landing ledge.
  • Front-mounted, extra-capacity grease drawer removes in seconds for quick clean-up.
  • Low-profile 9-1/2" (241 mm) modular height keeps the cooking surface easy to reach.

Specifications

Model Master Series MST47T-E (or current equivalent)
Configuration Modular gas griddle top, 34" wide
Cooking surface 34" W × 27" D (864 × 686 mm)
Griddle plate 1" (25 mm) polished steel
Burners 3 × “H” style
Total input 99,000 BTU/hr • 29 kW
Gas type Natural 6" WC / Propane 10" WC (specify when ordering)
Gas connection 1-1/4" NPT front (optional rear kit)
Dimensions 34" W × 38" D × 9-1/2" H (864 × 965 × 241 mm)
Construction Stainless steel front, sides & backsplash; chrome-plated knob guards
Certifications NSF • CE • CSA Flame • CSA Star

Popular options & accessories

  • 10", 17" or 33" stainless-steel backguards
  • Fully grooved or part-grooved plate sections
  • Equipment stands, refrigerated chef bases or freezer bases
  • Gas flex hose & quick-disconnect kits (¾", 1" or 1-1/4") with restraining device
  • Rear gas connection kit & factory-installed end caps
  • Stainless tubular high-shelf, single or double deck
Important: All Master Series modules require a compatible backguard (sold separately) and must be installed in accordance with local codes. Commercial use only—this appliance is not approved for residential installations.

Need help configuring a battery line or choosing the right stand?  Contact Garland Customer Service or chat with our equipment specialists today.

Features & Specs

Manufacturer

Garland

Brand_name

Master

Certifications

NSF, CE, CSA Star, CSA Flame

Height

9.5in

Width

34.0in

Depth

38.0in

Shipping Weight

360.0lbs

Exterior Finish

stainless steel front & sides

Top

(1) griddle

Base

modular

Plate Thickness

1.000" = 1"

Specifications

Master Series Heavy Duty Range, gas, 34", modular, griddle, manual controls, electric ignition & flame fail all burners, stainless steel front & sides, 99,000 BTU, CE, CSA Flame, CSA Star, NSF (Garland)
