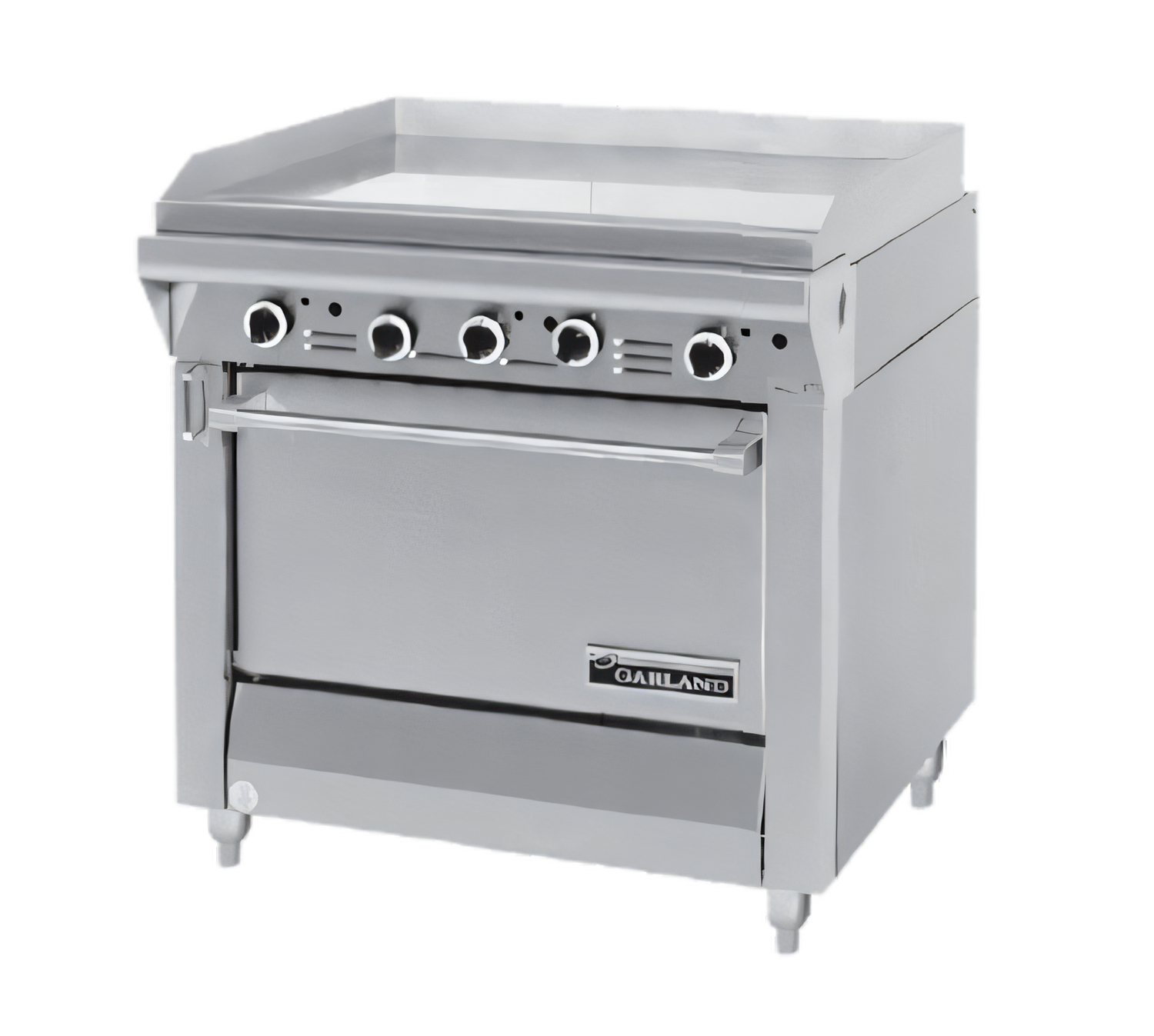

Garland MST47S-E Master Gas Ranges
$7,291.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Garland MST47S-E Master Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland MST47S-E Master Gas Ranges
$7,291.00
Unit price
/
Unavailable
Description
Garland Master Series 34" Heavy-Duty Gas Griddle Range with Storage Base – 99,000 BTU
Model: MST47S-E | Manual Controls • Electric Ignition • Flame-Failure SafetyEngineered for high-output, round-the-clock kitchens, the Garland Master Series 34" griddle range unites a powerhouse 1" steel plate with a rugged built-in storage base—giving chefs maximum production capacity in a single, space-saving footprint.
Why you’ll love it
- Blistering performance – three independent “H” burners deliver a combined 99,000 BTU/hr for rapid heat-up and lightning-fast recovery.
- Precision manual Hi-Lo valves and electric spark ignition on every burner—no standing pilots, instant start-up.
- Sentry total flame-failure protection automatically shuts off gas if the flame is lost.
- 1" (25 mm) thick, polished steel griddle plate ensures even heat distribution and long service life.
- Integrated 2-5/16" (59 mm) welded splash guards plus clip-on stainless backsplash keep grease contained.
- Front-mounted, removable stainless steel grease drawer for quick, mess-free clean-up.
- Full-width storage base (aluminized interior) keeps sheet pans and dry goods within easy reach.
- Heavy-gauge stainless steel front & sides resist corrosion and wipe down in seconds.
- 7-1/2" (191 mm) deep stainless steel front rail shields controls and offers a convenient landing zone.
- 6" (152 mm) chrome-plated, height-adjustable legs raise unit for floor cleaning and leveling.
- Field convertible for Natural or LP gas (specify at order).
- Fully certified – CE, CSA Flame, CSA Star & NSF.
Technical specifications
| Griddle width | 34" / 864 mm |
|---|---|
| Overall depth (to rail) | 38" / 965 mm |
| Overall height (with 6" legs) | 36-3/8" / 924 mm |
| Griddle plate thickness | 1" / 25 mm |
| Burner configuration | 3 × “H” style (independent) |
| Total input (Natural or LP) | 99,000 BTU/hr (29 kW) |
| Gas connection | 1-1/4" NPT front manifold (rear connection optional) |
| Storage base interior (W × D × H) | 26" × 30-1/2" × 20-1/2" (665 × 773 × 519 mm) |
| Clearances – combustible | Sides 14" (356 mm) | Back 6" (152 mm) |
| Shipping weight | Approx. 500 lb / 227 kg |
| Certifications | CE, CSA Flame, CSA Star, NSF |
What’s in the box
- Garland MST47S-E 34" gas griddle range with storage base
- (4) 6" adjustable chrome legs (factory installed)
- Clip-on stainless steel backsplash & grease drawer
- Installation & operation manual
Popular factory options (ordered separately)
- 10", 17" or 33" stainless steel backguard (required for all Master Series units)
- Fully grooved or partially grooved griddle surface
- Rear gas connection (¾" or 1" NPT)
- Heavy-duty locking casters
- Stainless steel storage shelf or tubular high shelf (single/double-deck)
- Common front rail for battery installations up to 102" (2591 mm)
Important: This appliance is designed for commercial use only and must be installed by a qualified technician in accordance with local codes and the supplied manual. A backguard is mandatory on all Master Series units.
Need help building a battery line-up or choosing accessories? Call 1-800-424-2411 or chat with our food-service equipment specialists.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Master
Certifications
NSF, CE, CSA Star, CSA Flame
Height
36.38in
Width
34.0in
Depth
38.0in
Shipping Weight
500.0lbs
Exterior Finish
stainless steel front & sides
Top
(1) griddle
Plate Thickness
1.000" = 1"
Base
cabinet(s)
Specifications
Master Series Heavy Duty Range, gas, 34", griddle, manual controls, storage base, electric ignition & flame fail all burners, stainless steel front & sides, 6" legs, 99,000 BTU, CE, CSA Flame, CSA Star, NSF (Garland)
