Garland MST47R-E Master Gas Ranges
Description

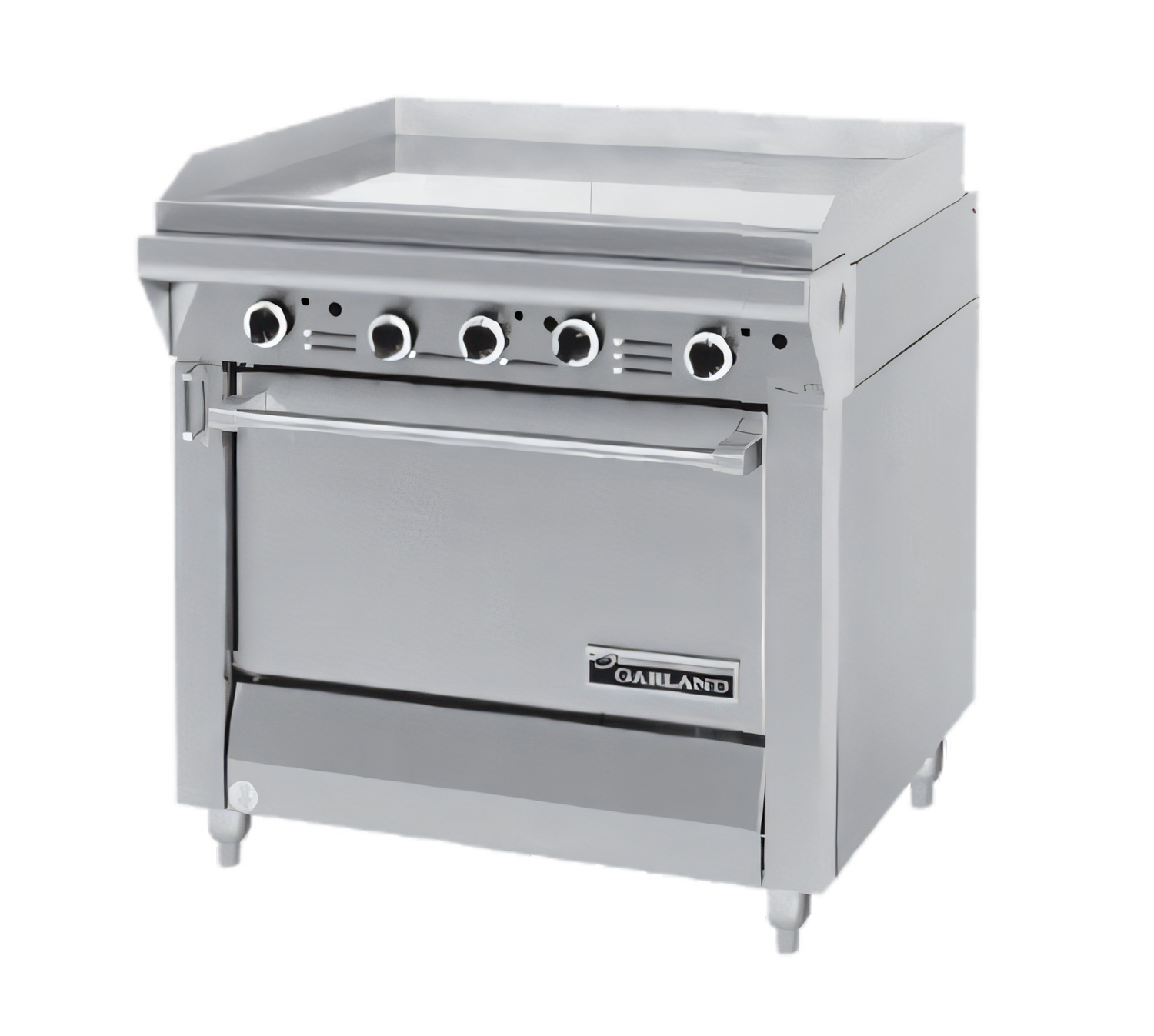

Garland Master Series 34" Heavy-Duty Griddle Range with Standard Oven
Model MST47R-E | 139,000 BTU | Natural / Propane GasEngineered for the most demanding commercial kitchens, the Garland Master Series 34″ Heavy-Duty Range unites a 1″ thick steel griddle with a high-performance standard oven. Electric spark ignition and Sentry™ flame-failure protection come factory-installed, delivering the safety, power and reliability you expect from Garland.
Key Benefits
- One-piece 34″ (864 mm) wide, 1″ (25 mm) thick steel griddle plate for even, edge-to-edge heat.
- Three independent “H” burners (90,000 BTU total) with precise Hi-Lo valve control.
- 40,000 BTU cast-iron oven burner rapidly recovers between batches.
- Electric spark ignition on every pilot—no matches required.
- Sentry total flame-failure protection automatically shuts off gas if pilots are lost.
- All stainless-steel front, sides and 7-1/2″ (191 mm) deep rail resist corrosion and simplify cleanup.
- 6″ (152 mm) adjustable chrome legs for easy leveling and under-range sanitation.
- Front-mounted, removable stainless grease drawer keeps work areas clean.
- Certified NSF, CE, CSA Flame & CSA Star for worldwide compliance.
Performance & Specifications
| Gas Type | Natural or Propane |
|---|---|
| Total Input | 139,000 BTU/hr (40.7 kW) |
| Griddle Burners | 3 × “H” burners | 90,000 BTU/hr total |
| Oven Burner | 1 × cast-iron | 40,000 BTU/hr (Nat) / 35,000 BTU/hr (LP) |
| Griddle Plate | 34″ W × 26-7/8″ D × 1″ thick |
| Oven Interior (W × D × H) | 26-1/4″ × 29″ × 13-1/2″ (667 × 737 × 343 mm) |
| Overall Dimensions | 34″ W × 38″ D × 36-3/8″ H with NSF legs (864 × 965 × 924 mm) |
| Gas Connection | 1-1/4″ NPT front (rear connection kit optional) |
| Manifold Pressure | Nat 6″ WC | LP 10″ WC |
| Electrical | 120 VAC, 1-phase, <1 A for spark ignition |
| Certifications | NSF, CE, CSA Flame, CSA Star |
What’s Included
- One chrome oven rack
- Clip-on stainless backsplash
- Factory-installed flame-failure & electric ignition package
- User/installation manual
Popular Factory Options
- Fully or partially grooved griddle plate
- Convection oven base (model MST47RC-E)
- Stainless-steel oven interior
- 10″, 17″ or 33″ backguard, single or double high shelf
- Non-marking swivel casters with front brakes
- Rear gas connection & 5′ gas flex hose with quick-disconnect
