Key specifications

BTU
90,000 BTU
Amps
0.1 Amps
Phase
1-Phase
Dimensions
34.0"W × 31.5"D × 36.38"H
Type
Hot Top Range
Style
Storage Base
Spec sheet
Garland SKU: MST46S-E

Garland Master MST46S-E 34-Inch 2-Hot-Top Gas Range

$7,104.15
/each
Estimated to ship in 13–16 business days
Base / top configuration
Gas typeRequired
Electrical115 V · 1-phase · 60 Hz · 0.1 A
Gas regulator size
Spreader plates and cabinets
Gas Connector

Need something else? Contact us.

Included: Garland warranty 1-year limited warranty on most products; 2-year warranty on select equipment

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $657/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Top Range
Style Storage Base
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Size 34 in
Top Configuration Two 17 in Even Heat Hot Tops
BTU 90,000 BTU
Controls Separate Control Valves
Ignition Type Electric Ignition
Flame Failure Protection All Burners
Leg Height 6 in Adjustable
Voltage 115 Volts
Amps 0.1 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P

Description

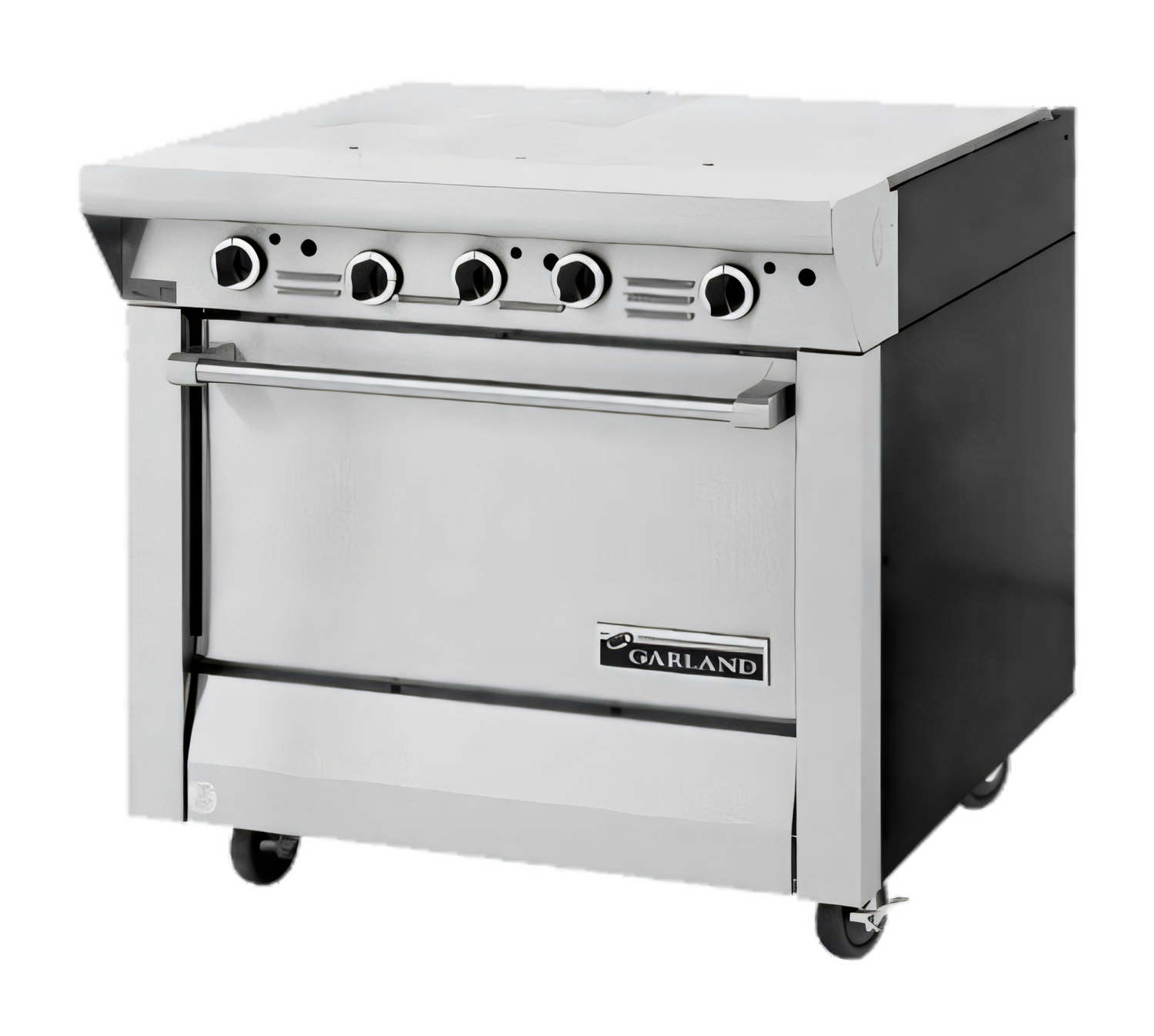

The Garland Master MST46S-E is a heavy-duty gas hot top range with two 17-inch even heat hot tops and a storage base.

  • Electric ignition and flame-failure protection are provided for all burners.
  • Stainless steel front and sides support a durable commercial range design.
  • The range includes 6-inch adjustable legs and a 90,000 BTU gas input rating.

Overall Dimensions:

34.0"W x 31.5"D x 36.38"H

Product Weight:

350.0 lb

Even Heat Hot Tops

Two 17-inch even heat hot tops provide the cooking surface.

Storage Base

Includes a storage base beneath the hot tops.

Electric Ignition

The suffix-E model includes electric spark ignition.

Flame-Failure Protection

Total flame-failure protection is provided for all burners.

Stainless Steel Front and Sides

The front and sides are stainless steel.

Adjustable Legs

Includes 6-inch adjustable legs.

Gas Input

Rated at 90,000 BTU.

Frequently Asked Questions

It has two 17-inch even heat hot tops.
Yes. This model includes a storage base.
The gas input rating is 90,000 BTU.
Yes. The suffix-E model uses electric spark ignition.
The ignition uses 115 Volts, 60 Hz, single-phase power at 0.1 Amps with a NEMA 5-15P cord and plug.
The product measures 34 in wide, 31.5 in deep, and 36.38 in high, with a listed weight of 350 lb.
