Garland MST46R-E Master Gas Ranges
Description

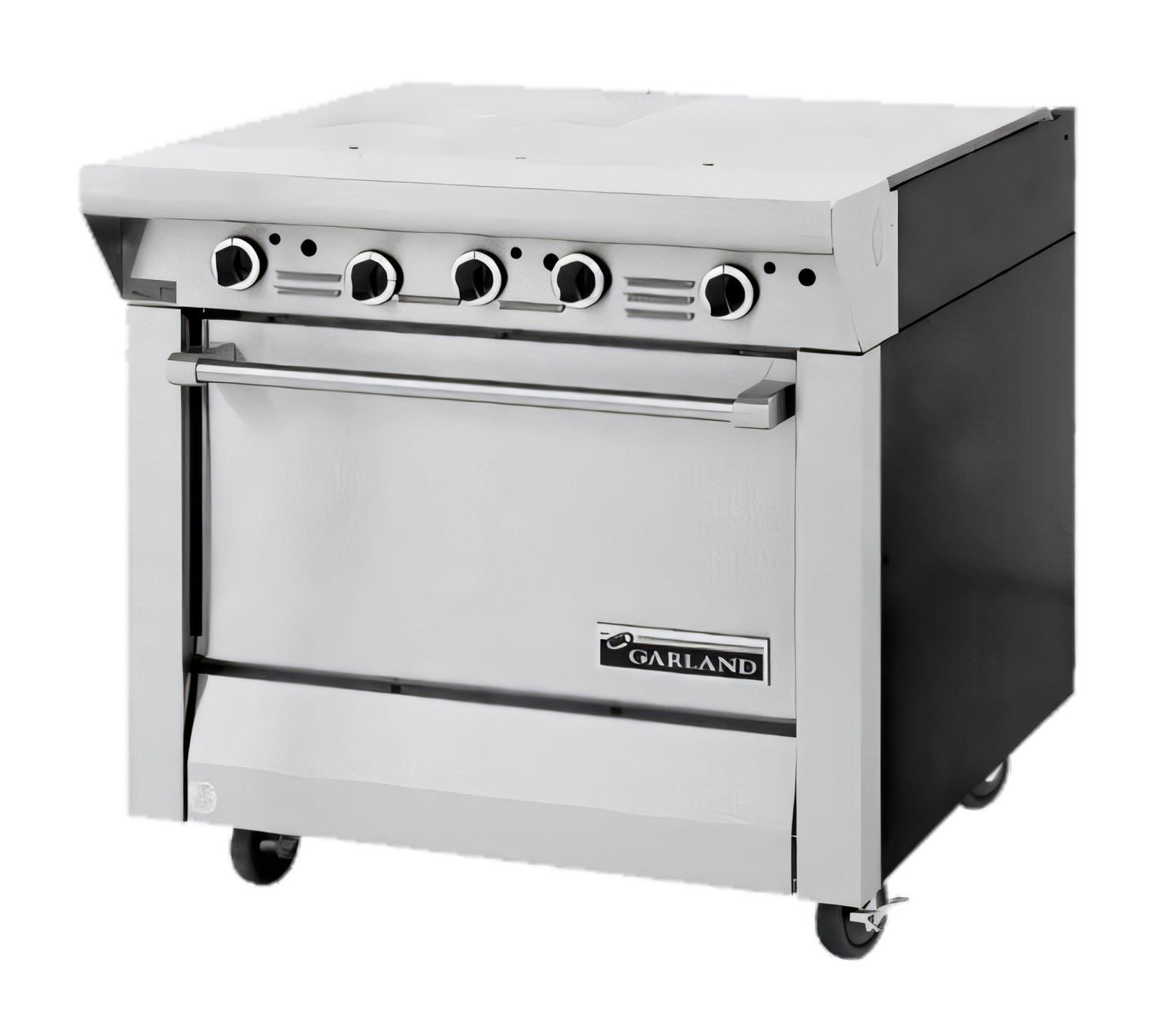

Garland Master Series 34" Heavy-Duty Hot Top Range
Model: MST46R-E (2 × 17" Even-Heat Hot Tops & Standard Oven)Built to thrive in the most demanding commercial kitchens, the Garland Master Series gas range delivers relentless, even heat across two oversized 17" hot top sections while a high-performance oven keeps entrées, sides and baked goods on schedule. Engineered for safety with electric spark ignition and full flame-failure protection, this 34" workhorse is the smart choice for chefs who refuse to compromise on power, durability or precision.
Why You’ll Love It
- Two 17" (432 mm) extra-heavy cast-iron hot tops—designed for “pan anywhere” flexibility and even heat distribution.
- Massive 130,000 BTU total output (natural or propane) to keep up with peak-hour production.
- Standard 40,000 BTU oven handles full-size sheet pans and roasts with ease.
- Electric spark ignition on every pilot for quick start-up; no standing pilots wasting energy.
- Sentry flame-failure system instantly shuts off gas should a flame be lost—meets the most stringent safety codes.
- All-stainless steel front, sides and 7-½" deep front rail for a clean, professional line-up.
- 6" (152 mm) NSF-approved stainless steel adjustable legs stabilize your cookline and simplify cleaning underneath.
- 1-¼" NPT front gas manifold allows easy battery connection to other Master Series units.
- Certified to CE, CSA Flame, CSA Star and NSF standards for global peace of mind.
Specifications
| Exterior width | 34" / 864 mm |
|---|---|
| Exterior depth (incl. rail) | 38" / 965 mm |
| Cooking surface height | 36-3/8" / 924 mm (with 6" legs) |
| Total input (natural gas) | 130,000 BTU / 38.1 kW |
| Hot tops (2 × cast iron) | 90,000 BTU combined |
| Standard oven burner | 40,000 BTU cast iron |
| Gas connection | 1-¼" NPT front manifold (rear optional) |
| Ignition | Electric spark, 120 V, 0.1 A |
| Safety | Sentry total flame-failure protection on all burners |
| Certifications | CE, CSA Flame, CSA Star, NSF |
| Shipping weight | ≈ 450 lb / 205 kg |
Factory Options & Accessories
- 33", 17" or 10" stainless steel backguards
- Single or double-deck tubular high shelves
- Rear gas connection kits (¾", 1" or 1-¼")
- Gas regulator, shut-off valve & flex-hose kit with quick disconnect
- Polyurethane or stainless swivel casters with front brakes
- Common front rail (multiple-unit battery installations)
- Additional oven racks or stainless oven interior upgrade
Need a custom line-up? Combine this range with other 34" Master Series tops, fryers or refrigerated bases for a seamless, high-production battery.
