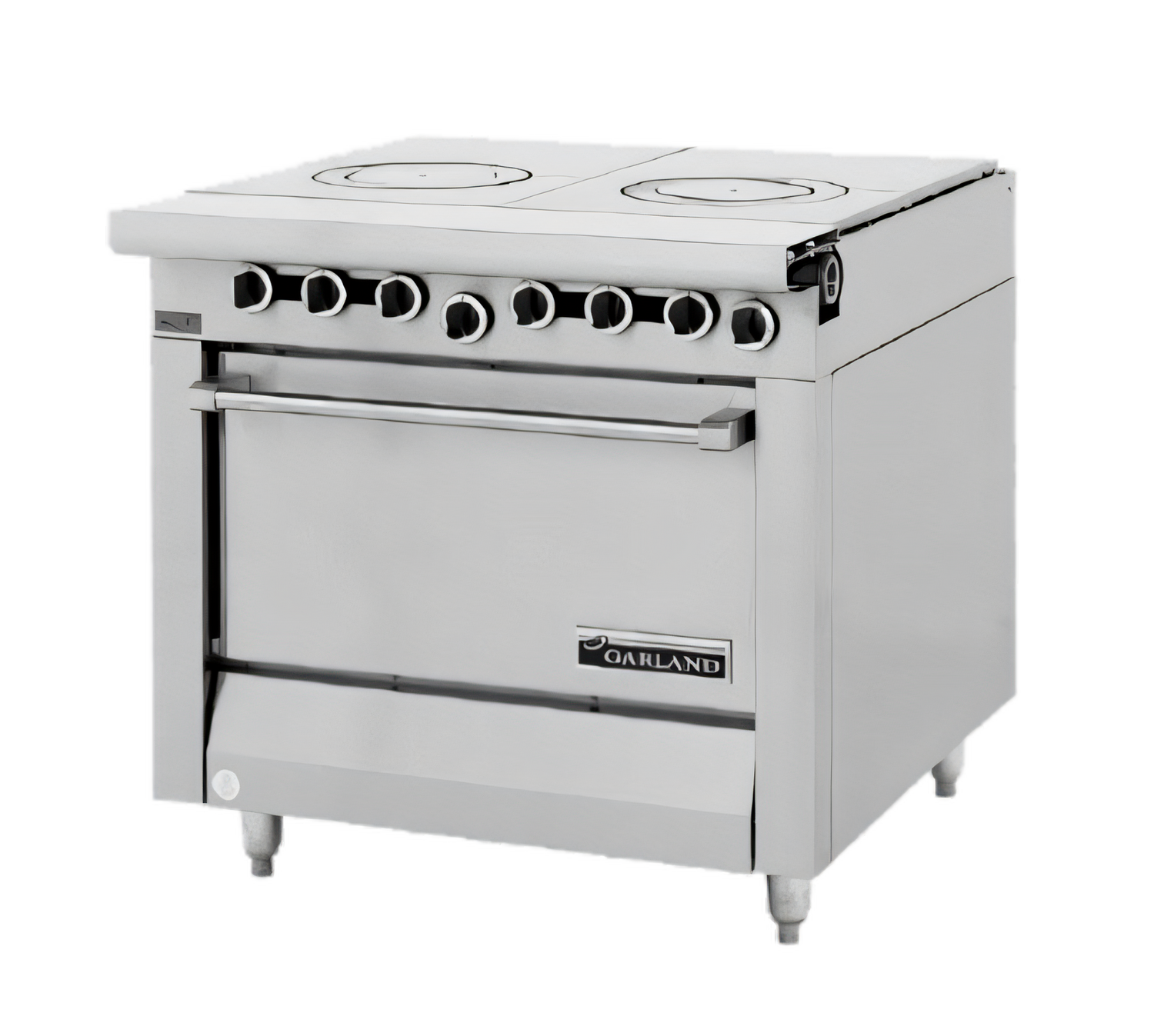

Garland Master Series 34″ Heavy-Duty Gas Range
Model MST45S-E • Dual 17″ Front-Fired Hot Tops • 90,000 BTU/hBuilt for the most demanding professional kitchens, the Garland Master Series MST45S-E pairs brute heating power with rock-solid construction and operator-focused safety. Two extra-heavy 17″ Spectro-Heat hot tops give chefs precise surface control, while the integrated storage cabinet keeps essential cookware at hand.
Key Features & Benefits
- Two 17″ (432 mm) front-fired Spectro-Heat hot tops for even, edge-to-edge heat.
- Six individually controlled jet burners (3 per section) deliver up to 90,000 BTU/h total.
- Removable cast-iron rings & lids let you switch instantly from full-surface cooking to open-flame work.
- Electric spark ignition on every pilot — no matches, faster start-ups.
- Sentry total flame-failure protection automatically shuts off gas if any pilot is lost.
- One-piece stainless-steel drip tray spans the full width for quick clean-up.
- Heavy-gauge aluminized radiation baffles maximize heat retention and recovery speed.
- Durable stainless-steel front, sides and 7-½″ front rail withstand daily abuse.
- Full-width storage cabinet (aluminized interior with shelf) keeps pans and stockpots organised.
- 6″ (152 mm) adjustable stainless-steel legs simplify leveling and floor cleaning.
- Field-battery ready — 1-¼″ NPT front gas manifold mates seamlessly with adjacent Master Series units.
- Safety & compliance: CE, CSA-Flame, CSA-Star & NSF certified.
Performance at a Glance
- Total input (Natural): 90,000 BTU/h*
- Total input (Propane, CSA): 60,000 BTU/h
- Operating pressure: 6″ WC (Natural) • 10″ WC (Propane)
- Electrical: 120 VAC, 0.1 A, factory-wired with NEMA 5-15P plug for ignition system
*CE-approved models are rated 80,000 BTU/h.
Technical Specifications
| Model | MST45S-E |
|---|---|
| Cooking surface | 2 × 17″ cast-iron hot tops with removable rings & lids |
| Overall width | 34″ (864 mm) |
| Overall depth | 38″ (965 mm) |
| Height w/ NSF legs | 36-3/8″ (924 mm) |
| Storage cabinet (W × D × H) | 26″ × 30-½″ × 20-½″ (665 × 773 × 519 mm) |
| Gas inlet | 1-¼″ NPT front (rear connection optional) |
| Combustible clearances | Sides 14″ (356 mm) • Back 6″ (152 mm) |
| Shipping weight | 410 lb (186 kg) |
Popular Factory Options & Accessories
- Backguard or single/double-deck high shelf (required for all Master Series ranges).
- Rear gas connection kit (¾″ or 1-¼″ NPT) with shut-off valve.
- Gas flex hose & quick disconnect with restraining device.
- Polyurethane non-marking swivel casters with front brakes.
- Stainless-steel common front rail for battery installations up to 102″ wide.
- Stainless-steel main back & oven interior upgrades.
Important: All Master Series ranges must be fitted with an approved backguard or high shelf and installed with a certified gas restraining device when casters are used. Follow all local codes and Garland installation instructions.
