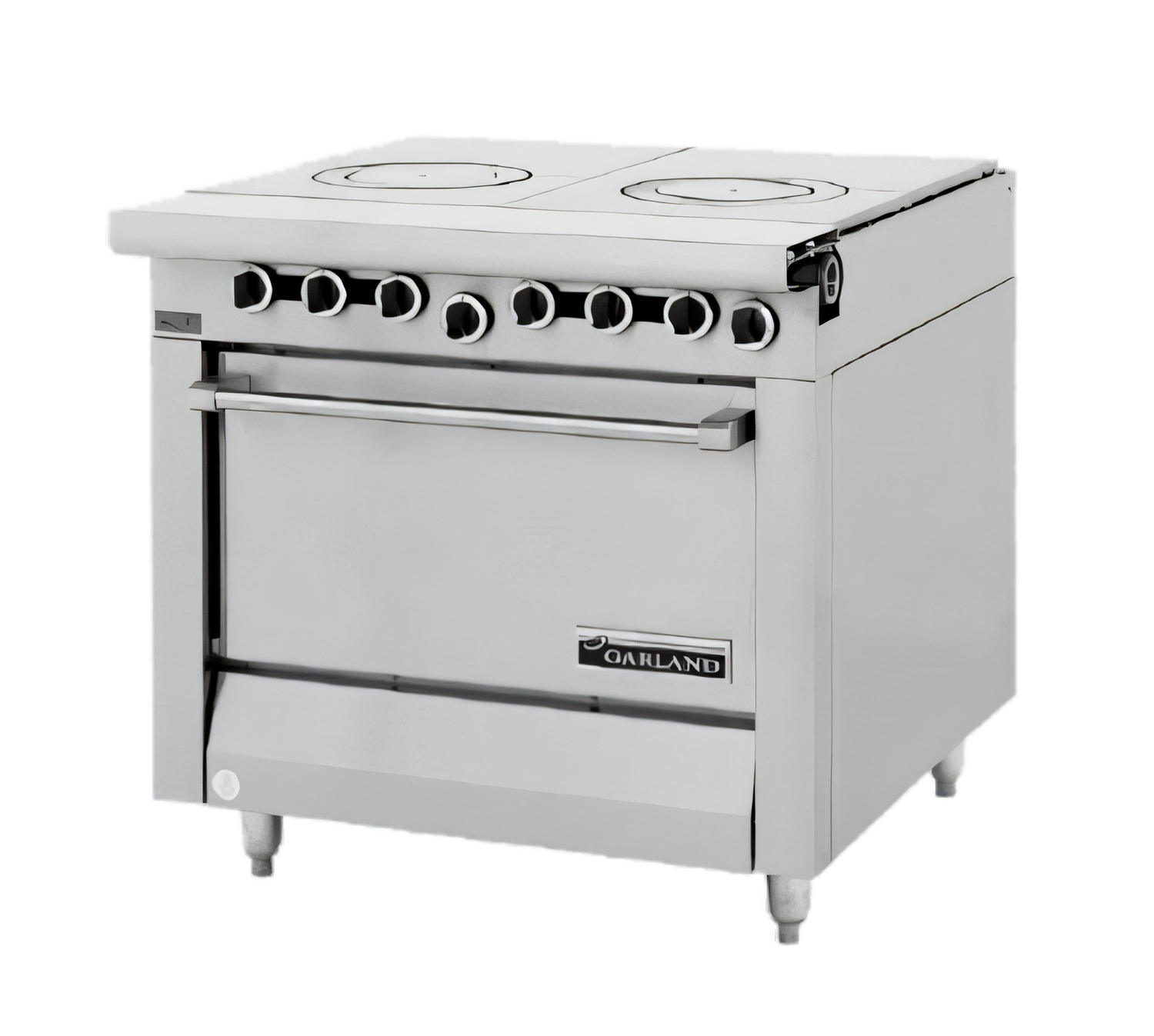

Garland Master Series Heavy Duty 34-Inch Gas Range with Two Front-Fired Hot Tops and Standard Oven, Electric Spark Ignition

Stainless Steel Front and Sides, 6-Inch Adjustable Legs, Flame Failure Protection

Built for high-volume kitchens, this heavy-duty 34-inch gas range pairs two front-fired hot tops with a standard oven and electric spark ignition for dependable daily cooking.

  • Two 17-inch front-fired hot tops deliver versatile, high-output cooking surface space.
  • Includes one standard oven with porcelain enamel interior and a 40,000 BTU cast iron burner.
  • Electric spark ignition on all pilots adds convenience and reliability on the -E model.
  • Sentry total flame failure protection helps improve burner safety.
  • Stainless steel front and sides, plus removable cast iron rings and lids, support long-term durability and easier cleanup.
  • 6-inch adjustable chrome steel legs and a stainless steel drip tray help simplify installation and maintenance.

Overall Dimensions:

34.0"W x 31.5"D x 30.38"H

Product Weight:

510.0 lb

Two Front-Fired Hot Tops

Includes two 17-inch cast iron hot top sections with individually controlled jet burners for flexible high-heat cooking.

Standard Oven

A porcelain enamel oven interior with a 40,000 BTU cast iron oven burner provides reliable baking and roasting capacity.

Electric Spark Ignition On All Pilots

The -E version adds electric spark ignition on all pilots for easier startup.

Flame Failure Protection

Sentry total flame failure protection helps shut off gas if a burner flame goes out.

Stainless Steel Exterior

Stainless steel front and sides are built for commercial durability and easier cleaning.

Removable Cast Iron Rings And Lids

Cast iron rings and lids lift out for simpler cleaning and service access.

Heavy-Duty Base Components

6-inch adjustable chrome steel legs and a one-piece stainless steel drip tray support daily kitchen use.

High Output Gas Input

Total input is 120,000 BTU for natural gas installations.

Type Gas Range
Style Front-Fired Hot Top
Installation Type Floor Model
Material Stainless Steel
Interior Finish Porcelain Enamel
BTU 120,000 BTU
Gas Connection Size 1-1/4 Inches NPT
Voltage 120 Volts
Amps 0.1 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 34 Inches
Shipping Depth 32 Inches
Shipping Height 31 Inches
Shipping Weight 510 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Check list PDF Download

Frequently Asked Questions

It has two 17-inch front-fired hot tops, each with three individually controlled jet burners.
Yes. It includes one standard oven with a porcelain enamel interior and a 40,000 BTU cast iron burner.
The -E model adds electric spark ignition on all pilots.
Models with suffix E use 120 VAC single phase at 0.1 amps with a NEMA 5-15P plug. 230 VAC 50 Hz units are direct connect at 0.05 amps.
The listed combustible wall clearances are 14 inches on the sides and 6 inches on the back.
The operating pressure is 6 inches W.C. for natural gas and 10 inches W.C. for propane.
