Description

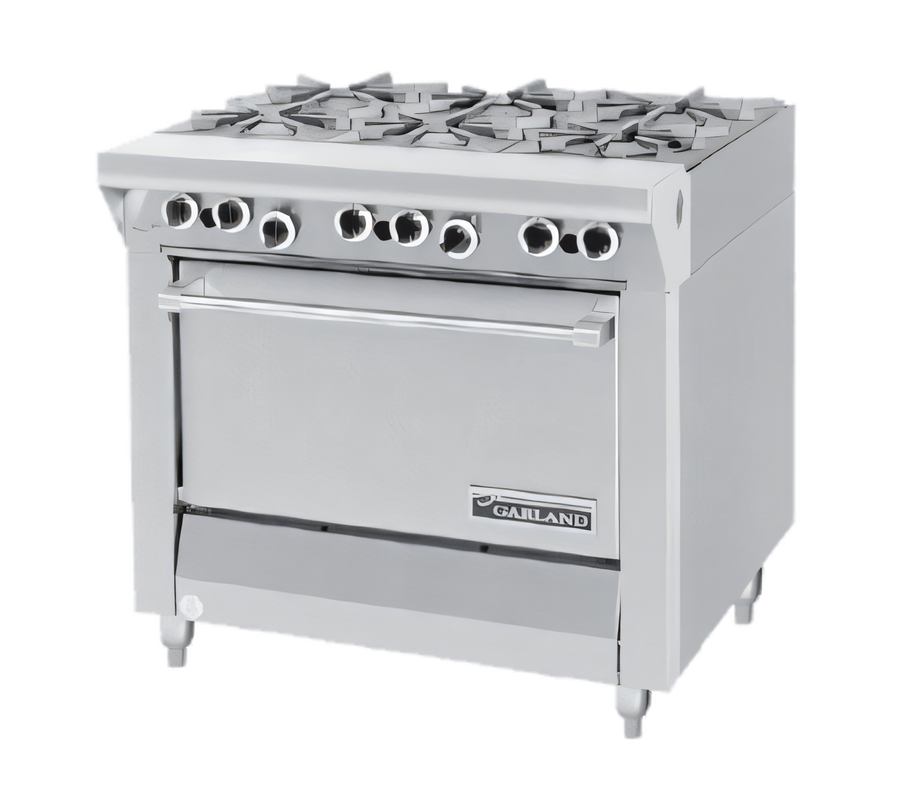

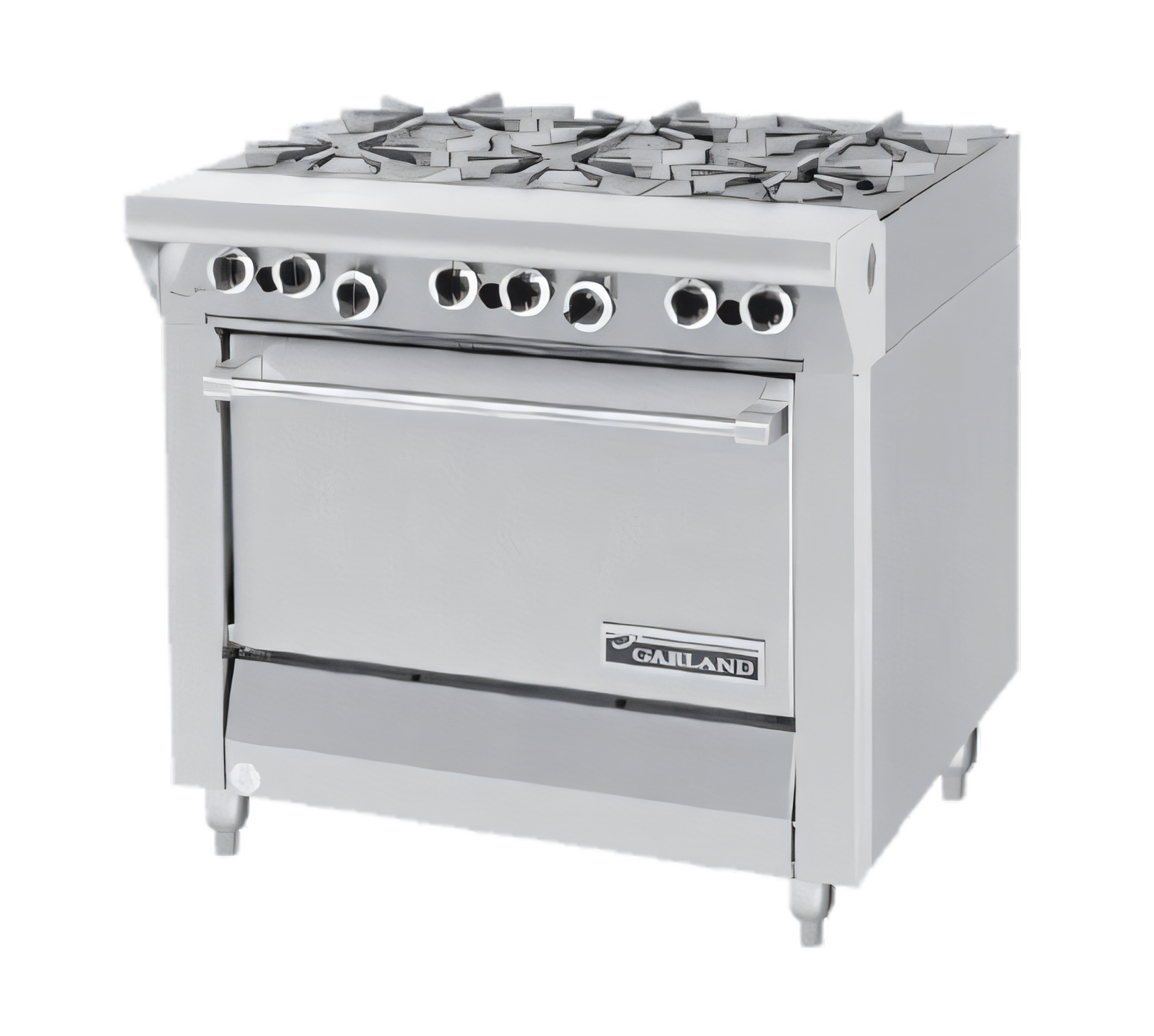

Garland Master Series 34" Heavy-Duty Gas Range with 6 Open Star Burners & Standard Oven

Model MST43R-E  |  184,000 BTU Total Input

Built for high-volume kitchens that refuse to compromise, the Garland Master Series MST43R-E pairs six blistering-hot Starfire burners with a full-size oven—delivering relentless performance in just 34 inches of line space.

Key Features

  • Six 24,000 BTU open Starfire burners for rapid boil, sear, or sauté.
  • 40,000 BTU standard oven with porcelainized cavity for easy clean-ups.
  • Sentry total flame-failure protection & electronic spark ignition on all pilots (suffix “-E”).
  • Heavy-duty cast-iron top grates + removable ring grate bowls.
  • One-piece stainless steel drip tray spans the full cooking width.
  • 7-1/2" deep stainless front rail doubles as a plating shelf.
  • Durable stainless steel front & sides; 6" chrome-plated adjustable legs.
  • 1-1/4" NPT front gas manifold—ideal for battery line-ups; rear connection optional.
  • Field convertible for Natural or Propane gas.
  • NSF, CSA Star, CSA Flame & CE certified.

Chef-Centric Benefits

  • Compact powerhouse — 34" wide yet cranks out 184,000 BTU/h.
  • Wide hi/lo valves give you true simmer-to-sear control on every burner.
  • Three-position oven rack handles everything from delicate pastries to heavy roasting pans.
  • Front-mounted controls and drip tray streamline end-of-shift clean-downs.

Specifications

Exterior width 34" / 864 mm
Exterior depth 38" / 965 mm (incl. 7-1/2" front rail)
Height (with 6" legs) 36-1/4" / 921 mm
Oven interior (W × D × H) 26-1/4" × 29" × 13-1/2" (667 × 737 × 343 mm)
Open burners 6 × 24,000 BTU (7.03 kW) – Natural
6 × 20,000 BTU (5.86 kW) – Propane
Oven burner 40,000 BTU (11.72 kW) – Natural
35,000 BTU (10.25 kW) – Propane
Total input (Natural) 184,000 BTU/h  (53.9 kW)
Gas connection 1-1/4" NPT front manifold (rear optional)
Operating pressure Natural 6" WC (15 mbar)  |  Propane 10" WC (25 mbar)
Ignition Electronic spark (all pilots)
Certifications NSF, CSA Star, CSA Flame, CE
Shipping weight Approx. 440 lb / 200 kg

Factory Options & Accessories

  • Rear gas inlet (3/4", 1", or 1-1/4" NPT)
  • Stainless steel backguard – 10", 17" or 33" heights
  • Single or double-deck tubular high shelf
  • Convection oven base (add “C” to model)
  • Non-marking swivel casters with front brakes
  • Common front rail for battery installs (up to 102")

Looking for a custom battery or special configuration? Click the “Contact us” button and our food-service specialists will get you a same-day quote.

Installation note: Units supplied with casters must be secured with an approved restraining device. This appliance is designed for commercial use only and is not approved for residential applications.

Features & Specs

Manufacturer

Garland

Brand_name

Master

Certifications

NSF, CE, CSA Star, CSA Flame

Height

36.38in

Width

34.0in

Depth

38.0in

Shipping Weight

440.0lbs

Base

(1) standard oven

Exterior Finish

stainless steel front & sides

Top

(6) open burners

Specifications

Master Series Heavy Duty Range, gas, 34", (6) 24,000 BTU open burners, standard oven, electric ignition & flame fail all burners, stainless steel front & sides 6" legs, 184,000 BTU, CE, CSA Flame, CSA Star, NSF (Garland)
