Garland MST42R-E Master Gas Ranges
Description

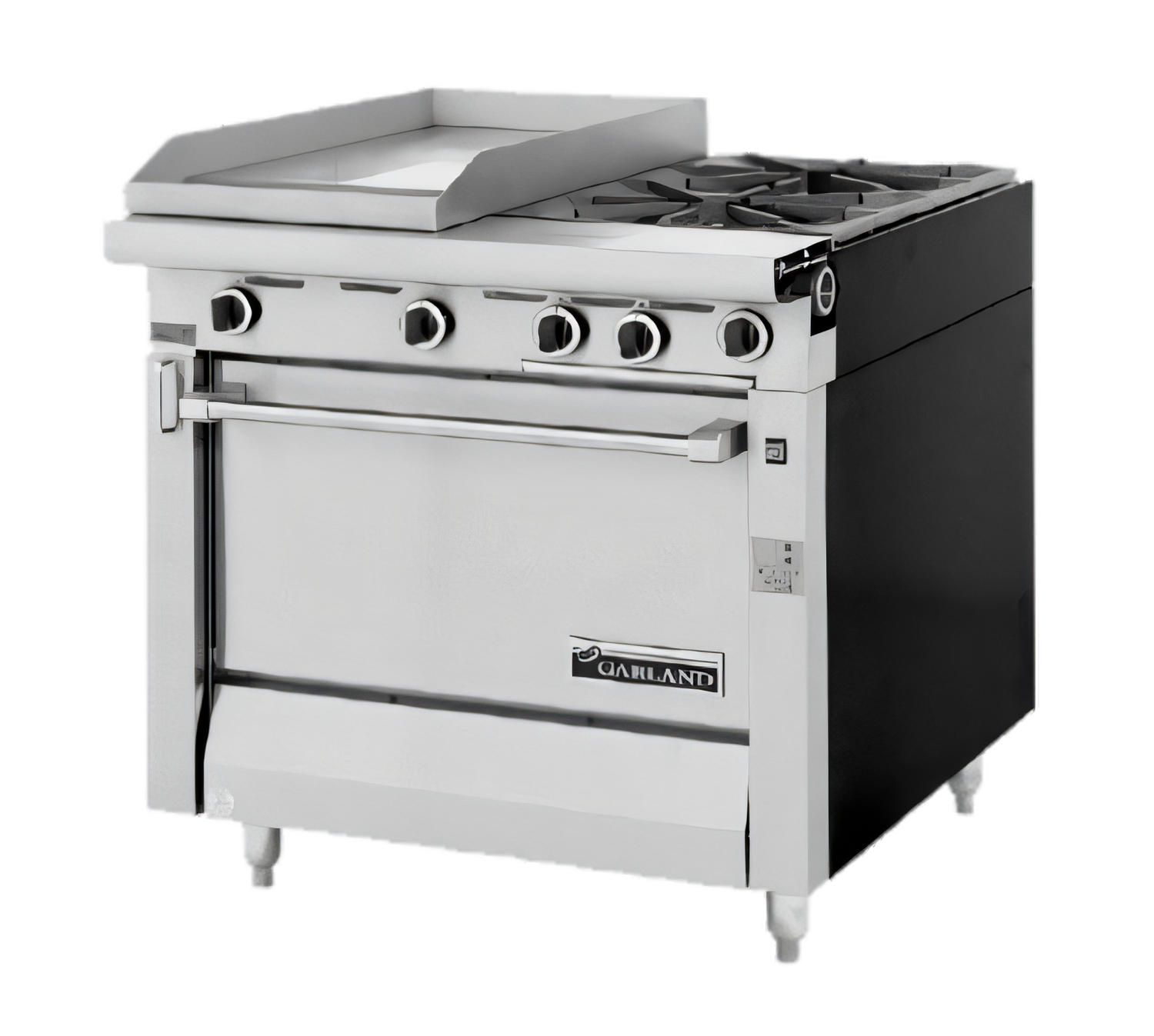

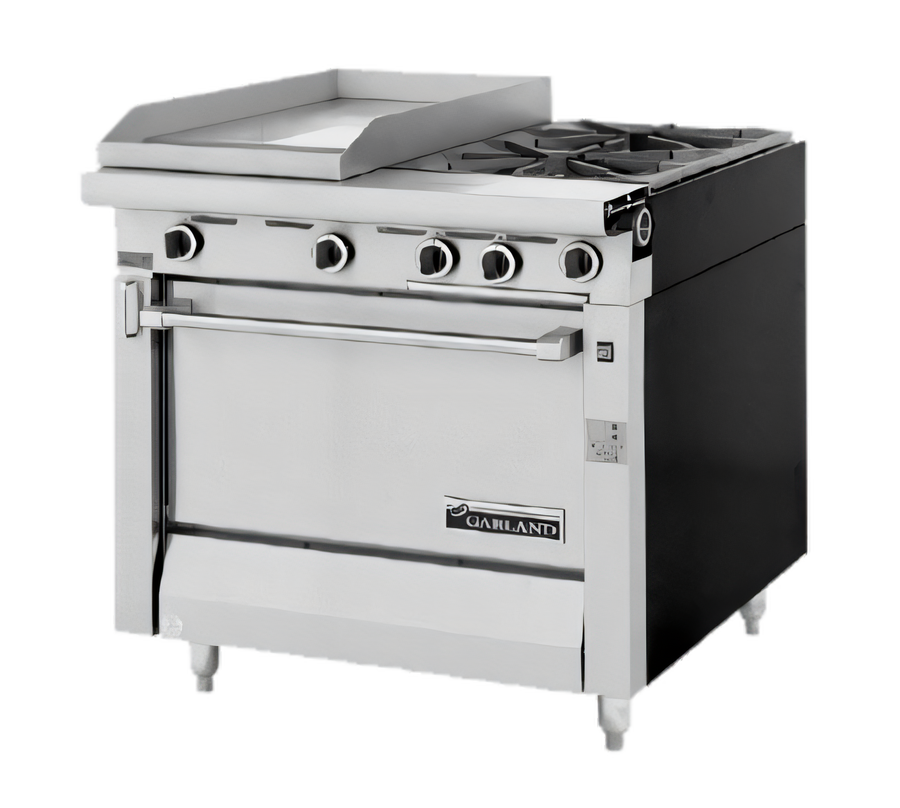

Garland Master Series 34" Heavy-Duty Gas Range
Model MST42R-E • 2 Starfire Burners / 17" Griddle / Standard Oven • 143,000 BTUEngineered for relentless, high-volume service, the Garland Master Series MST42R-E delivers uncompromising cooking power and flexibility in a compact 34 inch footprint. Two 35,000 BTU Starfire™ open burners, a full-thickness 17 inch griddle, and a 40,000 BTU standard oven let you boil, sauté, sear, grill and bake simultaneously—while Sentry flame-failure protection and all-electric spark ignition keep every shift safe and seamless.
Why you’ll love it
- Two CSA-approved 35,000 BTU Starfire™ open burners with removable heads for effortless cleaning.
- 17" (432 mm) wide griddle with a 1" (25 mm) thick steel plate and 30,000 BTU “H”-type burner—ideal for breakfast staples, smash burgers or finishing steaks.
- Full-size standard oven (26-1/4" W × 29" D × 13-1/2" H) with porcelain-enamel interior and a 40,000 BTU cast-iron burner; thermostat-controlled 150-550 °F cooking range.
- All pilots ignite with a reliable electric spark; Sentry total flame-failure protection shuts off gas if a flame is lost.
- Rugged stainless steel front, sides & 7-1/2" deep front rail stand up to daily abuse and wipe down fast.
- 6" (152 mm) chrome-plated, adjustable legs for quick leveling on uneven floors.
- Front 1-1/4" NPT gas manifold for straightforward hook-up; optional rear gas connection kits available.
- Grease & crumb management: stainless drip tray under burners plus a front-mounted grease drawer for the griddle.
- Certified safe & sanitary: CE, CSA-Flame, CSA-Star and NSF listed.
Technical specifications
| Gas type | Natural or Propane (specify at order) |
|---|---|
| Total input | 143,000 BTU/h (41.9 kW) |
| Open burners | 2 × 35,000 BTU Starfire™ (70,000 BTU total) |
| Griddle section | 17" W × 25" D, 1" thick steel plate, 30,000 BTU “H” burner |
| Oven | Standard, 40,000 BTU cast-iron burner (Natural gas) / 35,000 BTU (Propane) |
| Dimensions (W × D × H) | 34" × 38" × 36-3/8" (864 × 965 × 924 mm) with NSF legs |
| Cooking surface height | 36-3/8" (924 mm) |
| Gas connection | 1-1/4" NPT front manifold (rear optional) |
| Operating pressure | Natural 6" WC / Propane 10" WC |
| Ignition | 120 V single-phase, 1 A electric spark (export 230 V, 50 Hz) |
| Certifications | NSF, CE, CSA Flame, CSA Star |
| Ship weight | Approx. 520 lb (236 kg) |
Popular options & accessories
- Stainless steel backguard – 10", 17" or 33"
- Fully grooved griddle plate
- Stainless steel oven interior or extra oven rack
- Rear gas connection kit, gas regulator or quick-disconnect hose (3/4", 1" or 1-1/4")
- Polyurethane swivel casters with front brakes (set of 4 – includes restraining device)
- Stainless steel high-shelf (single or double deck)
Garland reserves the right to modify specifications or designs without notice. Always consult your local codes and the installation manual before ordering or installing this equipment.
