Garland MCO-GS-20-S-SIGNATURE Signature Convection Ovens
Description

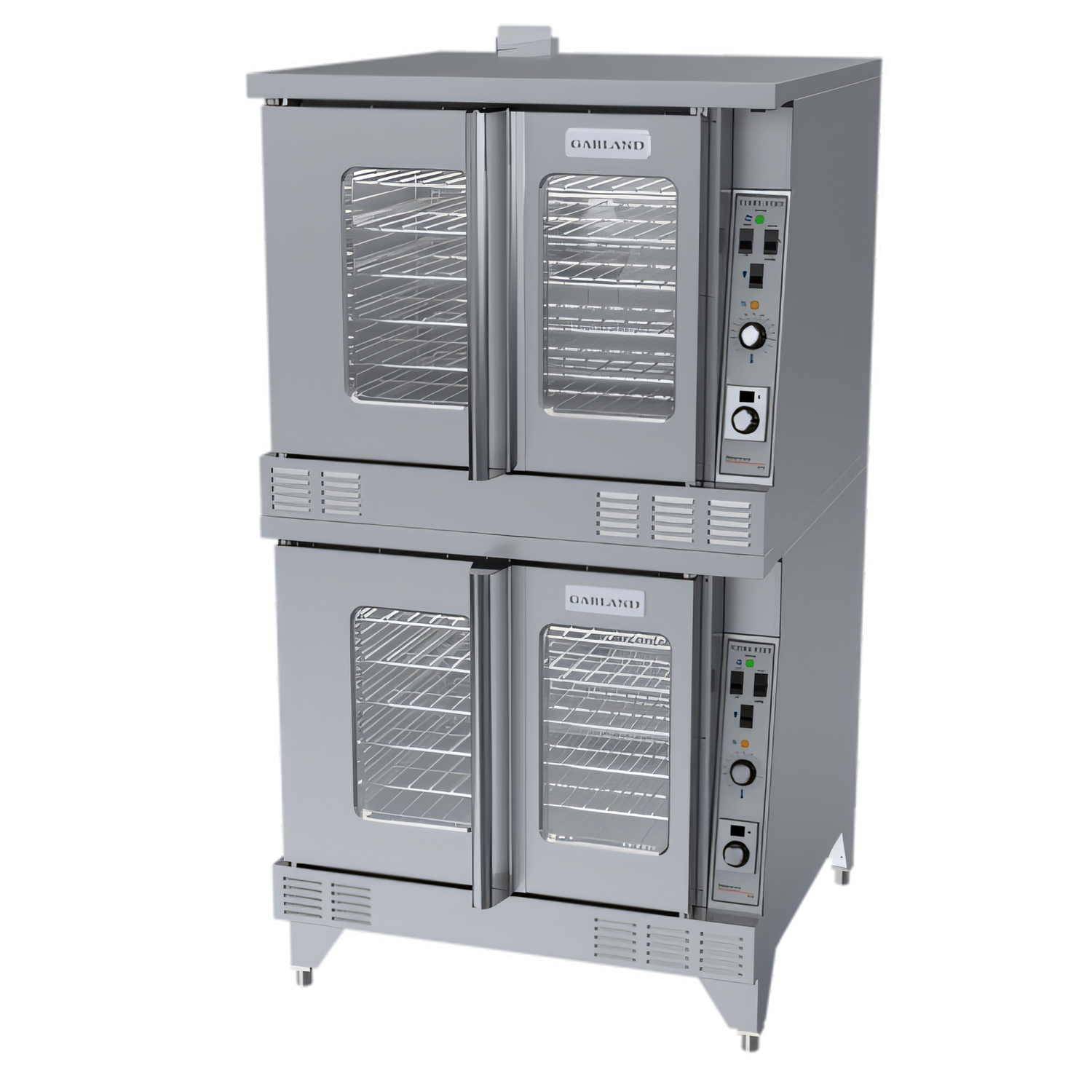

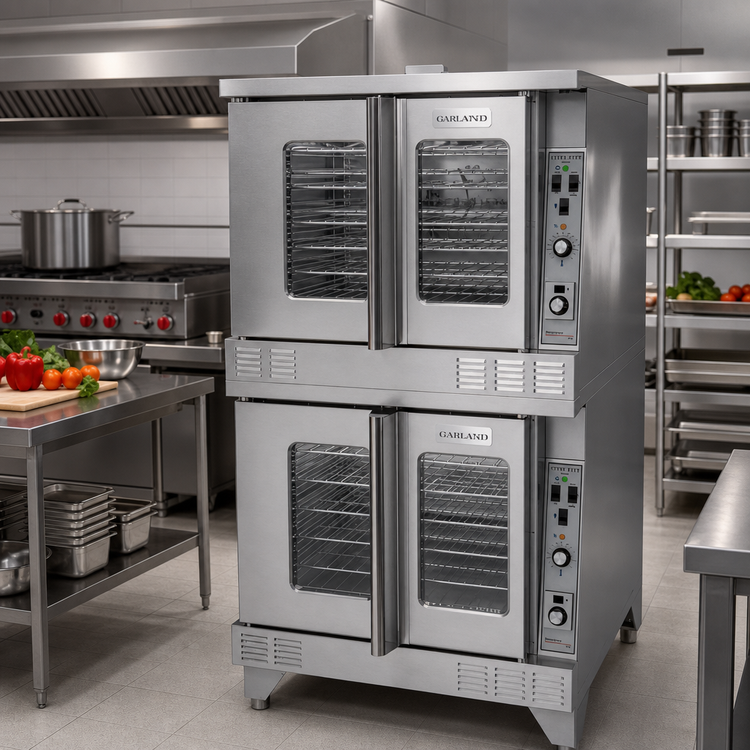

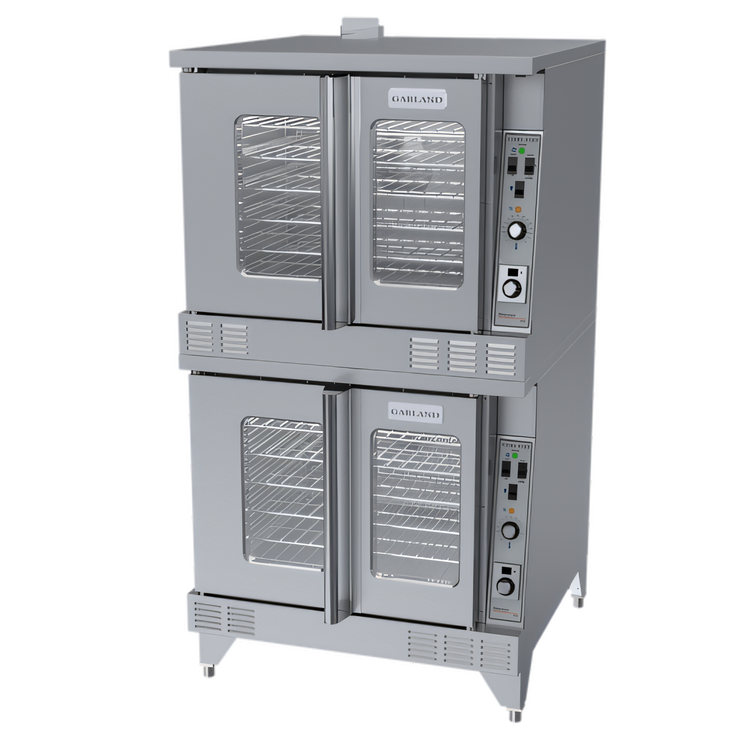

Signature Master Series Double-Deck Gas Convection Oven
Garland Model Signature | Standard-Depth 41-1/2"Bring unmatched throughput and rock-solid reliability to your kitchen with Garland’s Signature Master Series double-stack convection oven. Two independent 60 000 BTU cavities, precision Master 200 solid-state controls, and a powerful 2-speed fan system work together to deliver perfectly even baking, roasting, or retherm every single time.
Highlights
- 120 000 BTU total input (60 000 BTU per cavity) for rapid heat-up and recovery.

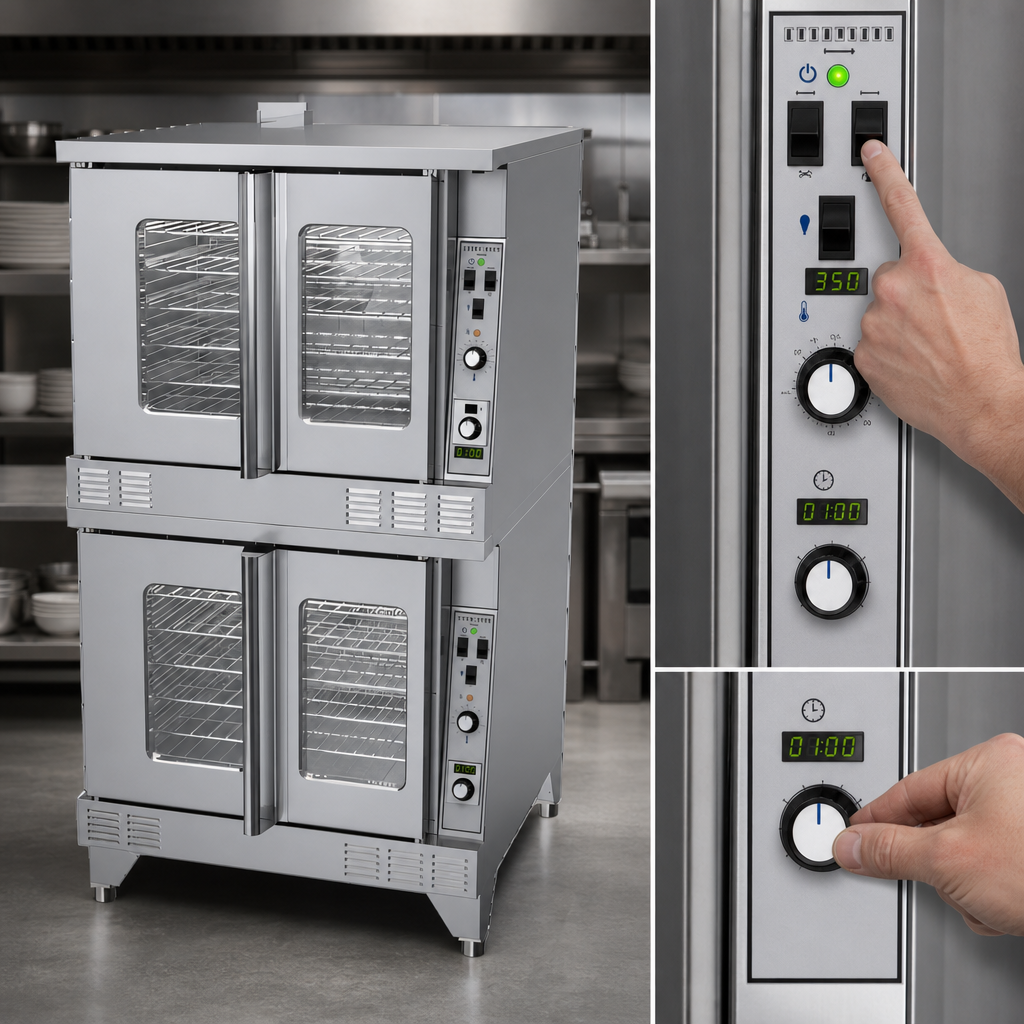

- Master 200 solid-state digital controls: 150 °F – 500 °F (66 °C – 260 °C) range + 1-hour timer.
- Direct-spark ignition with 100 % safety shut-off for worry-free starts.
- 0.6 HP, 2-speed fan motor (high/low) drives Garland’s patented serpentine airflow for superior, edge-to-edge baking consistency.
- 24"-high porcelain-enameled cavities with coved corners—easy to clean, easier to load.
- Six chrome-plated racks per deck (12 total) on 13-position guides—flexibility for every pan size.
- 60/40 dependent doors with double-pane thermal windows and Garland’s patented “Safety Door System” for smooth, one-handed operation.
- All stainless steel front, sides, top and 6-1/2" adjustable legs for long-term durability.
- UL, cUL & NSF listed for commercial kitchens.
At-a-Glance Specs

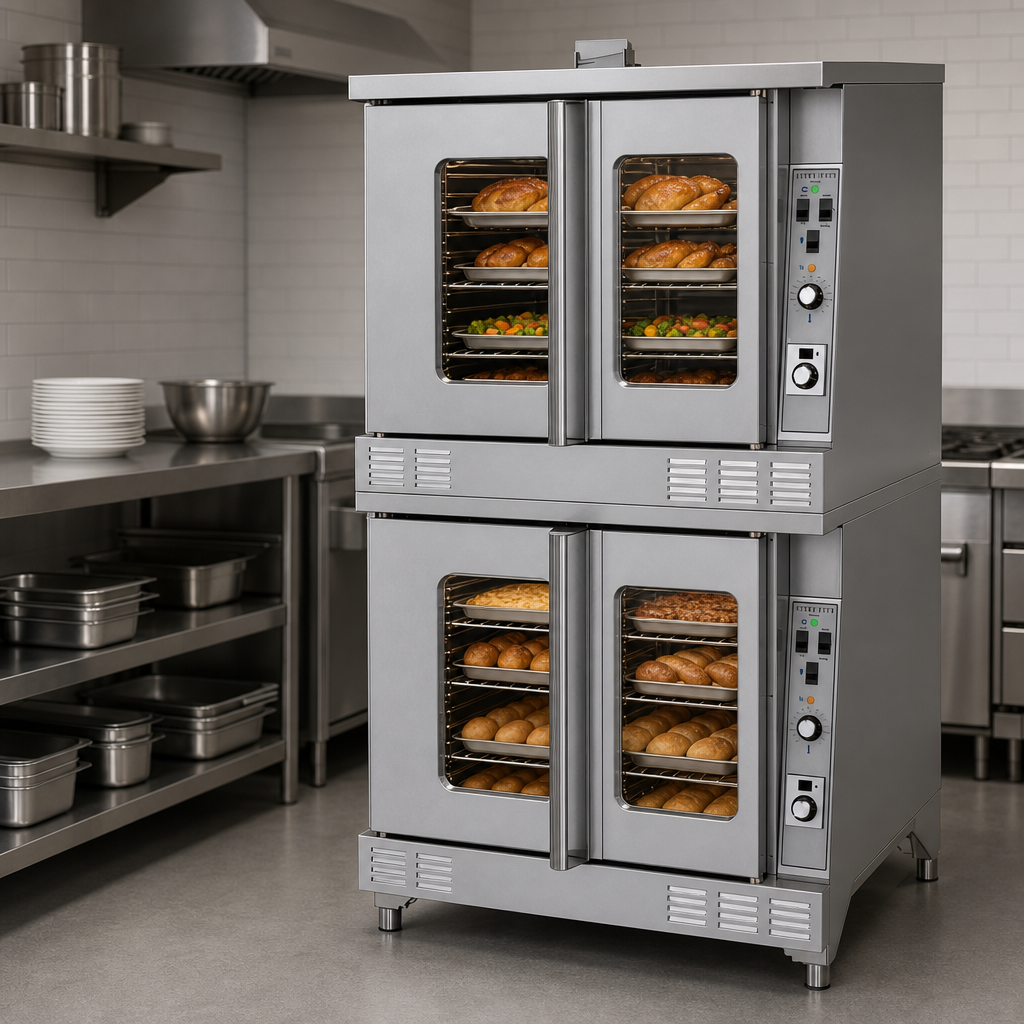

| Configuration | Double-deck, standard-depth |
|---|---|
| Total Heat Output | 120 000 BTU/hr (35.2 kW) |
| Cooking Chamber (each) | 29" W × 24" H × 24" D (736 × 610 × 610 mm) |
| Exterior Dimensions* | 38" W × 70-1/2" H × 41-1/2" D (965 × 1 791 × 1 054 mm) |
| Gas Connection | 1" NPT, Natural or Propane † |
| Electrical | (2) × 120 V, 1 ph, 9.8 A line cords (NEMA 5-15P) |
| Rack Capacity | 6 supplied / 13 positions per deck |
| Fan Motor | 0.6 HP, 2-speed (1 140 & 1 725 RPM) |
| Clearances ‡ | 1" sides, 3" rear (6" right side if next to high-heat equipment) |
| Certifications | UL Gas-Fired, cUL, NSF |
| Warranty | 2-yr parts / 1-yr labor • 5-yr door (excludes glass) |
Popular Options & Accessories
- 80 000 BTU high-output burner package (natural gas).
- Extra chrome racks.
- Swivel or low-profile caster kits (front brakes).
- Stainless steel solid doors (no charge substitution).
- Stainless steel open stand with rack guides.
- 3/4" gas flex hose & quick-disconnect kit.
*Height shown with standard 6-1/2" legs.
†Specify gas type when ordering.
‡Clearances apply to combustible surfaces. Always consult the installation manual for full
ventilation, leveling, and plumbing requirements.
