Garland MCO-GS-20-S Master Convection Ovens
Description

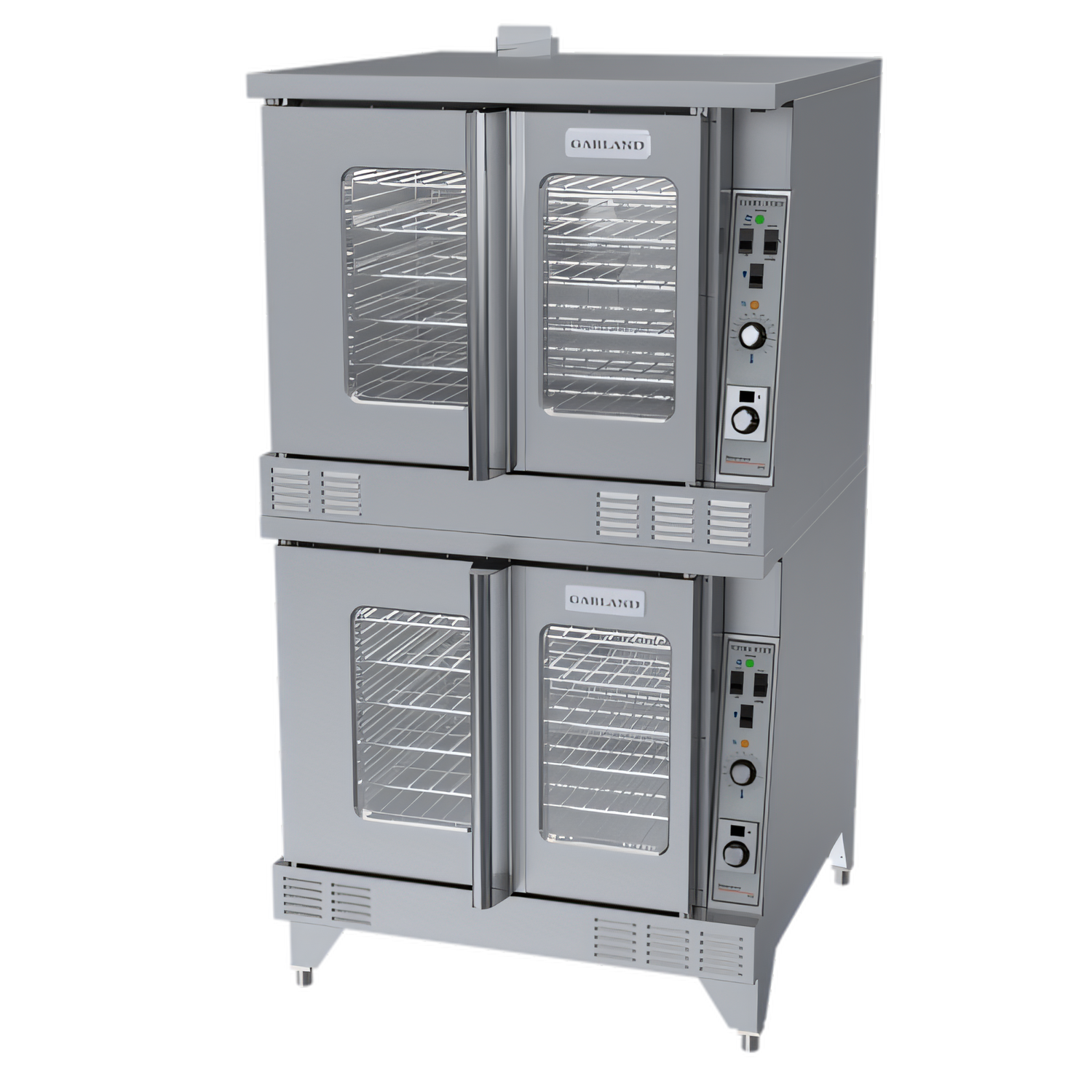

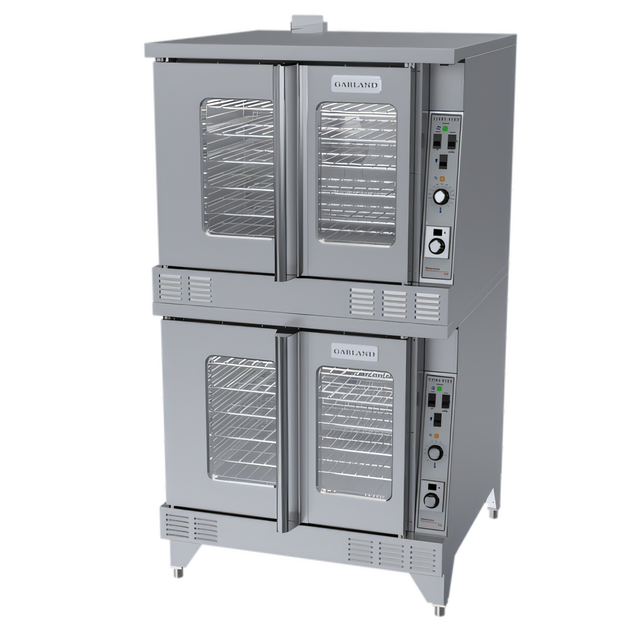

Garland Master Series Double-Deck Gas Convection Oven
Model MCO-GS-20-S | 120,000 BTU | Standard DepthEngineered for high-volume kitchens that refuse to compromise on consistency, the Garland Master Series double-deck convection oven delivers 120,000 BTU of even, efficient heat in two independent 24-inch-high cavities—all inside a rugged, all-stainless cabinet that fits a 38″-wide footprint. Master 200 controls, a two-speed fan and the patented Safety Door System give chefs the precision and performance needed for flawless results every time.
Key Advantages
- Master 200 solid-state digital controls with 150 °F–500 °F (66 °C–260 °C) range & 60-minute timer
- Direct-spark electronic ignition with 100 % safety shut-off for worry-free start-ups
- Two-speed 0.6 HP fan motor in each deck—choose gentle bake or high-velocity roast at the touch of a button
- Six chrome-plated racks per cavity on 13-position guides; top rack only 60″ from the floor for easy access
- Reinforced 60/40 dependent doors with double-pane thermal windows and full-length positive-lock hinge
- Patented “Safety Door System” stops the fan when doors open more than 3″ for operator protection
- Seamless porcelain-enameled liner with coved corners wipes clean in seconds
- Heavy-gauge stainless steel front, sides, top and 6-½″ adjustable legs built for a lifetime on the line
- Field convertible for natural or propane gas
- UL, cUL Gas-Fired & NSF listed to meet every code requirement
Technical Specifications
| Configuration | Double deck, full-size, standard depth |
|---|---|
| Total Heat Input | 120,000 BTU/hr (35.2 kW) — 60,000 BTU per cavity |
| Cavity Dimensions (W × H × D) | 29″ × 24″ × 24″ (736 × 610 × 610 mm) |
| Racks / Guides | 6 chrome racks · 13-position rack guides per cavity |
| Controls | Master 200 digital, 150–500 °F, 60-min timer, 2-speed fan selector |
| Exterior Dimensions (W × H × D) | 38″ × 70-1/2″ × 41-1/4″ (965 × 1 791 × 1 048 mm) incl. legs |
| Gas Connection | 1″ NPT rear manifold · Manifold pressure: 4.5″ WC Nat / 10″ WC LP |
| Electrical | 120 V, 1-phase, 9.8 A per deck (6 ft cord & NEMA 5-15P plug supplied) Optional 208–240 V, 1-phase, 5.2 A per deck |
| Certifications | UL · cUL · NSF |
| Warranty | 2-year parts & 1-year labor + 5-year limited door (excludes glass) |
Want mobility or extra storage? Ask about factory-installed swivel casters, open bases, direct-connect vents and additional oven racks.
