Garland MCO-GD-20-S Master Convection Ovens
Description

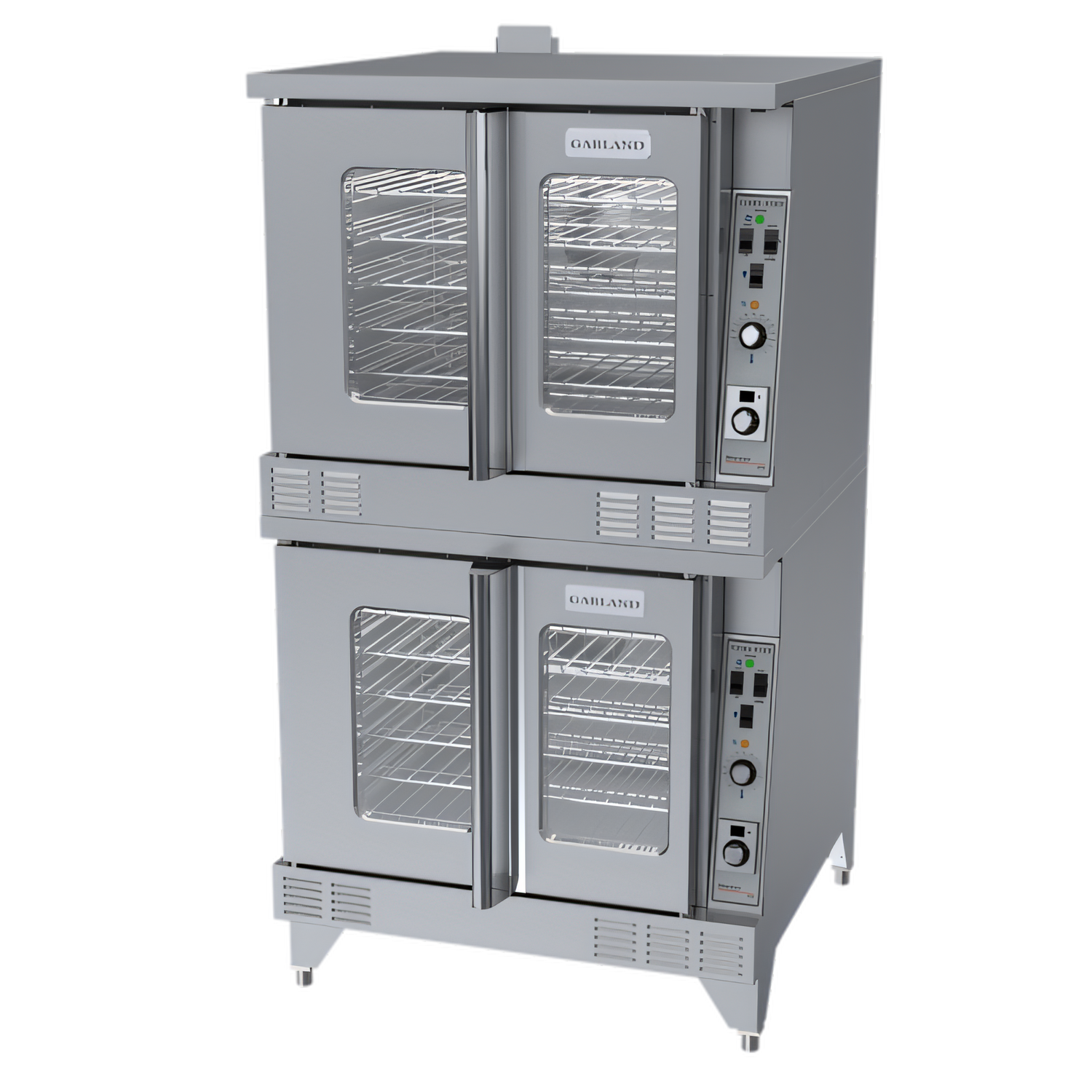

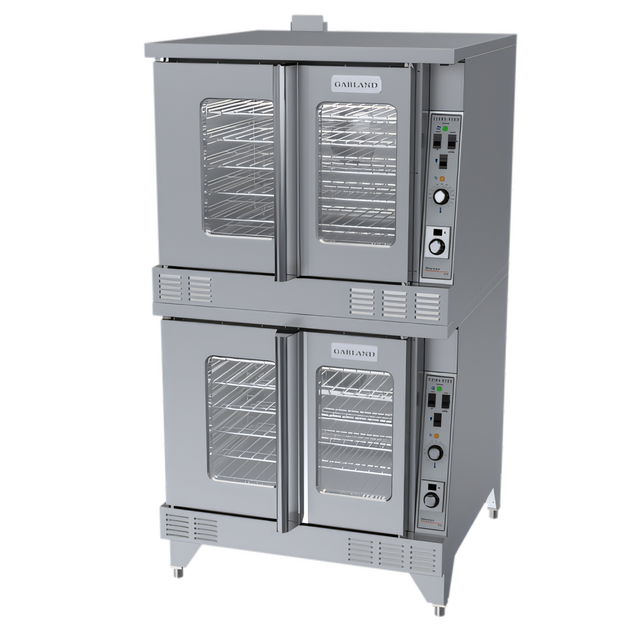

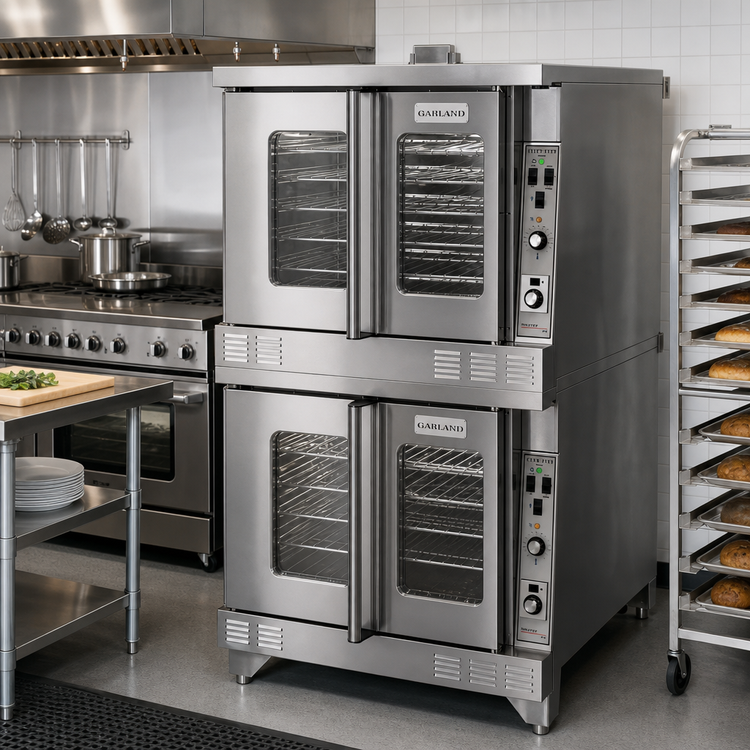

Garland Master Series Double-Deck Deep-Depth Gas Convection Oven – 120,000 BTU
Model MCO-GD-20-SBuilt for high-volume, high-precision production, the Master Series MCO-GD-20-S from Garland brings two full-size, deep-depth convection cavities together under one rugged stainless-steel frame. With powerful, even heat and intuitive Master 200 digital controls, it delivers flawless baking, roasting and finishing every shift.
Key Features & Benefits

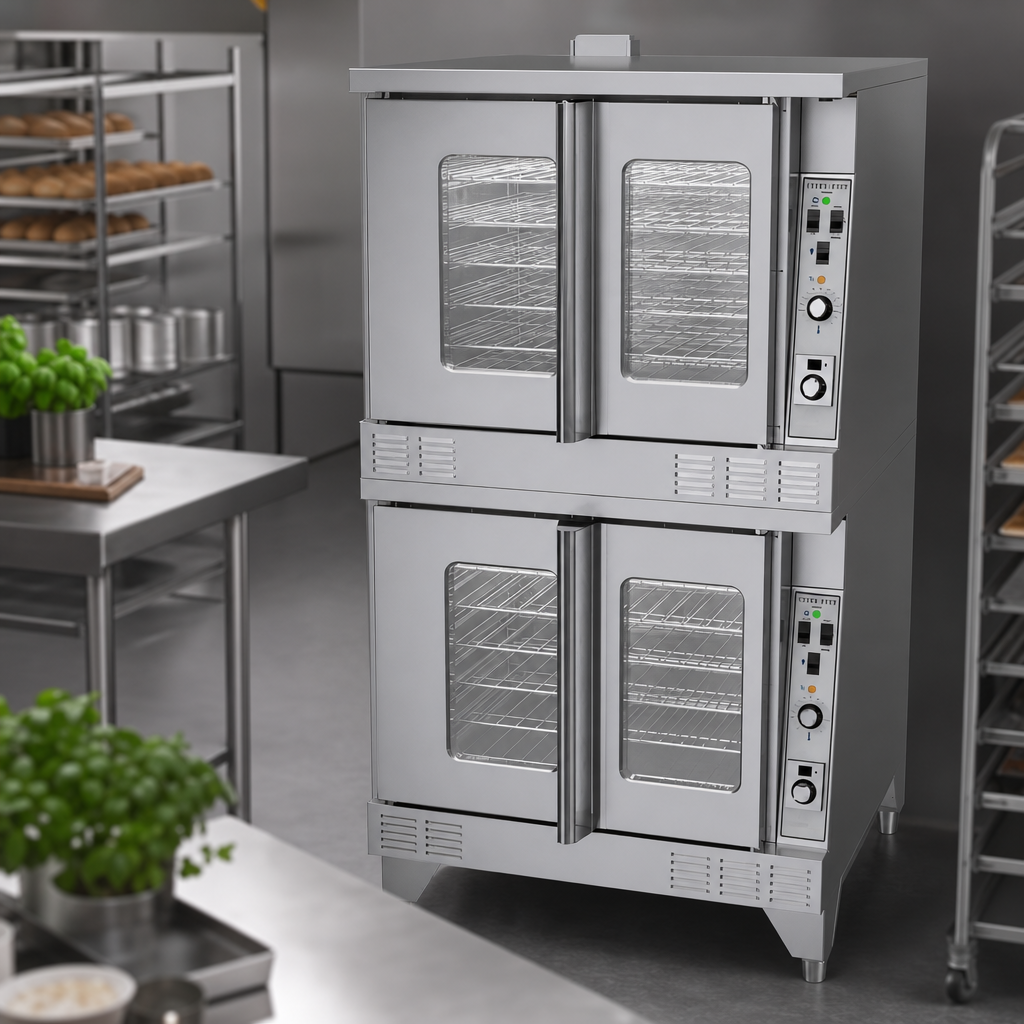

- Deep-depth 28 in. cavities fit full-size sheet pans in either direction for maximum throughput.

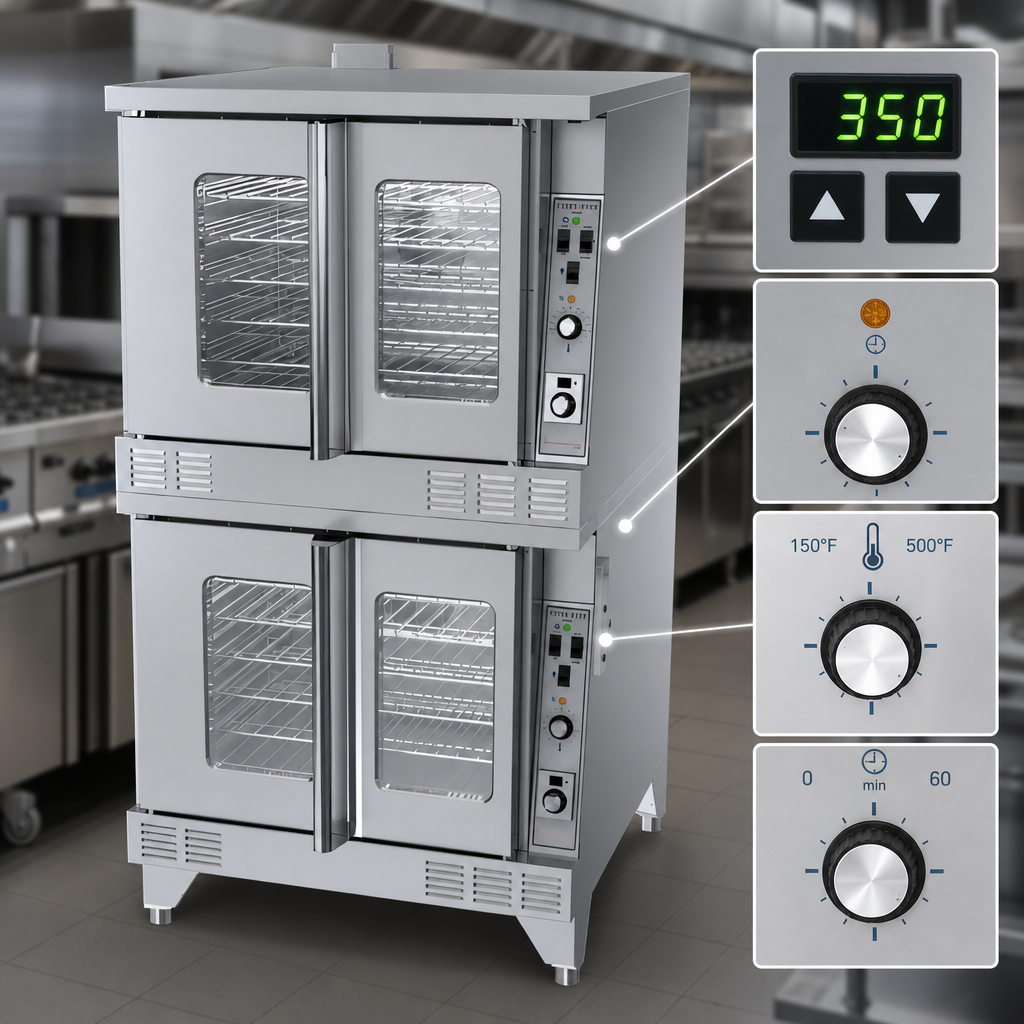

- Master 200 solid-state control: 150 °F–500 °F set point, bright LED display and 60-minute timer.
- Independent 0.6 HP, two-speed fans in each deck blanket product in consistent convection heat.
- Direct spark electronic ignition with 100 % safety shut-off for reliable, worry-free starts.
- Durable 60/40 dependent doors with double-pane thermal windows; patented Safety Door System stops the fan when doors open.
- All-stainless exterior and 6-½ in. adjustable legs stand up to years of commercial abuse.
- Porcelain-enameled, coved-corner interiors clean fast and resist corrosion.
- (6) chrome-plated racks per cavity glide on 13-position guides—no pan rotation required.
- UL, cUL Gas-Fired and NSF listed for easy code compliance.
Specifications
| Decks / Type | 2 – Gas convection, deep-depth |
|---|---|
| Total Heat Input | 120,000 BTU/hr (35.2 kW) – 60,000 BTU per cavity |
| Temperature Range | 150 °F – 500 °F (66 °C – 260 °C) |
| Interior (per cavity) | 29 in. W × 24 in. H × 28 in. D (736 × 610 × 711 mm) |
| Rack Guides | 13 positions with 6 chrome racks supplied (per cavity) |
| Fan Motor | 0.6 HP, 2-speed (each deck) |
| Controls | Master 200 digital, 1-hour timer, ±1 °F accuracy |
| Gas Connection | 1 in. NPT rear Natural 4.5 in. WC / Propane 10 in. WC |
| Electrical | 120 V / 60 Hz / 1-ph, 9.8 A per deck (6 ft cord with NEMA 5-15P plug on each deck) |
| Exterior Dimensions | 38 in. W × 70 ½ in. H × 44 ½ in. D (965 × 1 791 × 1 130 mm) |
| Legs | 6-½ in. adjustable stainless steel (casters optional) |
| Shipping Weight | ≈ 1 090 lb (495 kg) |
| Certifications | UL, cUL, NSF |
| Warranty | 2-yr parts / 1-yr labor • 5-yr limited door warranty (excludes glass) |
Popular Options & Accessories
- Extra chrome or nickel-plated oven racks
- Swivel or low-profile casters with front brakes
- Stainless steel open base with rack guides & undershelf
- 80,000 BTU burner upgrade (natural gas)
- Back enclosure or direct-connect vent kit
- 208 V or 240 V single-phase fan motor package
Garland equipment is designed for commercial kitchens and is not approved for residential use.
