Garland MCO-ES-20M Master Convection Ovens
Description

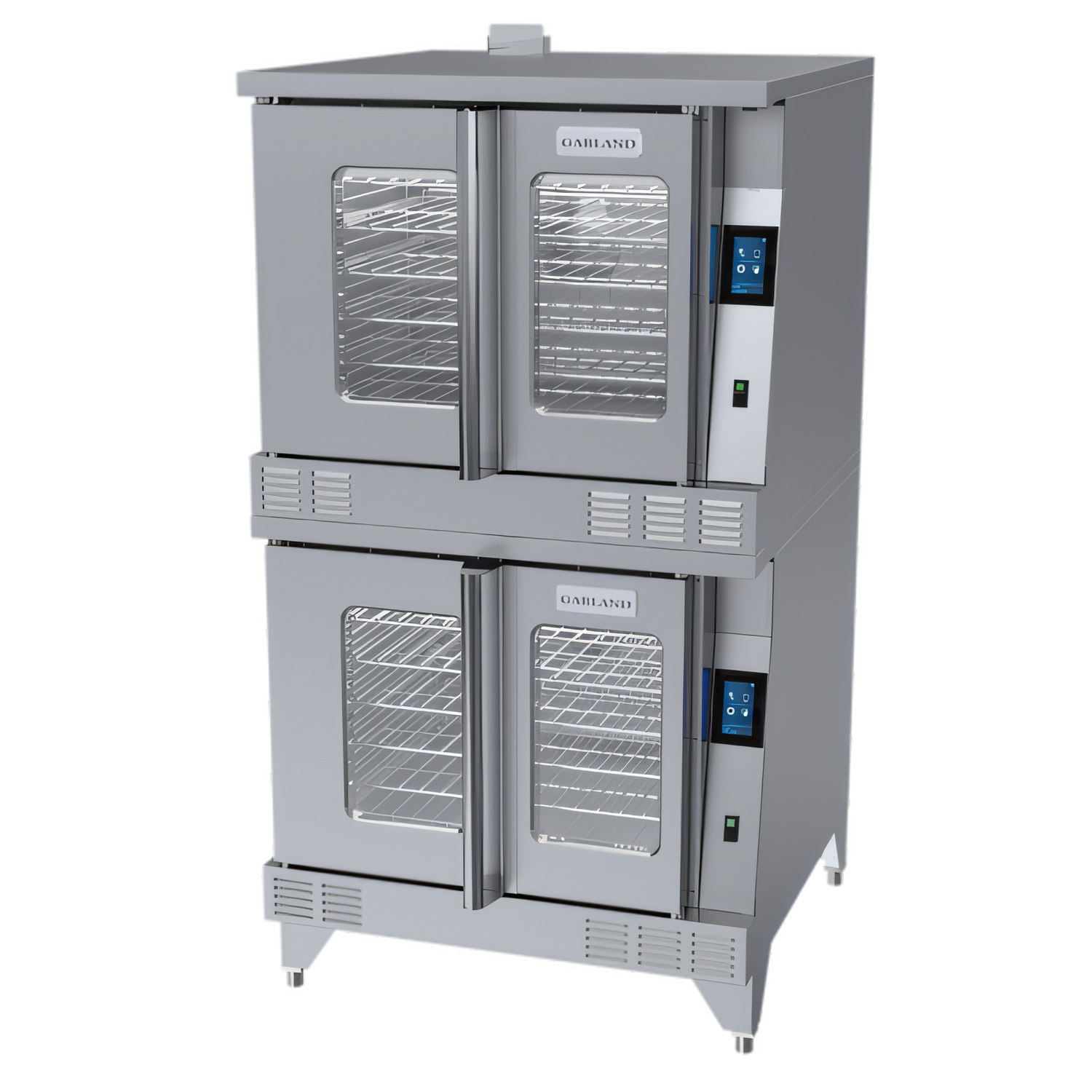

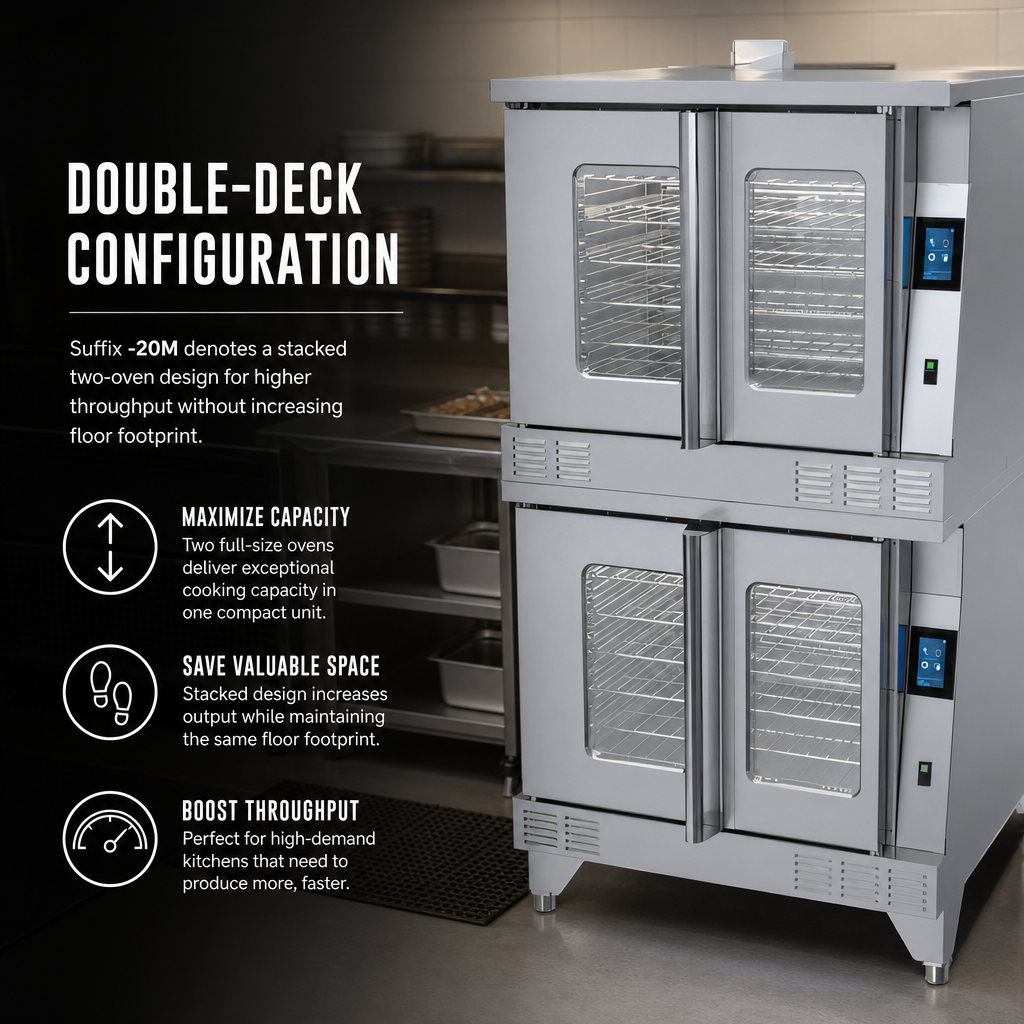

Garland Master Series Double-Deck Electric Convection Oven
Standard-Depth • easyTouch™ 4.3" Press & Go Controls • 20.8 kWBuilt for busy, high-output kitchens, the Garland Master Series double-deck convection oven pairs rugged North-American stainless-steel construction with the simplicity of easyTouch™ digital controls. Bake, roast or hold with confidence while two 3/4 HP, two-speed fans deliver perfectly even results in every corner of the 24"-high porcelain cavities.
Top Reasons to Choose the Master Series

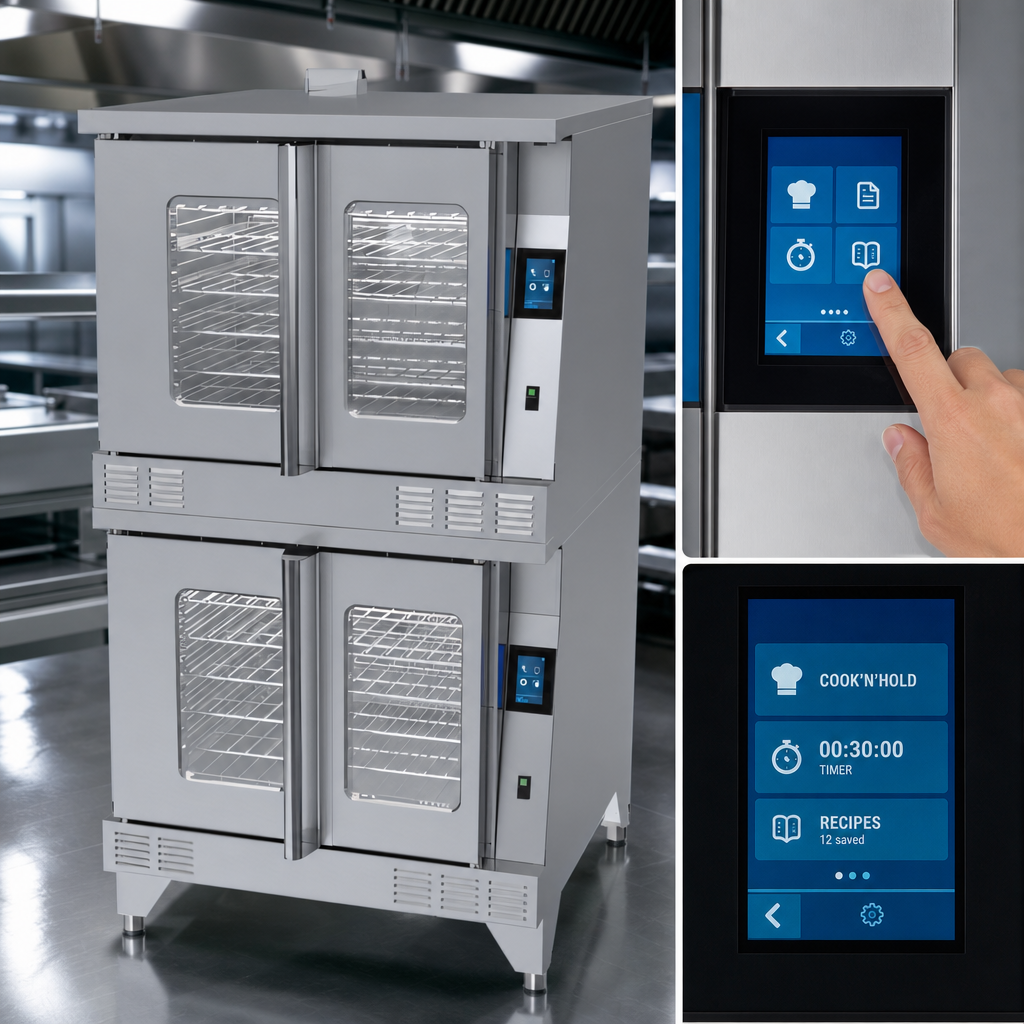

- easyTouch™ 4.3" colour screen with Press & Go – tap recipes, set timers or switch to Cook’n’Hold in seconds.
- Dual 10.4 kW heat packs (20.8 kW total) and two-speed 3/4 HP fans for rapid heat-up, fast recovery and gentle or turbo airflow modes.
- Generous 24" (610 mm) cooking height with 13-position rack guides and six chrome-plated racks included – 20 % more capacity than typical 20" ovens.
- Patented 60/40 “Safety Door System” with double-pane thermal windows; one-hand operation stops the fan when doors open more than 3".
- All-stainless exterior (front, sides, top & 6-1/2" legs) built to thrive in demanding commercial environments.
- Seamless porcelain-enameled cavities with coved corners for effortless wipe-clean sanitation.
- UL, cUL & NSF listed; complies with the latest commercial kitchen codes.
Specifications at a Glance
| Model | Master Series MCO-ES-20M (Electric, Standard Depth, Double-Deck) |
|---|---|
| Control System | easyTouch™ 4.3" colour touch screen with Press & Go, Cook’n’Hold, timers & 100-recipe storage |
| Cooking Cavities | 2 × 29" W × 24" H × 24" D (736 × 610 × 610 mm) – porcelain enamel, coved corners |
| Rack Capacity | 6 chrome racks supplied / 13 positions per cavity |
| Exterior Dimensions | 38" W × 70-1/2" H × 41-1/4" D (965 × 1 791 × 1 048 mm) with 6-1/2" legs |
| Heat Input | 10.4 kW per cavity • 20.8 kW total |
| Fan Motors | 2 × 3/4 HP (2-speed: high & low) |
| Electrical (select at order) |
208 V / 3-ph: 50 A per line 240 V / 3-ph: 43 A per line 460 V / 3-ph: 26 A per line |
| Clearances | Sides 1" (25 mm) • Back 6" (152 mm) |
| Certifications | UL, cUL, NSF |
| Warranty | 2-year parts & 1-year labour • 5-year limited door warranty (excluding glass) – USA & Canada |
Popular Options & Accessories
- Swivel or low-profile locking casters
- Extra oven racks or removable drip pan
- Stainless open-base rack stand or back enclosure
- 460 V / 3-phase factory wiring & 50 Hz components
- Maximum-security package (contact us)
Garland equipment is engineered for commercial use only and is not approved for residential applications.
