Garland | Master | SKU: MCO-ES-10M

Garland MCO-ES-10M Master Convection Ovens

Name: Garland MCO-ES-10M Master Convection Ovens
Brand: Garland
SKU: MCO-ES-10M
Price: 7338.00 USD
Availability: InStock

$7,338.00

FREE SHIPPING AVAILABLE!

Expected delivery date of , to your door

if ordered within hours and minutes

Not Shipping to ?

More Delivery Options

Documents

Cutsheet Cutsheet Cutsheet Brochure Owner's manual 2025 school packages

Description

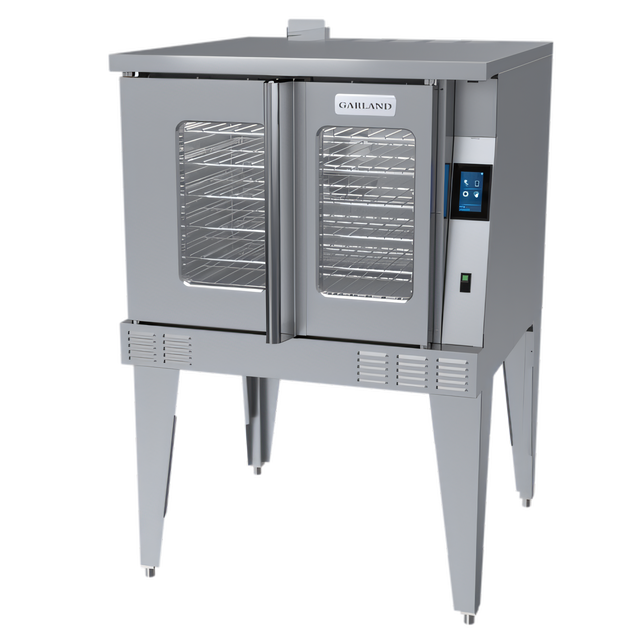

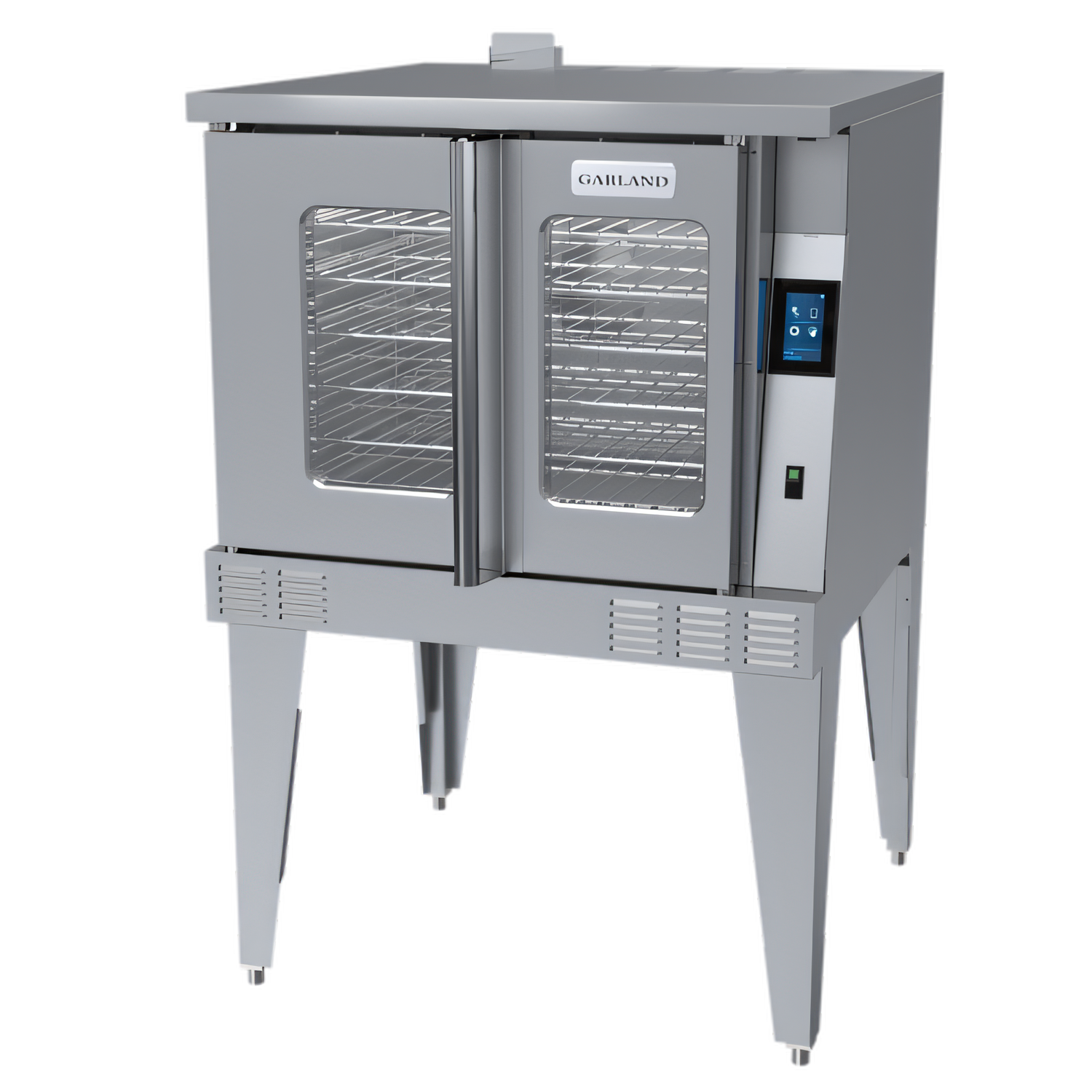

Garland Master Series Electric Convection Oven – EasyTouch™ 4.3"

Model MCO-ES-10M · Single-Deck · Standard Depth

Deliver flawless bakes, roasts and finishes shift after shift. Garland’s Master Series single-deck electric convection oven couples a powerful 10.4 kW heating system with an intuitive EasyTouch™ controller and rugged stainless-steel construction to keep plates moving and food costs down in high-volume kitchens.

Key Advantages

4.3" EasyTouch™ screen with Press & Go one-touch start, multi-stage timers, recipe storage and Cook-‘n-Hold.
Two-speed 3/4 HP fan motor bathes every rack in uniform heat—no pan rotation required.
24"-high, porcelain-enameled cavity holds 6 chrome racks on a 13-position guide; top rack is a comfortable 60" from the floor.
Reinforced 60/40 dependent doors with double-pane thermal windows, full-length positive latch and patented Safety Door System that stops the fan if a door opens beyond 3".
All-stainless front, sides, top and 25-1/2" legs; seamless coved-corner interior wipes clean fast.
UL, cUL & NSF listed; backed by a 2-year parts/1-year labor warranty plus 5-year limited door warranty.

Smarter Control, Better Results

Temperature range: 150 °F–500 °F (66 °C–260 °C).
100 programmable recipes with icons anyone can follow.
Automatic Cook-‘n-Hold lowers temp to maintain moisture and food safety until you’re ready to serve.
Auto cool-down and screen-lock cleaning mode improve safety and extend component life.

Built to Perform & Last

Full-length welded hinge rod and dual door-rigidity strips withstand years of heavy use.
Fan cut-off interlock and cool-touch door handles protect staff.
Front/side service access minimizes downtime when maintenance is needed.

Technical Specifications

Exterior (W×D×H)	38" × 41-1/4" × 57-1/2" (965 × 1048 × 1461 mm) incl. legs
Interior (W×D×H)	29" × 24" × 24" (736 × 610 × 610 mm)
Oven Capacity	6 full-size sheet pans on 13-position guides
Heat Load	10.4 kW, electric
Fan Motor	2-speed, 3/4 HP (high 1670 rpm / low 1430 rpm)
Electrical	208 V or 240 V, 1 or 3 phase (50 A @ 208 V/3 Φ)
Wall Clearances	1" sides (non-combustible), 6" rear
Shipping Weight	Approx. 460 lb (210 kg)
Approvals	UL, cUL, NSF

Popular Factory Options

Swivel casters with front brakes
Extra chrome oven racks
Stainless drip pan or open base rack stand
Back enclosure or direct-connect vent kit

Important: This is a commercial appliance and is not approved for residential installation. Verify local codes, electrical characteristics and clearances prior to ordering.

Need a double-deck, deep-depth or 460 V version? Reach out and we’ll quote the exact Garland Master Series oven for your kitchen.

Features & Specs

Manufacturer

Garland

Brand_name

Master

Certifications

NSF, CE

Height

57.5in

Width

38.0in

Depth

41.25in

Shipping Weight

750.0lbs

Size

full/standard size

Interior Finish

porcelain interior

Type

standard

kW (per deck)

6.0 - 10.99 kW

Exterior Finish

stainless steel front, top & sides

Base

legs

Capacity per Compartment

6 pan capacity, per compartment

Deck Qty

1 deck

Control Type

solid state controls

Specifications

Master Series Convection Oven, electric, single-deck, standard depth 39", (2) speed 3/4 HP fan, 4.3" easyTouch digital control with simple Press&Go, Cook 'n' Hold, timers, & recipe functions, dependent 60/40 doors with windows, stainless steel front, sides & top, porcelain cavity, 24" cooking cavity height, with (6) chrome plated oven racks on 13-position rack guides, 25-1/2" legs, 10.4 kW (Garland), UL, cUL, NSF
