Garland MCO-ES-10-S Master Convection Ovens
Garland MCO-ES-10-S Master Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland MCO-ES-10-S Master Convection Ovens
Description
Master Series Electric Convection Oven – Single Deck
Standard-Depth • Model MCO-ES-10S • Master 200 Solid-State ControlsGive every batch the Garland finish. This full-size, North-American-built oven combines a roomy 24 inch (610 mm) high cooking chamber with a rugged 10.4 kW heating system and a powerful two-speed fan to move heat evenly across every rack. Stainless-steel durability, intuitive Master 200 controls and the patented Garland Safety Door System make it the convection workhorse your kitchen can count on, day after day.
Built-in Advantages
- 24″ high cooking cavity fits 6 full-size sheet pans on chrome racks
- 13-position rack guide lets you fine-tune spacing for any pan or tray
- 10.4 kW sheathed elements deliver quick heat-up and rapid recovery

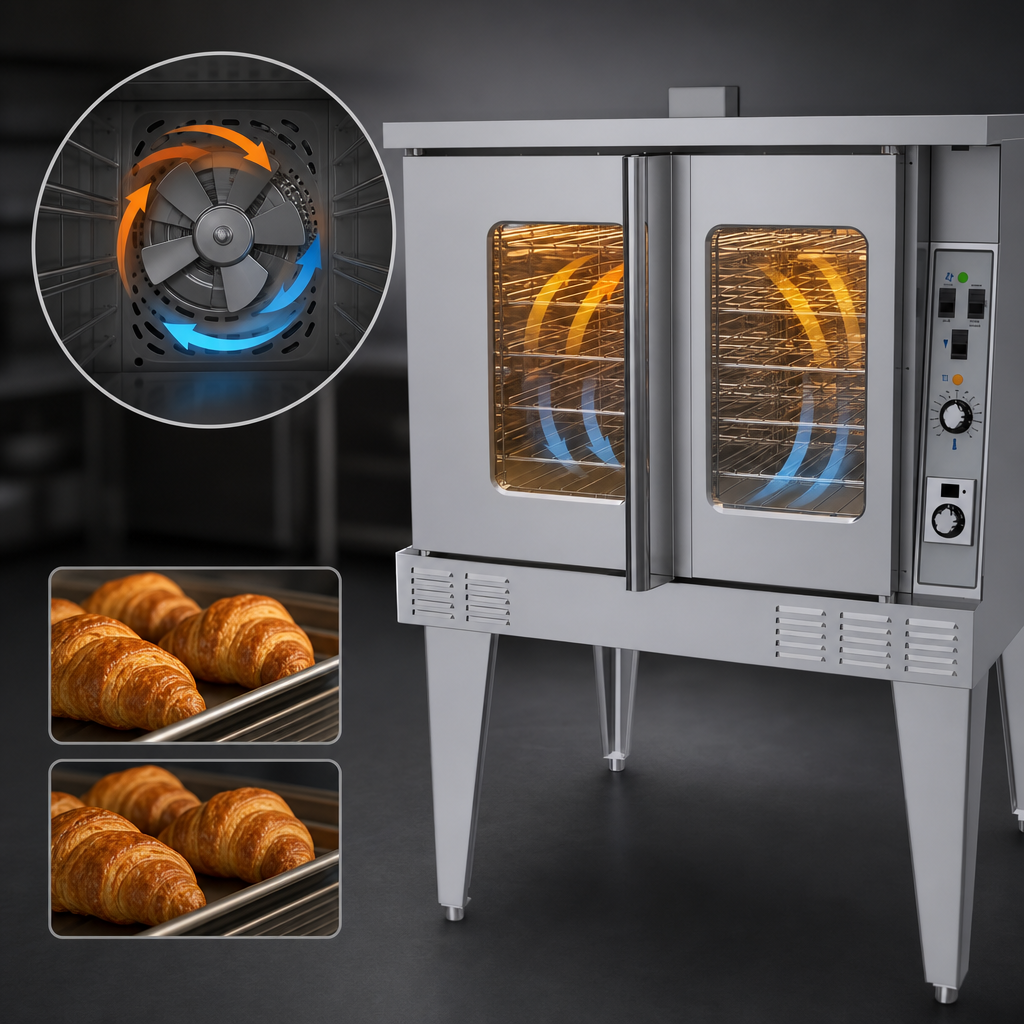

- Robust ¾ HP / 0.6 HP two-speed fan (high & low) for gentle or aggressive airflow

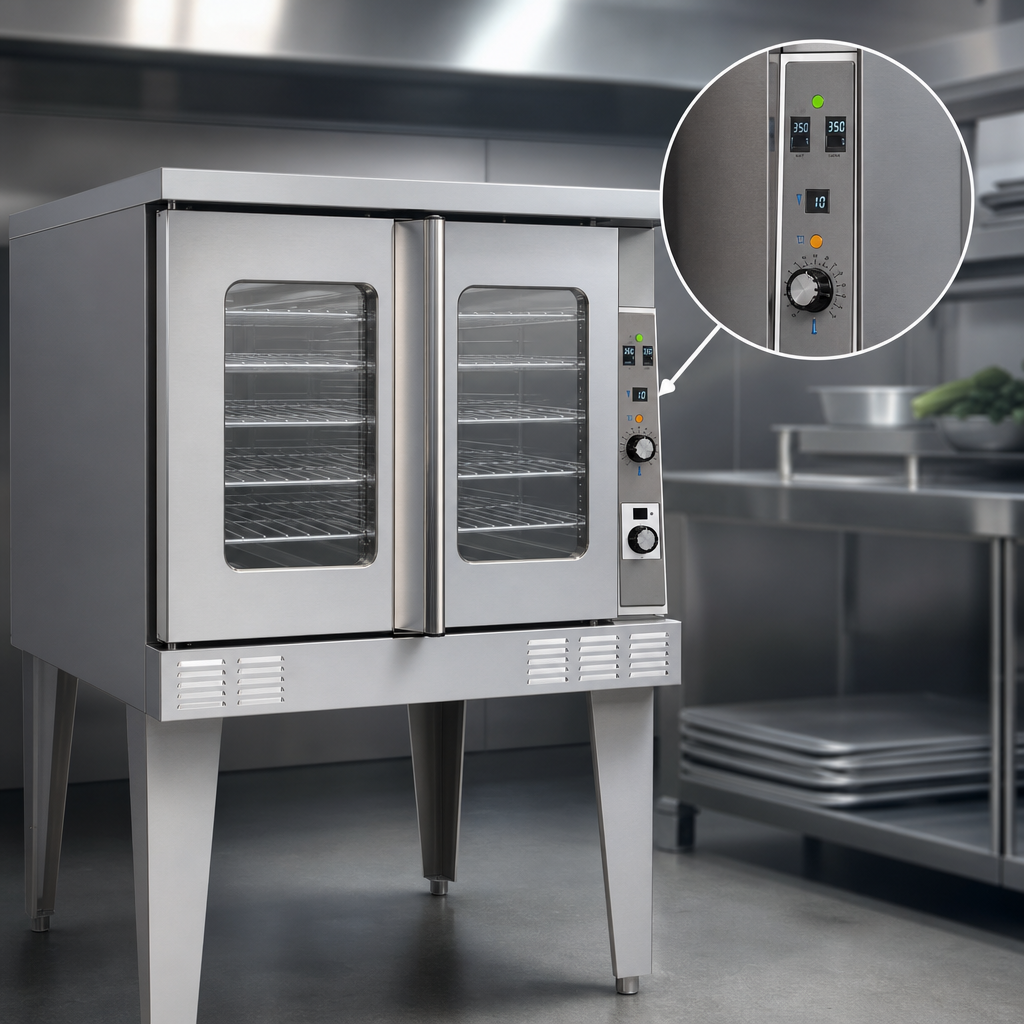

- Master 200 solid-state control: 150–500 °F (66–260 °C) range | 60-minute timer with audible alarm
- Patented Safety Door System stops the fan when doors open more than 3″ for operator protection
- 60 / 40 dependent doors with double-pane thermal windows and interior lighting
- Seamless porcelain-enameled cavity with coved corners cleans in seconds
- All-stainless front, sides, top & 25-½″ legs stand up to heavy-duty use
- Front service access speeds maintenance and reduces downtime
- cULus & NSF listed for commercial kitchens
Technical Specifications
| Cooking cavity (W × H × D) | 29 × 24 × 24 in (736 × 610 × 610 mm) |
|---|---|
| Capacity | 6 full-size (18 × 26 in) sheet pans |
| Rack positions | 13 |
| Total load | 10.4 kW per cavity |
| Electrical | 208 / 240 V, 1- or 3-phase (consult factory for alternate voltages) |
| Fan motor | 0.6 HP (¾ HP), two-speed — 1,670 / 1,430 rpm |
| Controls | Master 200 solid-state, 150–500 °F set-point, 60-min electromechanical timer |
| Doors | 60 / 40 dependent, double-pane windows, positive latch |
| Exterior construction | Stainless steel front, sides, top & legs |
| Interior finish | Porcelain enamel, coved corners |
| Certifications | cULus, NSF |
| Warranty | 2-yr parts & 1-yr labor • 5-yr limited door (excludes glass) |
Installation & Service Notes
- Minimum clearances: 1″ (25 mm) sides, 6″ (152 mm) rear
- Entry clearance (uncrated): 32-½″ (862 mm)
- Garland provides front-access serviceability to all electrical components
Garland products are engineered for commercial use only. Residential installation voids all warranties.
