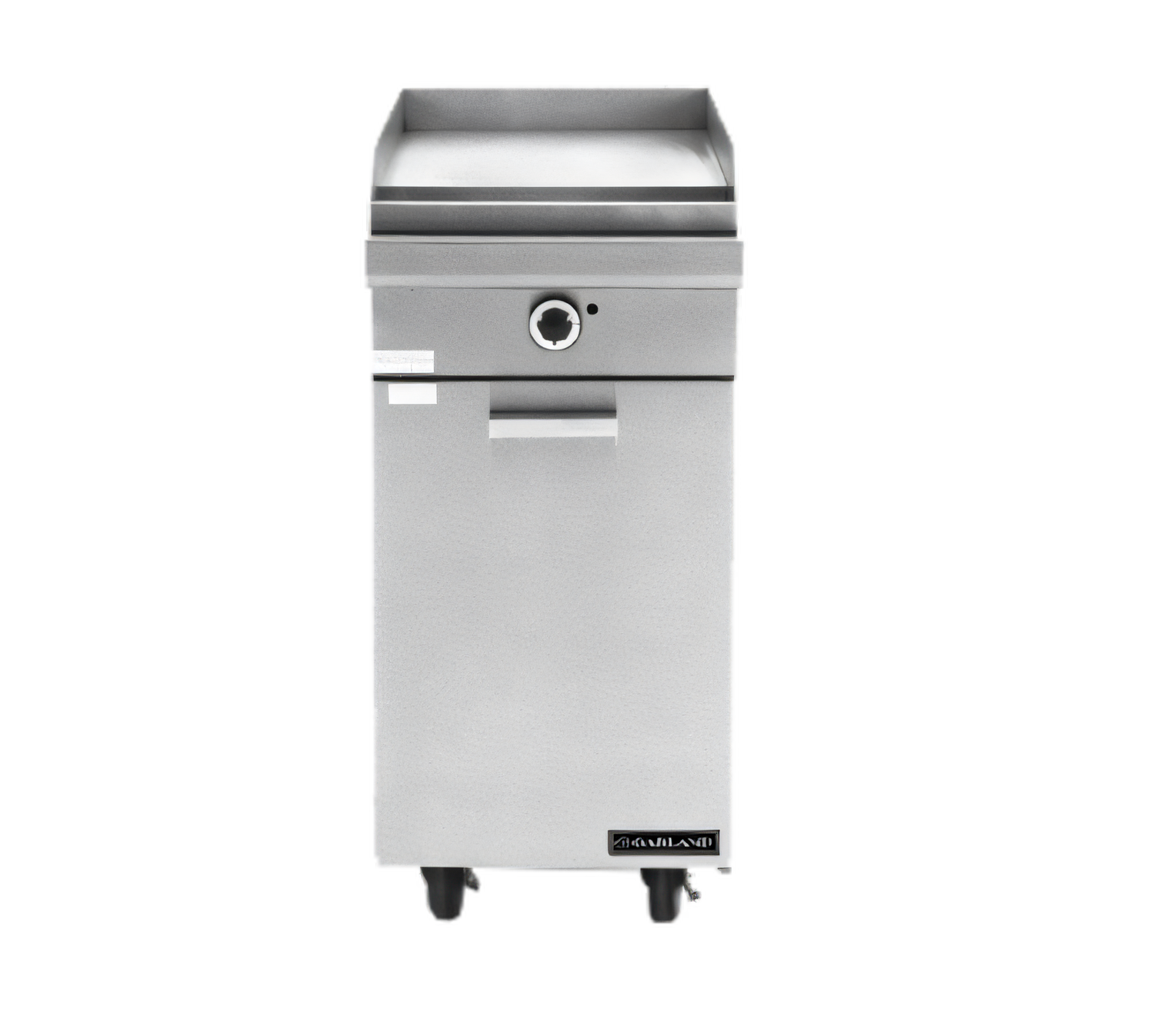

Garland Master Series 17" Heavy-Duty Gas Griddle Add-A-Unit

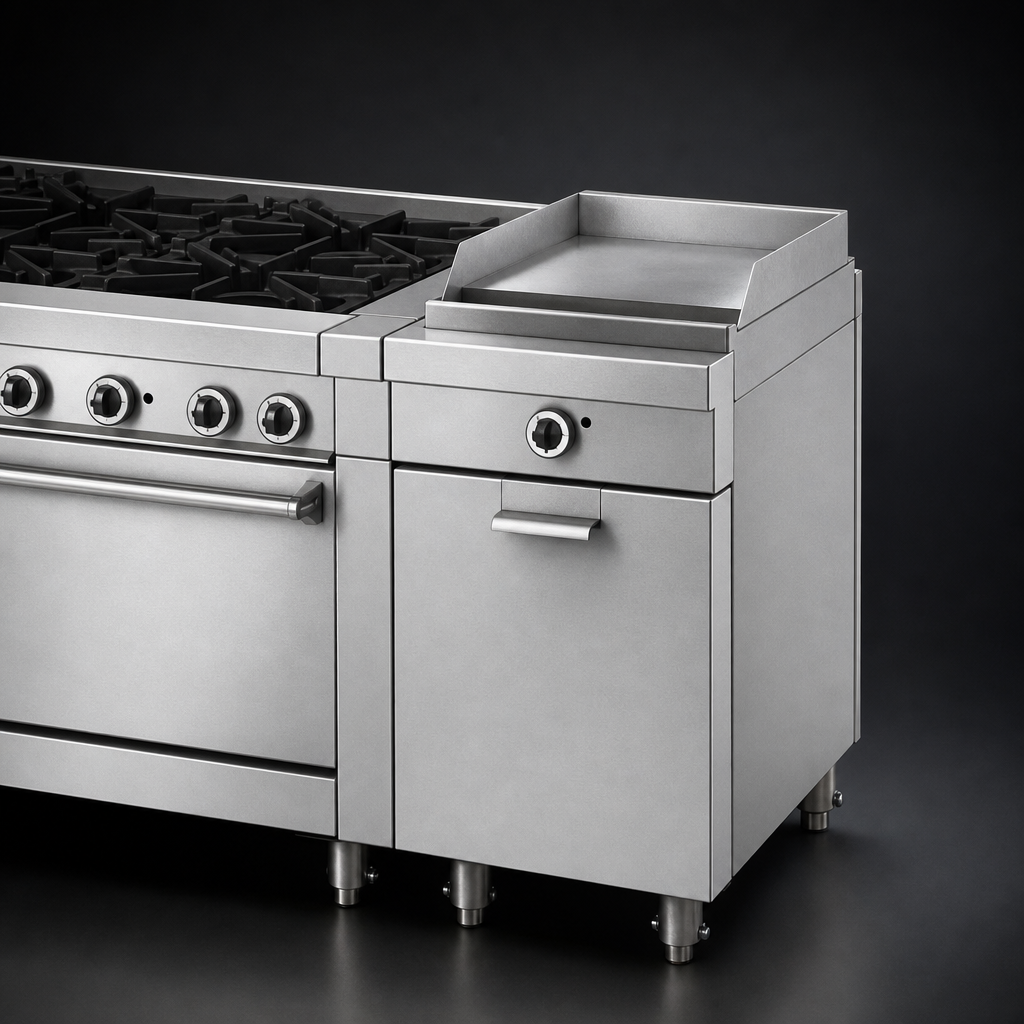

Model M7S | 33,000 BTU | With Storage BaseBring the legendary performance of Garland’s Master Series to any cookline with this 17-inch griddle attachment. Designed to “add-a-unit” to an existing battery or stand on its own, the M7S delivers even heat, rugged construction and convenient under-counter storage—everything a high-volume kitchen needs in a compact footprint.
Why You’ll Love It

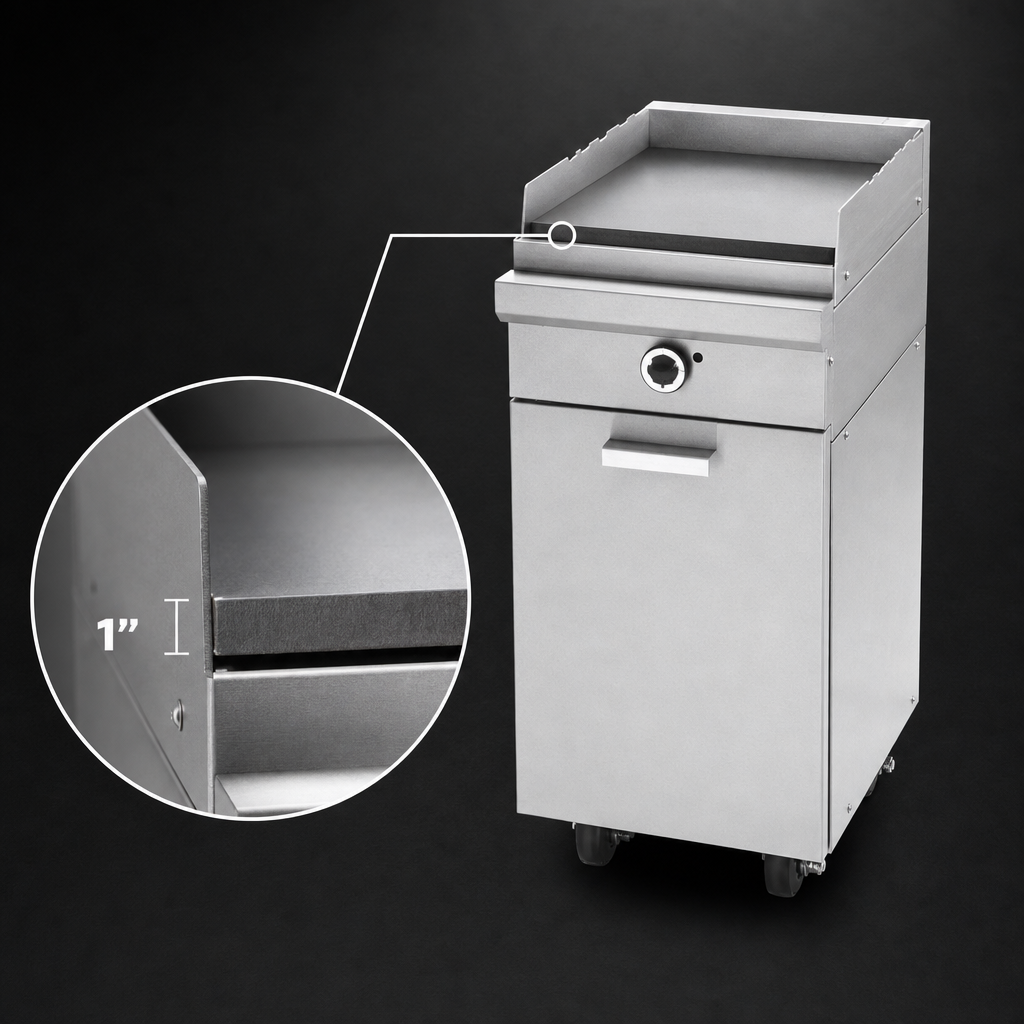

- 1" (25 mm) thick polished steel griddle plate for superior heat retention and recovery.
- Powerful 33,000 BTU “H”-style burner distributes heat evenly across the entire cooking surface.
- Hi-Lo manual valve lets chefs switch instantly from high-production searing to low-temperature holding.
- Continuous-welded 2-5/16" (59 mm) stainless steel splashguards on rear and sides contain mess.
- Front-mounted, removable stainless steel grease drawer simplifies clean-up.
- Durable stainless steel front, sides, splashguards and door stand up to daily punishment.
- 6" (152 mm) chrome-plated adjustable legs ensure easy leveling on uneven floors.
- Roomy aluminized steel storage base keeps pans, utensils or dry goods close at hand.
- CSA Flame, CSA Star & NSF certifications for assured safety and sanitation.
At-a-Glance Specs
| Cooking surface | 17" W × 24-3/4" D (433 mm × 629 mm) |
|---|---|
| Griddle plate thickness | 1" (25 mm) steel |
| Heat output | 33,000 BTU/hr (9.67 kW) |
| Controls | Hi-Lo manual valve |
| Overall dimensions (w/ NSF legs) | 17" W × 38" D × 36-3/8" H (432 × 965 × 924 mm) |
| Gas connection | 1-1/4" NPT front manifold (rear optional) |
| Operating pressure | Natural gas 6" WC | Propane 10" WC |
| Shipping weight | 260 lb (118 kg) • 26 cu ft |
| Certifications | CSA Flame • CSA Star • NSF |
Popular Accessories (Sold Separately)
- 10", 17" or 33" stainless steel backguards
- Single- or double-deck tubular high shelves
- Rear gas connection kit (3/4" or 1-1/4" NPT)
- Gas flex hose & quick-disconnect with restraining device
- Polyurethane swivel casters with front brakes
- End caps & common front rail for battery line-ups up to 102" wide
Installation Note: Maintain 14" (356 mm) side clearance and 6" (152 mm) rear clearance from combustible
surfaces unless local codes allow reductions. Units supplied with casters must be secured with an approved restraining device.
Natural or propane gas. Gas ratings shown are for installations up to 2,000 ft (610 m) elevation—please specify higher altitudes when ordering.
$3,454.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Garland Master M7S 17" heavy-duty gas range with 1" griddle, 33,000 BTU, stainless steel, manual controls, storage base, NSF/CSA certified.
Manufacturer
Garland
Brand name
Master
Certifications
NSF, CSA Star, CSA Flame
Height
36.38in
Width
17.0in
Depth
38.0in
Shipping Weight
260.0lbs
Top
(1) griddle
Base
cabinet(s)
Exterior Finish
stainless steel front & sides
Plate Thickness
1.000" = 1"
Specifications
Master Series Heavy Duty Range, gas, 17", Add-A-Unit, griddle, 1" thick steel plate, manual controls, storage base, stainless steel front, sides, splashguards & door, 6" adjustable legs, 33,000 BTU, CSA Flame, CSA Star, NSF (Garland)
