Garland M6T Master Gas Ranges
Description

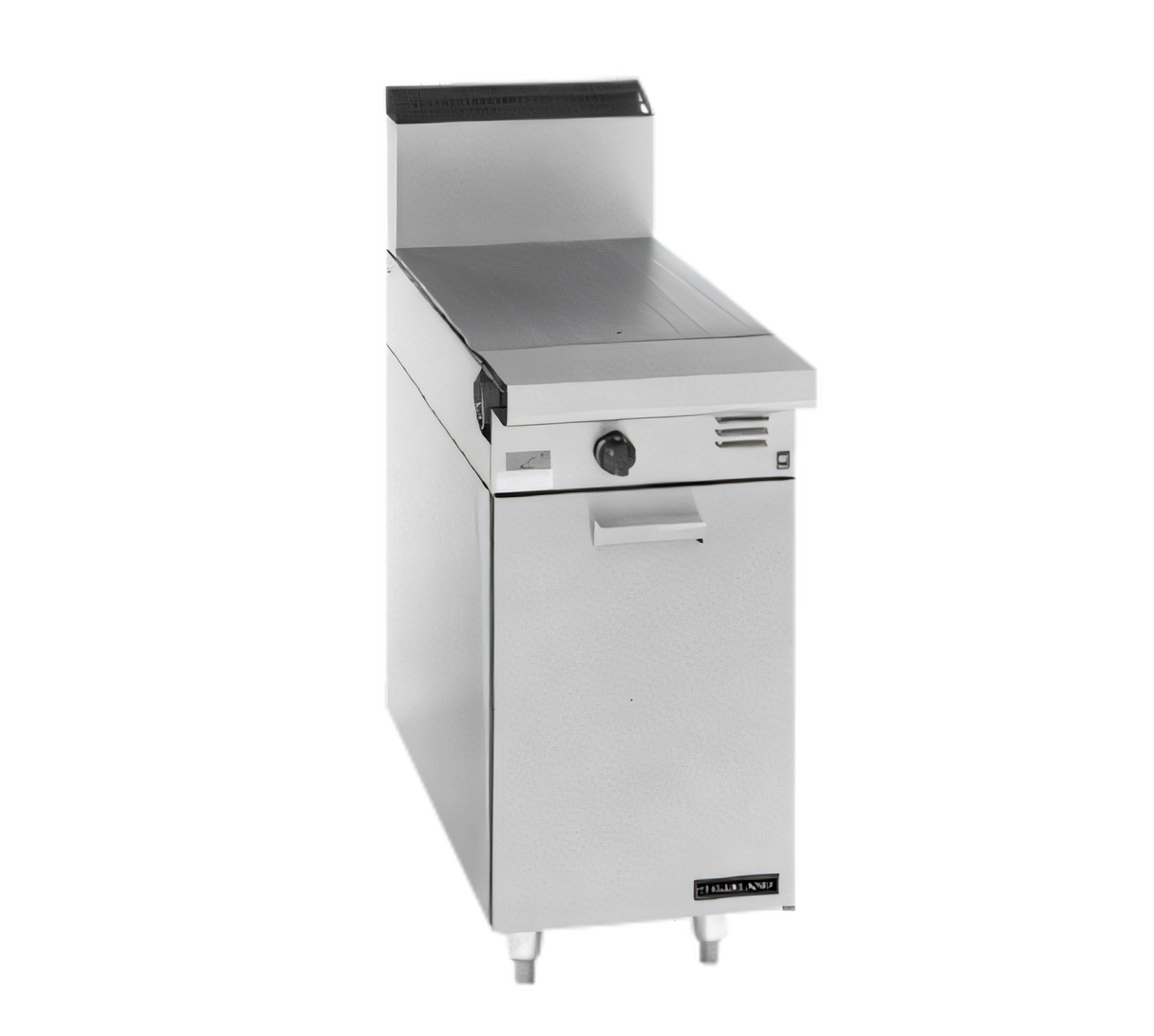

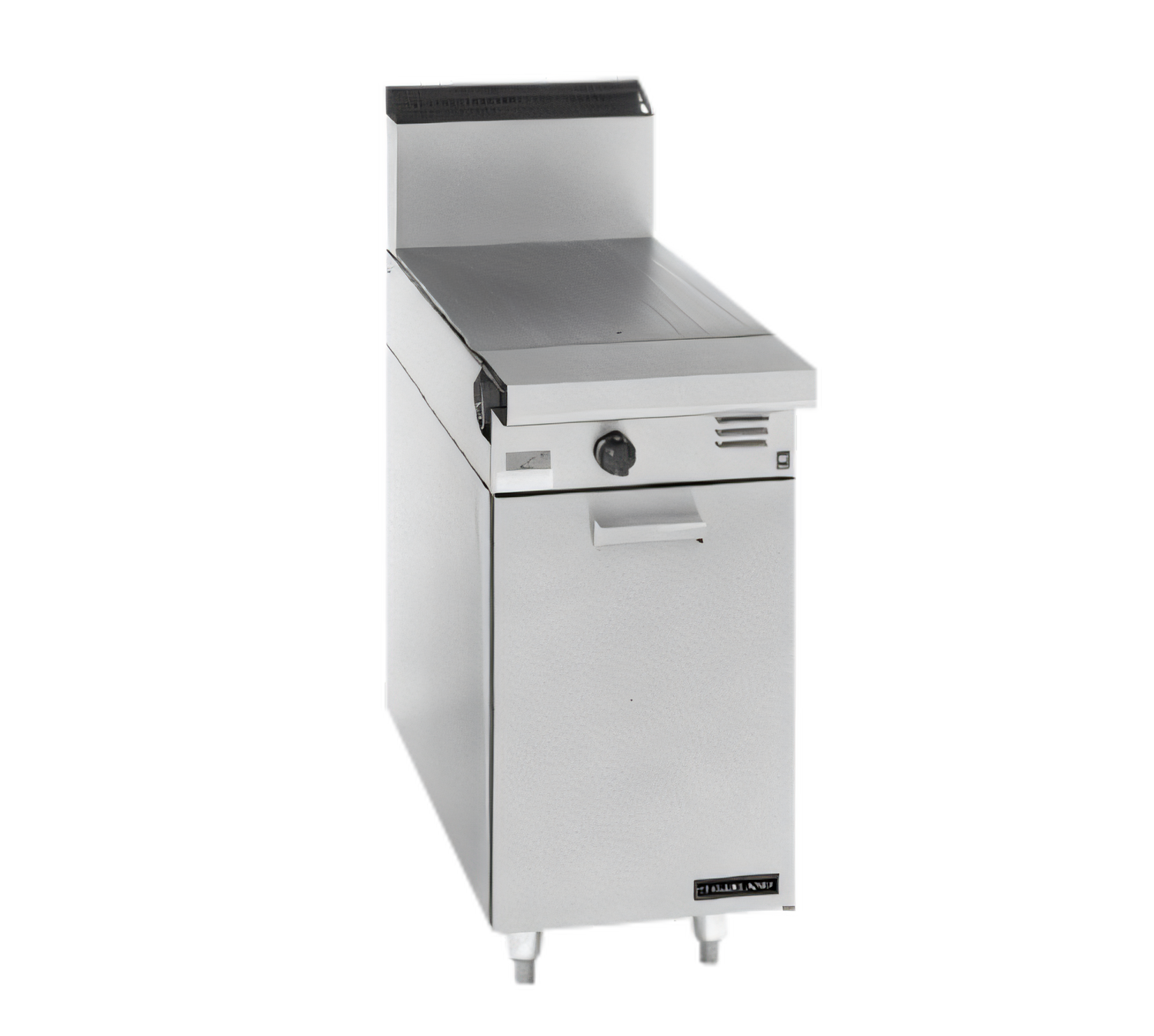

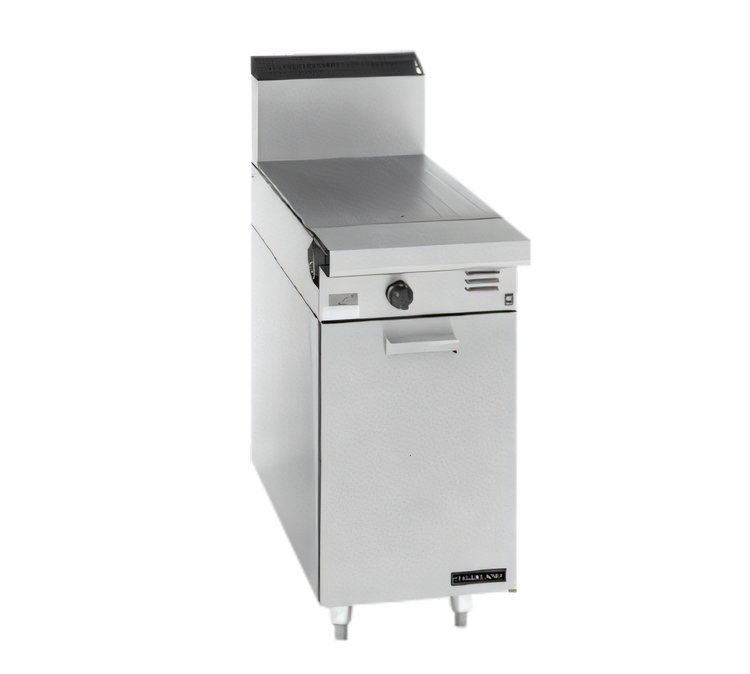

Garland Master Series “Add-A-Unit” 17" Even-Heat Hot Top – Modular
Model M6T | 30,000 BTU Heavy-Duty Gas Range AttachmentExpand any Garland Master Series battery with this 17 inch modular hot-top. Engineered for non-stop commercial production, the M6T delivers an ultra-even cooking surface, rock-solid durability and the layout flexibility chefs demand.
Key Features

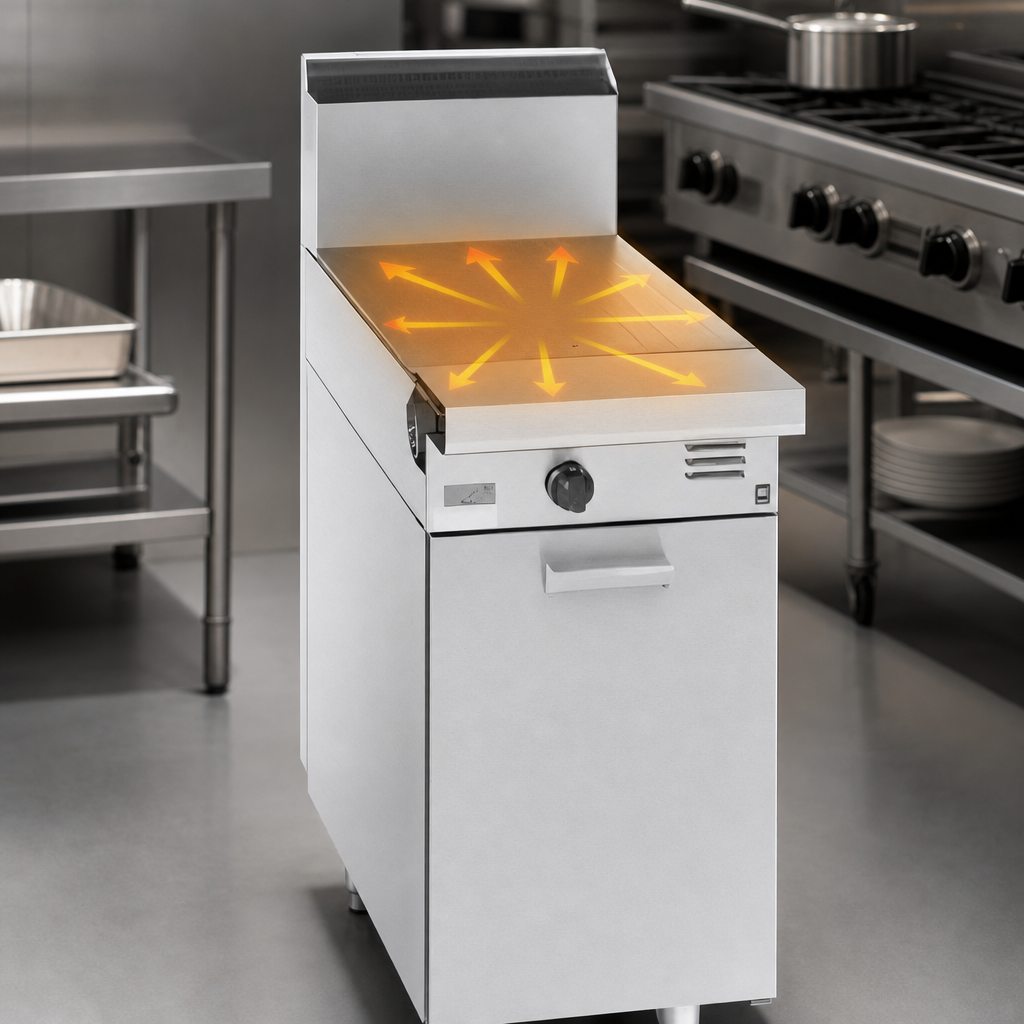

- Even-heat 17" (432 mm) steel hot-top plate – perfect for holding sauces, stocks & sauté pans without cold spots
- Powerful 30,000 BTU (8.79 kW) cast-iron burner housed beneath heavy cast-iron top sections

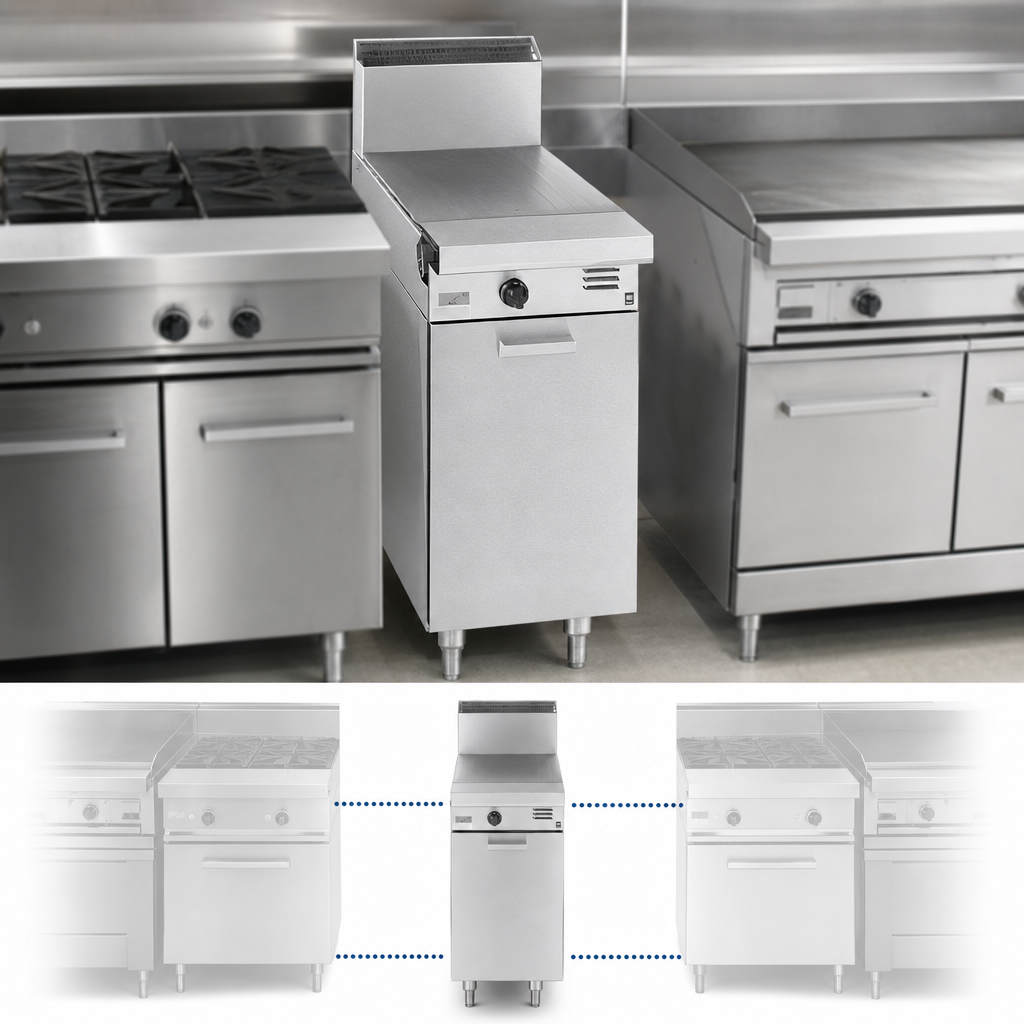

- Modular “Add-A-Unit” design sits flush with other Master Series components or on an optional stand/base
- Stainless-steel front and sides resist dents, corrosion and daily cleaning chemicals
- Front 1-1/4" NPT gas connection standard; optional rear gas connection available
- Field-convertible for Natural or LP gas (regulator & shut-off valves optional)
- CSA Flame, CSA Star & NSF certified for assured safety and sanitation
At-a-Glance Specifications
| Width | 17 in / 432 mm |
|---|---|
| Depth | 38 in / 965 mm |
| Height (with optional stand) | 9.5 in / 241 mm |
| Total Input | 30,000 BTU /hr (8.79 kW) |
| Burner Type | One cast-iron, even-heat burner |
| Gas Connection | 1-1/4" NPT front (rear optional) |
| Manifold Pressure | Natural 6" WC / LP 10" WC |
| Shipping Weight | 145 lb / 66 kg |
| Certifications | CSA Flame • CSA Star • NSF |
Popular Options & Accessories
- 6" (152 mm) stainless-steel adjustable legs or modular stand
- Backguards: 10", 17" or 33" high; single or double-deck tubular shelves
- Common front rail (up to 68") for seamless multi-unit batteries
- Gas regulators, shut-off valves, quick-disconnect flex hoses & restraining devices
- End caps & covers to finish exposed sides
- Swivel or non-marking polyurethane casters with front locks (when stand or base is used)
Garland Master Series equipment is intended for commercial installations only and must be fitted with an appropriate backguard. Installation must comply with all local codes and a qualified technician is required for start-up.
