Garland M5S Master Gas Ranges
$3,035.00
Unit price
/
Unavailable
Description

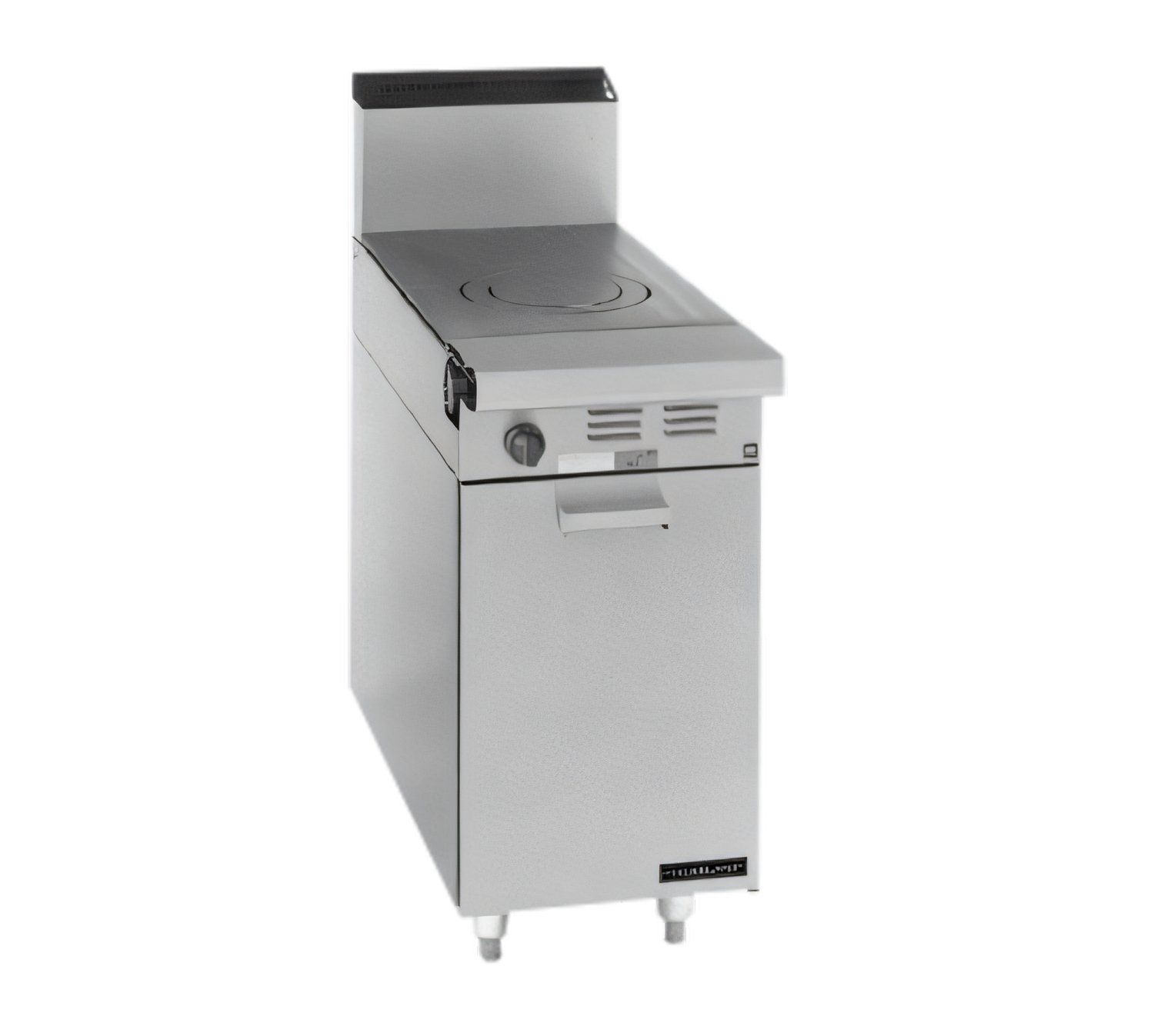

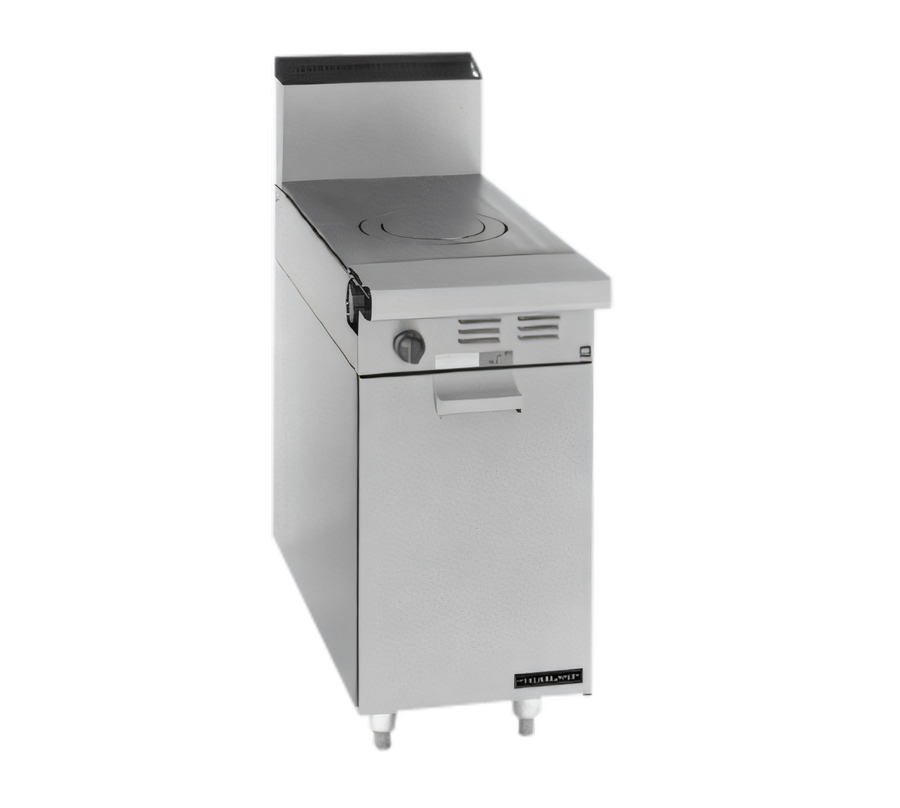

Garland Master Series 17" Front-Fired Hot Top Range Attachment – 45,000 BTU

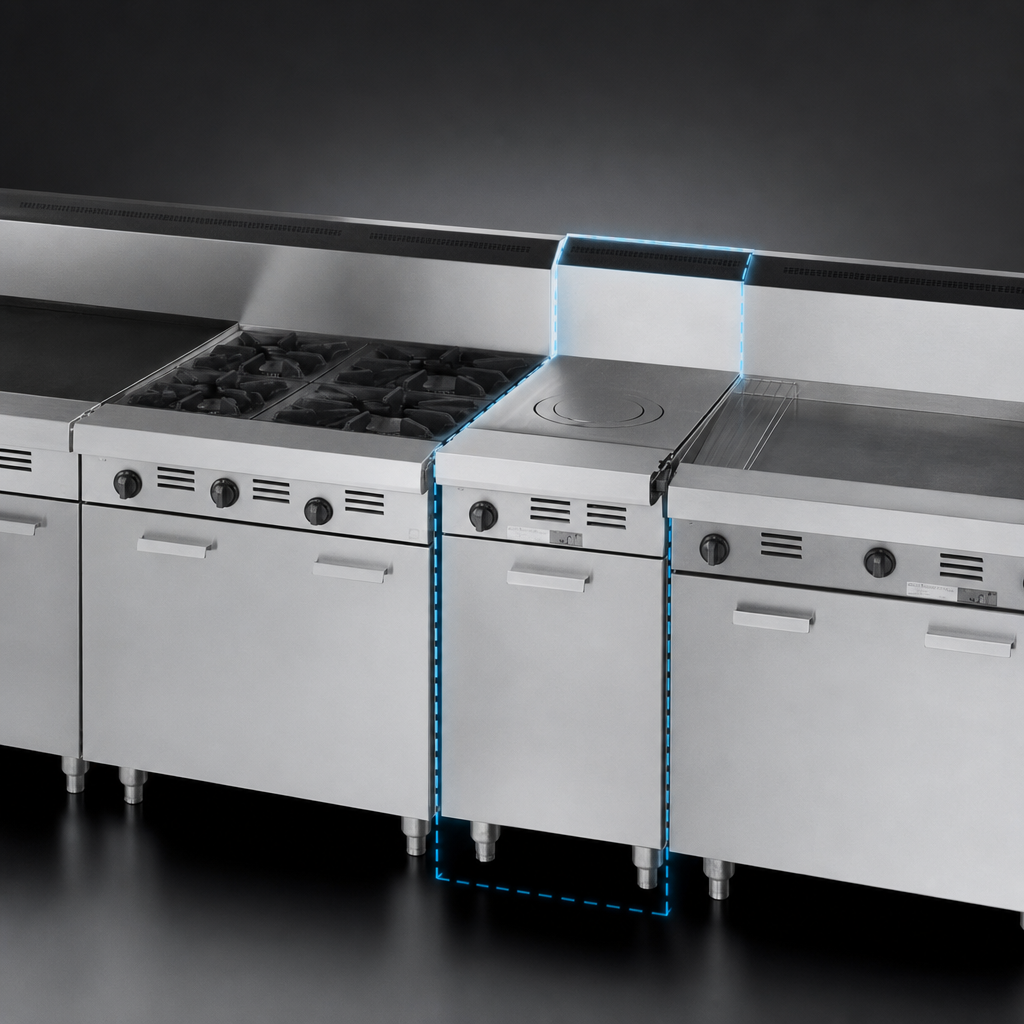

Model M5S | Natural or Propane GasAdd heavy-duty hot-top versatility to your cookline without giving up the space of a full range. The 17 inch Garland Master Series “Add-A-Unit” delivers 45,000 BTU of even, front-fired heat on an extra-thick cast-iron surface while giving you a convenient storage base underneath.
Key Features
- Powerful 45,000 BTU (Natural) three-jet burner system with individual controls for rapid recovery and precise holding.

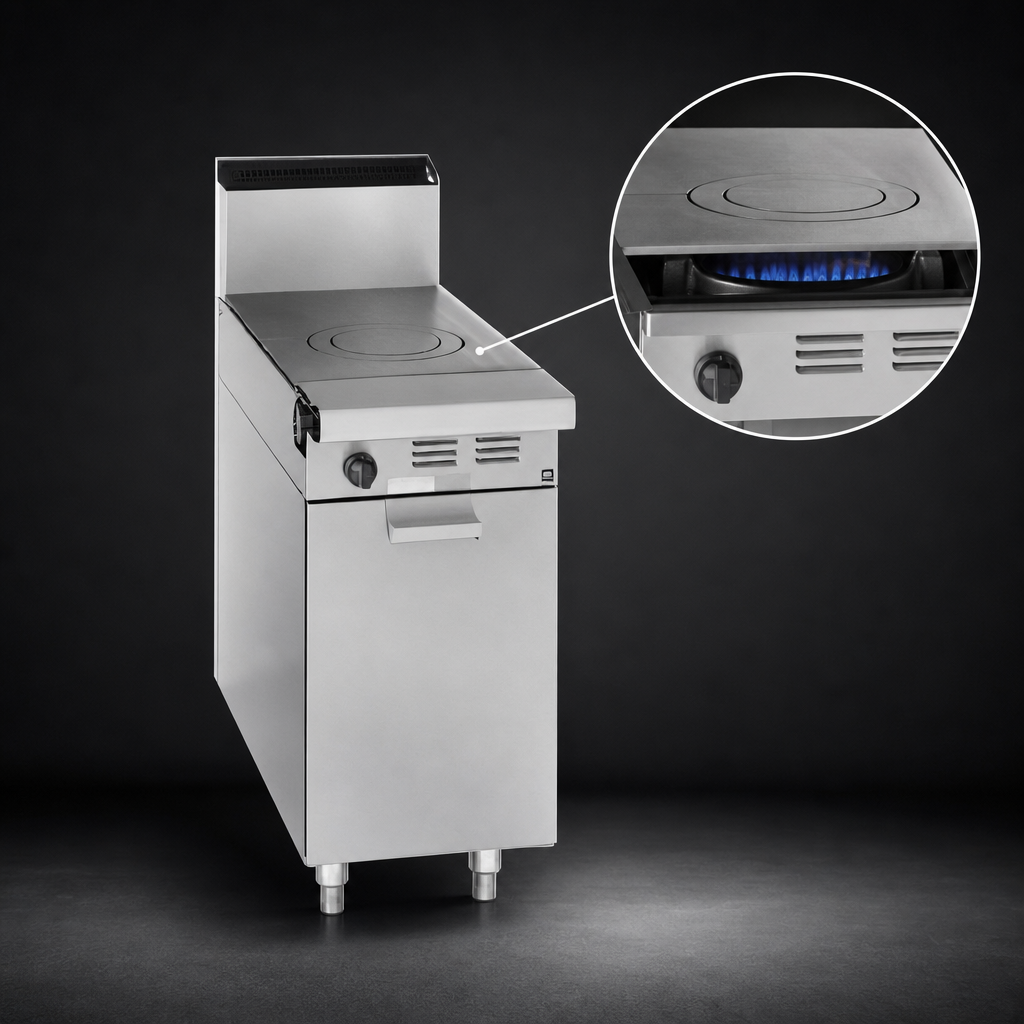

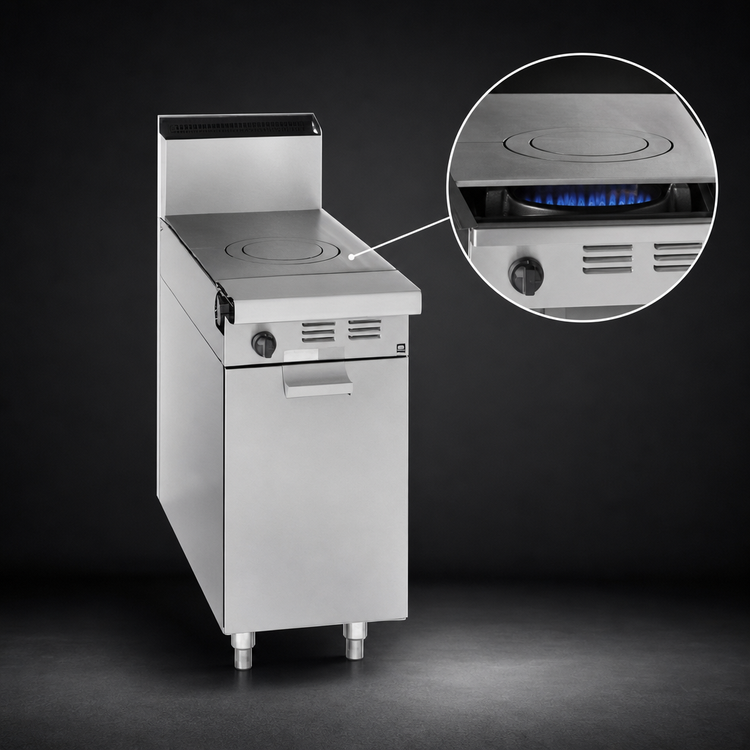

- Front-fired Spectro-Heat™ hot top transfers heat evenly across the entire cast-iron surface—perfect for stock pots, sauce pans and braising pans.
- Removable cast-iron ring and lid convert the unit from solid top to open-ring cooking for woks or kettles.
- Extra-heavy cast-iron top sections retain heat and withstand constant commercial abuse.
- Durable stainless steel front, sides and storage-base door resist corrosion and wipe clean fast.
- Aluminized-steel burner box bottom and heavy-gauge radiation baffle improve efficiency and extend component life.
- Spacious storage base (14" W × 32 ½" D × 20 ½" H) keeps pans and supplies within arm’s reach.
- 6" (152 mm) chrome-plated adjustable legs provide a level cooking surface and 6" floor clearance for easy cleaning.
- Factory-installed 1 ¼" NPT front gas inlet and regulator.
- Certified to CSA Flame, CSA Star and NSF standards.
Common Applications
- Sauce finishing or stock reduction in high-volume restaurants
- Extra sauté or blanch station on busy hot lines
- Commissary, hotel and institutional kitchens needing high heat in a compact footprint
Specifications
| Exterior Width | 17" / 432 mm |
|---|---|
| Exterior Depth | 38" / 965 mm (includes 7 ½" front rail) |
| Work-Surface Height | 36 ⅜" / 924 mm (with 6" NSF legs) |
| Gas Input | 45,000 BTU (13.18 kW) Natural | 33,000 BTU (9.66 kW) Propane |
| Gas Inlet | 1 ¼" NPT front connection | 6" WC Natural | 10" WC LP |
| Hot Top Surface | Front-fired cast iron with removable ring & lid |
| Storage Interior (WxDxH) | 14" × 32 ½" × 20 ½" |
| Shipping Weight | Approx. 230 lb / 105 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Optional Accessories (sold separately)
- 10", 17" or 33" stainless-steel backguards
- Single- or double-deck tubular high shelf
- Rear gas connection kits (¾", 1" or 1 ¼")
- Polyurethane swivel casters with front brakes
- Stainless-steel common front rails for battery lines
- Modular stand or dais base (installations without legs)
Installation Note: Garland Master Series equipment is built for commercial use only.
A backguard and an approved gas restraining device are required. Please specify gas type and any optional connections when ordering.
Questions about configuration or battery lineups? Call Garland Customer Service at 1-800-424-2411.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Master
Certifications
NSF, CSA Star, CSA Flame
Height
36.38in
Width
17.0in
Depth
38.0in
Shipping Weight
230.0lbs
Base
cabinet(s)
Exterior Finish
stainless steel front & sides
Top
(1) hotplate
Specifications
Master Series Heavy Duty Range, gas, 17", Add-A-Unit, front fired hot top, jet burners, removable cast iron ring & lid, storage base, stainless steel front, sides & door, 6" adjustable legs, 45,000 BTU, CSA Flame, CSA Star, NSF (Garland)
