Garland M54T Master Gas Ranges
Description

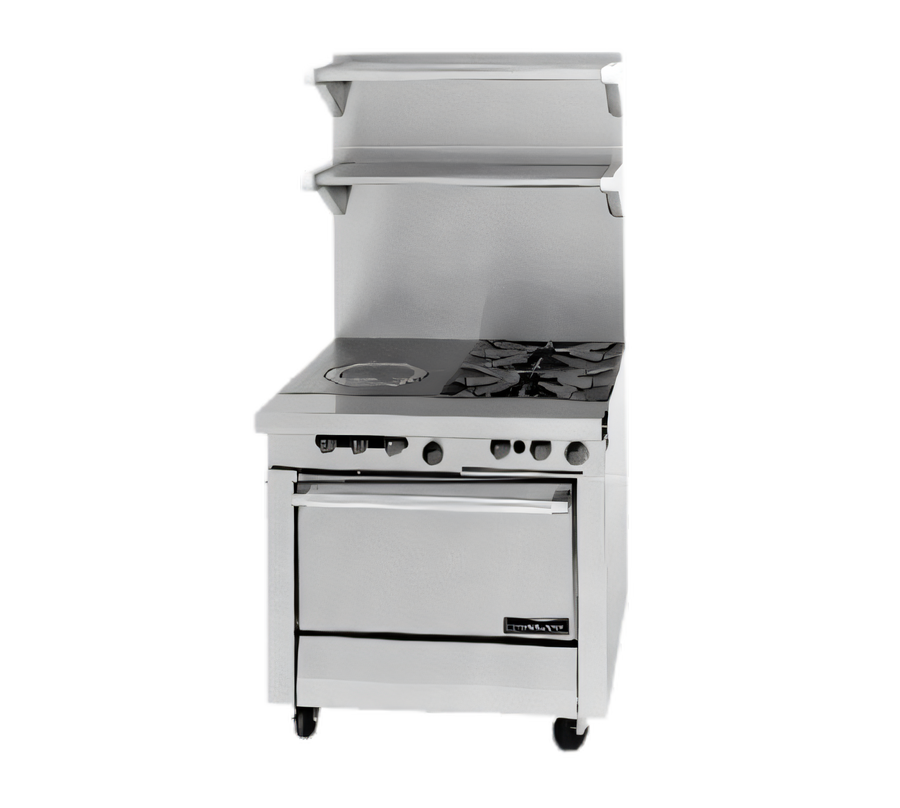

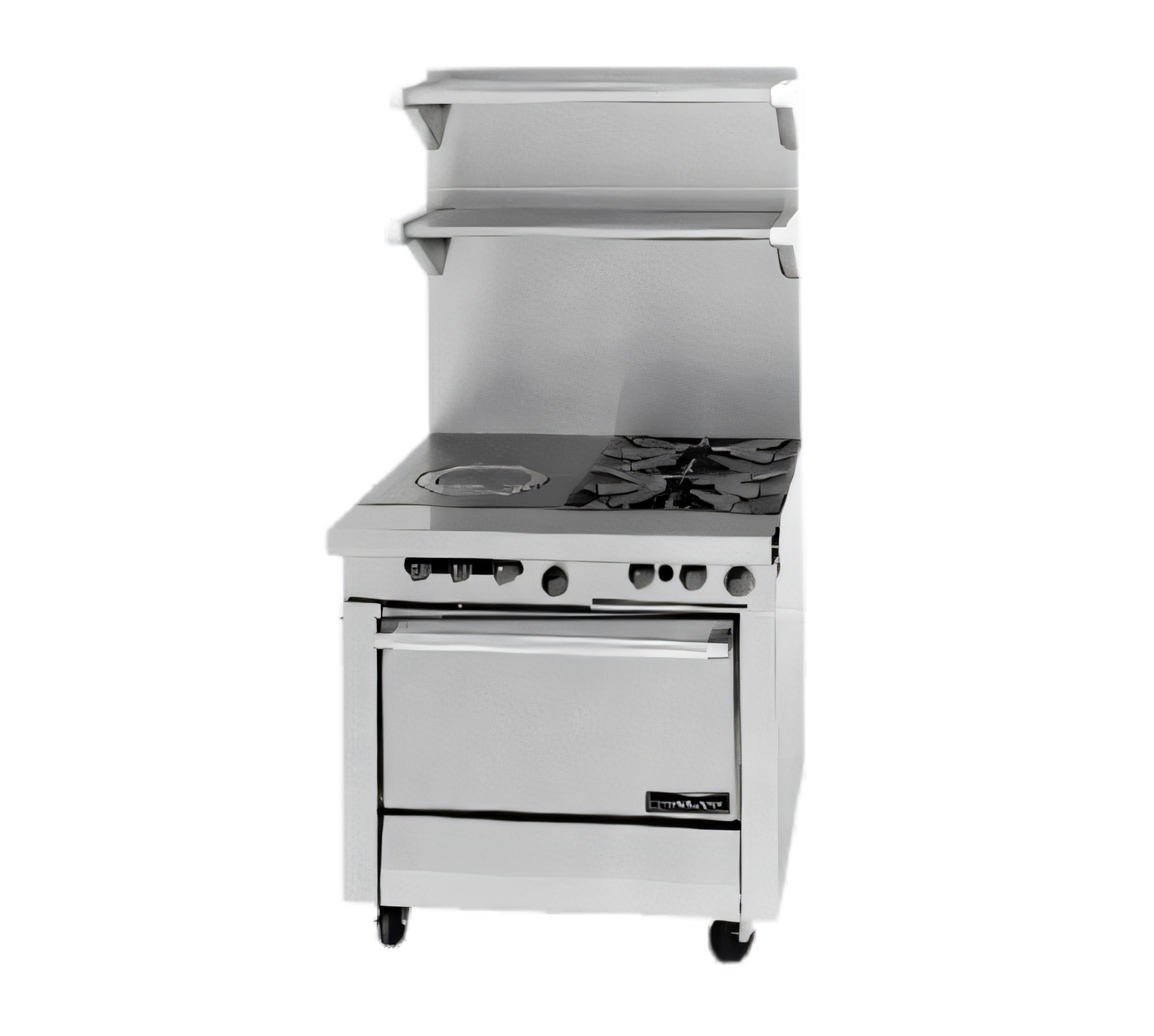

Garland Master Series 34" Modular Combination Top Range
Model M54T – 2 StarFire® Open Burners & 17" Front-Fired Hot TopPack powerhouse performance into a compact footprint. Designed for drop-in or battery installations, the Garland Master Series M54T couples twin high-output open burners with a robust hot top, giving chefs rapid, even heat for every task from hard-sear sautéing to slow stock-pot simmering.
Key Features
- Two 35,000 BTU/h StarFire open burners with removable cast-iron heads for fast cleaning and service.
- 17" (432 mm) front-fired Spectro-Heat hot top delivers 45,000 BTU/h of uniform heat across its surface.
- Heavy-duty cast-iron top grates and ring grate bowls built for continuous, high-volume use.
- Durable stainless steel front and sides resist corrosion and wipe clean.
- Just 9-1/2" (241 mm) high for seamless mounting on equipment stands, refrigerated bases, or custom suites; optional 6" adjustable NSF legs available.
- Front 1-1/4" NPT gas connection standard; rear connections and regulators offered.
- Certified to CSA Flame, CSA Star and NSF standards.
- Total input: 115,000 BTU/h natural gas (97,000 BTU/h propane).
Specifications
| Width | 34" / 864 mm |
|---|---|
| Depth | 38" / 965 mm |
| Height | 9-1/2" / 241 mm (modular top) 36-3/8" / 924 mm with optional NSF legs |
| Open Burners | 2 × 35,000 BTU/h (natural) 2 × 32,000 BTU/h (propane) |
| Hot Top | 45,000 BTU/h (natural) 33,000 BTU/h (propane) |
| Total Input | 115,000 BTU/h (natural) 97,000 BTU/h (propane) |
| Gas Inlet | 1-1/4" NPT, 6" WC natural / 10" WC propane |
| Clearances – Combustible | 14" side, 6" rear |
| Shipping Weight | 285 lb / 130 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Popular Options & Accessories
- 6" stainless steel adjustable legs or equipment stand
- Stainless steel backguards: 10", 17" or 33"
- Single- or double-deck stainless steel high shelf
- Rear gas connection kits (3/4", 1" or 1-1/4" NPT) with regulator or shut-off valve
- Gas flex hose & quick disconnect (with restraining device)
- Polyurethane non-marking swivel casters with front brakes
- End caps & covers for battery line-ups
Performance ratings are for North American installations up to 2,000 ft (610 m) above sea level. Consult Garland for higher elevations or export configurations.
