Garland M54R Master Gas Ranges
$7,510.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Garland M54R Master Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland M54R Master Gas Ranges
$7,510.00
Unit price
/
Unavailable
Description

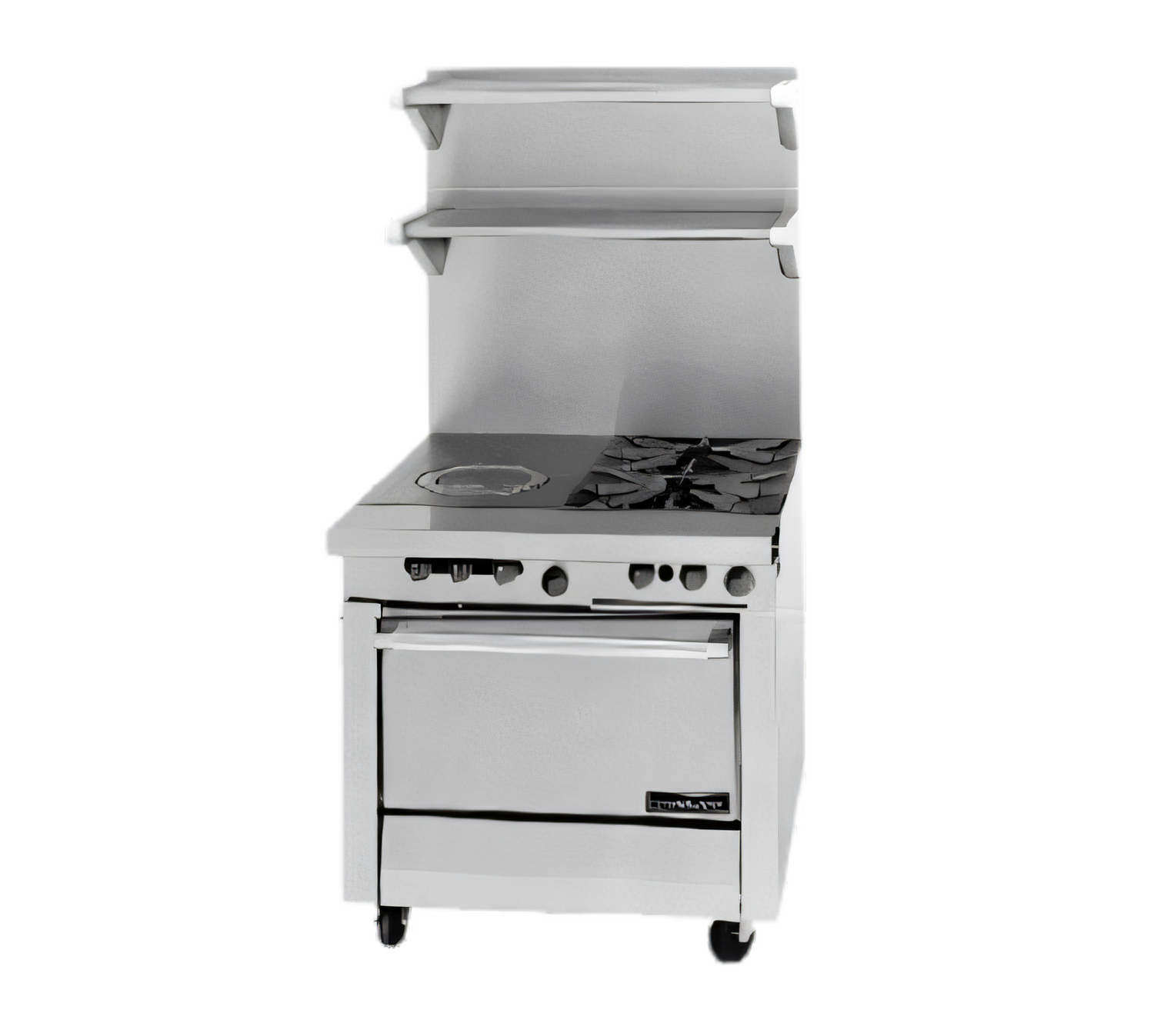

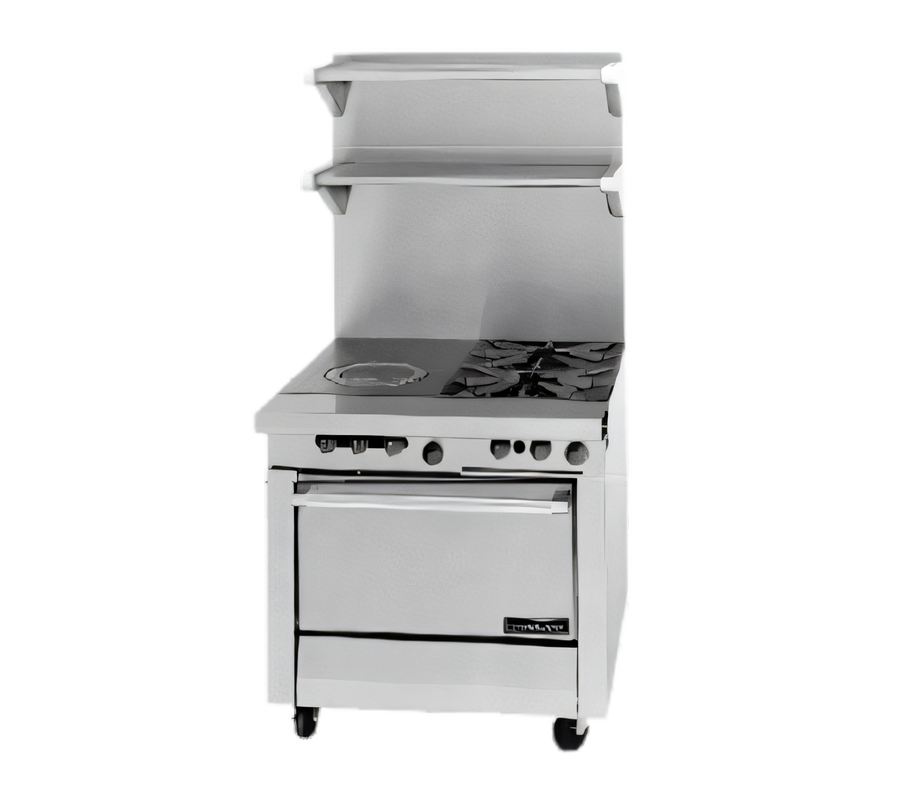

Garland Master Series 34" Heavy-Duty Gas Range
(2) 35,000 BTU Starfire Open Burners • 17" Front-Fired Hot Top • Standard OvenEngineered for the toughest commercial kitchens, the Garland Master Series M54R delivers high output, rock-solid durability and the menu flexibility you need in a compact 34-inch footprint.
Why You’ll Love It
- Two 35,000 BTU Starfire open burners with removable heads for quick cleaning.
- One 17" front-fired cast-iron hot top (three concentric burners, 45,000 BTU Nat / 33,000 BTU LP)— perfect for stocks, sauces and holding.
- 40,000 BTU cast-iron oven burner with piezo spark ignition; fully porcelainized cavity for easy wipe-down.
- Heavy-duty cast-iron top grates & ring grate bowls handle oversized stock pots with ease.
- All-stainless steel front, sides and 7-1/2" deep front rail stand up to daily abuse.
- 6" adjustable chrome legs allow simple leveling and floor clearance for cleaning.
- Front 1-1/4" NPT gas connection for straightforward installation (rear connection optional).
- Certified to CSA Flame & Star and NSF standards.
Performance at a Glance
| Total Input (Natural) | 155,000 BTU/h • 45.4 kW |
|---|---|
| Total Input (Propane) | 132,000 BTU/h • 38.7 kW |
| Open Burners (2) | 35,000 BTU each (Nat) / 32,000 BTU each (LP) |
| Hot Top | 45,000 BTU (Nat) / 33,000 BTU (LP) |
| Oven Burner | 40,000 BTU (Nat) / 35,000 BTU (LP) |
Dimensions & Utilities
| Overall (W × D × H*) | 34" × 38" × 36-3/8" (864 × 965 × 924 mm) |
|---|---|
| Oven Cavity (W × D × H) | 26-1/4" × 29" × 13-1/2" (667 × 737 × 343 mm) |
| Gas Inlet Pressure | Nat 6" WC | LP 10" WC |
| Gas Connection | 1-1/4" NPT front (rear optional) |
| Shipping Weight | Approx. 475 lb / 216 kg |
*Height shown with 6" NSF legs. Backguard required (sold separately).
Popular Factory Options
- 10", 17" or 33" stainless backguard or single/double high shelf
- Rear gas connection (¾", 1" or 1-1/4" NPT)
- Convection oven base (model M54RC)
- Stainless steel oven interior & extra oven racks
- Polyurethane non-marking casters with front brakes
Installation Note: Ranges supplied with casters must be secured with an approved restraining device.
Observe minimum clearances—14" to combustibles on sides, 6" at rear—or per local code.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Master
Certifications
NSF, CSA Star, CSA Flame
Height
36.38in
Width
34.0in
Depth
38.0in
Shipping Weight
475.0lbs
Top
(2) open burners, (1) 18" hot top
Exterior Finish
stainless steel front & sides
Base
(1) standard oven
Specifications
Master Series Heavy Duty Range, gas, 34", (2) 35,000 BTU open burners, (1) 17" front fired hot top, standard oven, piezo ignition, stainless steel front & sides, 6" legs, 155,000 BTU, CSA Flame, CSA Star, NSF (Garland)
