Garland  |  Master  |  SKU: M48T

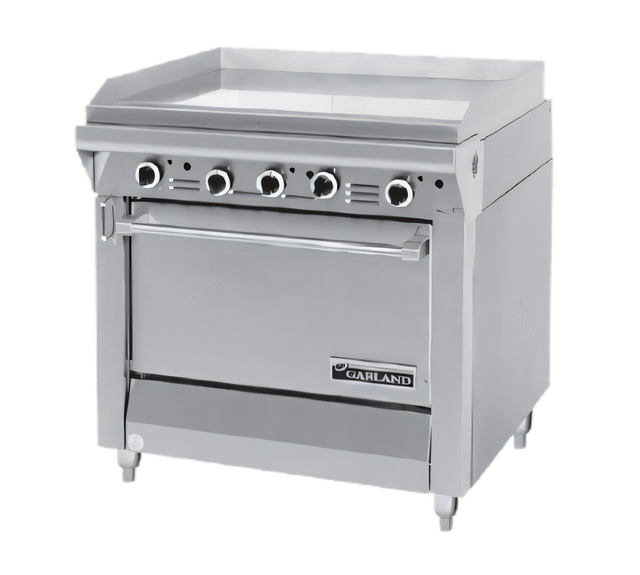

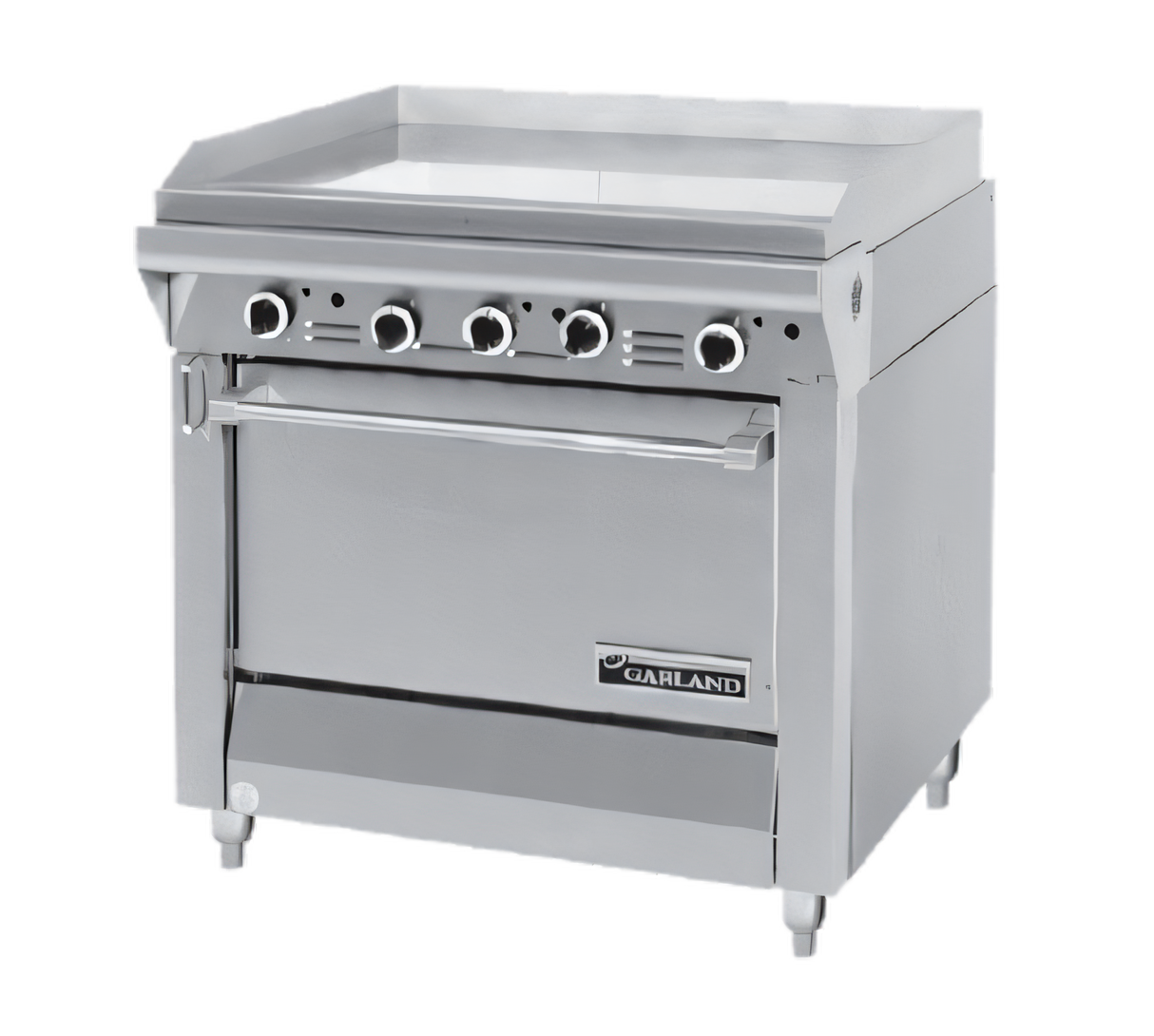

Garland M48T Master Gas Ranges

$6,979.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Check list Owner's manual
Related Searches
Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Garland Master Series 34" Modular Heavy-Duty Gas Griddle Top

Model M48T • 99,000 BTU • Thermostatic Controls

Drop powerful, pinpoint heat exactly where you need it. Built for the Garland Master Series battery line-up, the low-profile M48T griddle top delivers a full 99,000 BTU of searing performance through three independent, thermostat-controlled “H” burners – all inside a rugged stainless-steel chassis that thrives in the busiest commercial kitchens.

Key Advantages
  • 1" (25 mm) polished steel griddle plate for outstanding heat retention and fast recovery.
  • Three heavy-duty “H” burners – 33,000 BTU each / 99,000 BTU total.
  • Independent thermostatic controls with embedded capillary sensors for precise zone cooking.
  • Low-profile modular design (9.5" H) installs on a refrigerated base, chef’s counter or equipment stand.
  • Welded 2 ⅚" splash guards plus clip-on stainless backsplash keep grease contained.
  • Front-mounted, removable stainless-steel grease drawer for quick, safe clean-up.
  • 7 ½" deep stainless front rail offers a handy plating surface and shields controls.
  • Stainless-steel front & sides withstand daily abuse and wipe clean in seconds.
  • Field-convertible for Natural or Propane gas.
  • Certified to CSA Flame, CSA Star & NSF standards for gas safety and sanitation.
At-a-Glance Specifications
Cooking surface 34" W × 26 ⅞" D (864 × 683 mm) (38" overall depth incl. front rail)
Plate thickness 1" (25 mm) steel
Total gas input 99,000 BTU/hr • 29 kW
Number of burners 3 cast-iron “H” burners
Controls 3 independent thermostats, 200–550 °F (93–288 °C)
Gas connection 1 ¼" NPT front (standard)  •  Optional rear connection kit
Operating pressure Natural 6" WC  •  Propane 10" WC
Overall dimensions 9 ½" H × 34" W × 38" D (241 × 864 × 965 mm) 36 ⅜" H with optional stand & NSF legs
Shipping weight 410 lb (186 kg)
Certifications CSA Flame, CSA Star, NSF
Popular Options & Accessories
  • Stainless-steel or refrigerated equipment stand
  • Rear gas connection kit (¾" or 1" NPT)
  • Common front rail for battery installations (up to 102")
  • Fully grooved or sectionally grooved plate
  • Single or double-deck tubular overshelf
  • Backguards: 10", 17" or 33" stainless-steel
  • Gas flex hose & quick-disconnect with restraining device
  • Set of four non-marking swivel casters with front brakes
Installation Note: All Master Series modules require a backguard and must be installed beneath an appropriate ventilation hood. Gas equipment should be connected and restrained by a licensed professional in accordance with local codes.

Commercial use only — not for residential installation. For elevations above 2,000 ft (610 m), consult factory for burner deration.

Features & Specs

Manufacturer

Garland

Brand_name

Master

Certifications

NSF, CSA Star, CSA Flame

Height

36.38in

Width

34.0in

Depth

38.0in

Shipping Weight

300.0lbs

Plate Thickness

1.000" = 1"

Top

(1) griddle with thermostat

Exterior Finish

stainless steel front & sides

Base

modular

Specifications

Master Series Heavy Duty Range, gas, 34", modular, griddle, thermostatic controls, stainless steel front & sides, 99,000 BTU, CSA Flame, CSA Star, NSF (Garland)
