Garland M48S Master Gas Ranges
Description

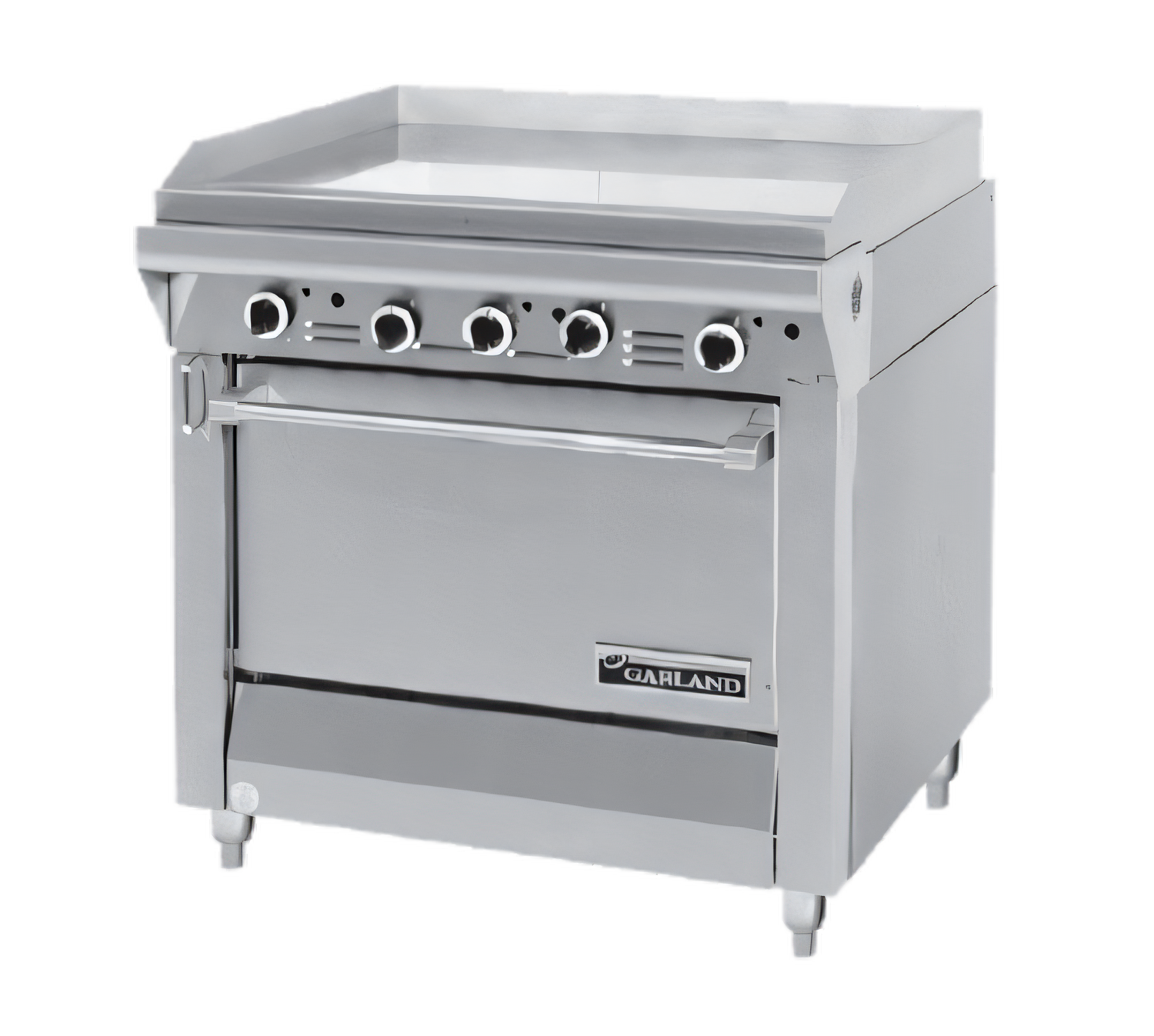

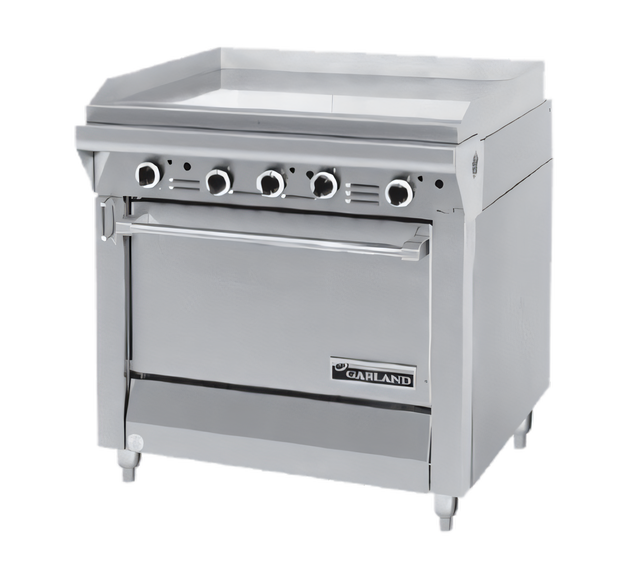

Garland Master Series 34" Heavy-Duty Gas Griddle Range – Storage Base
Model M48S | 99,000 BTU | CSA Flame & Star • NSFBring high-volume cooking power to a tight footprint. The Garland Master Series M48S couples a full-width, precision-controlled griddle with a rugged storage base, giving chefs the performance they expect and the flexibility they need.
Key Features
- 34"-wide, 1" (25 mm) thick polished steel griddle plate for superior heat retention.
- Three cast-iron “H” burners (33,000 BTU each) – 99,000 BTU total output.
- Individual thermostatic controls with embedded capillary sensors for reliable 200 °F–550 °F accuracy.
- 2-5/16" welded steel splash guard on three sides plus clip-on stainless backsplash.
- 7-1/2" deep stainless front rail – ideal for plating and tool rest.
- Front-mounted removable stainless grease drawer for fast clean-ups.
- Full-width aluminized-steel storage base with adjustable shelf – no oven to maintain.
- Stainless steel front & sides resist dents, corrosion, and daily scrubbing.
- 6" chrome-plated adjustable legs ensure a level cooking surface.
- Factory-installed 1-1/4" NPT front gas manifold & regulator (rear connection optional).
Performance & Dimensions
| Griddle width | 34" / 864 mm (full top) |
|---|---|
| Plate thickness | 1" / 25 mm polished steel |
| Total input (Natural gas) | 99,000 BTU/h (29 kW) |
| Burner type | Three cast-iron “H” burners |
| Operating pressure | Natural 6" W.C. | Propane 10" W.C. |
| Overall dimensions (W × D × H) | 34" × 38" × 36-3/8" (864 × 965 × 924 mm) – with legs |
| Storage base interior | 26" × 30-1/2" × 20-1/2" (665 × 773 × 519 mm) |
| Gas connection | 1-1/4" NPT (front) with pressure regulator |
| Shipping weight | ≈ 500 lb / 227 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Built for the Line
- Battery-ready design – order an optional common front rail up to 102" wide.
- Optional high shelves, backguards, or casters let you tailor the unit to your workflow.
- Modular Master Series components simplify future expansion and maintenance.
- Supported by Garland’s worldwide parts & service network.
Casters, backguards, rear gas connections, and other accessories are sold separately. This appliance is intended for commercial use only and is not approved for residential installations.
