Garland M47S Master Gas Ranges
Description

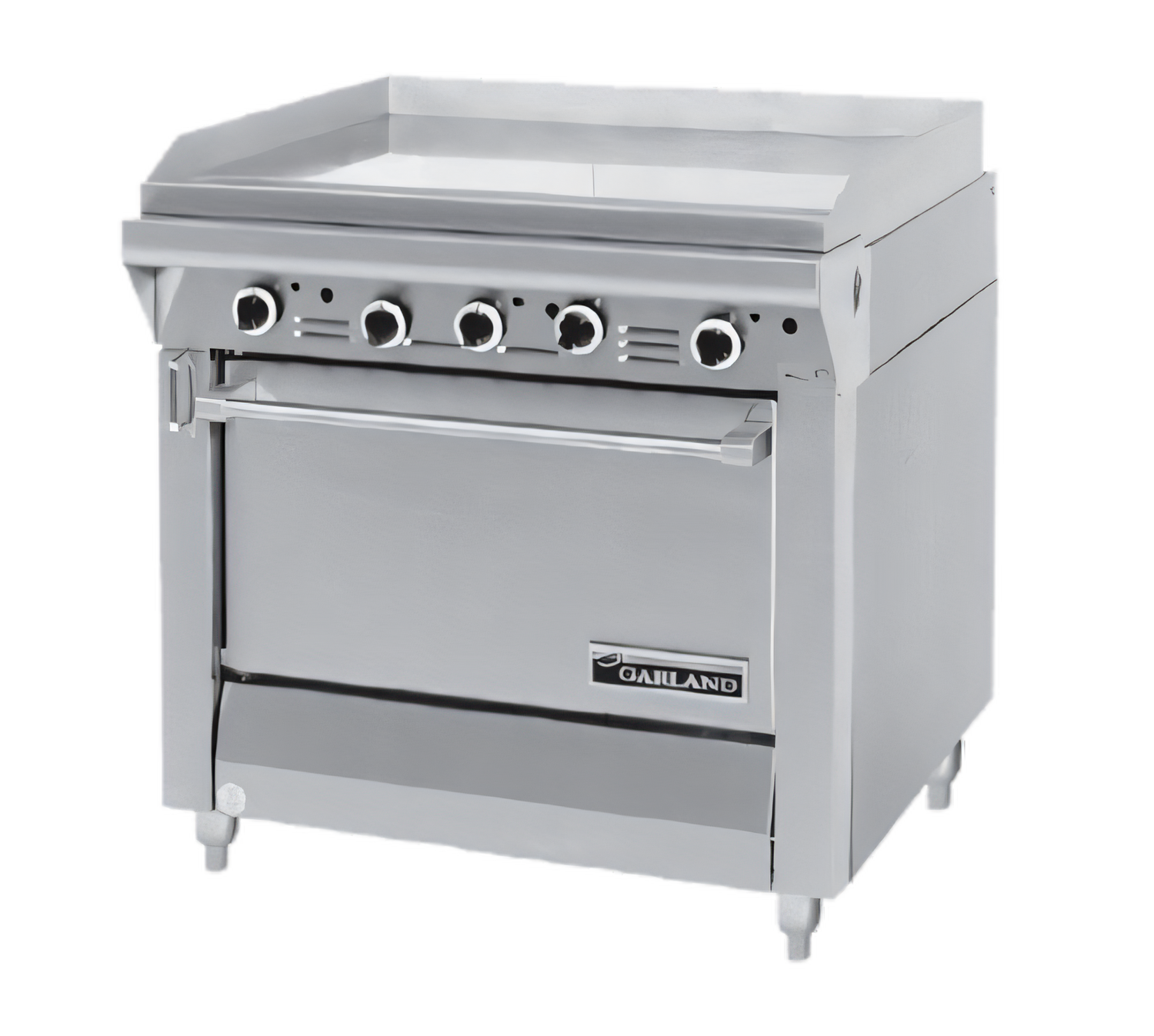

Garland Master Series 34" Heavy-Duty Gas Griddle Range with Storage Base
Model M47S | 99,000 BTU | CSA Flame & Star • NSF CertifiedEngineered for relentless, high-volume service, the Master Series M47S combines a full-width, 1 inch-thick griddle with a rugged storage base. Three powerful “H” style burners, each regulated by its own Hi-Lo valve, deliver the responsiveness chefs demand while the heavy-gauge stainless exterior shrugs off daily punishment.
Performance & Construction Highlights
- 1" (25 mm) polished steel griddle plate spans the entire 34" (864 mm) width.
- Three cast-iron “H” burners generate a combined 99,000 BTU/hr (29 kW).
- Individual Hi-Lo manual valves give you precise zone control.
- 2-5/16" (59 mm) welded splash guards with clip-on stainless backsplash.
- Front-mounted stainless grease drawer removes in seconds for fast clean-up.
- 7-1/2" (191 mm) deep stainless front rail doubles as a landing ledge.
- Spacious storage base (26" W × 30-1/2" D × 20-1/2" H) with adjustable shelf keeps pans and smallwares right where you need them.
- Durable stainless steel front & sides on 6" (152 mm) chrome-plated adjustable legs.
- Standard 1-1/4" front gas manifold with pressure regulator; rear connection kits available.
- Certified to CSA Flame, CSA Star and NSF sanitation standards.
Technical Specifications
| Model | M47S (storage base) |
|---|---|
| Fuel | Natural or Propane Gas – specify on order |
| Total Input | 99,000 BTU/hr (29 kW) |
| Griddle Plate | 1" (25 mm) thick polished steel |
| Controls | 3 × manual Hi-Lo valves with standing pilots |
| Overall Dimensions | 34" W × 38" D × 36-3/8" H (864 × 965 × 924 mm) |
| Storage Cavity | 26" W × 30-1/2" D × 20-1/2" H (665 × 773 × 519 mm) |
| Manifold Pressure | Nat 6" WC • LP 10" WC (15 / 25 mbar) |
| Gas Connection | Front 1-1/4" NPT (3/4" & 1" kits optional) |
| Clearances – Combustible | Sides 14" (356 mm) • Rear 6" (152 mm) |
| Certifications | CSA Flame / Star, NSF |
Popular Options & Accessories
- Polyurethane non-marking swivel casters with front brakes
- Stainless steel interior for storage base
- Single or double-deck tubular high shelf
- 10", 17" or 33" stainless steel backguards (backguard required on all Master Series units)
- Common front rail for battery installation (up to 102")
- Rear gas connection, flex hose & quick-disconnect kit with restraining device
Important – Commercial Use Only: This appliance is not approved for residential installations. Follow all local codes and installation instructions, and select the correct backguard size (Garland M34BG or equivalent).
Looking for a matching oven base, convection option or grooved griddle surface? Ask our team about the full Garland Master Series line-up.
