Garland M46T Master Gas Ranges
Description

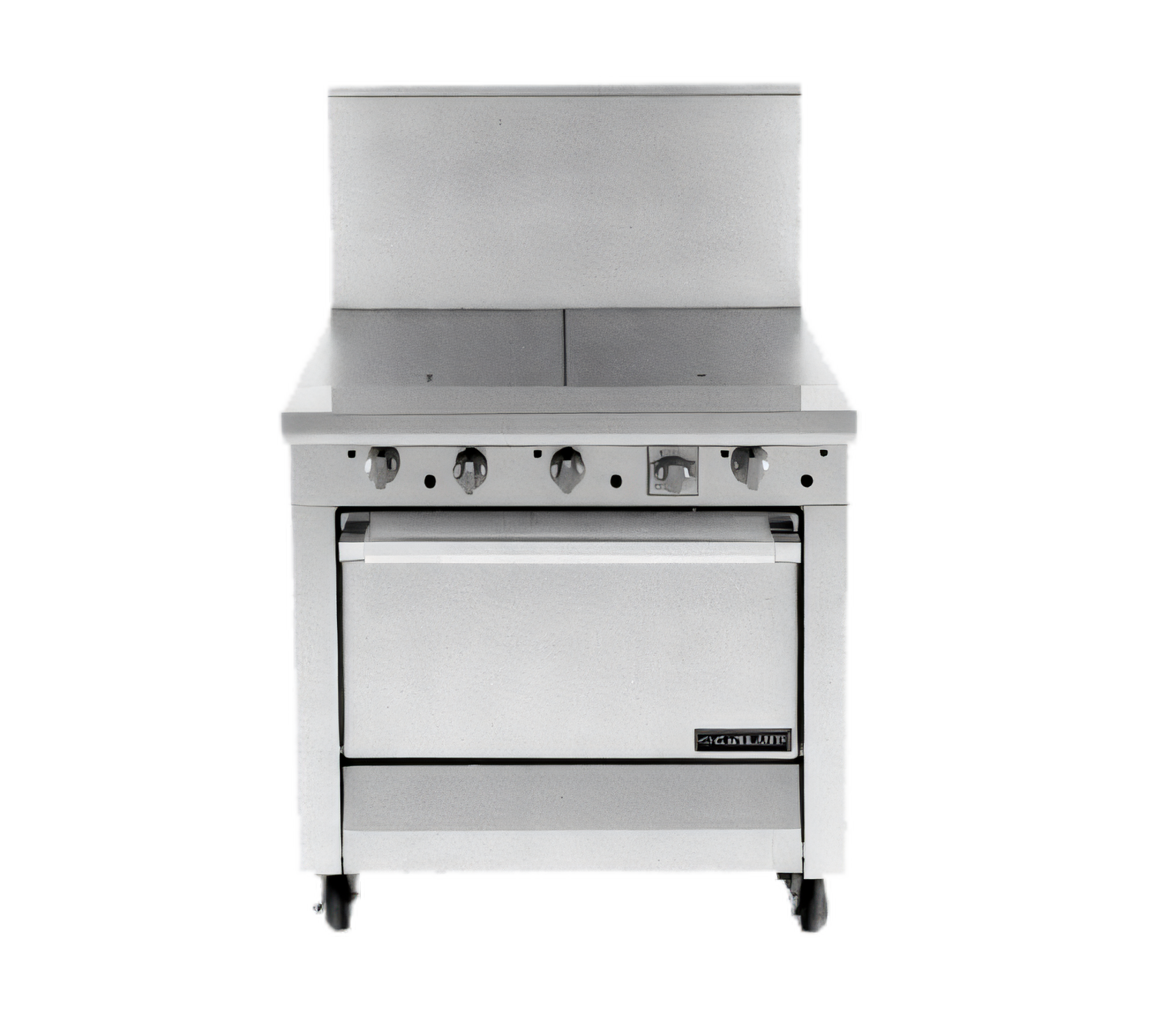

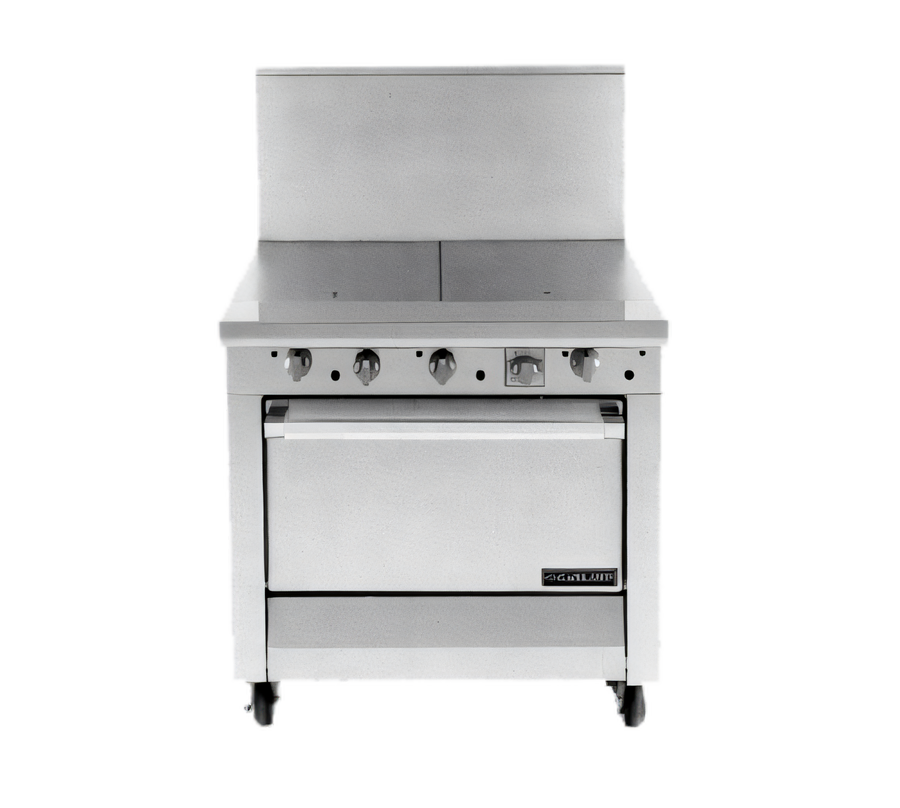

Garland Master Series 34" Modular Heavy-Duty Hot Top Range
Model M46T | 90,000 BTU Natural or Propane GasBuild a seamless cookline with the Garland Master Series 34" modular hot top. Two extra-heavy, even-heat cast-iron plates distribute 90,000 BTU of power evenly across the surface—perfect for stock pots, braising pans, and high-volume sauté work. Drop it into a custom suite, set it on a refrigerated base, or mount it on optional legs—the choice is yours.
Key Features
- Two 17" (432 mm) even-heat cast-iron hot tops with three “H” burners for uniform surface temperatures.
- 90,000 BTU/h total input (26.37 kW) for fast recovery and continuous production.
- Independent Hi-Lo valves on each burner deliver precise simmer-to-sear control.
- Heavy-gauge aluminized-steel baffle system maximizes heat transfer while protecting components.
- Durable stainless-steel front & sides with 7-1/2" (191 mm) deep front rail—easy to wipe clean.
- 1-1/4" NPT front gas manifold standard; optional rear gas connection available.
- Modular design integrates with any 34" Garland Master Series base or stands alone with optional 6" adjustable legs.
- NSF & CSA certified for commercial kitchens; Made in North America.
Specification Highlights
| Overall width | 34" / 864 mm |
|---|---|
| Overall depth | 38" / 965 mm |
| Height (with stand) | 36-3/8" / 924 mm |
| Height (without stand) | 9-1/2" / 241 mm |
| Cooking surface | (2) 17" even-heat hot tops |
| Total input | 90,000 BTU/h (26.37 kW) |
| Manifold pressure | Natural 6" WC | Propane 10" WC |
| Gas inlet | 1-1/4" NPT front (optional 3/4" or 1" rear) |
| Clearances – Combustible | Sides 11" (279 mm) | Back 6" (152 mm) |
| Shipping weight | 260 lb / 118 kg |
| Certifications | NSF, CSA, ANSI Z83.11b/CSA 1.8b |
Popular Options & Accessories
- Stainless-steel backguards: 10", 17" or 33"
- Single or double-deck tubular high shelves
- Common front rail for battery lines (up to 102" wide)
- Polyurethane swivel casters with front brakes
- Gas regulator, shut-off valve, flex hose & quick disconnect kit
- Stainless-steel main back panel or end caps
Need a matching oven, refrigerated base, or additional cooktop modules? Build your ideal battery—contact our food-service specialists for a custom quote.
