Garland M46R Master Gas Ranges
Description

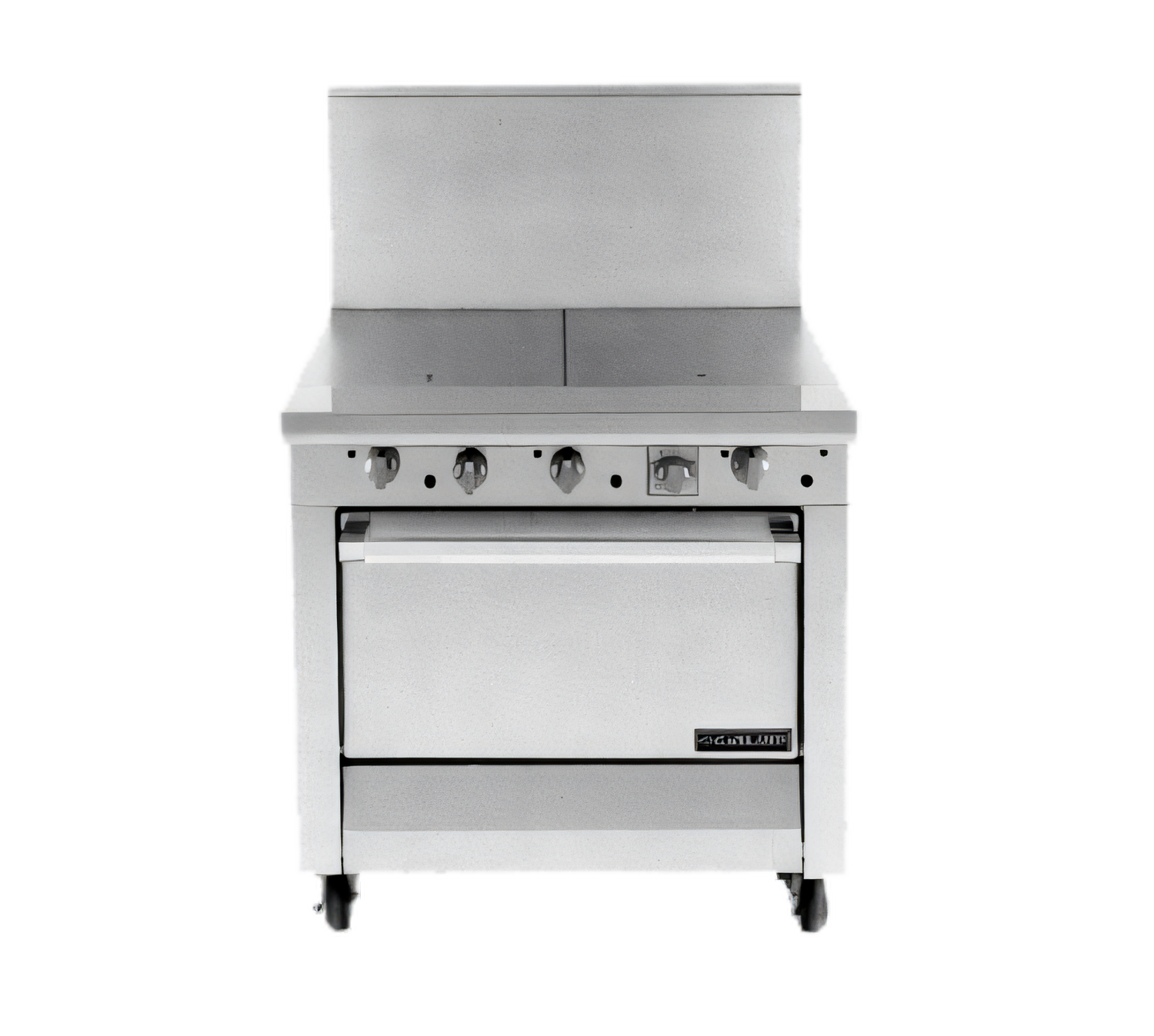

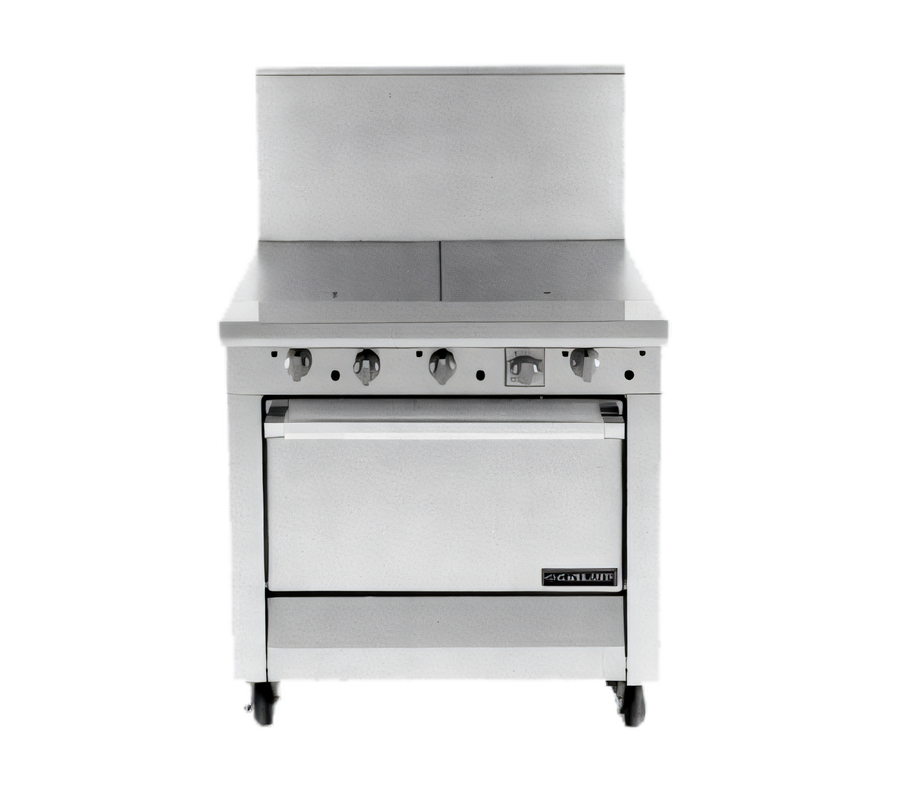

Garland Master Series 34" Heavy-Duty Even Heat Hot Top Range — Standard Oven, Gas
Model M46R | Natural or Propane | 130,000 BTUBring relentless performance to your cookline with the Garland Master Series M46R. Two extra-heavy 17" cast-iron hot tops deliver edge-to-edge heat, while a high-output oven stands ready for roasting, finishing and baking. All packed into a space-saving 34" frame built to thrive in the toughest commercial kitchens.
Key Features
- Two 17" even-heat cast-iron hot tops with three “H” burners — 90,000 BTU total
- Separate Hi-Lo valves on each burner for instant switches between gentle holding and hard sear temps
- Standard oven with porcelain-enamel interior and cast-iron burner (40,000 BTU Natural | 35,000 BTU Propane)
- Piezo spark ignition — quick, reliable lighting without open flames
- Stainless-steel front & sides resist corrosion and wipe clean fast
- 7-1/2" deep stainless front rail protects controls and doubles as a plate landing shelf
- 6" chrome-plated adjustable legs for perfect leveling and easy floor clearance
- Heavy-gauge aluminized steel radiation baffle plus stainless burner-box bottom for maximum durability
- Front 1-1/4" NPT gas connection (rear connection optional)
- NSF & CSA certified; designed strictly for commercial use
Quick-Look Specifications
| Exterior width | 34" / 864 mm |
|---|---|
| Exterior depth | 38" / 965 mm (includes 7-1/2" rail) |
| Exterior height | 36-3/8" / 924 mm (with 6" legs) |
| Hot tops | 2 × 17" cast-iron, 3 “H” burners |
| Top section input | 90,000 BTU/h (26.37 kW) |
| Oven input | 40,000 BTU/h Natural | 35,000 BTU/h Propane |
| Total input | 130,000 BTU/h Natural | 125,000 BTU/h Propane |
| Oven cavity (W×D×H) | 26-1/4" × 29-3/4" × 13-1/2" (667 × 737 × 343 mm) |
| Gas connection | 1-1/4" NPT front (rear optional) |
| Operating pressure | Natural 6" WC | Propane 10" WC |
| Shipping weight | 450 lb / 205 kg |
Popular Options & Accessories
- Convection oven base (Model M46RC)
- Stainless-steel main back or backguards (10", 17" or 33")
- Rear gas connection, 3/4" or 1" NPT
- Stainless tubular high shelf — single or double deck
- Common front rail for battery configurations (up to 102")
- Swivel casters with front brakes
From searing stocks to slow-simmering sauces and finishing plates in the oven, the Garland M46R keeps pace with your busiest services — shift after shift, year after year.
