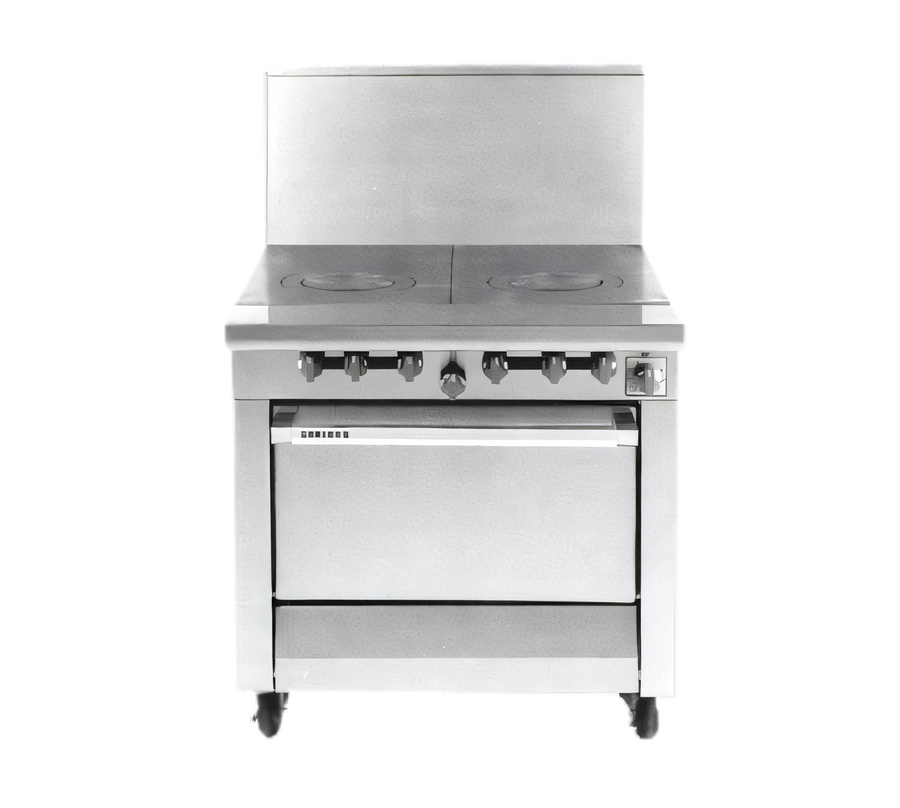

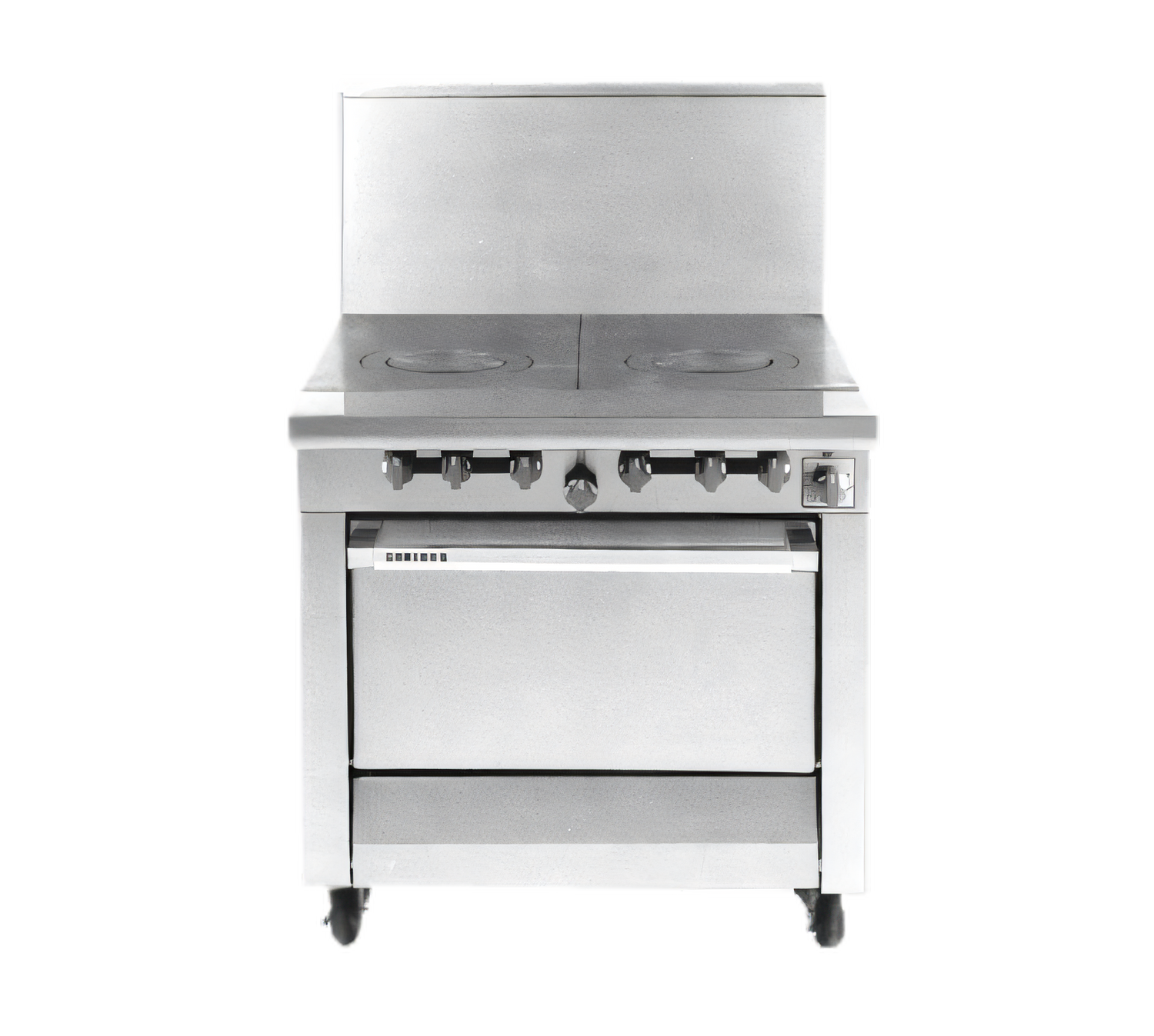

Garland M45S Master Gas Ranges
$4,995.00
Unit price
/
Unavailable
Description
Garland Master Series 34" Heavy-Duty Hot Top Range – Model M45S
90,000 BTU two-section front-fired hot top with storage baseBuilt for relentless commercial service, the Garland Master Series M45S pairs two powerful 17" hot-top sections with a full-width storage base—delivering rock-solid performance in a compact 34" footprint. From slow-simmered sauces to high-volume stockpot work, this range supplies the even, controllable heat chefs rely on every shift.
Key Features
- Two 17" (432 mm) extra-heavy cast-iron hot tops with removable rings & lids.
- Three individually controlled jet burners per section—45,000 BTU each section; 90,000 BTU (26.37 kW) total on natural gas.
- Front-fired burner design for rapid recovery and even plate temperature.
- Stainless steel front & sides plus heavy-gauge radiation baffle system for superior durability.
- One-piece stainless steel drip tray catches spills across the full width.
- Spacious aluminized-steel storage base with internal shelf keeps pans and utensils close at hand.
- 7-1/2" (191 mm) deep stainless steel front rail provides a safe staging area.
- 6" (152 mm) adjustable chrome legs simplify leveling and floor cleaning.
- Piezo-spark pilot ignition—no external electricity required.
Specifications
| Model | M45S |
|---|---|
| Configuration | (2) front-fired hot top sections, storage base |
| Total Input | 90,000 BTU/hr Natural | 66,000 BTU/hr Propane |
| Cooking Surface | 34" W × 26-7/8" D (864 mm × 683 mm) |
| Overall Dimensions | 34" W × 38" D × 36-3/8" H (864 × 965 × 924 mm) with legs |
| Storage Base Interior | 26" W × 30-1/2" D × 20-1/2" H (665 × 773 × 519 mm) |
| Gas Connection | 1-1/4" NPT front (rear connection optional) |
| Manifold Pressure | Natural 6" WC (15 mbar) | Propane 10" WC (25 mbar) |
| Shipping Weight | Approx. 410 lb (186 kg) |
Popular Options & Accessories
- Stainless steel backguards: 10", 17" or 33" heights
- Single- or double-deck stainless steel high shelves
- Polyurethane swivel casters with front brakes
- Rear gas connection kits (3/4" or 1-1/4" NPT) with flex hose & quick disconnect
- Stainless steel storage-base shelf upgrade
- Common front rail for battery line-ups (up to 102" wide)
Installation Note: All Master Series ranges require a compatible backguard and, when supplied with casters, an approved restraining device. Gas ratings are for installations up to 2,000 ft (610 m) above sea level—specify altitude and gas type when ordering.
Garland reserves the right to change design or specifications without notice.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Master
Height
36.38in
Width
34.0in
Depth
38.0in
Shipping Weight
410.0lbs
Base
cabinet(s)
Top
(2) hot tops
Exterior Finish
stainless steel front & sides
Specifications
Master Series Heavy Duty Range, gas, 34", (2) 17" front fired hot tops, removable rings & lids, storage base, stainless steel front & sides, 6" legs, 90,000 BTU (Garland)
