Garland M45R Master Gas Ranges
Description

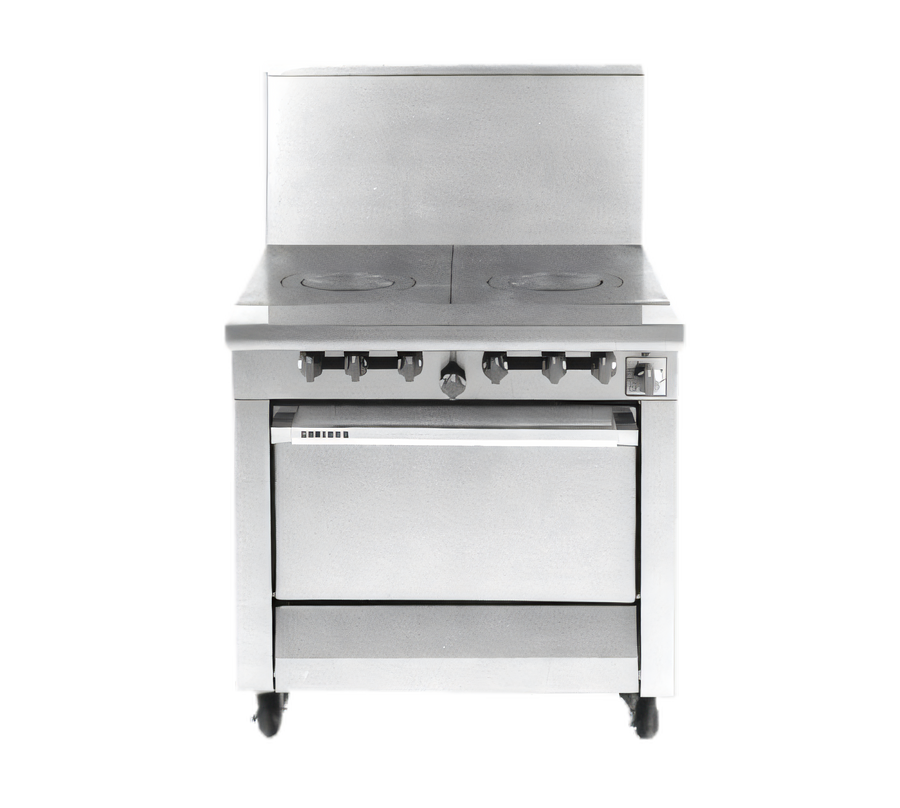

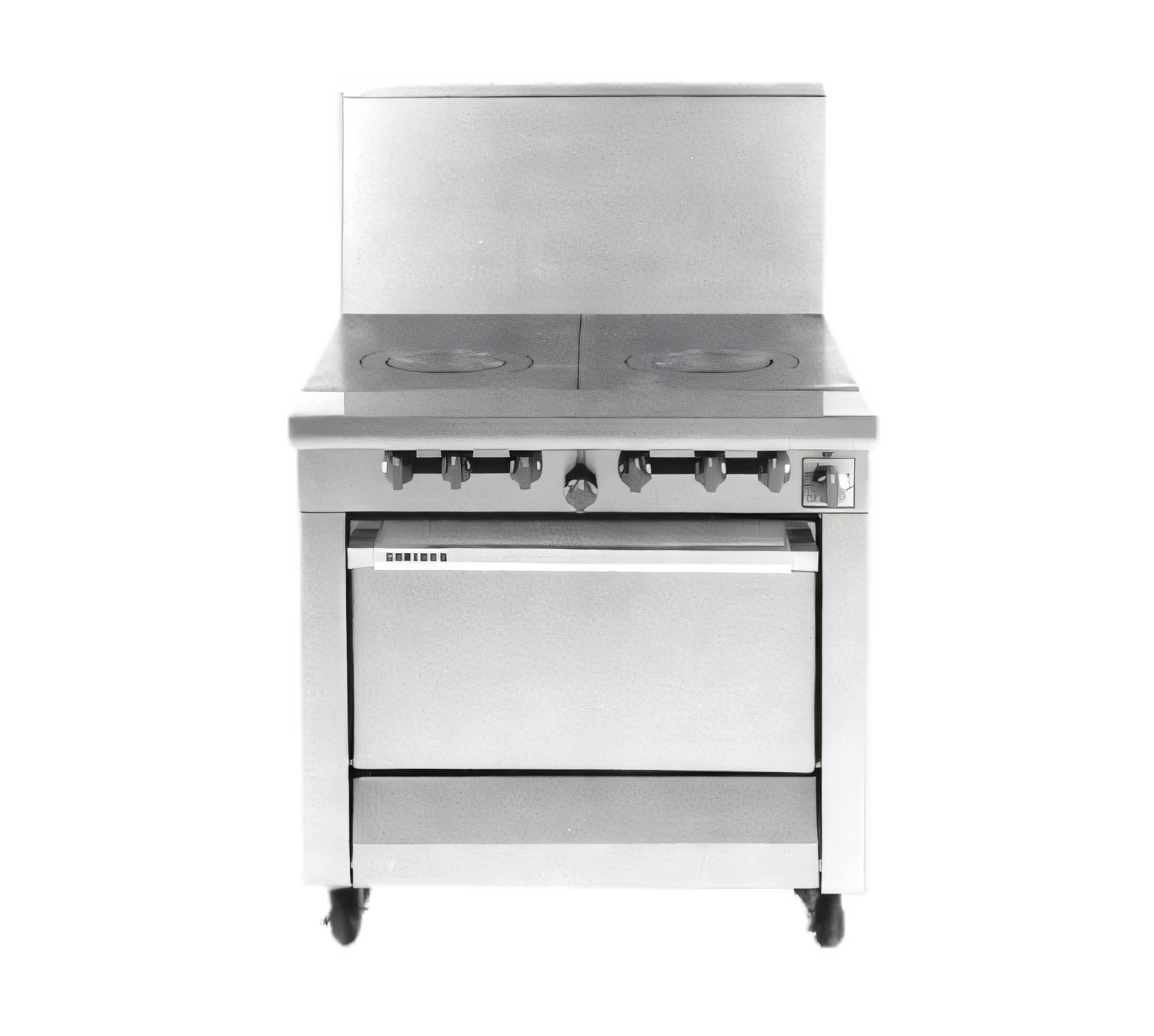

Garland Master Series M45R Hot-Top Range – 34″ Gas, Standard Oven
130,000 BTU heavy-duty performance for demanding commercial kitchensBuilt for chefs who refuse to compromise, the Garland Master Series M45R pairs two powerful 17″ front-fired hot tops with a full-size standard oven—all inside a rugged 34″ footprint. From searing stocks to slow-simmering sauces, this range delivers precise, even heat and the durability to thrive on a busy cookline day after day.
Core Benefits
- Two 17″ extra-heavy cast-iron hot tops, each with 3 individually controlled jet burners—45,000 BTU per section (90,000 BTU total).
- Removable cast-iron rings & lids let you move from high-heat stock pots to delicate sauce pans in seconds.
- 40,000 BTU cast-iron oven burner with snap-action thermostat and piezo spark ignition for fast, reliable lighting.
- Fully porcelain-enamel oven interior for easy wipe-down cleaning and superior heat retention.
- One-piece stainless steel drip tray and heavy-gauge aluminized steel baffle system manage spills and radiate heat evenly.
- 6″ (152 mm) chrome steel adjustable legs and a 7-1/2″ deep stainless front rail for ergonomic plating.
- Stainless steel front & sides resist corrosion and stand up to daily abuse.
Ideal Applications
- Hotel, resort & institutional kitchens
- High-volume restaurants & catering facilities
- Production cooking for soups, sauces & stocks
- Any cookline that values even, controllable surface heat
Technical Specifications
| Model | M45R (Natural or Propane) |
|---|---|
| Total Input | 130,000 BTU/hr - Natural 101,000 BTU/hr - Propane |
| Hot-Top Sections | 2 × 17″ front-fired, 3 jet burners each (45,000 BTU nat. / 33,000 BTU LP per section) |
| Oven Burner | 40,000 BTU nat. / 35,000 BTU LP |
| Exterior Dimensions (W×D×H*) | 34″ × 38″ × 36-3/8″ (864 × 965 × 924 mm) *Height with NSF legs |
| Oven Interior (W×D×H) | 26-1/4″ × 29″ × 13-1/2″ (667 × 737 × 343 mm) |
| Gas Connection | 1-1/4″ NPT front connection (rear optional) |
| Manifold Pressure | Natural 6″ WC | LP 10″ WC |
| Clearances (Combustible) | Sides 14″ (356 mm) | Back 6″ (152 mm) |
| Shipping Weight | ≈ 510 lb (232 kg) |
Popular Factory Options
- Stainless steel oven interior
- Convection oven base (Model M45RC)
- Storage base in lieu of oven (Model M45S)
- 10″, 17″ or 33″ stainless steel backguard / high shelf
- Rear gas connection kit, gas regulator & quick-disconnect hose
- Polyurethane non-marking swivel casters with front brakes
Need help configuring a battery line or selecting accessories? Reach our Garland specialists at 1-800-424-2411.
