Garland M44R Master Gas Ranges
Description

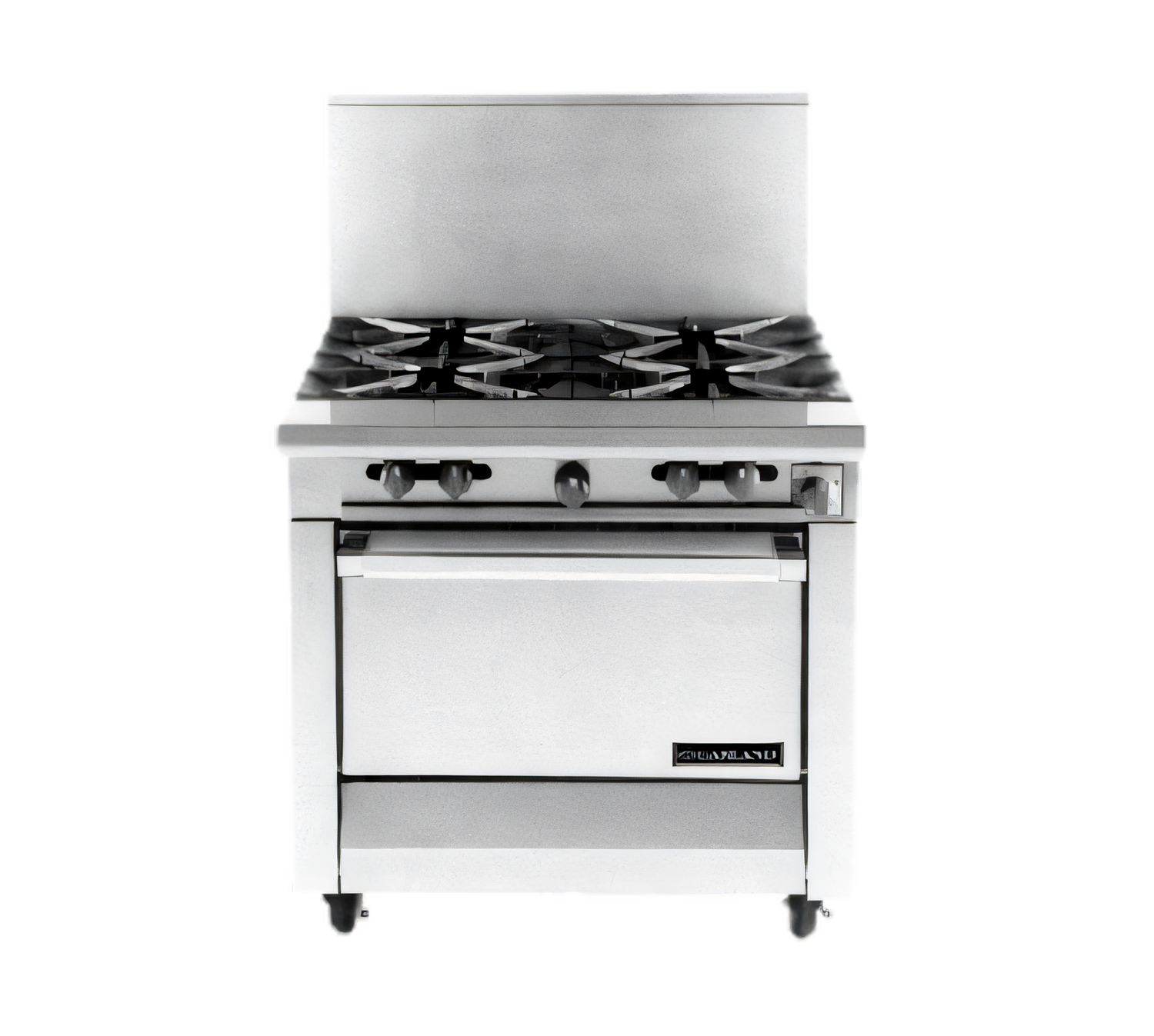

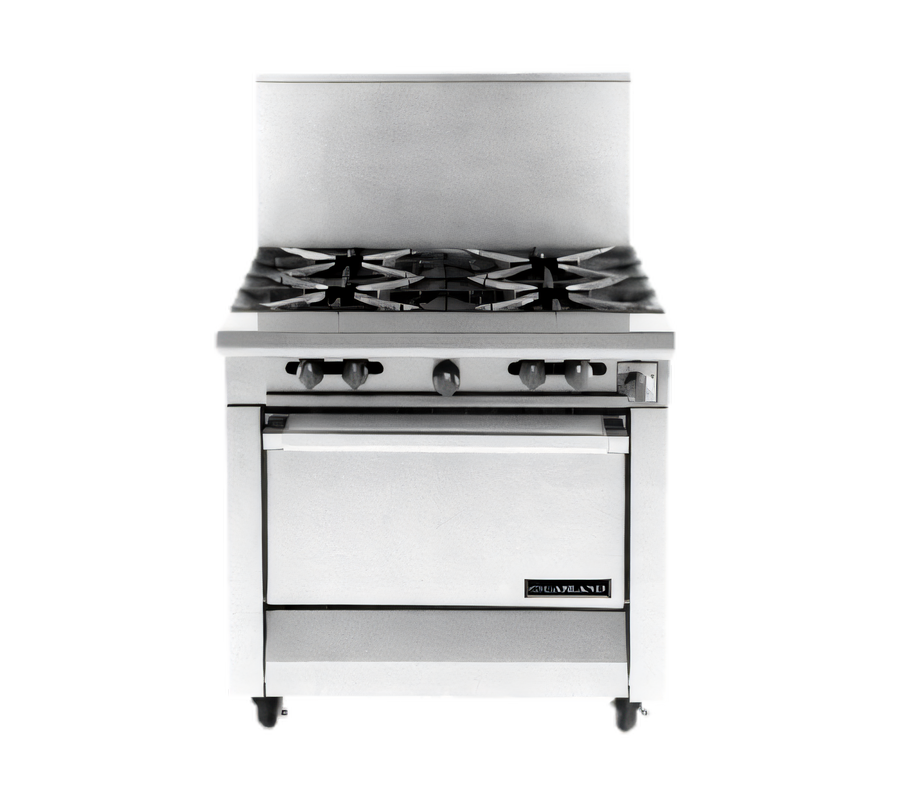

Garland Master Series 34" Heavy-Duty Gas Range – 4 Burner with Standard Oven
Model M44R | 180,000 BTU | CSA Flame & Star, NSFEngineered for the toughest commercial kitchens, the Garland Master Series M44R marries four high-performance Starfire® open burners with a full-size oven, delivering the muscle, precision and durability today’s chefs expect—all in a space-saving 34-inch footprint.
Key Features
- Four 35,000 BTU two-piece Starfire® open burners with removable heads for effortless cleaning.
- Heavy-duty cast-iron grates with detachable ring bowls—handle everything from 1-qt saucepans to stock pots.
- One-piece stainless-steel drip tray spans the entire width for quick crumb & grease removal.
- 40,000 BTU cast-iron oven burner, snap-action thermostat (low to 500 °F), and reliable piezo spark ignition.
- Fully porcelainized oven interior resists corrosion and wipes clean in seconds.
- Stainless-steel front & sides plus a 7-1/2" deep front rail for plating, resting pans or holding utensils.
- 6" (152 mm) chrome-plated adjustable legs keep the range level on uneven floors.
- Front 1-1/4" NPT gas connection is standard; optional 3/4" or 1" rear connection available.
- Total input: 180,000 BTU (Natural) / 163,000 BTU (Propane).
- Certified to CSA Flame, CSA Star and NSF for safety and sanitation.
Built for All-Day Production
From rapid sautéing to low-simmer sauces, Starfire® burners give you instant, even heat and five-turn valves for pinpoint control. Inside, the oven’s porcelain cavity and powerful cast-iron burner ensure fast recovery and consistent baking or roasting—batch after batch.
Specifications
| Width | 34" / 864 mm |
|---|---|
| Depth (incl. 7-1/2" rail) | 38" / 965 mm |
| Height on 6" legs | 36-3/8" / 924 mm |
| Work-surface height | 30-3/8" / 772 mm (legs removed) |
| Cooktop output | 140,000 BTU/hr (Natural) • 128,000 BTU/hr (Propane) |
| Oven output | 40,000 BTU/hr (Natural) • 35,000 BTU/hr (Propane) |
| Total input | 180,000 BTU/hr (Natural) • 163,000 BTU/hr (Propane) |
| Oven interior (W × D × H) | 26-1/4" × 29" × 13-1/2" (667 × 737 × 343 mm) |
| Gas connection | 1-1/4" NPT front (std) | 3/4" or 1" rear (opt) |
| Shipping weight | Approx. 440 lb / 200 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Popular Options & Accessories
- Stainless-steel backguard: 10", 17" or 33"
- Single or double-deck tubular high shelf
- Rear gas connection kit with shut-off valve & regulator
- 5-ft gas flex hose & quick disconnect (with restraining device)
- Set of four polyurethane locking swivel casters
- Additional oven racks or stainless-steel oven interior
- Common front rail for battery lines up to 102"
Units supplied with casters must be secured with an approved restraining device. Gas ratings are for installations up to 2,000 ft (610 m). Contact Garland for altitudes above 2,000 ft or for export electrical options.
