Garland M43R Master Gas Ranges
Description

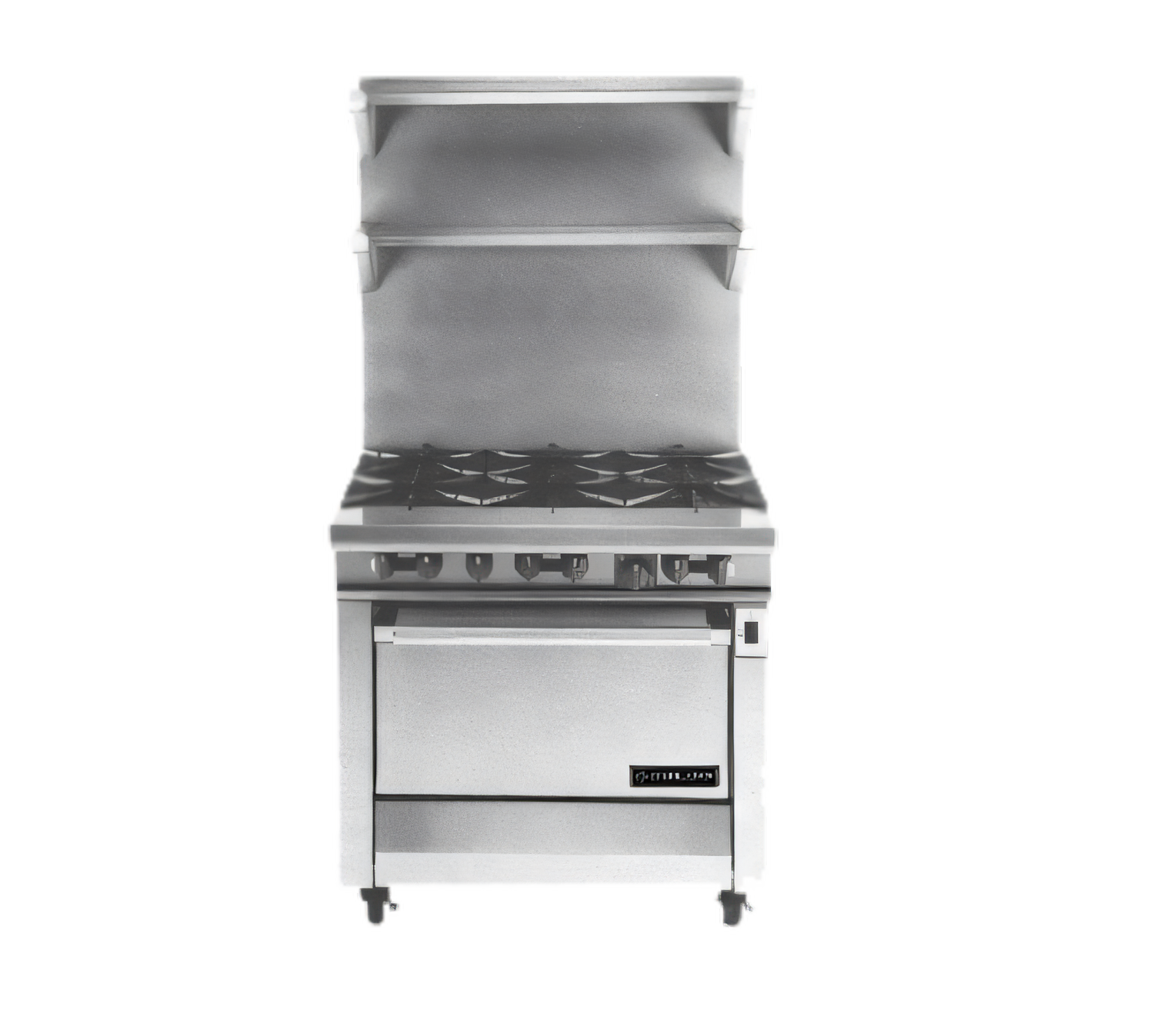

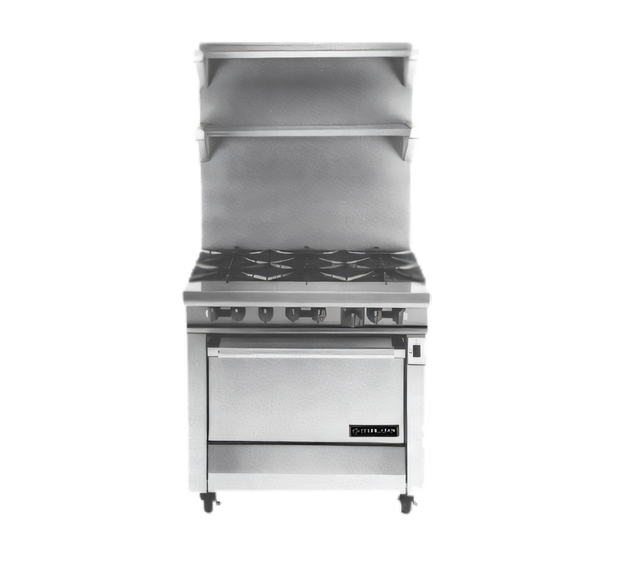

Garland Master Series 34" Heavy-Duty Gas Range – 6 Starfire Burners & Standard Oven
Model M43R | 184,000 BTU | CSA & NSF CertifiedBuilt for the toughest commercial kitchens, the Garland Master Series M43R packs six high-output Starfire burners and a full-size oven into a space-saving 34 inch footprint. Expect fast heat-up, rock-solid temperature control and the legendary durability that has made Garland a chef-favorite for decades.
Key Features
- Six (6) two-piece Starfire open burners, 24,000 BTU each – removable heads for easy cleaning.
- Cast-iron top & ring grates withstand continuous high heat.
- Full-width, one-piece stainless steel drip tray keeps the cookline clean.
- 40,000 BTU cast-iron oven burner with snap-action thermostat up to 500 °F (260 °C).
- Fully porcelainized oven interior for quick wipe-downs and corrosion resistance.
- Piezo spark ignition – reliable, battery-free lighting for the oven pilot.
- 7-1/2" (191 mm) deep stainless steel front rail for plating & utensil staging.
- Stainless steel front & sides plus reinforced chassis corners for maximum longevity.
- 6" (152 mm) chrome-plated adjustable legs level the unit on any surface.
- Total input (natural gas): 184,000 BTU/hr (top + oven).
At-a-Glance Specifications
| Model | M43R |
|---|---|
| Footprint (W × D × H) | 34" × 38" × 36-1/4" (864 × 965 × 921 mm) – on 6" NSF legs |
| Work-surface height | 36-1/4" (921 mm) |
| Open burners | 6 Starfire; 24,000 BTU each (Natural) / 20,000 BTU each (Propane) |
| Oven interior | 26-1/4" W × 29" D × 13-1/2" H (667 × 737 × 343 mm) |
| Oven burner | 40,000 BTU cast-iron “H” burner (Natural) / 35,000 BTU (Propane) |
| Total input | 184,000 BTU (Natural) / 155,000 BTU (Propane) |
| Gas connection | 1-1/4" NPT (front); manifold pressure 6" WC Natural / 10" WC Propane |
| Construction | Stainless steel front & sides, porcelain oven cavity, cast-iron grates |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping weight | 440 lb (200 kg) |
Ideal For
- High-volume restaurants & hotel kitchens
- Catering halls & banquet facilities
- Institutional foodservice – schools, hospitals, correctional
- Any operation needing compact, heavy-duty cooking power
Gas ratings apply to installations up to 2,000 ft (610 m) above sea level. Please specify altitude and gas type when ordering.
