Garland M43FTS Master Gas Ranges
Description

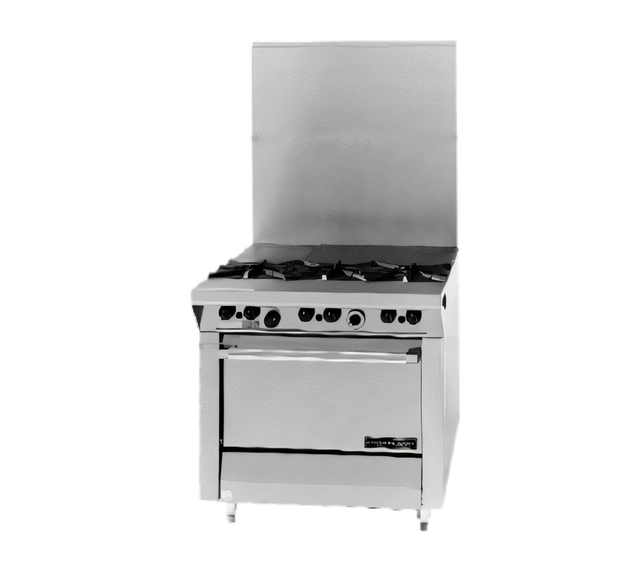

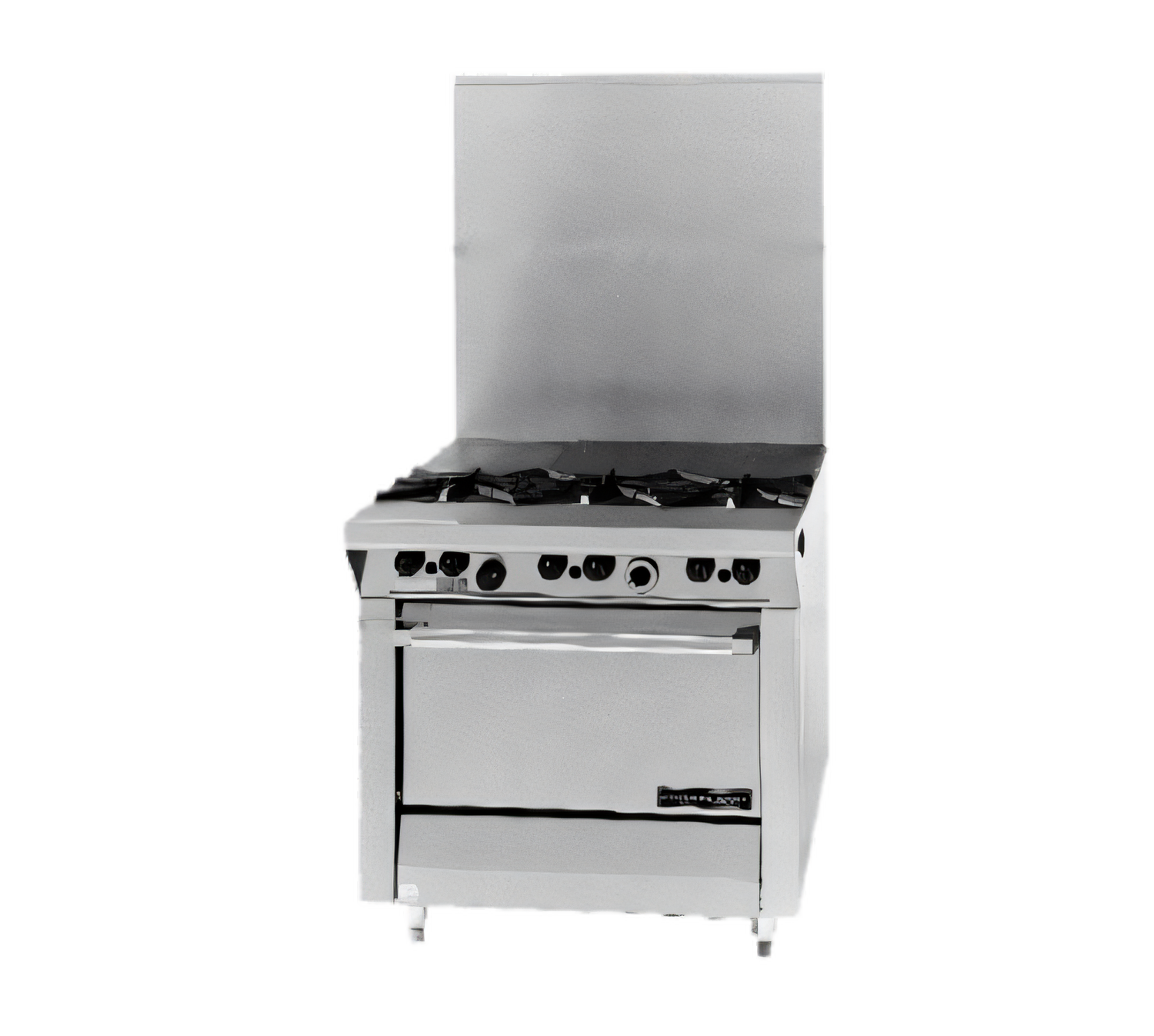

Garland Master Series 34" Heavy-Duty Gas French Top Range w/ Storage Base
Model M43-FTSEngineered for high-volume kitchens that refuse to compromise on versatility or durability, the Garland Master Series French Top Range teams searing Starfire™ open burners with gentle, even-heat French tops—all in a compact 34 inch footprint. A spacious aluminized-steel storage base keeps sheet pans, sauté pans, and smallwares exactly where you need them, while the stainless-steel exterior stands up to years of daily punishment.
Key Features
- (3) 18,000 BTU Starfire open burners with removable ring grates for rapid, even heat transfer.
- (3) cast-iron French tops (11-1/4" W × 14-3/4" D each), each heated by an independent 15,000 BTU burner—perfect for sauces, stocks, and low-simmer applications.
- Heavy-gauge cast-iron top grates & hot tops built to withstand constant commercial use.
- Full-width, one-piece stainless-steel drip tray simplifies clean-up.
- 7-1/2" deep stainless-steel front rail doubles as a plating or resting surface.
- Rugged 6" (152 mm) chrome-plated adjustable legs for easy leveling and floor clearance.
- Field convertible for Natural or Propane gas; factory-supplied 1-1/4" NPT front manifold (rear connection optional).
- CSA Flame & CSA Star certified; NSF listed for sanitation.
Performance & Capacity
| Total Input (Natural / LP) | 99,000 BTU / h |
|---|---|
| Open Burners | 3 × 18,000 BTU Starfire |
| French Top Burners | 3 × 15,000 BTU Starfire |
| Cooking Surface (WxD) | 34" × 26-7/8" (864 × 683 mm) |
| Storage Base Interior (WxDxH) | 26" × 30-1/2" × 20-1/2" (665 × 773 × 519 mm) |
| Operating Pressure | Natural 6" WC | LP 10" WC |
| Shipping Weight | ≈ 340 lb (155 kg) |
Construction Highlights
- Stainless-steel front & sides resist corrosion and wipe clean fast.
- Aluminized-steel storage base adds rigidity without excess weight.
- All valves are front-mounted for quick access and serviceability.
- Modular design integrates seamlessly into Garland Master Series cooklines.
Popular Options & Accessories
- 10", 17" or 33" stainless-steel backguard or single/double-deck high shelf.
- Rear gas connection kits (3/4", 1", or 1-1/4" NPT) and shut-off valves.
- 5' gas flex hose with quick disconnect & restraining device.
- Polyurethane non-marking swivel casters with front brakes.
- Common front rails (up to 102") for suite installations.
- End caps & covers for battery line-ups.
Clearance to combustible construction: 11" (279 mm) sides, 6" (152 mm) rear. Ranges supplied with casters must be secured with an approved restraining device. BTU ratings shown are maximum inputs; always refer to the unit’s data plate for exact field ratings.
