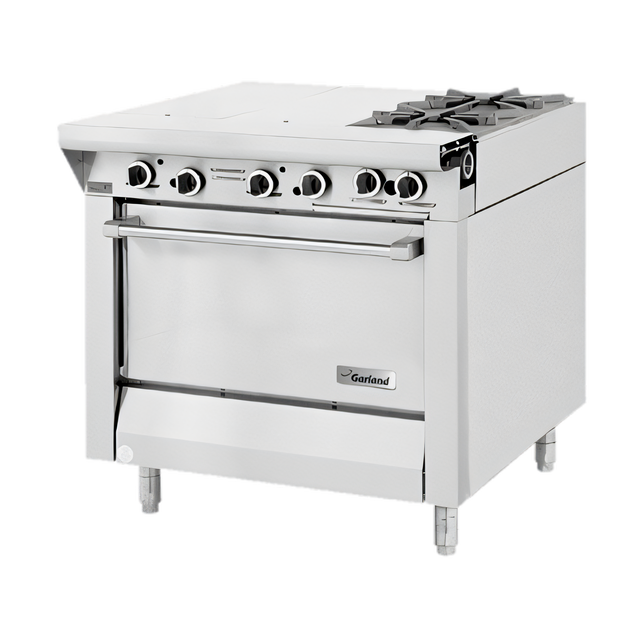

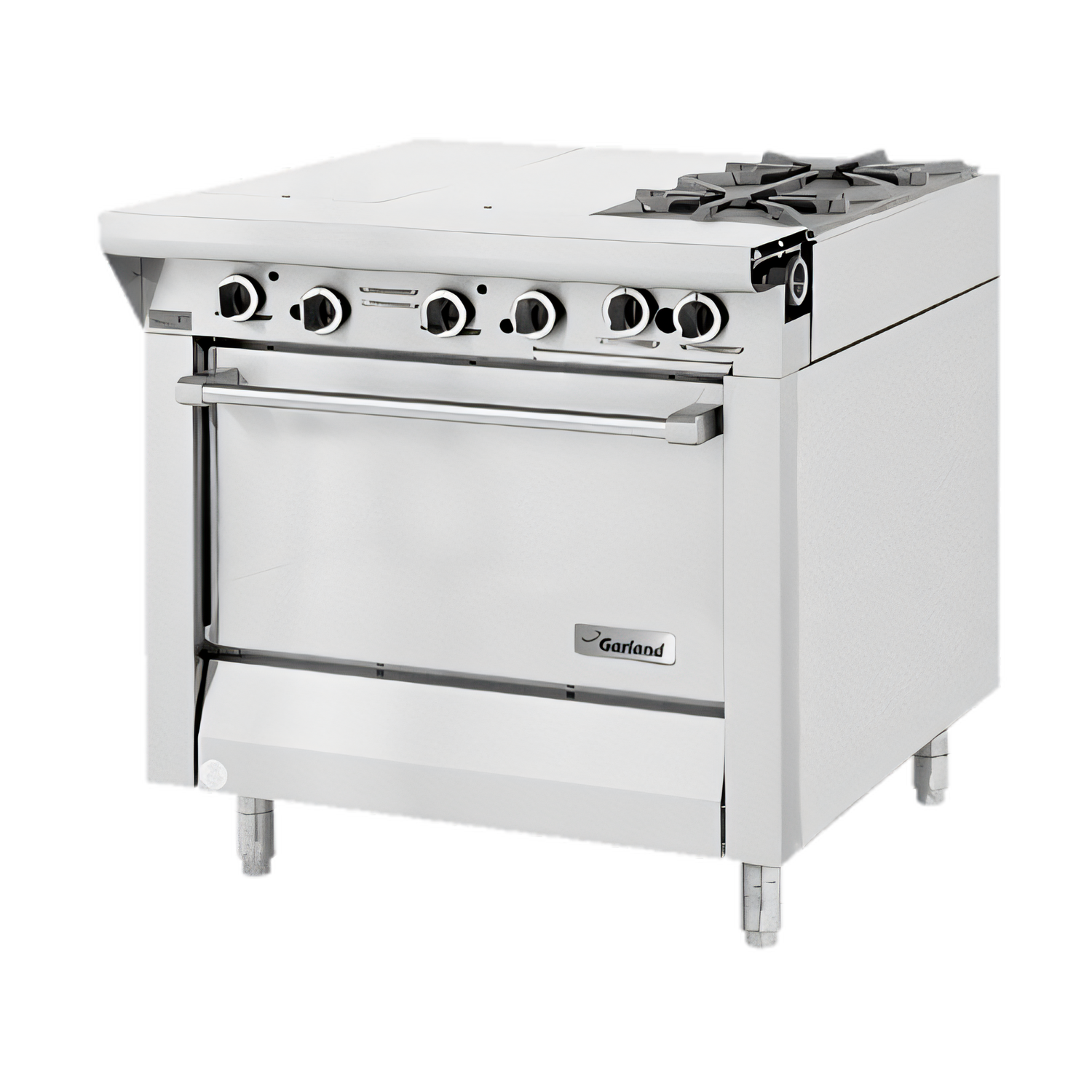

Garland M43-3R Master Gas Ranges
Garland M43-3R Master Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland M43-3R Master Gas Ranges
Description
Garland Master Series 34" Heavy-Duty Gas Range
3 Even Heat™ 12" Hot Tops | Standard Oven | 106,000 BTUThe performance of a full-size restaurant range in a space-saving 34-inch footprint. Garland’s Master Series delivers relentless, even heat across three seamless hot tops and a high-capacity oven, all wrapped in stainless steel durability that thrives on the toughest cook lines.
Key Features
- Three 12" (286 mm) Even Heat™ cast-iron hot top sections with 22,000 BTU “H” burners—slide stock-pots anywhere with no hot spots.
- 40,000 BTU standard oven with fully porcelainized interior for fast recovery and easy cleanup.
- Snap-action thermostat (200 °F – 550 °F / 93 °C – 288 °C) for precise, even baking and roasting.
- Piezo spark ignition—reliable, match-free lighting with no electrical hookup.
- All-stainless front & sides, 7-1/2" (191 mm) deep front rail, and reinforced chassis corners built to take daily abuse.
- 6" (152 mm) adjustable legs level the unit on uneven floors.
- Front 1-1/4" NPT gas manifold; optional rear connection available from the factory.
- Designed, engineered, and assembled in North America.
At a Glance
| Series / Model | Master Series – 34" Hot-Top Range (Factory configuration 3H) |
|---|---|
| Total Input | 106,000 BTU/hr (31.0 kW) |
| Hot Tops | 3 × 12" cast-iron plates @ 22,000 BTU each |
| Oven Burner | 1 × 40,000 BTU cast-iron “H” burner |
| Cooking Surface | 34" W × 24" D continuous plate |
| Oven Interior | 26-1/4" W × 29" D × 13-1/2" H (fits full-size sheet pans) |
| Overall Dimensions | 34" W × 38" D × 36-3/8" H (with legs) |
| Gas Type | Natural or Propane (specify) |
| Gas Connection | 1-1/4" NPT front manifold (rear optional) |
| Ignition | Piezo spark (oven & pilots) |
| Construction | Stainless steel front & sides, chrome-plated knobs, removable drip tray |
| Shipping Weight | ≈ 470 lb (214 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
Why Chefs Love the Master Series
- Continuous hot-top surface lets you reposition cookware without lifting—ideal for large stock pots and rondeaus.
- Thick cast-iron components store heat for lightning-fast recovery between batches.
- Shared 7-1/2" front rail allows multiple Master Series units to line-up flush in a seamless battery.
- Front-serviceable components speed up routine maintenance and reduce downtime.
This appliance is intended for commercial use only. Install in accordance with local codes and Garland installation instructions. A listed restraining device is required when the unit is mounted on casters.
