Garland M43-2R Master Gas Ranges
Description

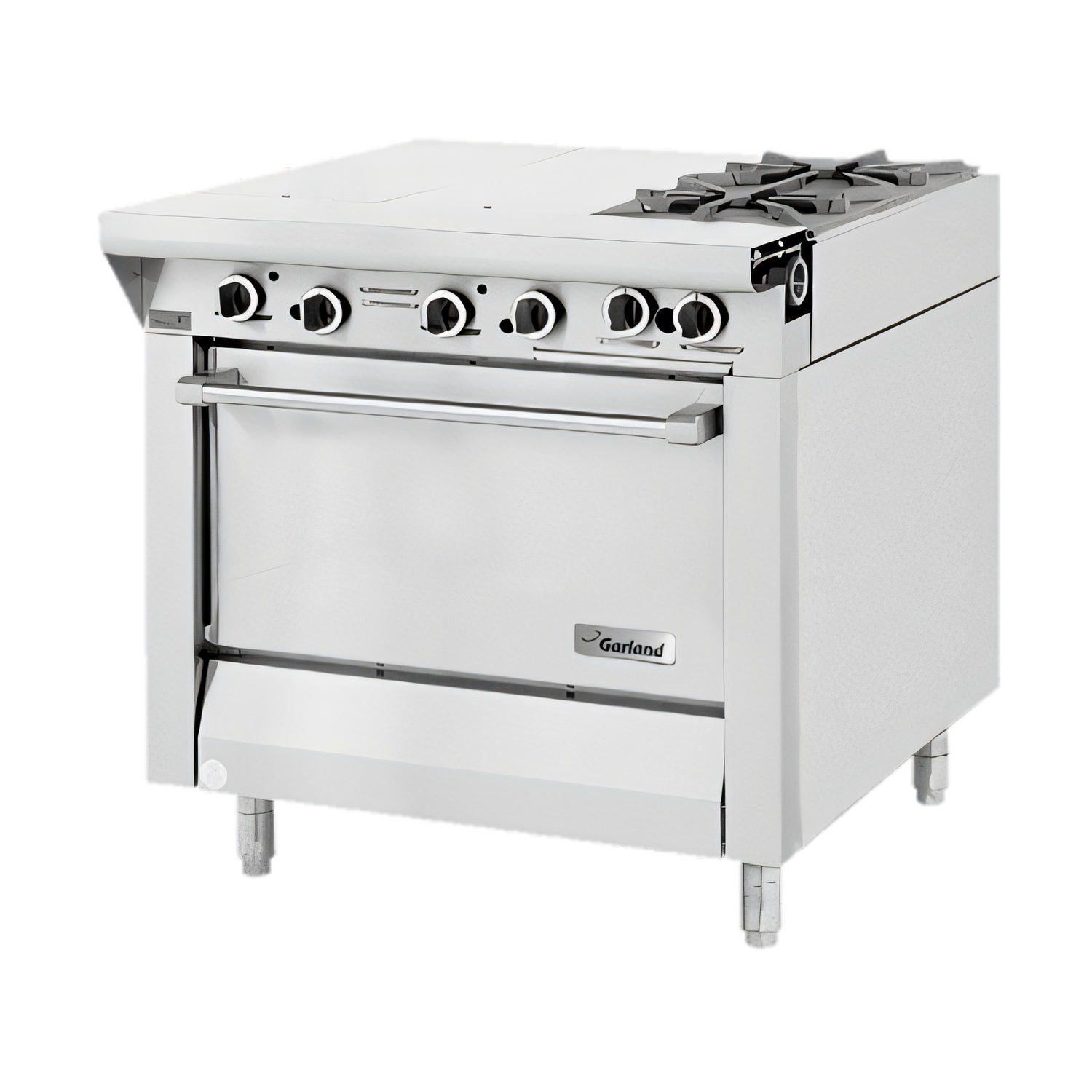

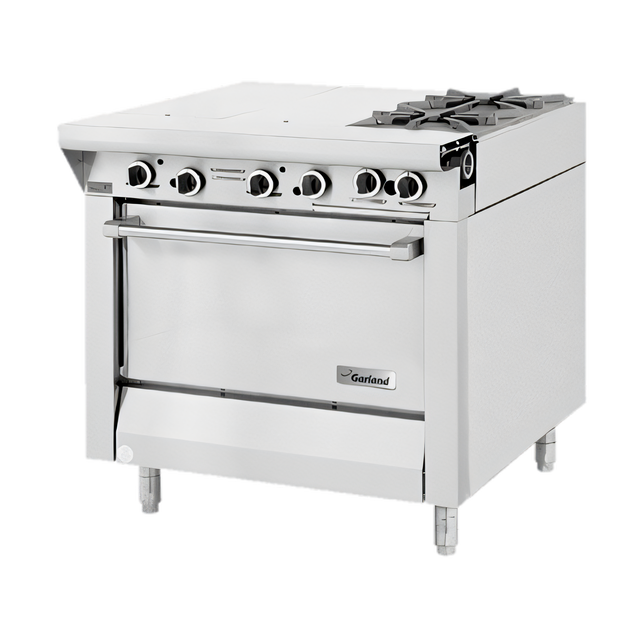

Garland Master Series 34" Heavy-Duty Combination Top Range
2 Open Burners • 2 Even-Heat Hot Tops • Standard Oven • 132,000 BTUEngineered for high-volume, all-day production, the Garland Master Series delivers the raw power of open burners, the gentle consistency of cast-iron hot tops, and a fast-recovery oven – all in a compact 34 inch footprint that makes the most of every linear inch on your cookline.
Key advantages
- Two 24,000 BTU Starfire™ open burners for instant, responsive heat.
- Two 12" Even-Heat cast-iron hot tops (22,000 BTU each) provide a uniform surface to simmer, braise or hold.
- 40,000 BTU standard oven with fully porcelainized interior fits 18" × 26" sheet pans side-to-side.
- Piezo spark ignition – light pilots safely without matches.
- Durable stainless steel front, sides and 7-1/2" deep front rail stand up to daily abuse and wipe clean fast.
- Oversized, stay-cool oven door handle and large, easy-grip control knobs.
- 6" adjustable stainless steel legs simplify leveling and provide sanitary floor clearance.
- Factory-installed 3/4" gas regulator and 1-1/4" front gas inlet speed up installation.
Performance ratings
| Total input (Natural Gas) | 132,000 BTU/hr (38.7 kW) |
|---|---|
| Open burners (2) | 24,000 BTU/hr each | Cast-iron Starfire design |
| Even-Heat hot tops (2) | 22,000 BTU/hr each | Cast-iron “H” burners |
| Standard oven | 40,000 BTU/hr | 150 – 500 °F (65 – 260 °C) snap-action thermostat |
Dimensions & capacities
| Exterior width | 34" (864 mm) |
|---|---|
| Exterior depth (incl. rail) | 38" (965 mm) |
| Height with 6" legs | 36-3/8" (924 mm) |
| Work-top height | 30-3/8" (772 mm) |
| Oven interior (W × D × H) | 26-1/4" × 29" × 13-1/2" (667 × 737 × 343 mm) |
| Approx. shipping weight | 470 lb (214 kg) |
Certifications
- CSA Flame
- CSA Star
- NSF Listed
Specify gas type (Natural or LP) when ordering. Garland certified casters, restraining devices and backguards are available – see Accessories below.
Popular accessories
- 10", 17" or 33" stainless steel backguard or double-deck high shelf
- Convection oven base upgrade
- Rear gas connection kits (3/4", 1" or 1-1/4" NPT)
- Polyurethane non-marking swivel casters with front brakes
- Additional chrome oven racks
- Common front rail for battery installations (up to 102" wide)
