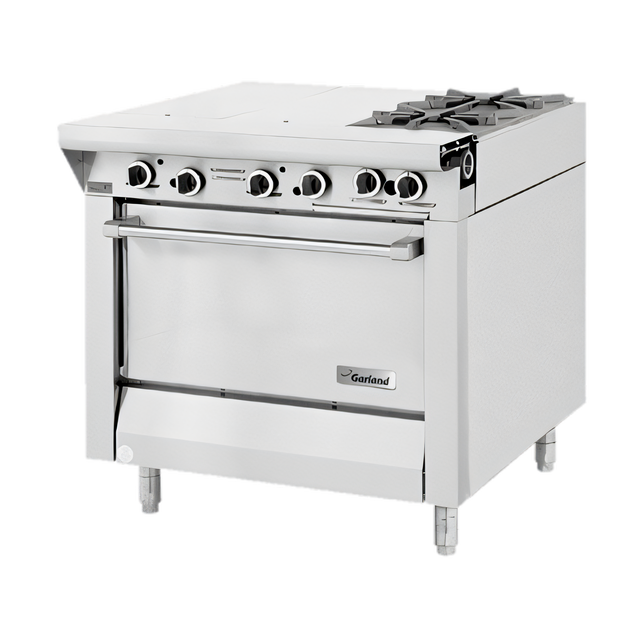

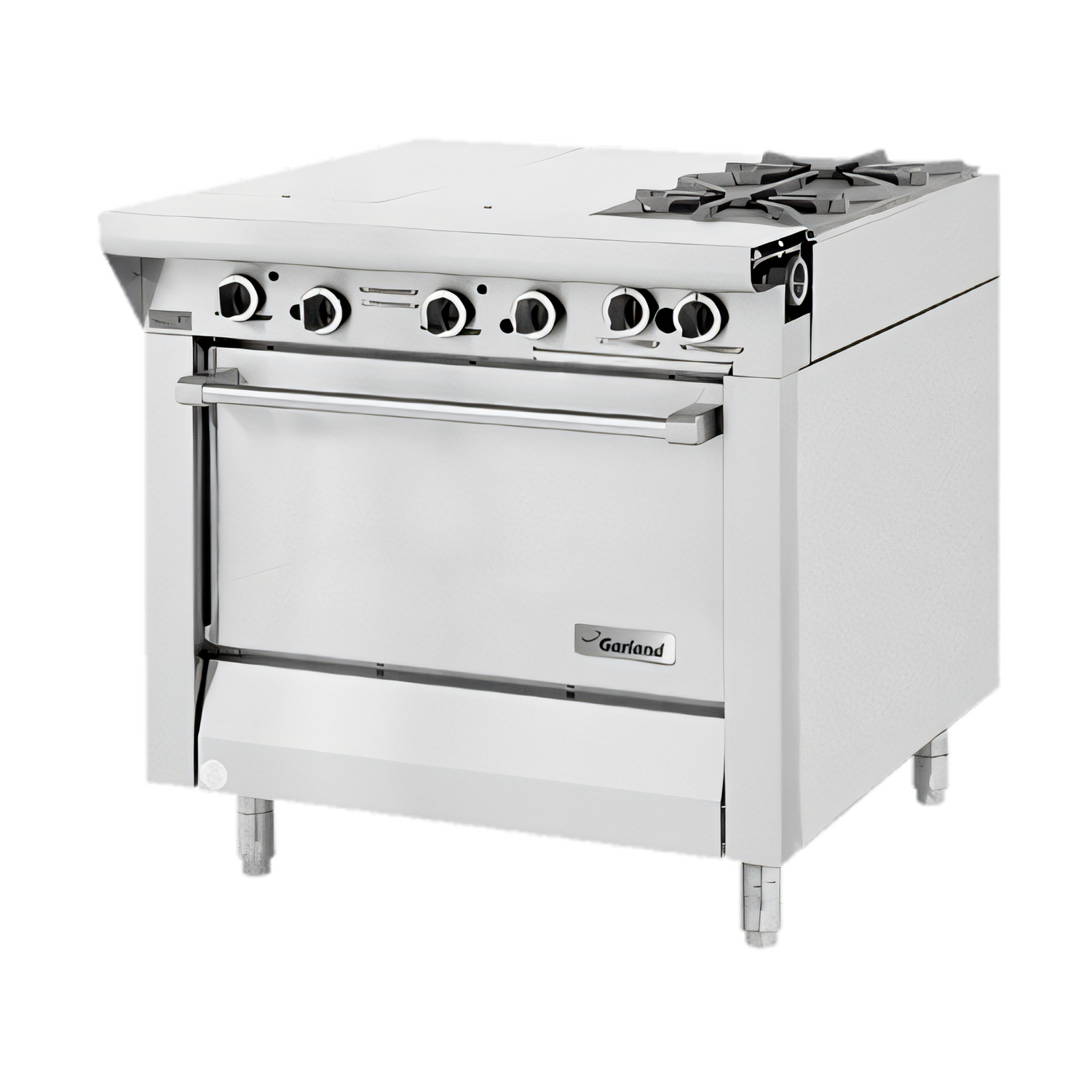

Garland Master Series 34" Heavy Duty Gas Range – 4 Burners & 12" Hot Top
Model reference: M43-1R ( open burners + hot top + standard oven )Built to thrive in the most demanding kitchens, this Master Series range combines four 24,000 BTU Starfire™ open burners, a 12" even-heat hot top and a powerful standard oven inside a rugged, all-stainless frame only 34" wide.
Key Features
- 4 × 24,000 BTU two-piece cast-iron Starfire open burners for instant, even heat.
- 12" (305 mm) even-heat cast-iron hot top with 22,000 BTU “H” burner — ideal for stock-pots, sauces and holding.
- 40,000 BTU snap-action modulating oven; fully porcelainized interior and keep-cool door handle.
- Piezo spark ignition on all pilots — no matches required.
- One-piece stainless steel drip tray spans the full width for fast clean-ups.
- Stainless steel front, sides and 7-1/2" deep front rail withstand daily knocks and spills.
- 6" (152 mm) chrome-steel adjustable legs for perfect leveling.
- Front 1-1/4" NPT gas inlet (factory rear-gas option available).
- Heavy-duty, easy-grip control knobs.
- Certified: CSA Flame, CSA Star & NSF.
Performance At A Glance
| Overall width | 34" / 864 mm |
|---|---|
| Overall depth | 38" / 965 mm (incl. 7-1/2" front rail) |
| Work height (with legs) | 36-3/8" / 924 mm |
| Open burners | 4 × 24,000 BTU (96,000 BTU total) |
| Hot top | 12" cast-iron top, 22,000 BTU |
| Oven | 40,000 BTU Interior: 26-1/4" W × 29" D × 13-1/2" H — fits full-size sheet pans |
| Total input | 158,000 BTU/hr (natural gas) Propane ratings available |
| Gas connection | 1-1/4" NPT front; optional rear |
| Manifold pressure | Natural 6" WC | Propane 10" WC |
| Combustible clearances | Sides 11" | Rear 6" |
| Shipping weight | ≈ 470 lb / 214 kg |
Popular Options & Accessories
- Convection oven base (replaces standard oven).
- Rear gas connection & quick-disconnect hose kits.
- Polyurethane locking swivel casters.
- Stainless steel backguards: 10", 17" or 33" high.
- Single or double-deck stainless steel high shelves.
- Additional oven racks, stainless oven interior & common front rails for battery installations.
Professional use only: Master Series ranges are NOT approved for residential installation. When equipped with casters, an approved restraining device must be fitted. Follow all local gas codes.
Model number and BTU values shown are for natural gas. Specify gas type and any factory-installed options when ordering.
$6,979.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Garland Master M43-1R 34" heavy-duty gas range: four 24k BTU burners, 12" hot top, standard oven, stainless steel, 158k BTU, NSF/CSA certified.
Manufacturer
Garland
Brand name
Master
Certifications
NSF, CSA Star, CSA Flame
Height
36.38in
Width
34.0in
Depth
38.0in
Shipping Weight
460.0lbs
Base
(1) standard oven
Top
(4) open burners, (1) hot top
Exterior Finish
stainless steel front & sides
Specifications
Master Series Heavy Duty Range, gas, 34", (4) 24,000 BTU open burners, (1) 12" even heat hot top, standard oven, Piezo ignition, stainless steel front & sides, 6" legs, 158,000 BTU, CSA Flame, CSA Star, NSF (Garland)
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
