Garland M35SS Master Gas Fryers
$6,570.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Garland M35SS Master Gas Fryers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland M35SS Master Gas Fryers
$6,570.00
Unit price
/
Unavailable
Description

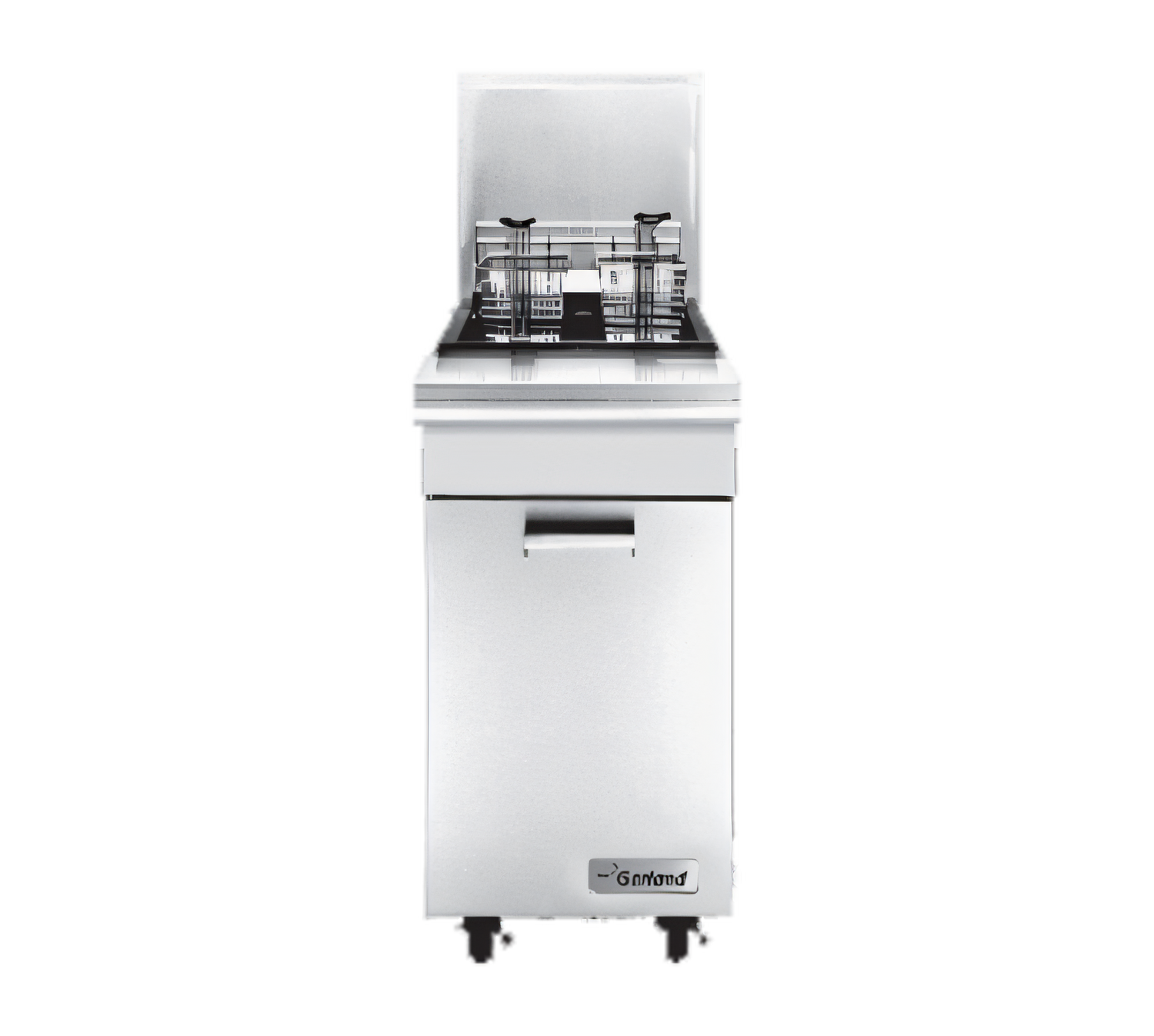

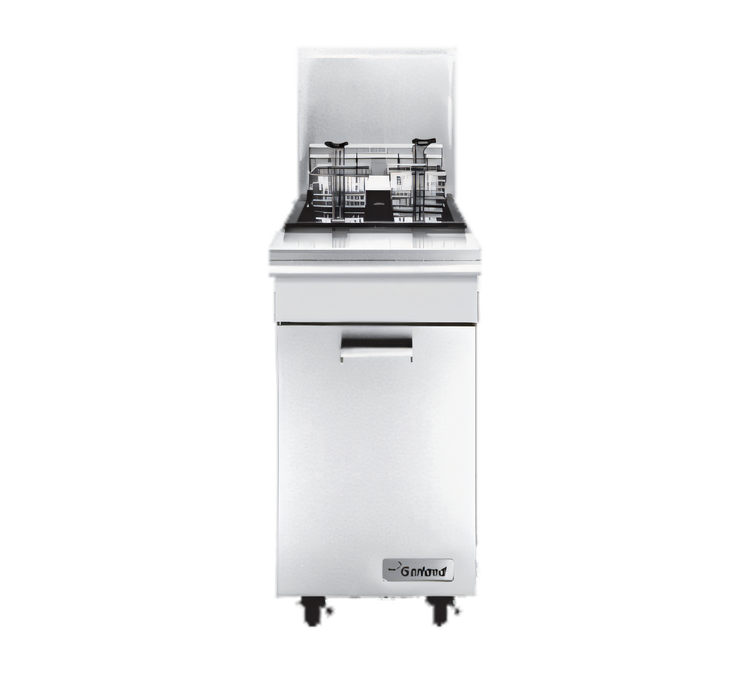

Garland Master Series M35SS Range-Match Gas Fryer
35 lb Capacity • 110,000 BTU Infra-Red Jet Burner • NSF & CE ListedBuilt to power through peak-hour demands yet slim enough to fit a 17 inch slot, the Garland Master Series M35SS delivers lightning-fast recovery, rock-solid temperature control and the durability you expect from a true heavy-duty fryer. Drop it next to your Master Series range and create a seamless, ultra-efficient cook line.
Key Features

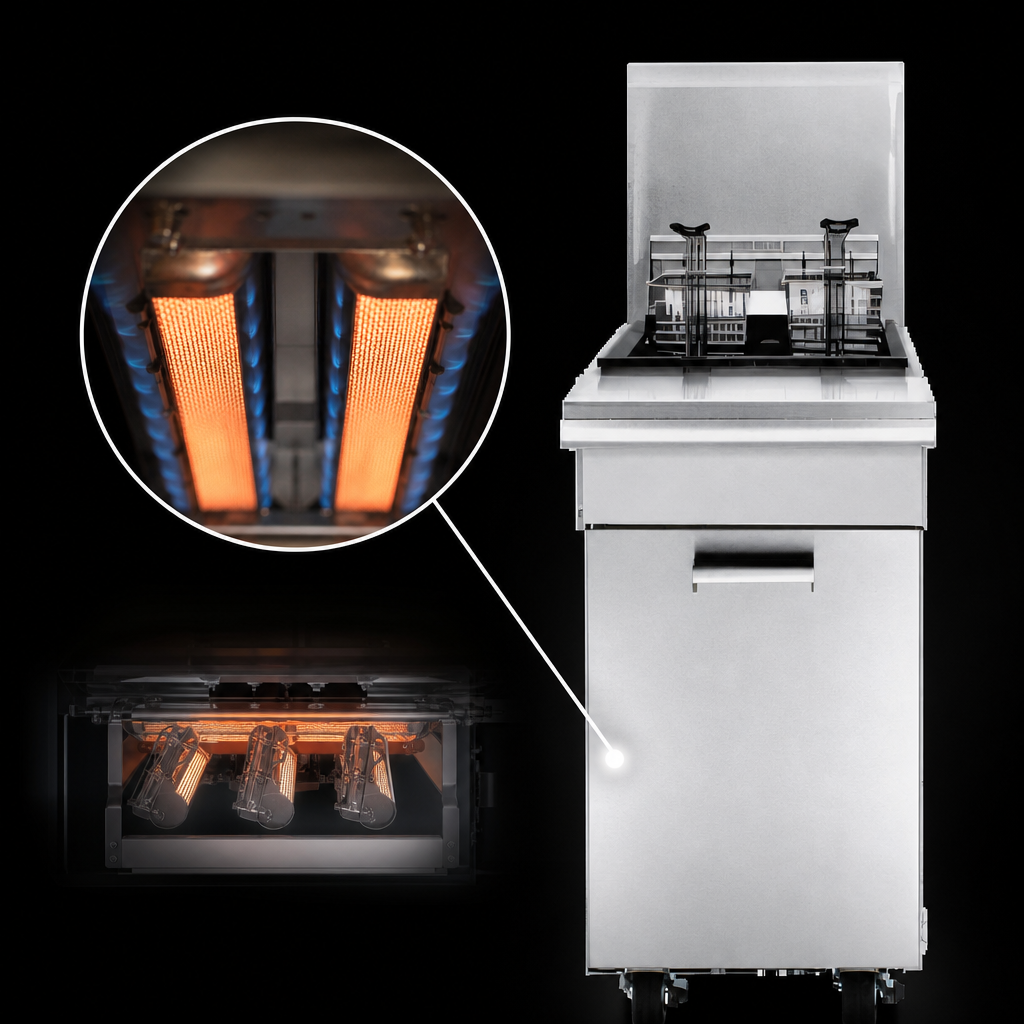

- High-output 110,000 BTU/h infra-red jet-type burner for rapid heat-up and fast recovery.
- 35 lb (16 kg) stainless steel frypot – seamless, easy to clean and built to last.
- Piezo spark ignition with constant-burn 100 % safety pilot – no external power required.
- Thermostat control maintains consistent oil temperature for perfectly fried foods.

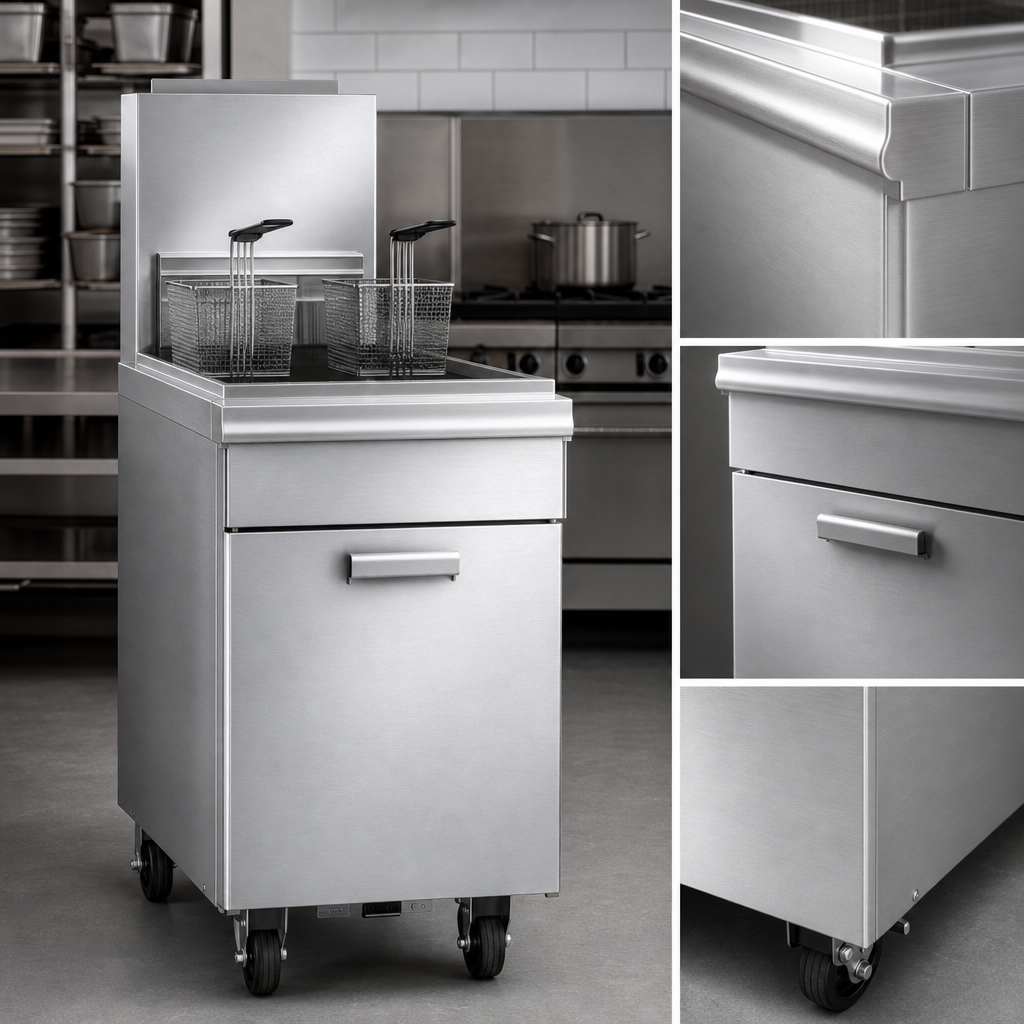

- Rugged stainless steel front, 5 in front rail and side panels withstand daily abuse.
- Twin chrome-plated wire baskets included (large single basket optional).
- 6 in (152 mm) adjustable chrome steel legs for level placement and quick floor cleaning.
- Built-in gas pressure regulator and front 1-¼ in NPT manifold simplify installation.
- NSF, CE and CSA certified for global compliance.
At-a-Glance Specs
| Model | M35SS |
|---|---|
| Fuel Type | Natural Gas or Propane |
| Total Input | 110,000 BTU/h (32.23 kW) |
| Oil Capacity | 35 lb (16 kg) |
| Exterior Dimensions (W × D × H) | 17 in × 38 in × 36-3/8 in (432 mm × 965 mm × 924 mm) height with NSF legs |
| Shipping Weight | 220 lb (100 kg) |
| Manifold Operating Pressure | Natural 4" WC | Propane 9" WC |
| Gas Connection | 1-¼" NPT front manifold rear connection optional |
| Side / Rear Clearances | 6 in (152 mm) minimum |
| Certifications | NSF, CE, CSA |
Hourly Production (Approx.)
| French Fries | 60 lb (27 kg) raw to done | 80 lb (36 kg) blanched to done |
|---|---|
| Fish – 3 oz (84 g) battered | 60 lb (27 kg) |
| Breaded Chicken | 28 lb (13 kg) |
Actual output varies with product, load size and operating conditions.
Popular Options & Accessories
- Set of (4) non-marking swivel casters with front brakes
- Stainless steel backguard: 10 in, 17 in or 33 in high
- Common stainless steel front rail (up to 102 in) for battery installations
- Large single fry basket in lieu of twin baskets
- Stainless steel frypot cover or fish plate
- 17 in Frymate ™ dump station / storage base with optional heat lamp
- Rear ¾" or 1-¼" NPT gas connection kit
- Factory-installed manifold end caps & covers (no charge)
Why Choose Master Series Range-Match?

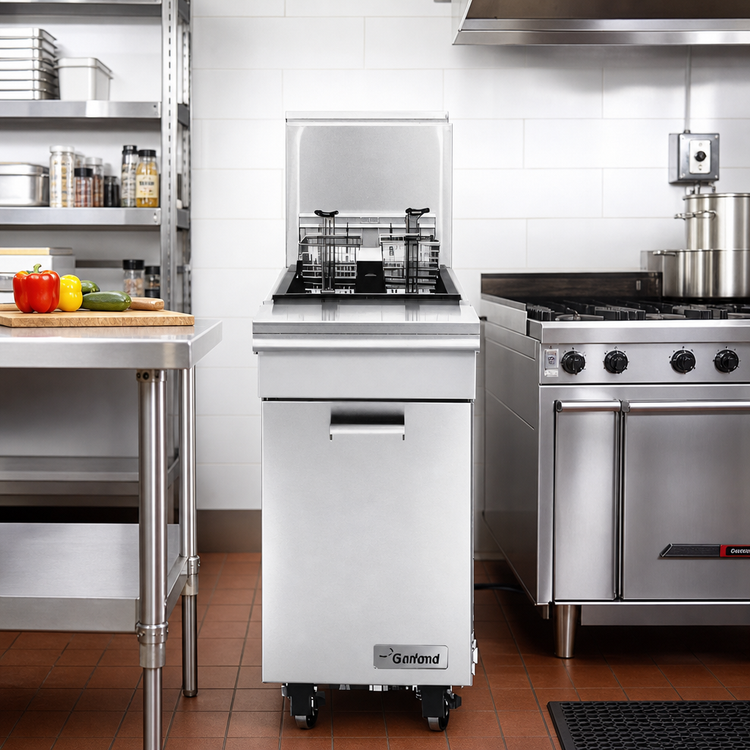

- Perfectly aligns with Garland Master Series ranges, griddles and hot tops for a continuous cook surface.
- Common rail design streamlines cleanup and maximizes valuable cook-line space.
- Backed by more than 150 years of Garland engineering, service and support.
Important: Garland Master Series equipment is designed for commercial use only.
Units supplied with casters must be secured with an approved restraining device in accordance
with local codes.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Master
Certifications
NSF, CE
Height
36.38in
Width
17.0in
Depth
38.0in
Shipping Weight
220.0lbs
Basket Lifts
without basket lifts
Controls
thermostatic controls
Type
heavy duty, range match
Fat Capacity (approximate)
35 lb
Fry pot
stainless steel fry pot
Exterior Finish
stainless steel front & sides
Filter
no filter
Specifications
Master Series Fryer, gas, Range Match, 35 lb. fat capacity, thermostat controls, Piezo spark ignition, stainless steel fry pot, stainless steel front, front rail & sides, 6" adjustable legs, 110,000 BTU, NSF, CE (Garland)
