Garland M12T-8 Master Gas Ranges
$2,577.00
Unit price
/
Unavailable
Description

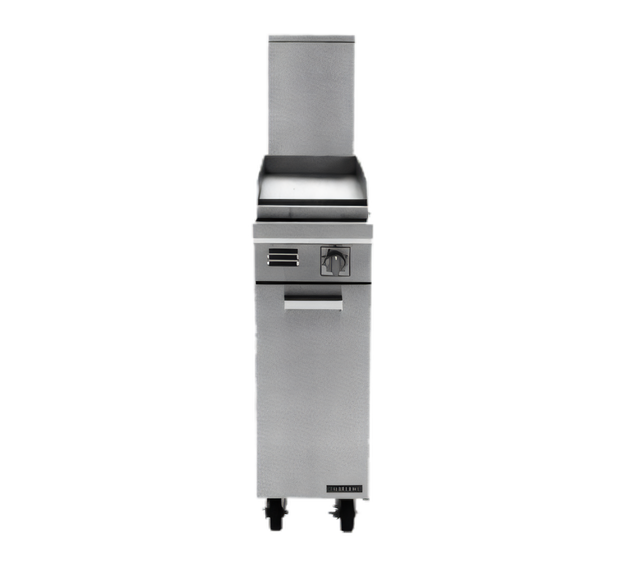

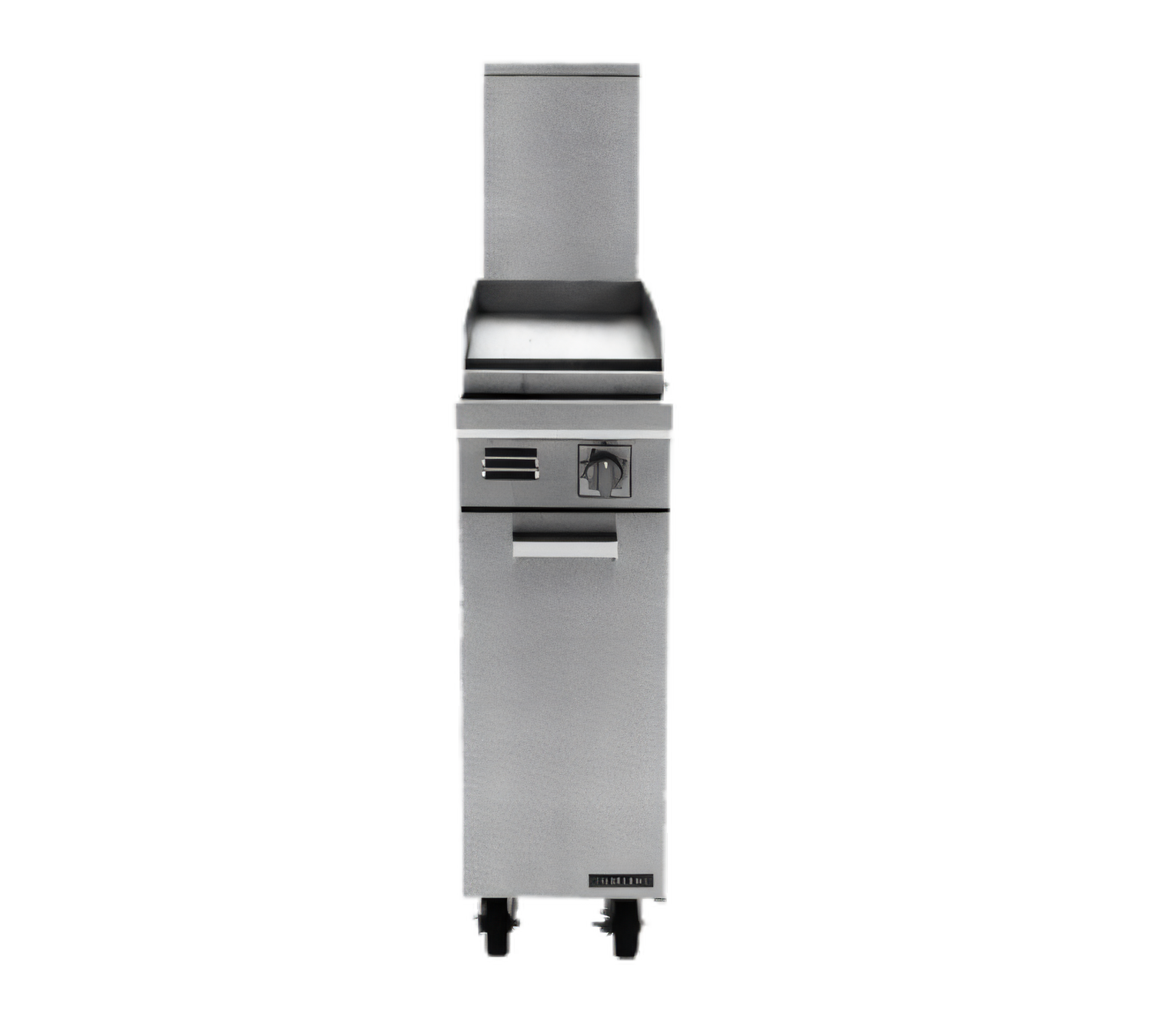

Garland Master Series 12" Modular Thermostatic Griddle – Add-A-Unit
Model: Master 12 (gas) · 30,000 BTUExpand any Master Series battery with a compact, high-performance griddle section that drops straight onto the rail—no legs, no fuss, just reliable Garland fire-power on a 12 inch footprint.
Why you’ll love it
- 1" (25 mm) thick polished steel griddle plate delivers rapid heat recovery and even searing.

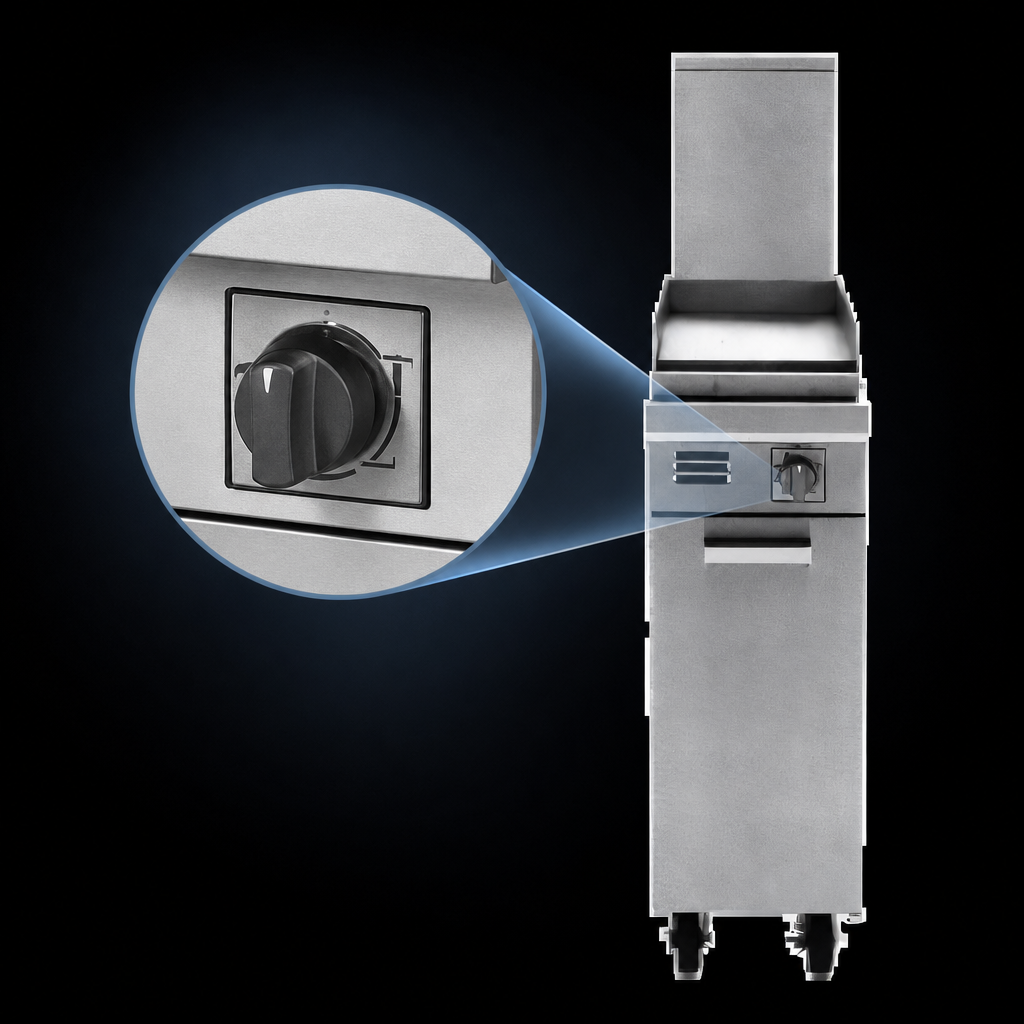

- True thermostatic control (175 – 425 °F) with embedded capillary sensors for +/- 10 °F accuracy.
- Single 30,000 BTU cast-iron “H” burner spreads flame uniformly for edge-to-edge consistency.

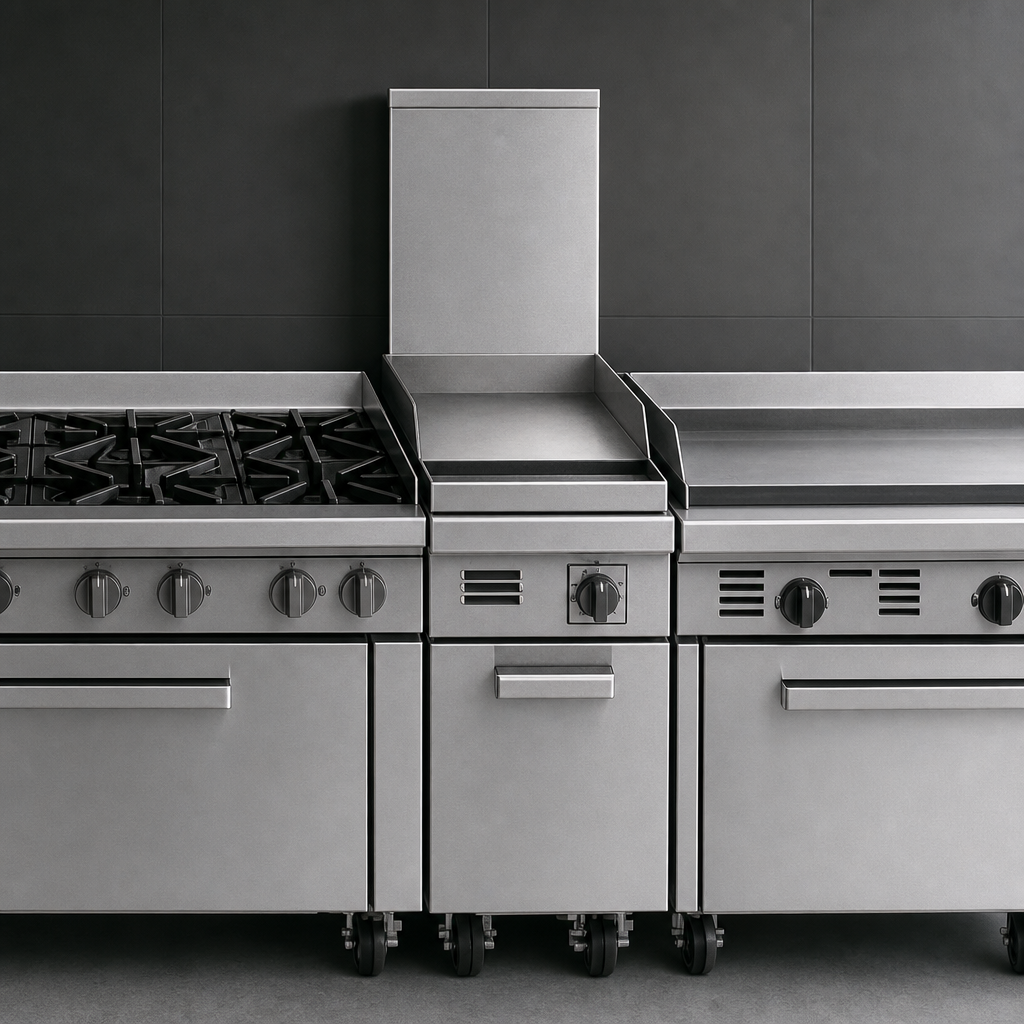

- Modular Add-A-Unit design integrates into any 34" deep Master Series line-up—perfect for filling odd gaps or future-proof expansions.
- All-stainless front, sides & splash guards withstand heavy commercial abuse and wipe clean fast.
- Front-mounted, removable grease drawer keeps operators clear of the cook line and simplifies end-of-shift clean-down.
- Heavy-gauge aluminized steel heat baffle boosts thermal efficiency—no fire bricks to replace.
- Certified to CSA Flame, CSA Star and NSF for worry-free code compliance.
At-a-glance specs
| Griddle width | 12" / 305 mm |
|---|---|
| Depth (overall) | 38" / 965 mm |
| Height (modular top) | 9-1/2" / 241 mm* |
| Plate thickness | 1" solid steel |
| BTU rating | 30,000 BTU/hr (8.79 kW) |
| Temperature range | 175 – 425 °F (79 – 218 °C) |
| Gas connection | 1-1/4" NPT front manifold (rear optional) |
| Manifold pressure | Natural 6" WC · LP 10" WC |
| Shipping weight | ≈ 110 lb / 50 kg |
| Certifications | CSA Flame, CSA Star, NSF |
*Height shown for modular (M12T) top; add backguard or shelf height as required.
Popular add-ons
- 10", 17" or 33" stainless steel backguards
- Single or double-deck tubular high shelf
- Common front rail (up to 102") for multi-unit batteries
- Gas quick-disconnect hose kits with restraining device
- End caps & covers for a polished chef-side finish
Commercial use only. This appliance is not approved for residential kitchens.
Install and operate in accordance with local codes, using a certified technician.
A backguard is required on all Master Series modules.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Master
Certifications
NSF, CSA Star, CSA Flame
Height
46.25in
Width
12.0in
Depth
38.0in
Shipping Weight
110.0lbs
Base
countertop
Plate Thickness
1.000" = 1"
Top
(1) griddle with thermostat
Exterior Finish
stainless steel front & sides
Type
add-a-unit
Specifications
Master Series Heavy Duty Range, gas, 12", modular, Add-A-Unit, griddle, thermostatic control, stainless steel front and sides, 30,000 BTU, CSA Flame, CSA Star, NSF (Garland)
