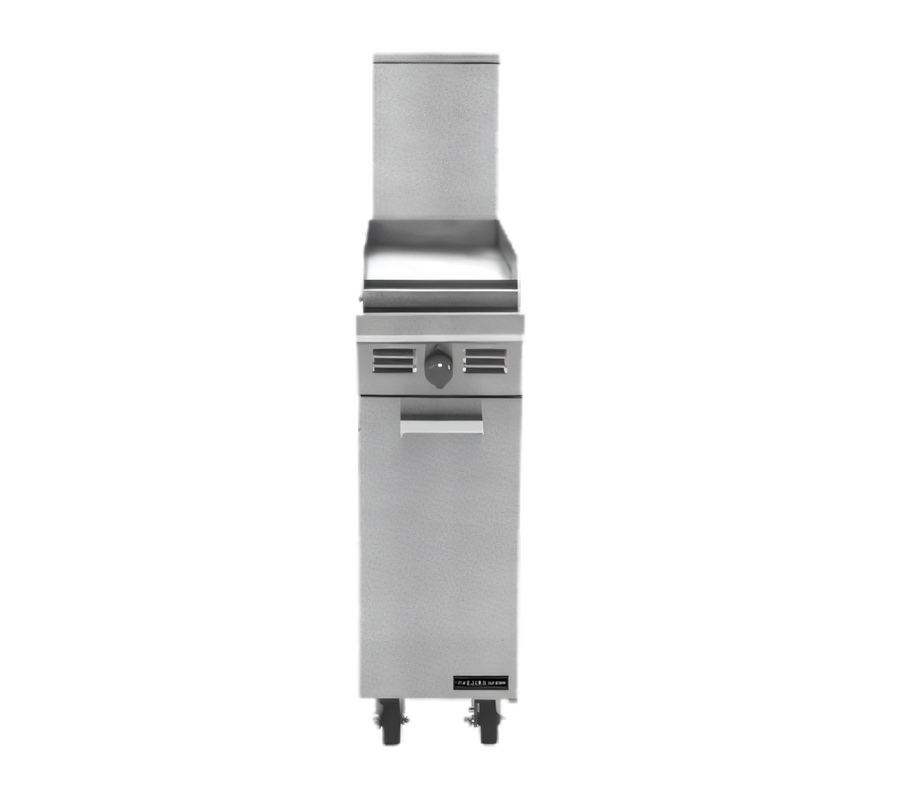

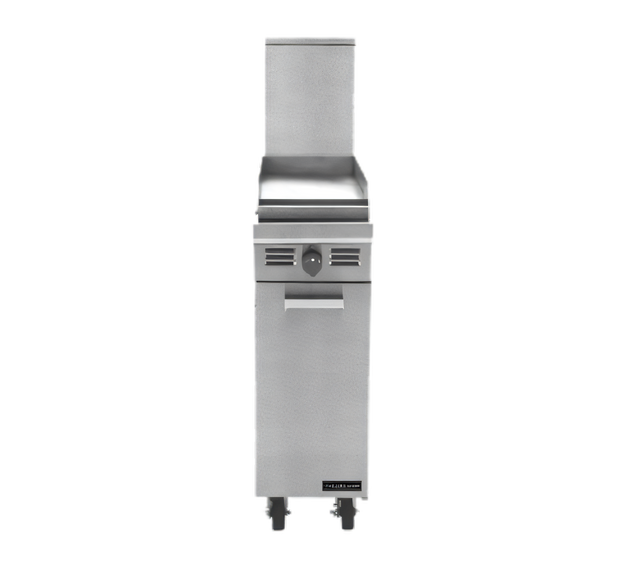

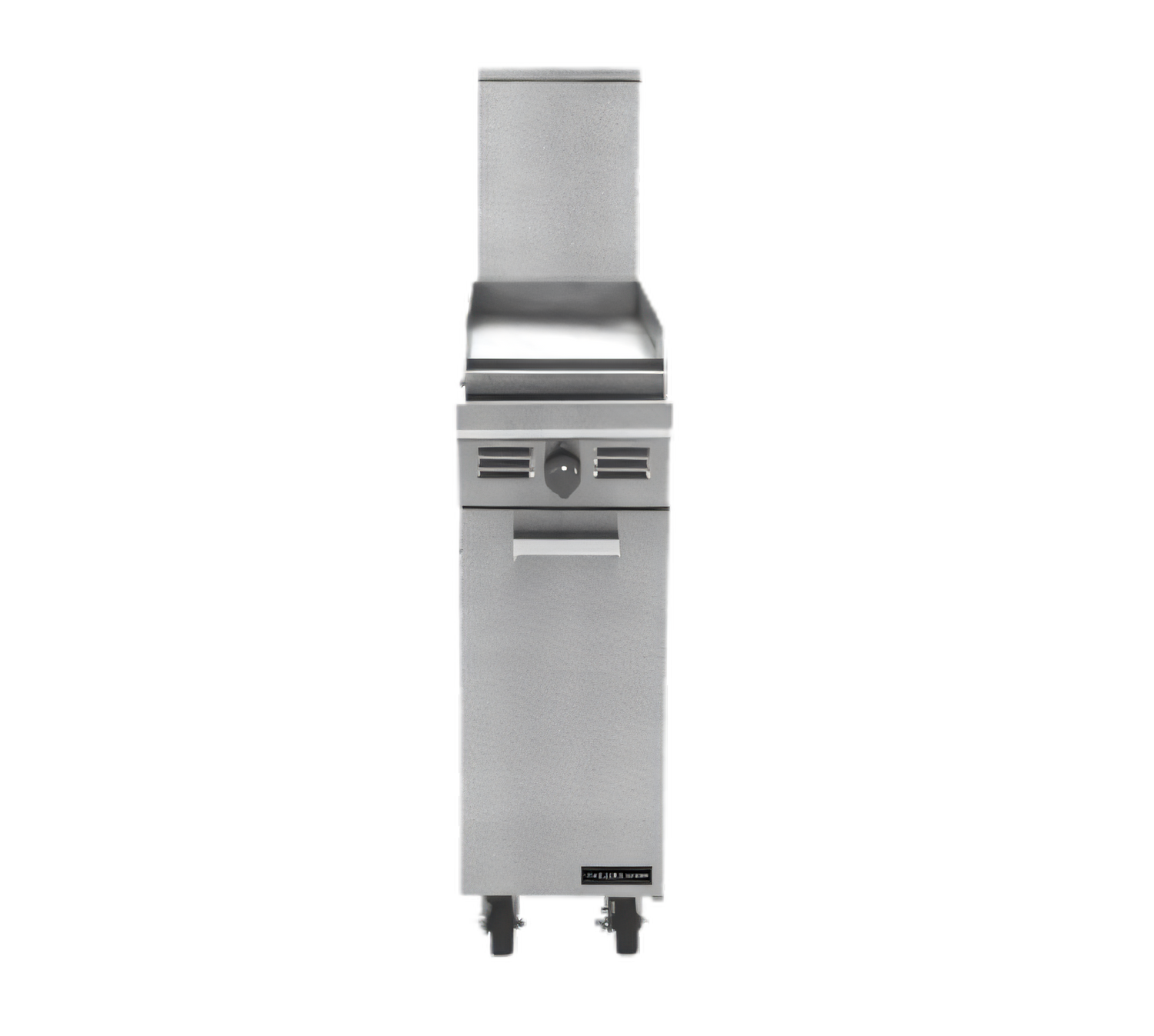

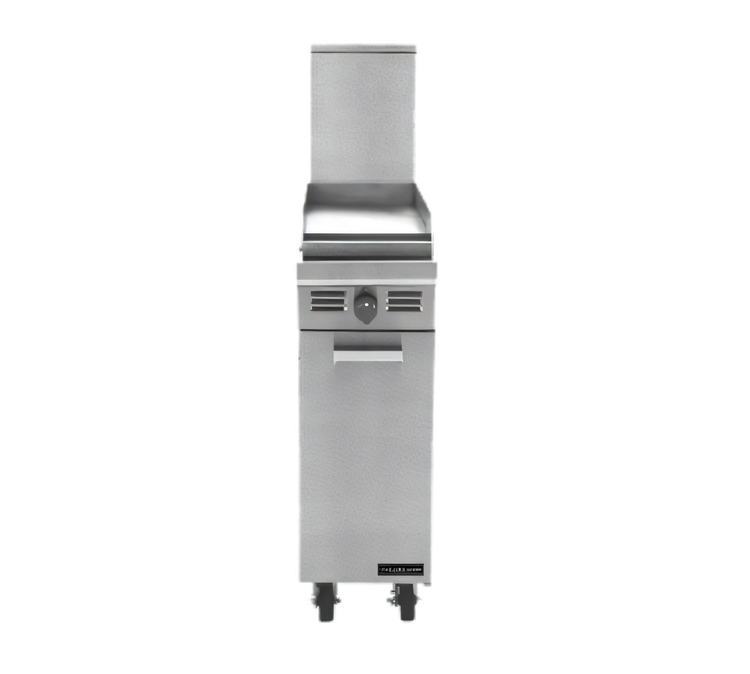

Garland Master Series 12" Modular Add-A-Unit Gas Griddle
Model: Master Series M12 – 30,000 BTU Heavy-Duty Griddle AttachmentTurn unused inches on the line into pure cooking power. The 12" Garland Master Series Add-A-Unit drops seamlessly into any Master Series battery, delivering a full-size, 30,000 BTU “H” style burner and a 1" thick steel griddle plate in less than one linear foot of space. Built to the same rugged standards as every Master Series range, this NSF-listed, CSA-approved module is ideal for finishing, searing or light à-la-carte work without committing to a separate countertop griddle.
Key Advantages
- Space-saving 12" (305 mm) footprint – perfect for line extensions or tight kitchens

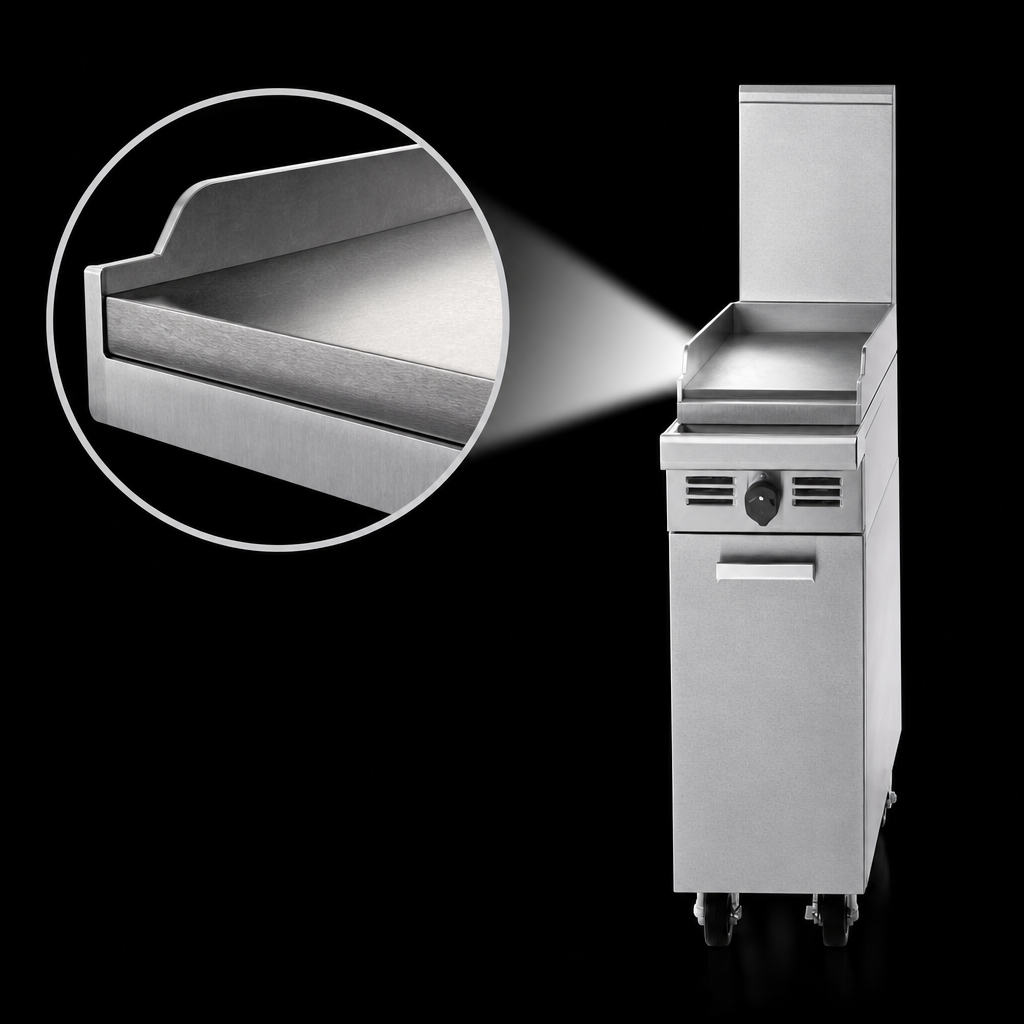

- 1" (25 mm) thick, polished steel griddle plate for even heat and rapid recovery
- 30,000 BTU cast-iron “H” burner with manual Hi-Lo valve for precise surface control
- 2-5/16" (59 mm) welded stainless splash guards on three sides
- Removable full-width stainless steel grease drawer simplifies clean-up
- Stainless steel front & sides match the rest of your Master Series equipment

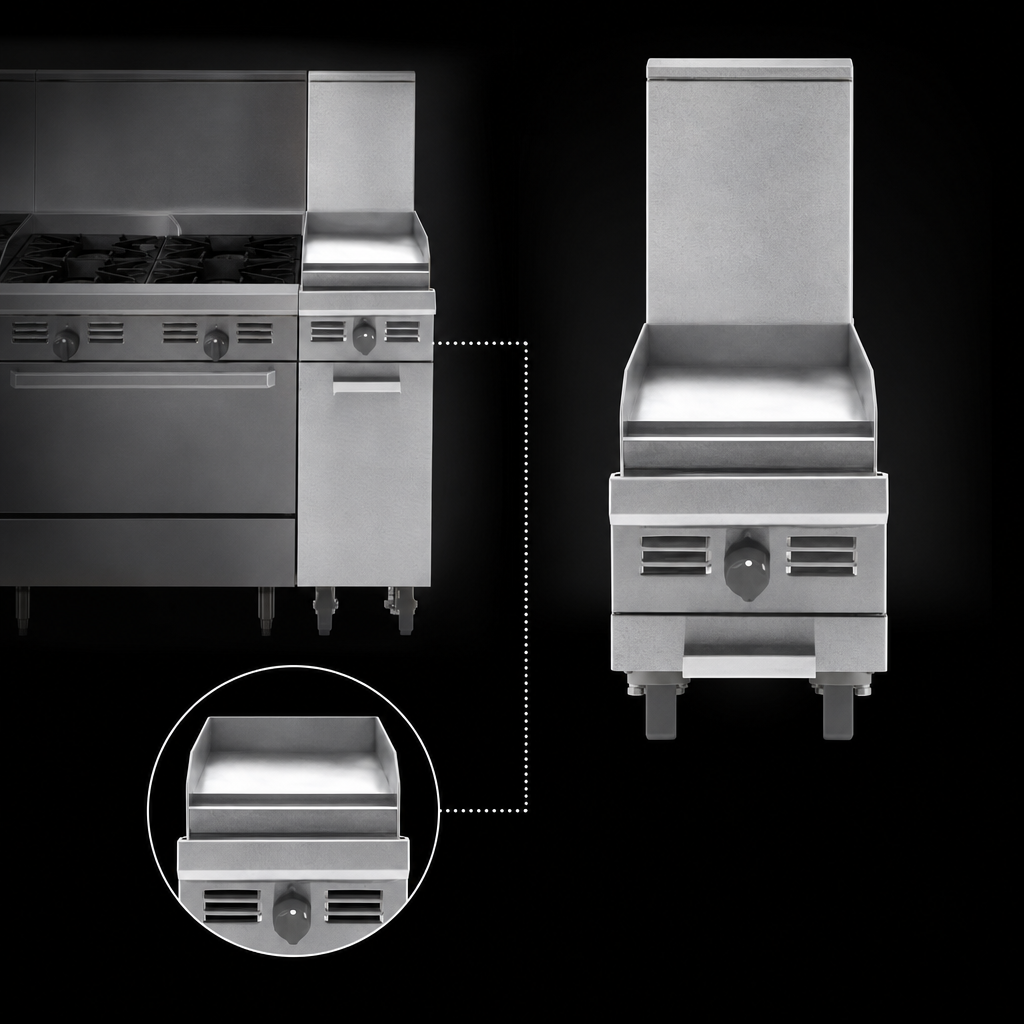

- Modular top design sits directly on a Master Series chassis or storage base – no legs required
- Front 1-1/4" NPT gas connection for easy hook-up in a battery line-up
- Certified to CSA Flame & Star and NSF standards for commercial gas appliances
At-a-Glance Specs
| Cooking surface | 12" W × 24-3/4" D (305 mm × 629 mm) |
|---|---|
| Plate thickness | 1" (25 mm) ground steel |
| Heat output | 30,000 BTU/h (8.79 kW) – single “H” burner |
| Controls | Manual Hi-Lo valve |
| Overall width | 12" (306 mm) |
| Overall depth | 38" (965 mm) |
| Overall height | 9-1/2" (241 mm) – modular top |
| Gas connection | 1-1/4" NPT (front) |
| Gas types | Natural or Propane (specify at order) |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping weight | Approx. 110 lb (50 kg) |
Popular Options & Accessories
- Grooved griddle plate for marking steaks, chicken or vegetables
- Stainless steel backguard: 10", 17" or 33" high
- End caps & fronts to finish exposed sides in a battery
- Front rail extensions or common front rails up to 102" wide
- Gas shut-off valves, flex hoses & quick-disconnect kits
- Polyurethane locking casters (when mounted on storage base)
Need help configuring a full Master Series line-up? Contact Garland Customer Service for layout assistance and CAD blocks.
