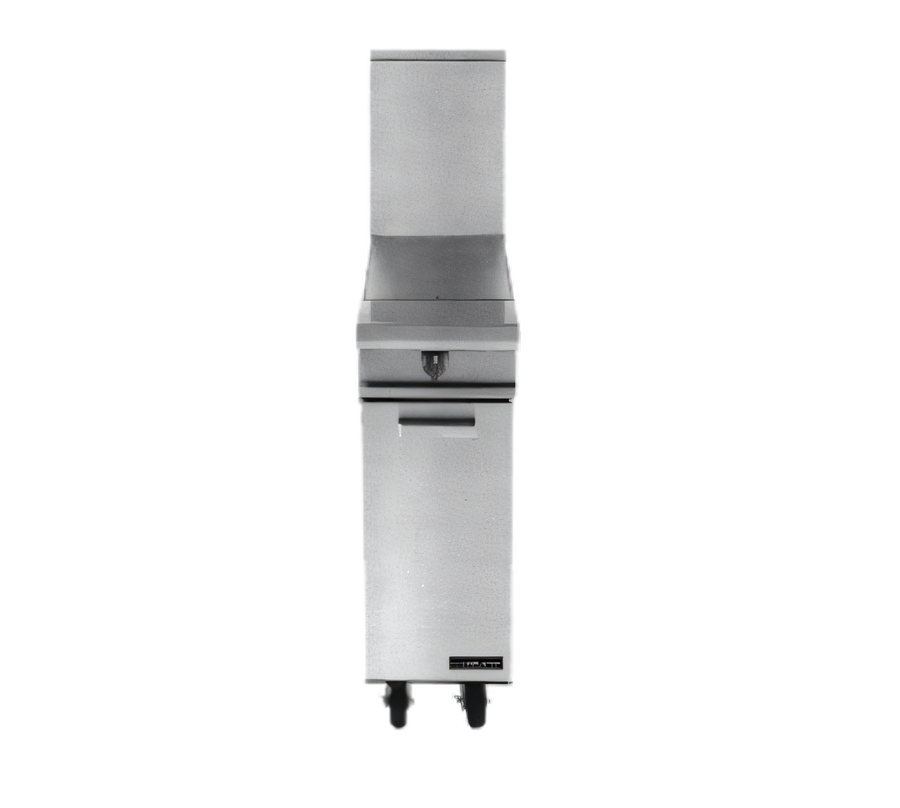

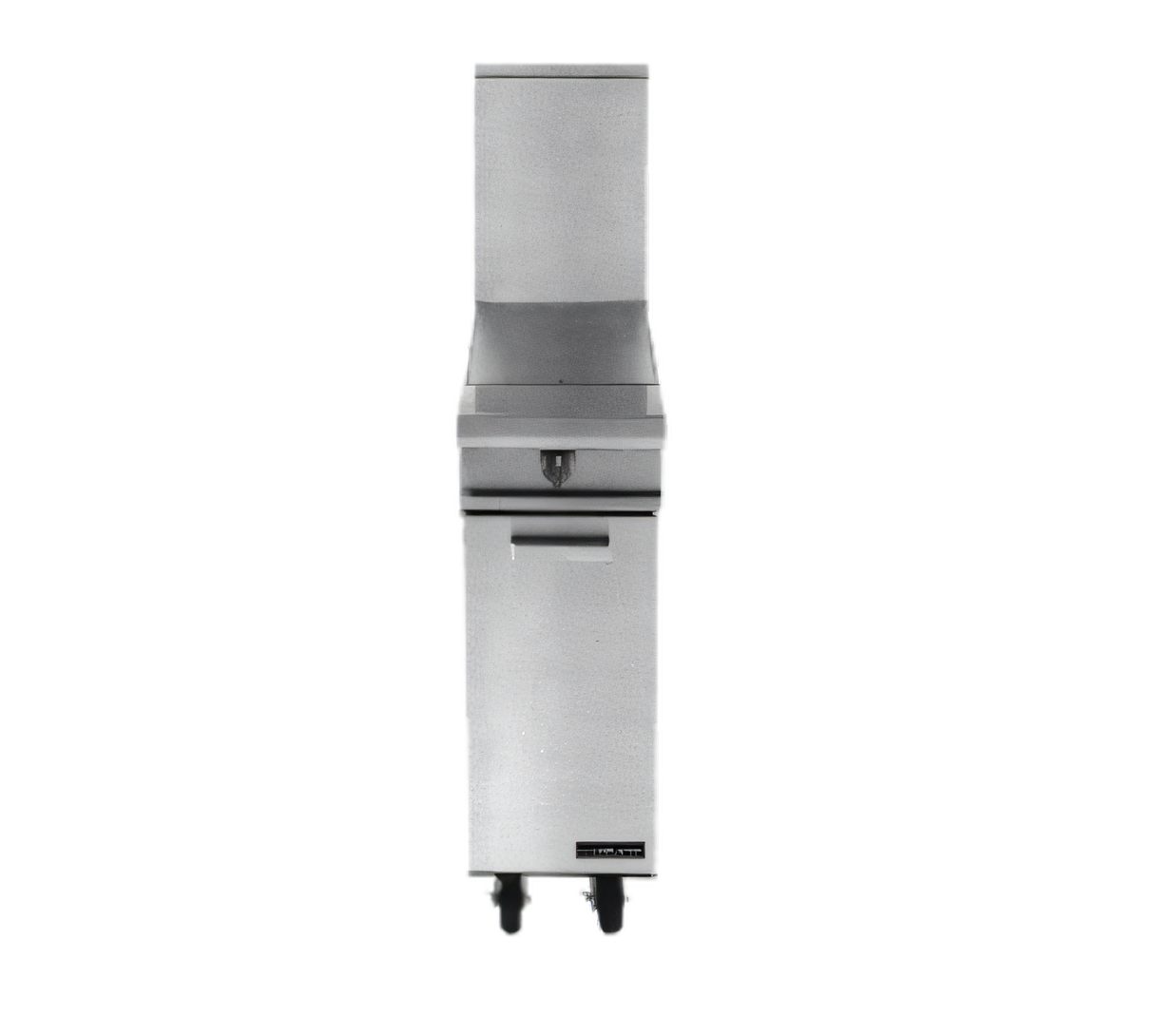

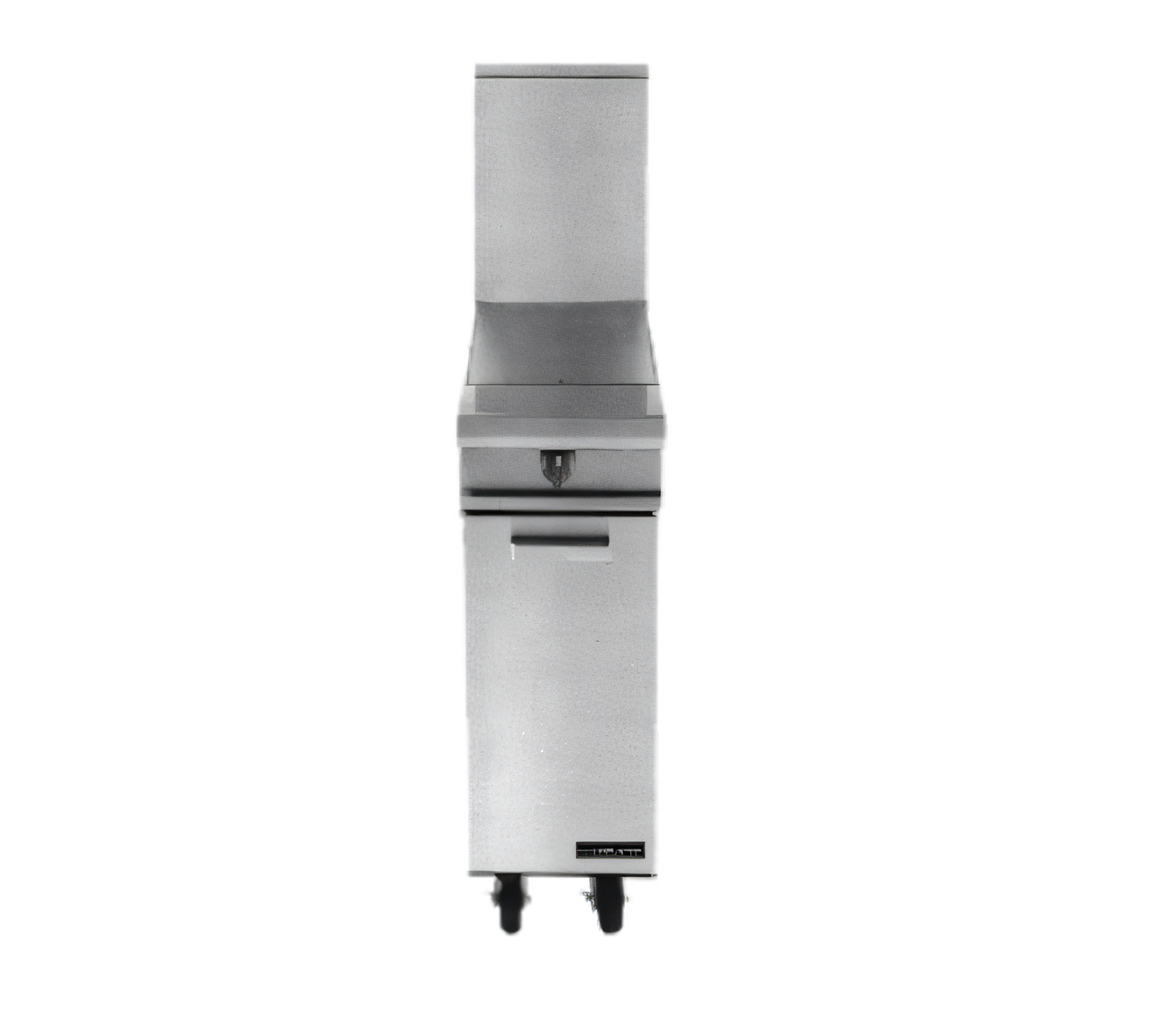

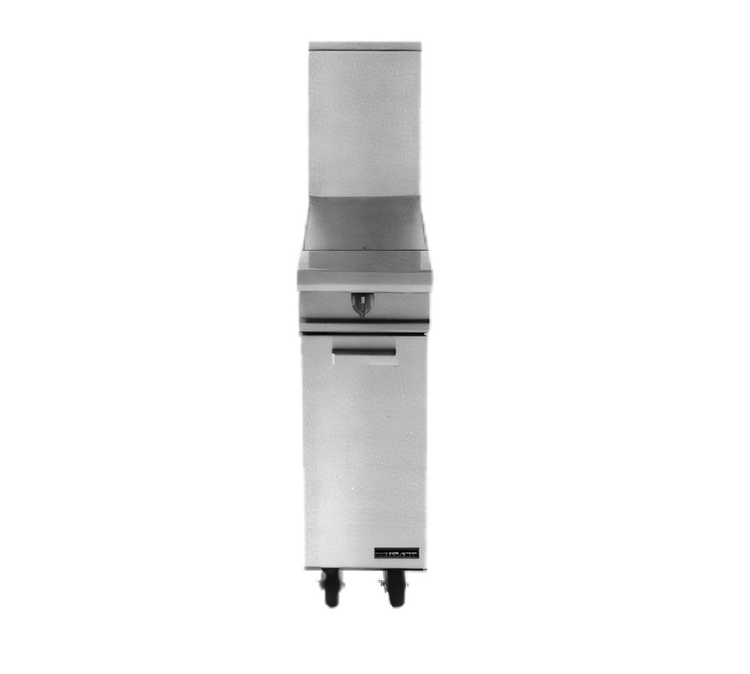

Garland Master Series 12" Modular Hot-Top Add-A-Unit
30,000 BTU even-heat plate – build the cookline your kitchen deservesNeed just one more burner-free zone for sauté pans, stockpots or holding? Slide this 12" hot-top module into any Garland Master Series battery and get uniform, controllable heat without sacrificing precious line space.
Built for busy commercial kitchens
- Powerful 30,000 BTU cast-iron “H” burner with manual hi/lo valve for precise surface control.

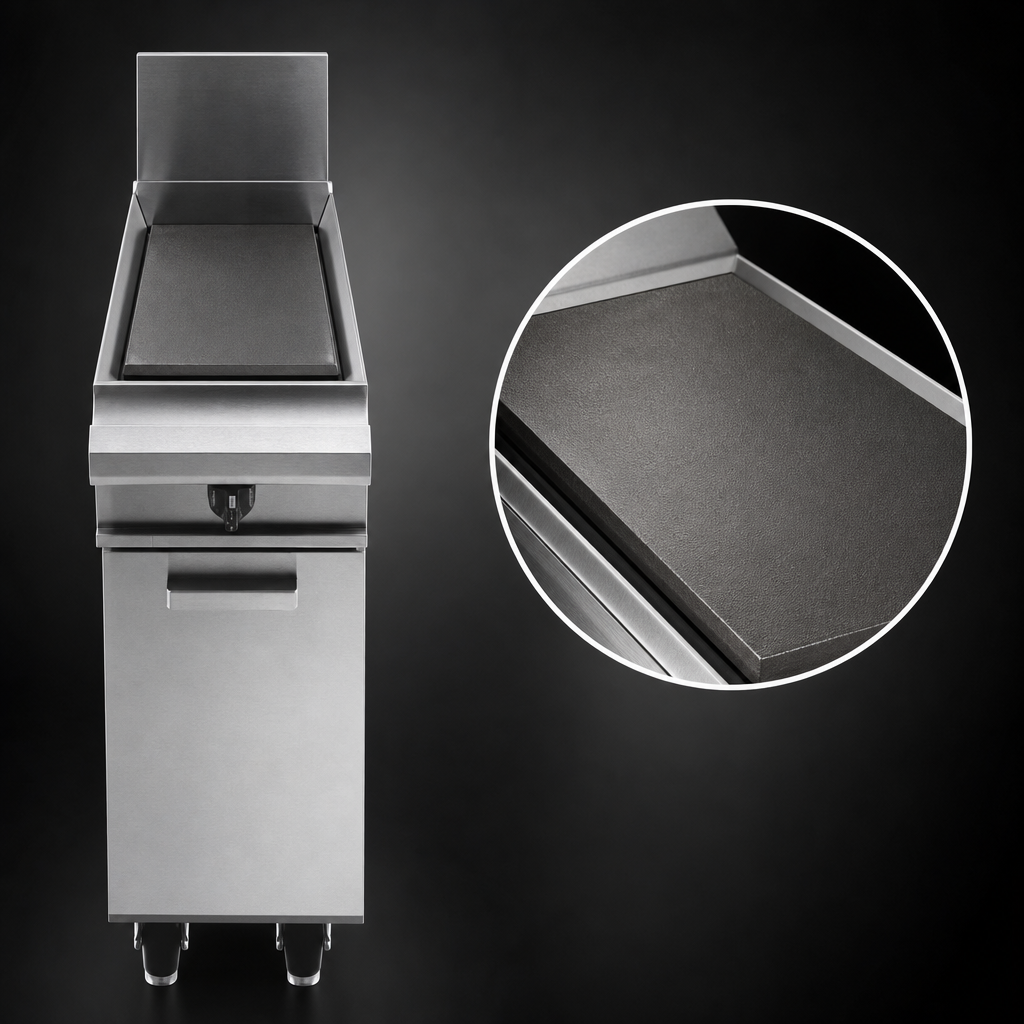

- Extra-heavy, one-piece cast-iron hot-top spreads heat evenly across the entire 12" surface.

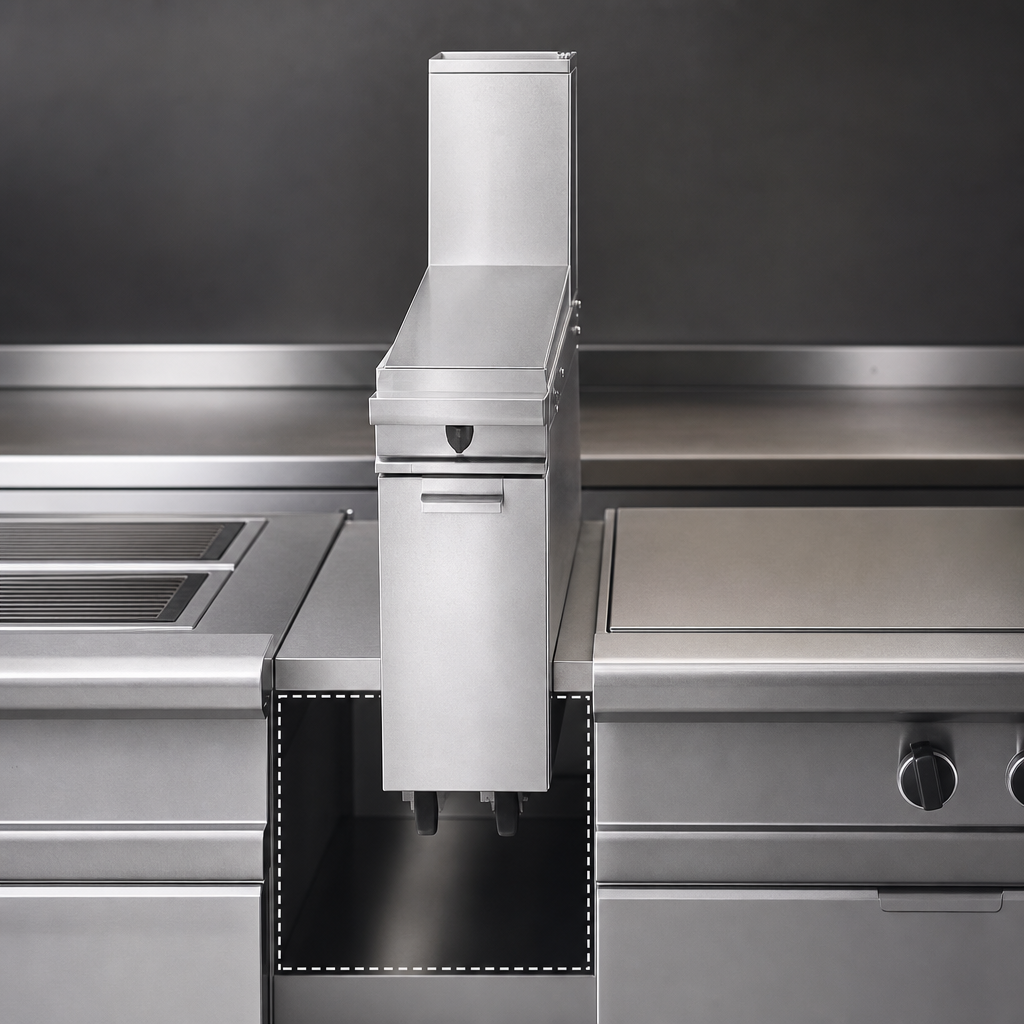

- Modular Add-A-Unit design (1-1/2" seating flange) mates flush with any Master Series equipment—no legs required.
- All-stainless steel front & sides stand up to daily cleaning and high-volume abuse.
- Front 1-1/4" NPT gas manifold lets you daisy-chain multiple units without extra piping.
- Field-selectable Natural or LP gas; factory-installed pressure regulator included.
- Certified safe & sanitary: CSA Star, CSA Flame and NSF listed.
Performance you can taste
From a gentle simmer ideal for delicate sauces to a scorching sear capable of powering through prep, the even-heat plate eliminates hot spots while the high-output burner recovers instantly between loads.
Technical specifications
| Model | Master 12" Hot-Top Modular Add-A-Unit |
|---|---|
| Overall width | 12 in / 305 mm |
| Overall depth | 38 in / 965 mm |
| Overall height | 9-1/2 in / 241 mm (to seating flange) |
| Gas input | 30,000 BTU/hr (8.8 kW) |
| Gas connection | 1-1/4" NPT front manifold |
| Manifold pressure | Natural 6" W.C. | LP 10" W.C. |
| Control type | Manual infinite hi/lo valve |
| Top material | One-piece cast iron, even-heat design |
| Exterior finish | Stainless steel front & sides |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping weight | ≈ 110 lb / 50 kg |
Compatible options & accessories
- 10", 17" or 33" stainless-steel backguards or hi-shelves
- Common front rails (up to 102") for multi-unit batteries
- Gas flex hose & quick-disconnect kits with restraining device
- Factory cap & cover for unused flanged sides
Need help configuring a full cook suite? Our team can build a custom quote that matches your kitchen’s workflow. Call 1-800-424-2411 and ask for Garland Master Series support.
