Garland  |  Master  |  SKU: M12S

Garland M12S Master Gas Ranges

$1,831.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Check list Owner's manual
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

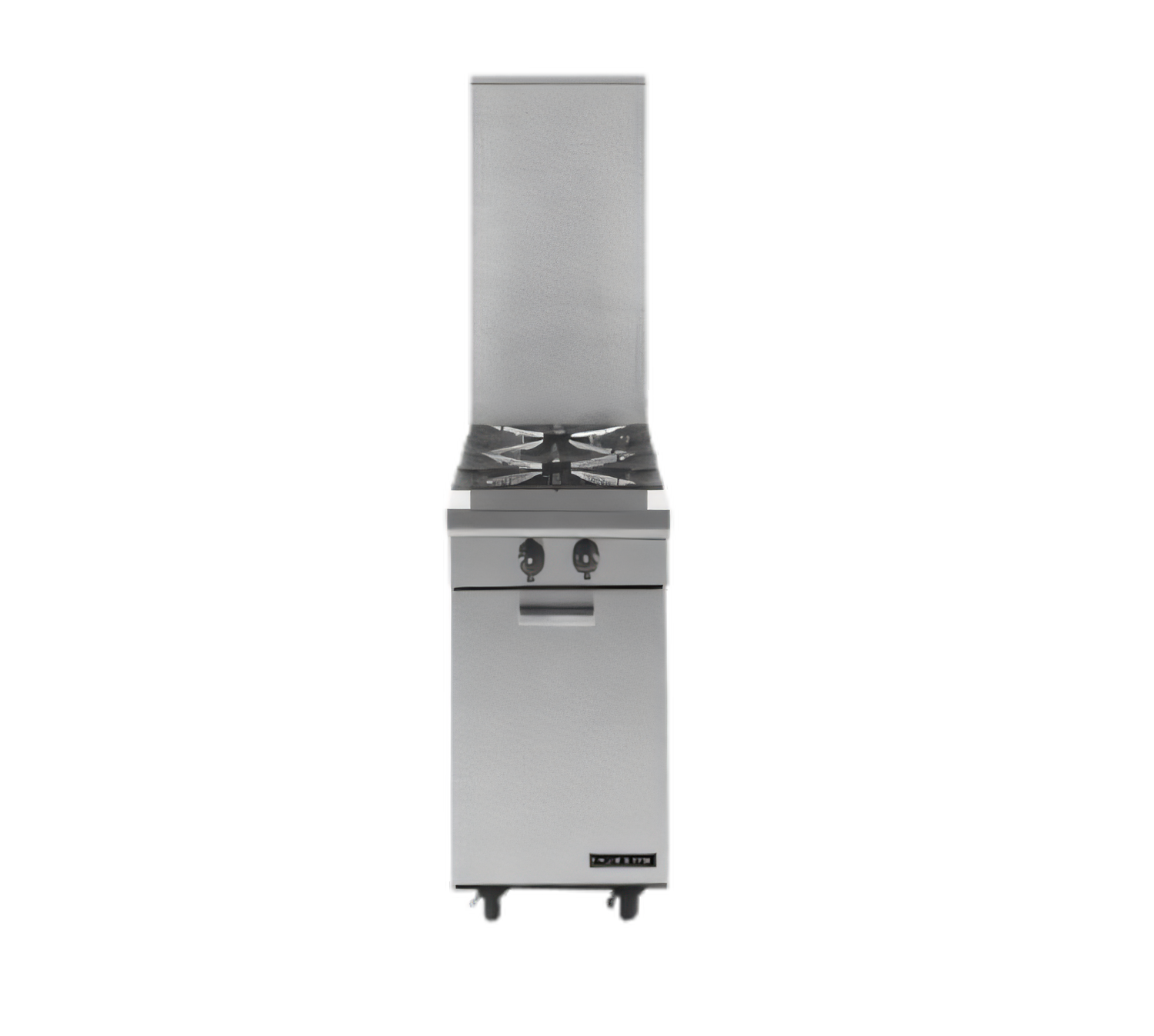

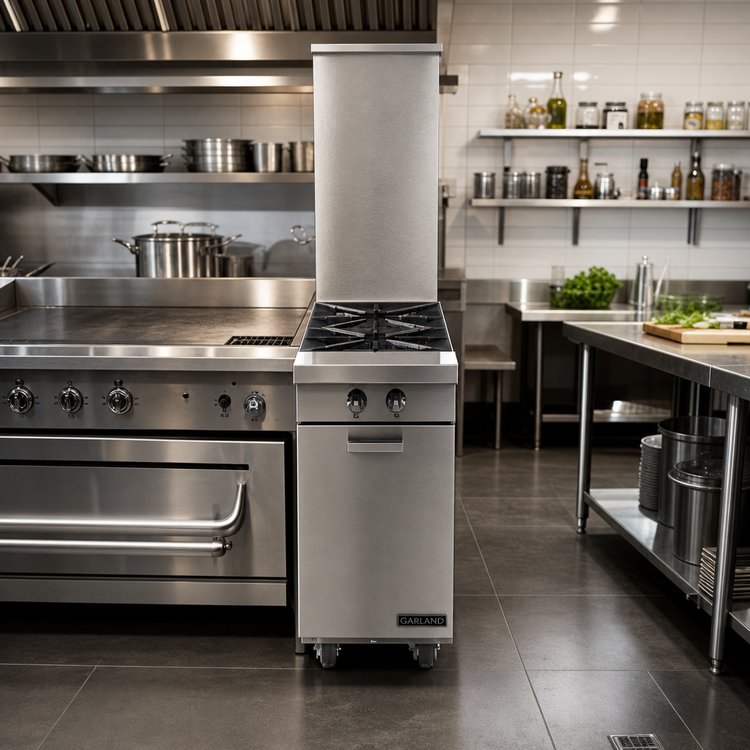

Garland Master Series 12" Add-A-Unit Range Attachment – Model M12S

48,000 BTU open-top power in a compact 12" footprint

Need two extra burners without giving up valuable line space? The Master Series M12S drops a pair of Garland’s legendary 24,000 BTU Starfire ™ burners into a rugged 12 inch cabinet that bolts seamlessly onto any Master Series battery—or operates free-standing on its own 6" adjustable legs. A built-in storage base, all-stainless exterior and heavy cast-iron grates make this small-format workhorse the perfect “add-a-unit” for cooklines that need more fire, fast.

Why you’ll love it

  • Big heat, small space: two 24,000 BTU natural-gas burners (20,000 BTU LP) deliver 48,000 BTU total in just 12 inches of line space.

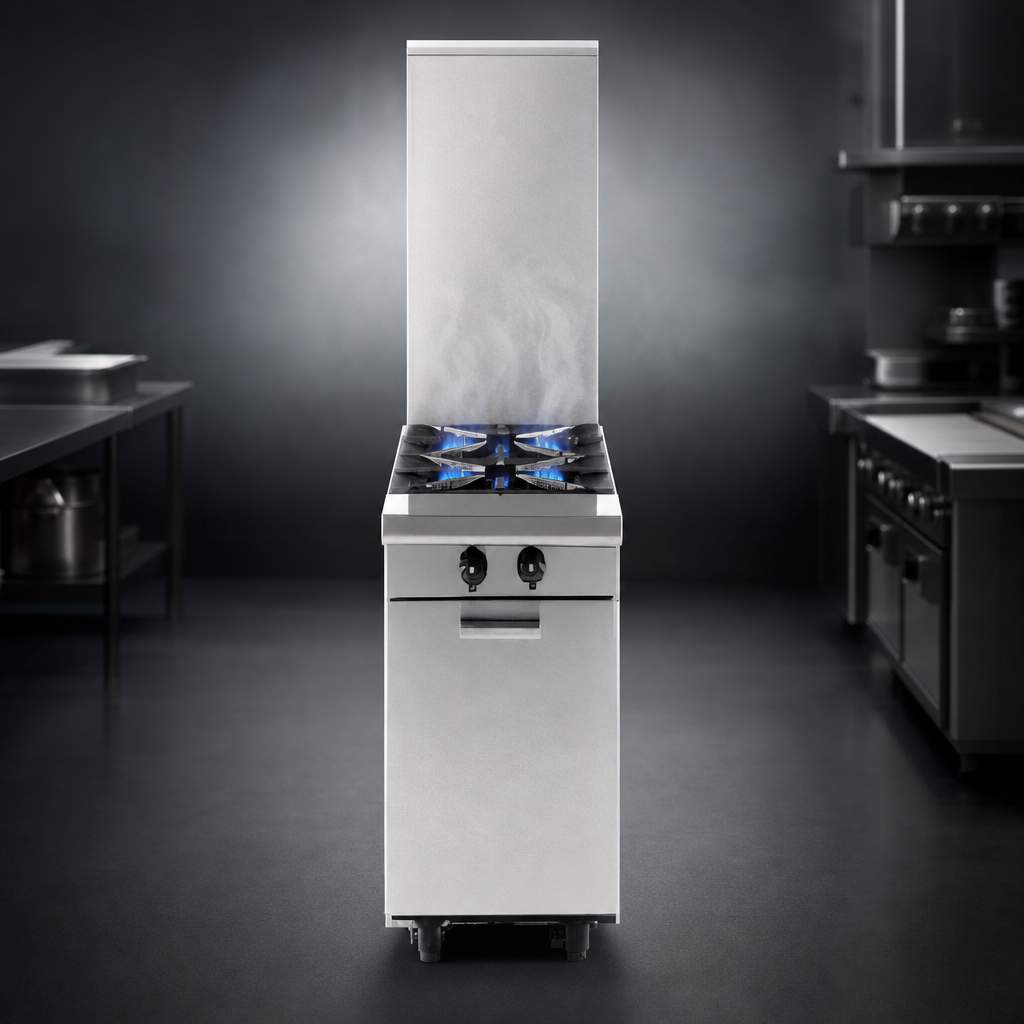

  • Starfire™ open burners: precision-machined ports and removable ring grates provide intense, even flame and easy cleaning.
  • Heavy-duty construction: stainless steel front & sides, 7-1/2" deep front rail, and cast-iron top grates built for the long haul.

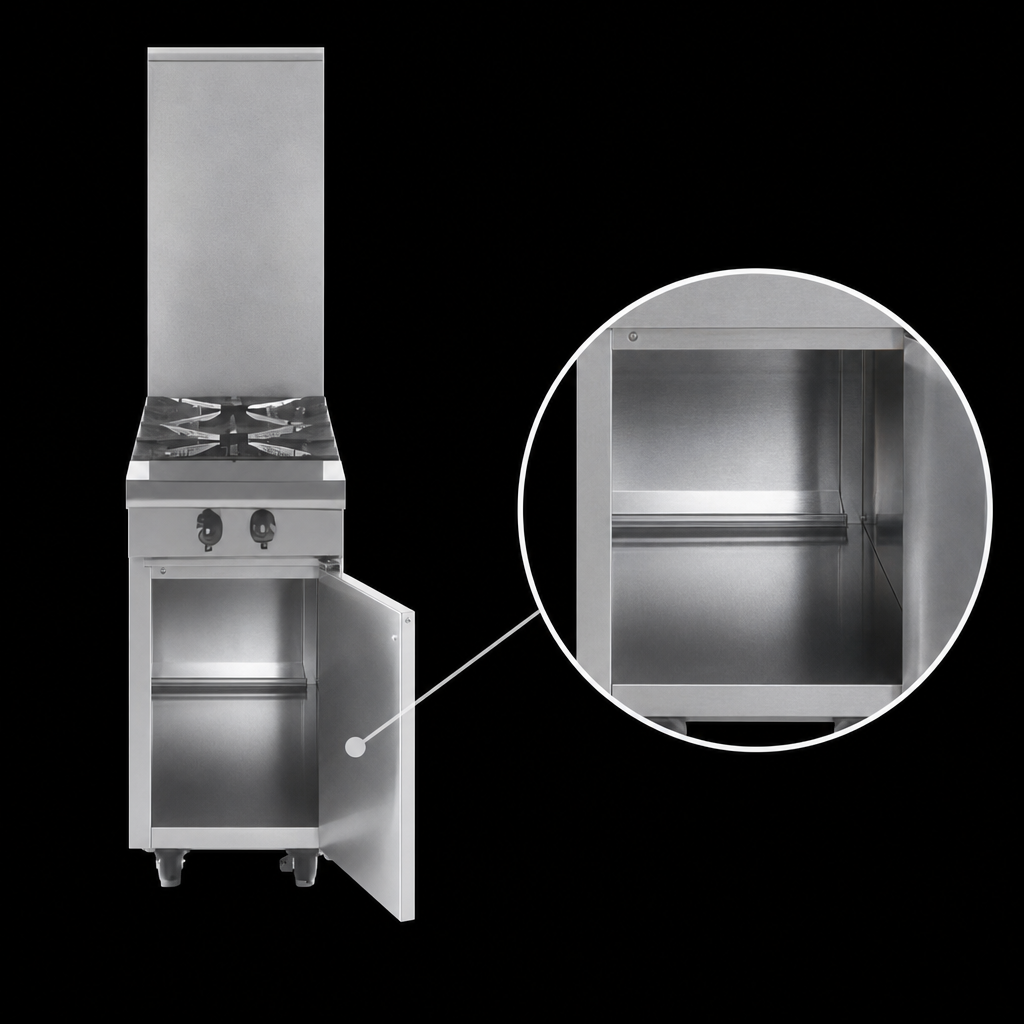

  • Integrated storage base: aluminized-steel interior keeps sheet pans, stock pots or smallwares right at hand (door included).
  • Add-A-Unit flexibility: factory-drilled sides align with other Master Series modules for a continuous battery-style suite.
  • Field-configurable gas: front 1-1/4" NPT connection standard; optional 3/4" rear connection, regulator, flex hose, shut-off & more.
  • Certified for the line: CSA Flame, CSA Star and NSF listings satisfy inspectors in every commercial kitchen.

Performance you can count on

Burners 2 open-top Starfire™ cast-iron
Input (Natural) 24,000 BTU each  |  48,000 BTU total (14.06 kW)
Input (LP) 20,000 BTU each  |  40,000 BTU total (11.72 kW)
Manifold pressure 6" WC Natural  |  10" WC LP
Cooking surface Split ergonomic cast-iron grates with removable rings

Dimensions & utilities

Width 12" (305 mm)
Depth 38" (965 mm)
Height w/ NSF legs 36-3/8" (924 mm)
Gas inlet (std.) 1-1/4" NPT (front)
Shipping weight 160 lb / 73 kg
Combustible clearance Sides 11" | Back 6"

Popular options & accessories

  • 3/4" rear gas connection kit with regulator
  • 10", 17" or 33" stainless-steel backguard or high shelf
  • Polyurethane swivel casters w/ front brakes (set of 4)
  • Common front rail (batteries up to 102")
  • Stainless or aluminized storage base shelf
  • Deck-mount flanged feet or dais base
  • End caps & cover plates for suite line-ups

Certifications

  • CSA Flame
  • CSA Star
  • NSF
Commercial use only: Garland Master Series equipment is not approved for residential installation. Specify gas type (Natural or LP) and altitude > 2,000 ft (610 m) when ordering. Images may show optional accessories.

Need help configuring a full battery? Chat with our food-service experts or call Garland Customer Service at 1-800-424-2411.

Features & Specs

Manufacturer

Garland

Brand_name

Master

Certifications

NSF, CSA Star, CSA Flame

Height

36.38in

Width

12.0in

Depth

38.0in

Shipping Weight

130.0lbs

Type

add-a-unit

Exterior Finish

stainless steel front & sides

Top

(2) open burners

Base

cabinet(s)

Specifications

Master Series Heavy Duty Range, gas, 12", Add-A-Unit, (2) 24,000 BTU open burners, storage base, stainless steel front and sides, 6" legs, 48,000 BTU, CSA Flame, CSA Star, NSF (Garland)
