Garland M12S-8 Master Gas Ranges
Description

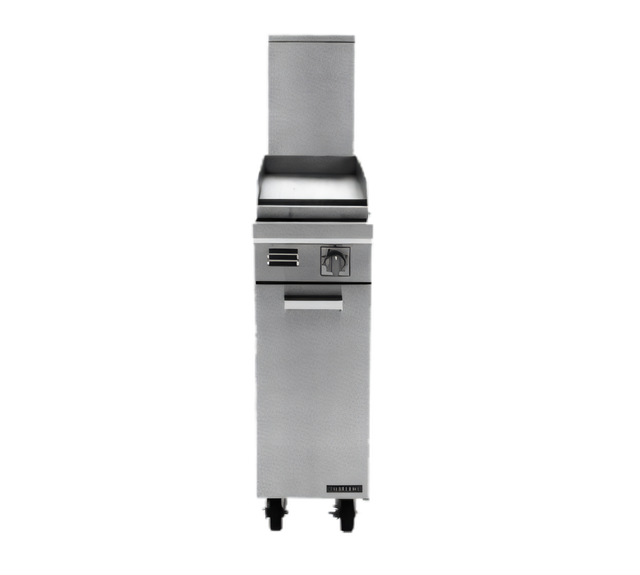

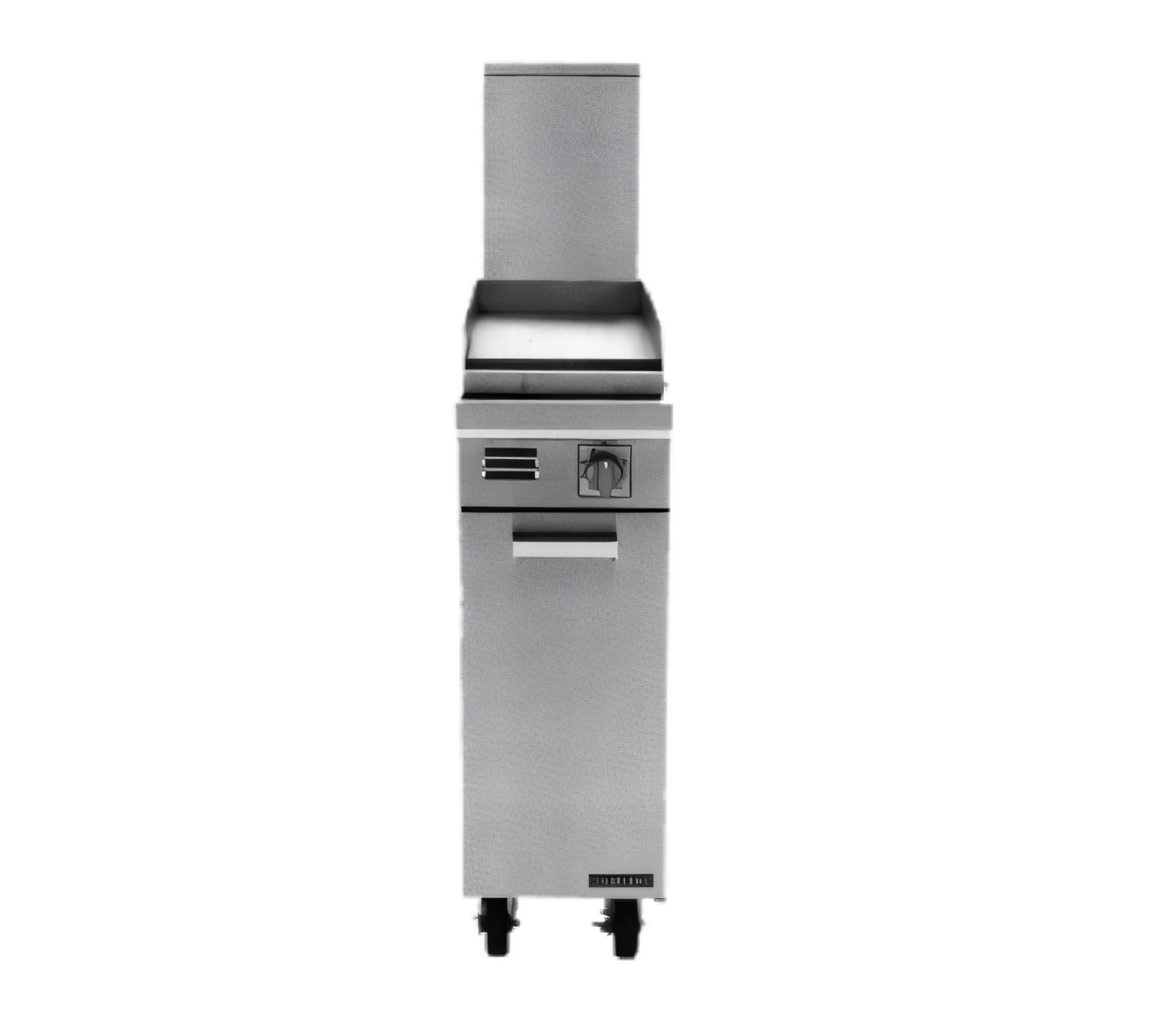

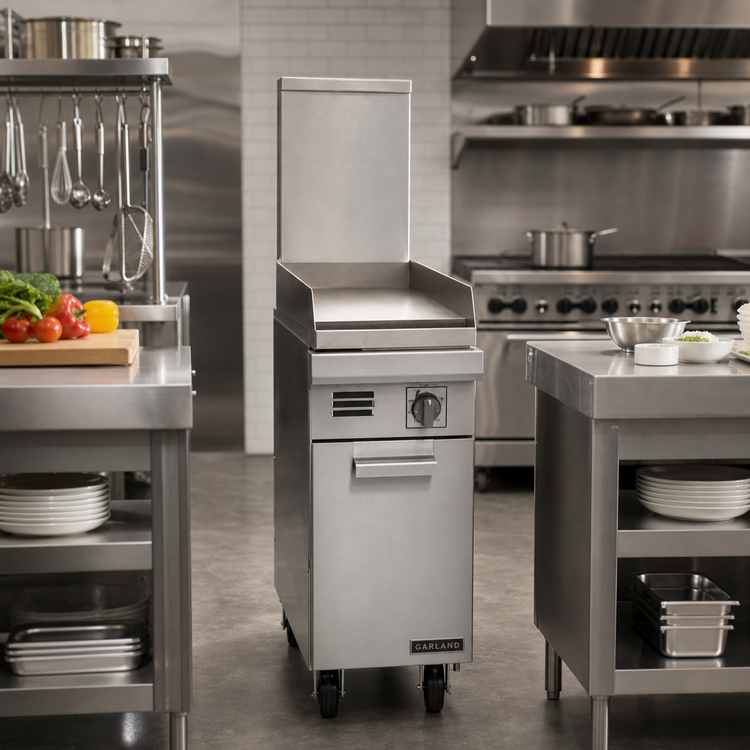

Garland Master Series 12" Add-A-Unit Thermostatic Griddle with Storage Base
Model M12S-8 • Heavy-duty gas range attachmentTurn a single foot of unused line space into a high-profit cooking station. The Garland Master Series M12S-8 delivers rock-solid temperature control, rugged construction and the seamless “Add-A-Unit” compatibility the Master line is famous for.
Why you’ll love it
- Space-saving integration – 12 in. module bolts flush to any Master Series battery.

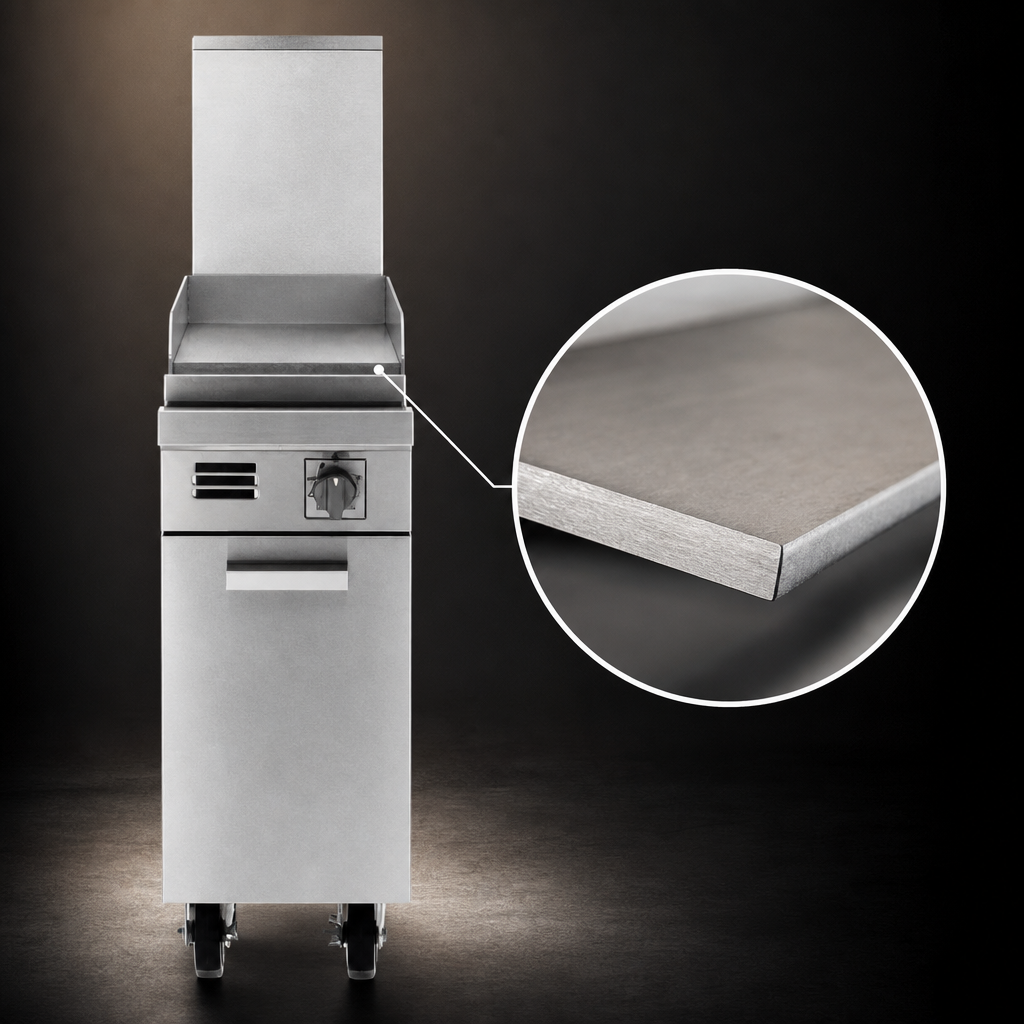

- 1 in. (25 mm) steel plate – exceptional heat retention, quick recovery and easy re-seasoning.

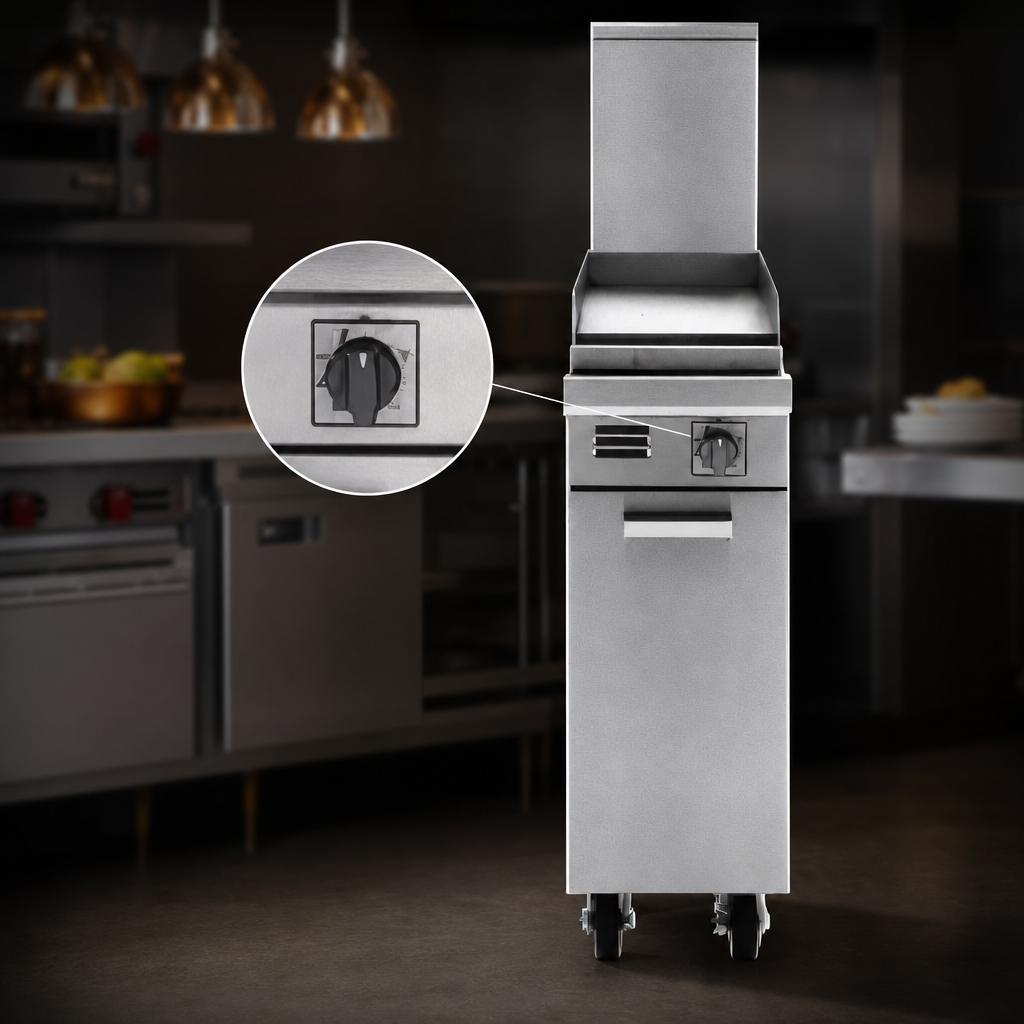

- Precise thermostatic control – embedded capillary sensor keeps set temps rock steady for consistent browning and caramelisation.
- Even-heat “H” burner – 22,000 BTU/hr cast-iron burner plus heavy-gauge aluminised baffle eliminates hot-spots—no fire bricks required.
- Built-in cleanliness – welded 2-5/16 in. splash guards, clip-on backsplash and front-mount stainless grease drawer speed daily cleaning.
- Stainless exterior – front, sides, door and splash guards resist dents, corrosion and daily abuse.
- Roomy storage base – aluminised steel interior keeps pans, utensils and smallwares within arm’s reach.
- Adjustable 6 in. chrome-plated legs – easy leveling; optional casters, flanged feet, grooved plate and high shelf available.
- Field convertible – natural or LP gas, front 1-1/4 in. NPT connection.
- Certified safe & sanitary – CSA Flame, CSA Star and NSF listings.
At-a-glance specs
| Model | M12S-8 – Griddle w/ storage base |
|---|---|
| Plate size | 12" W × 24-3/4" D (305 × 629 mm), 1" thick steel |
| Heat input | 22,000 BTU/hr (6.44 kW) “H” burner |
| Gas connection | 1-1/4" NPT (front) |
| Dimensions (W × D) | 12" × 38" (306 × 965 mm) |
| Height | 36-1/4" (924 mm) on 6" NSF legs |
| Shipping weight | 190 lb / 86 kg |
| Combustible clearances | 11" sides • 6" rear |
| Manifold pressure | Natural 6" WC • LP 10" WC |
| Approvals | CSA Flame • CSA Star • NSF |
Perfect for
- Breakfast bars – eggs, pancakes & breakfast sandwiches
- Burgers, melts & quesadillas on a busy lunch line
- Allergen-free or speciality menu items needing a dedicated griddle zone
- C-stores, cafés and ghost kitchens where every inch of line space counts
Need a top-only module? Choose model M12T-8. Ask us about grooved plates, common front rails up to 102", high shelves, casters and other factory-installed options.
