Garland M12S-7 Master Gas Ranges
Description

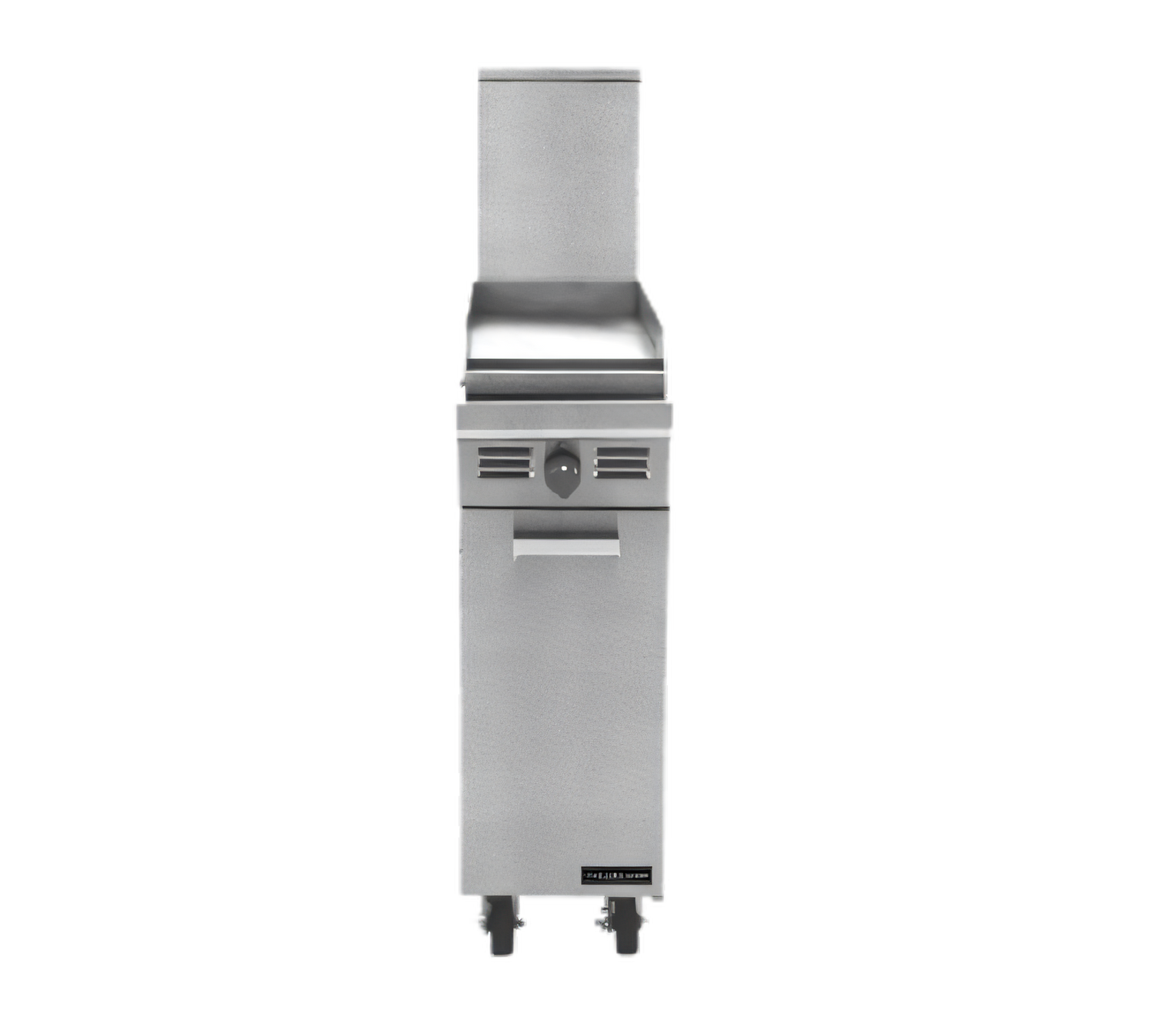

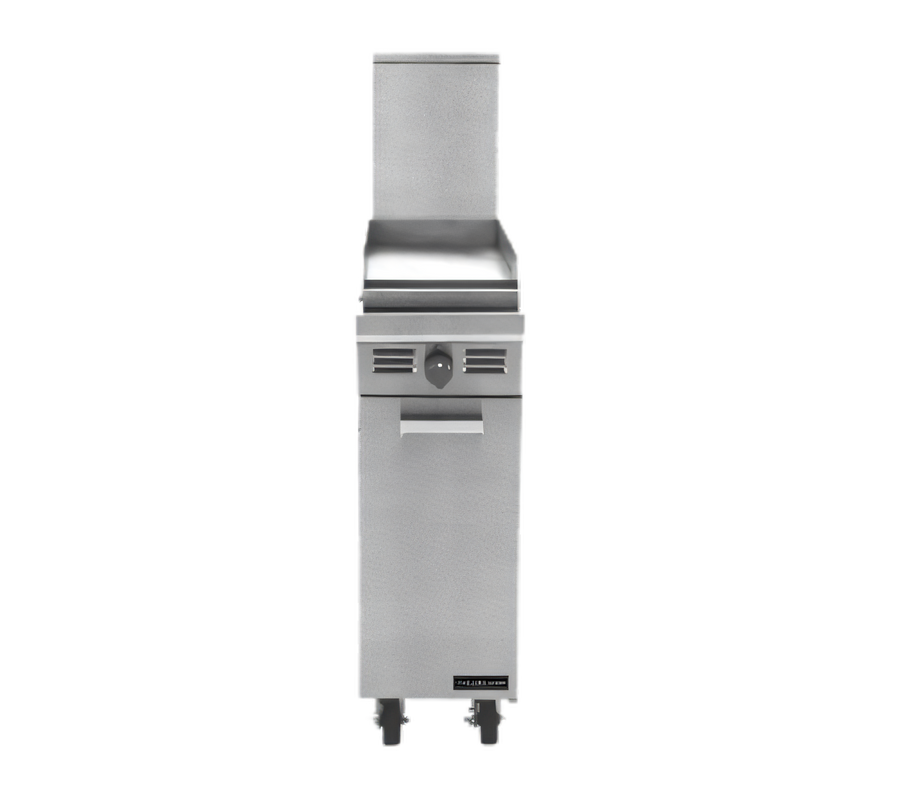

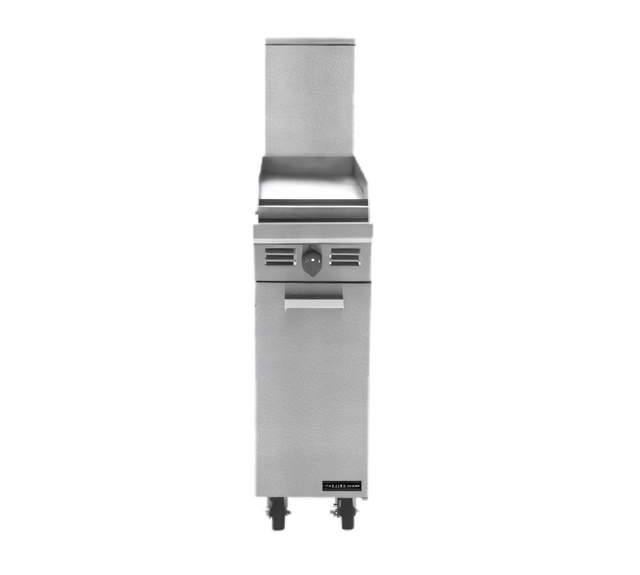

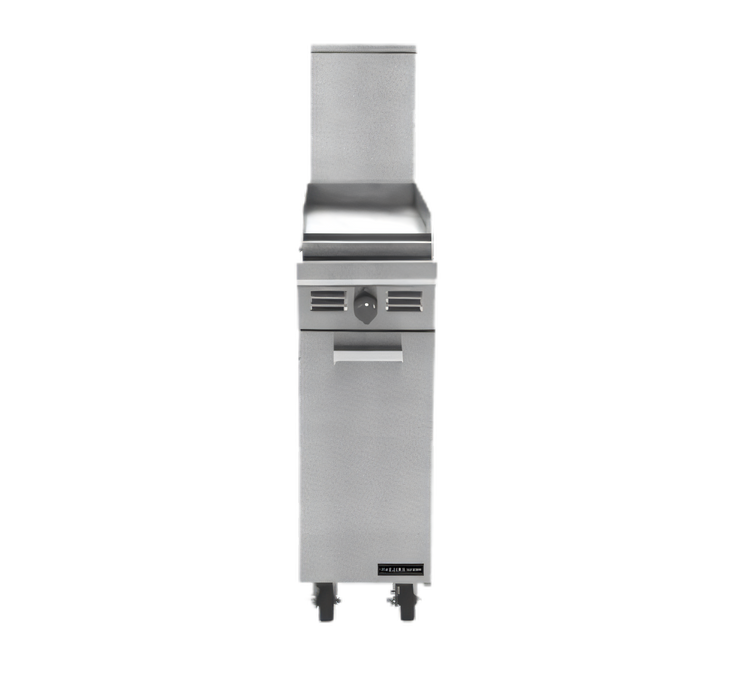

Garland Master Series 12″ Add-A-Unit Heavy-Duty Gas Griddle Range
Model M12S-7 | Storage Base & Manual Hi-Low ControlsAdd powerful griddle capacity to any cookline without sacrificing space. The Garland Master Series 12″ Add-A-Unit couples a 1″ thick steel plate with rugged Master Series construction, delivering uniform heat, rapid recovery and years of dependable service in the smallest footprint on your battery.
Stand-Out Features
- Space-saving 12″ (305 mm) module – perfect for filling gaps or expanding Master Series lines.

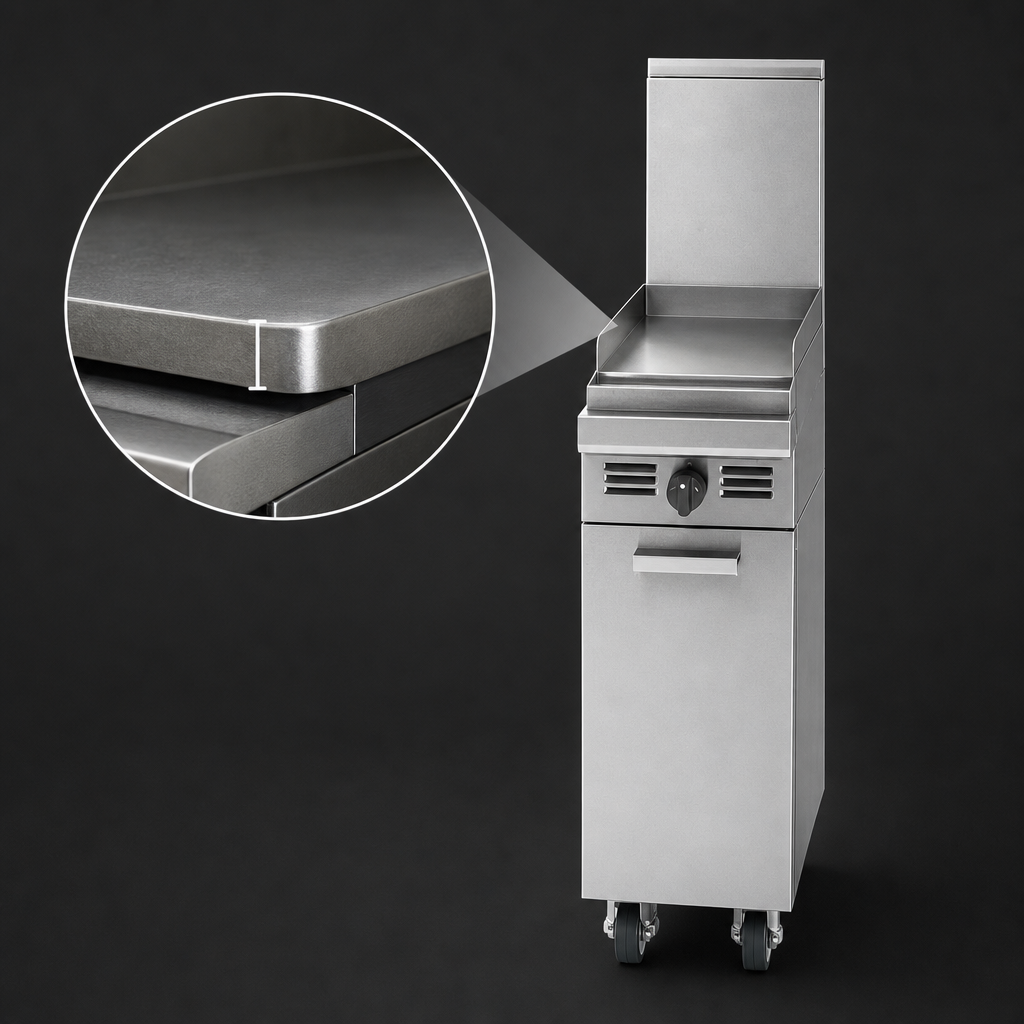

- 1″ (25 mm) thick ground steel griddle plate keeps temperatures rock-steady during peak periods.

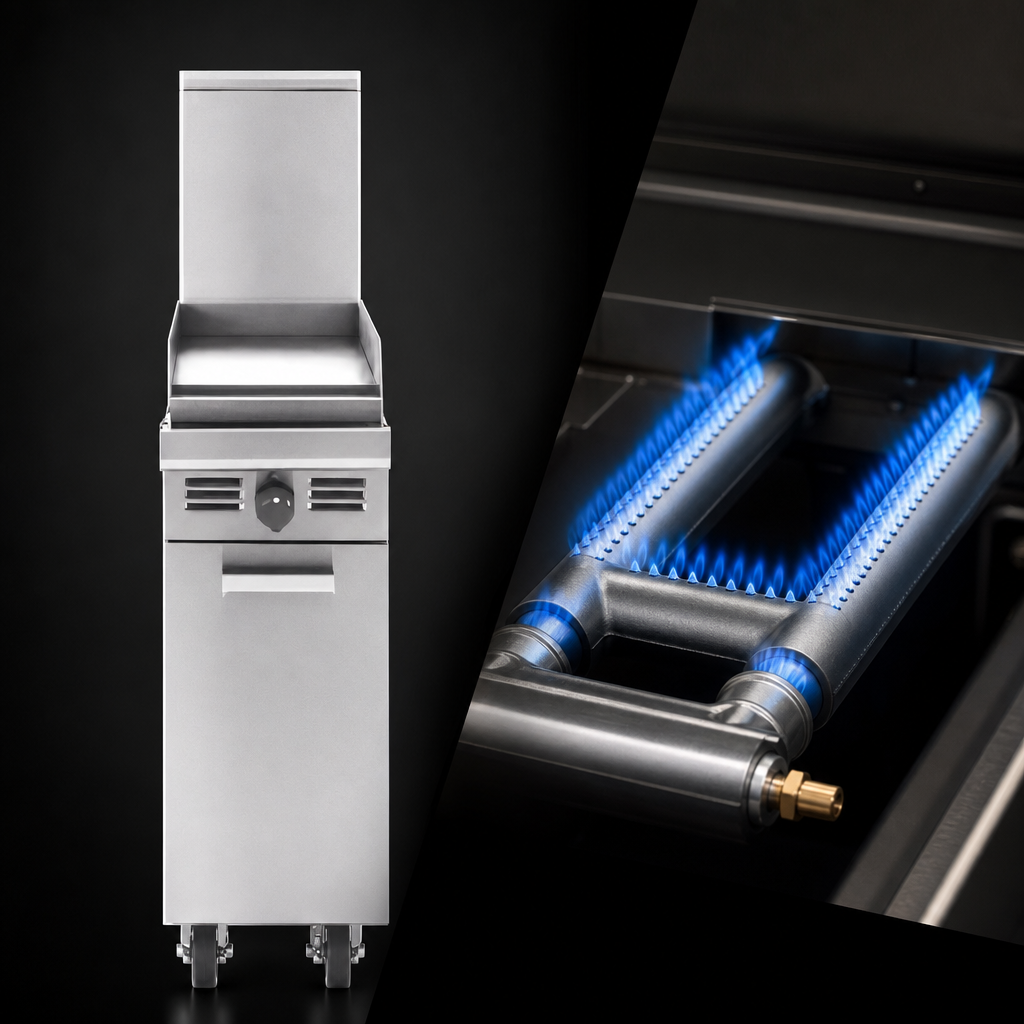

- 22,000 BTU “H”-style burner spreads heat evenly across the entire cooking surface.
- Manual Hi-Low valve gives chefs instant flame control – no electronics to fail.
- Welded 2-5/16″ (59 mm) stainless splash guards plus clip-on backsplash contain splatter.
- Slide-out stainless grease drawer for fast, mess-free clean-up.
- Full stainless front & sides with aluminised steel under-body for maximum durability.
- Roomy aluminised-steel storage base keeps pans, trays & utensils close at hand.
- 6″ (152 mm) chrome-plated adjustable legs level the unit on uneven floors.
- NSF, CSA Flame & CSA Star certified for commercial kitchen compliance.
Technical Specifications
| Cooking surface | 12″ W × 24-3/4″ D (305 × 629 mm) |
|---|---|
| Plate thickness | 1″ (25 mm) ground steel |
| Heat output | 22,000 BTU/hr (6.44 kW) • natural or propane* |
| Controls | Manual Hi-Low valve |
| Gas connection | 1-1/4″ NPT front (rear optional) – regulator ordered separately |
| Overall width | 12″ (306 mm) |
| Overall depth | 38″ (965 mm) |
| Height (work surface) | 36-1/4″ (924 mm) with legs |
| Shipping weight | ≈ 190 lb (86 kg) |
| Combustible clearances | Sides 11″ (280 mm) | Back 6″ (152 mm) |
| Certifications | NSF, CSA Flame, CSA Star |
*Gas ratings apply to installations up to 2,000 ft (610 m). Specify altitude and gas type when ordering.
Factory Options & Accessories
- Grooved or combination griddle plate
- Stainless backguards: 10″, 17″ or 33″ heights
- Single- or double-deck tubular high shelves
- Polyurethane swivel casters with front brakes
- Common front rails & end caps for batteries up to 102″ wide
- Gas quick-disconnect hose kits (3/4″, 1″ or 1-1/4″)
- Optional stainless or aluminised storage shelf for base
Perfect For
- Finishing steaks, burgers, tortillas or brunch items on busy lines
- Restaurants upgrading existing Master Series batteries
- Hotels, resorts & institutions needing an extra griddle zone without a full-size range
Garland equipment is intended for commercial use only.
