Garland M12S-6 Master Gas Ranges
Description
Garland Master Series 12" Even-Heat Hot Top Add-A-Unit Range w/ Storage Base – 30,000 BTU
Model M12 Add-A-Unit | CSA Flame & Star • NSF CertifiedAdd powerful, uniform heat to any existing Master Series battery—or build a compact new cookline—with this 12" Even-Heat Hot Top Range Attachment. Its 30,000 BTU cast-iron “H” burner and heavy hot plate deliver gentle, edge-to-edge cooking performance, while the built-in storage base keeps essential cookware close at hand.
Key Features

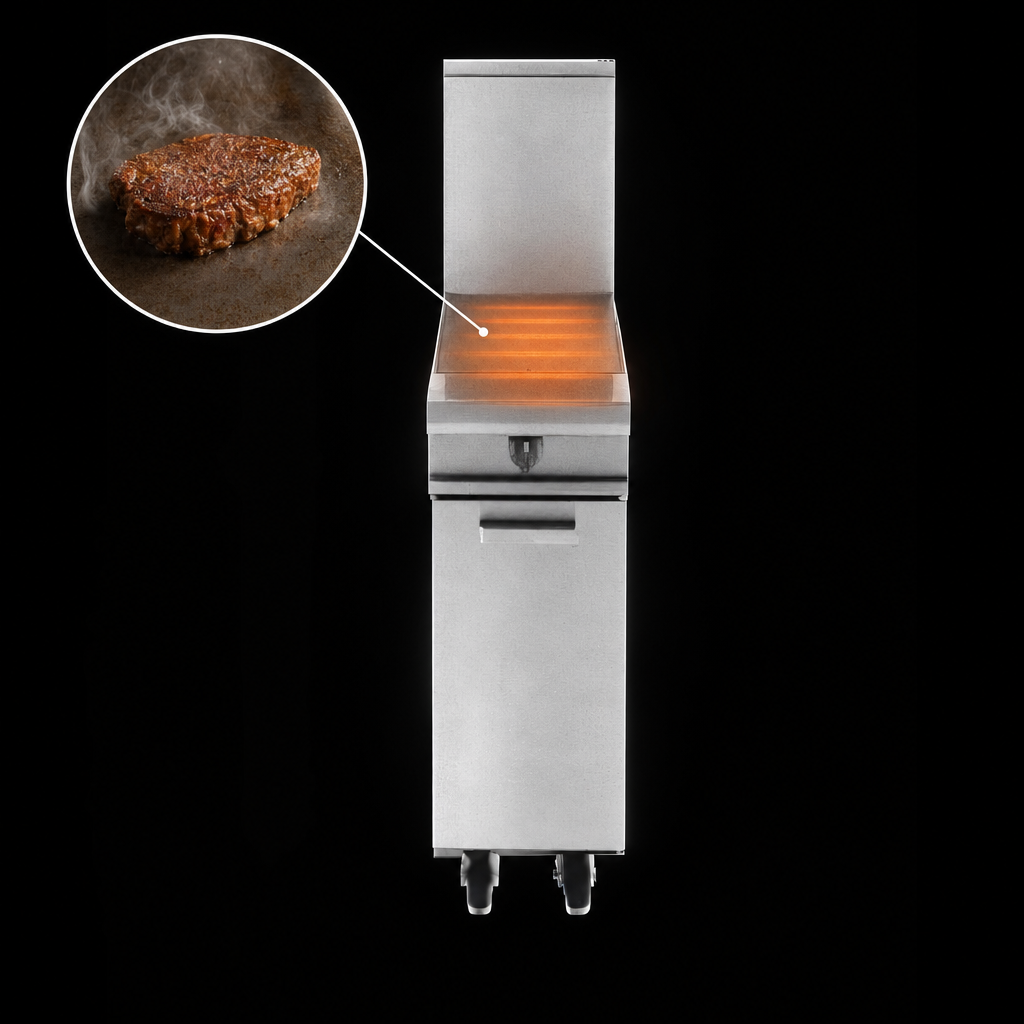

- Even-heat, one-piece cast-iron hot top for consistent temperatures across the entire surface.

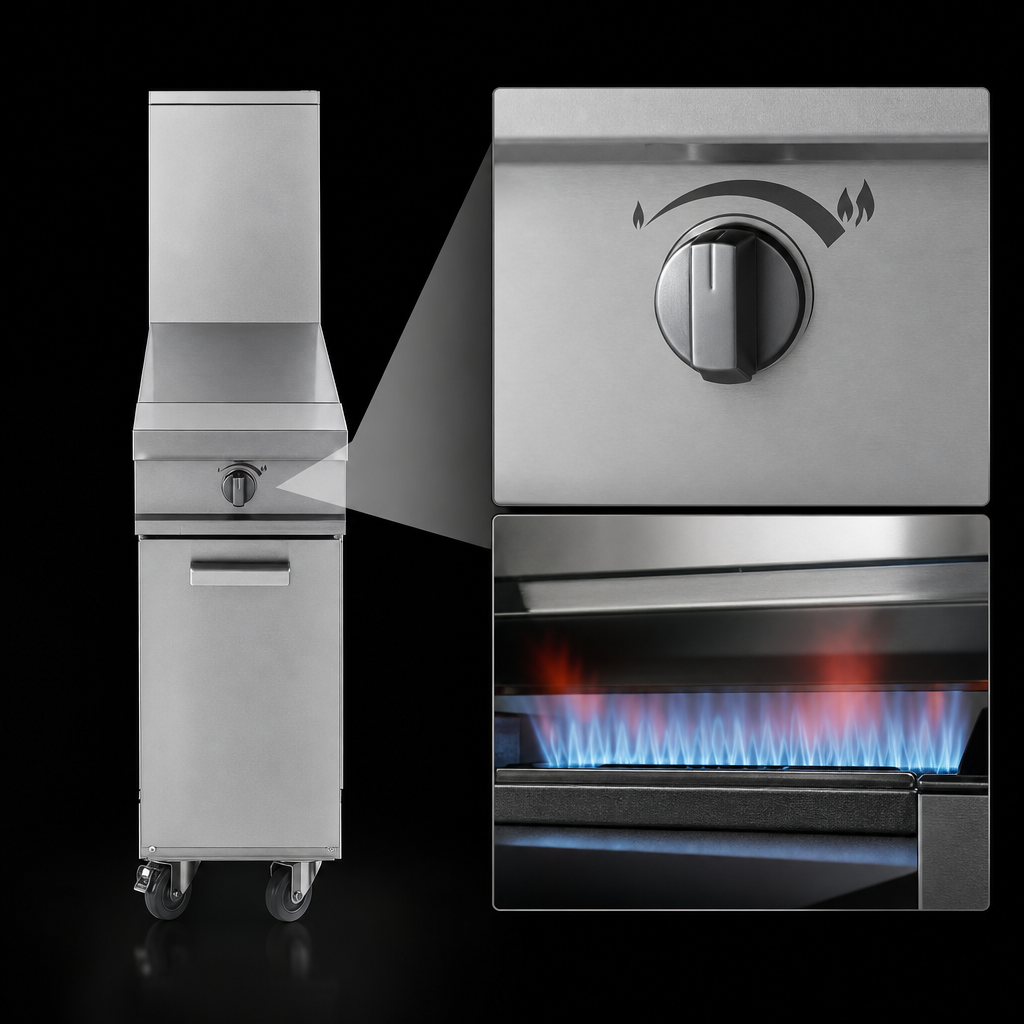

- 30,000 BTU “H” style burner controlled by a smooth hi-lo valve—perfect for rapid boils or low simmers.
- Stainless steel front, sides and 7-1/2" deep front rail for superior durability and easy cleanup.
- Aluminized-steel storage base interior stores sheet pans, stock pots and utensils.
- 6" (152 mm) chrome-plated, adjustable legs provide simple leveling and floor clearance for sanitation.
- Front 1-1/4" NPT gas manifold simplifies line-ups; optional rear connection kits available.
- Heavy-gauge aluminized radiation baffle and stainless burner box maximize heat retention and lifespan.
- Certified to CSA Flame, CSA Star and NSF standards for safety and sanitation.
At-a-Glance Specifications
| Width | 12 in / 305 mm |
|---|---|
| Depth (incl. rail) | 38 in / 965 mm |
| Height w/ legs | 36-3/8 in / 924 mm |
| Height w/o legs | 30-3/8 in / 772 mm |
| Cooking Surface | Even-Heat cast-iron hot top |
| Total BTU Input | 30,000 BTU/hr (8.79 kW) |
| Gas Type | Natural or Propane (specify) |
| Manifold Pressure | 6" WC Nat • 10" WC LP |
| Gas Connection | 1-1/4" NPT front (rear optional) |
| Storage Base Interior | Aluminized steel |
| Exterior Finish | Stainless steel front & sides |
| Certifications | CSA Flame, CSA Star, NSF |
| Ship Weight | Approx. 190 lb / 86 kg |
Popular Options & Accessories
- Stainless steel common front rail (batteries up to 102").
- Backguards: 10", 17" or 33"; single- or double-deck high shelves.
- Polyurethane swivel casters with front brakes for added mobility.
- Stainless or aluminized storage shelf for base interior.
- Gas regulators, shut-off valves and quick-disconnect hose kits.
- Flanged deck-mount feet for curb installations.
Need assistance configuring a battery or selecting the correct backguard? Contact our team or the Garland hotline at 1-800-424-2411.
