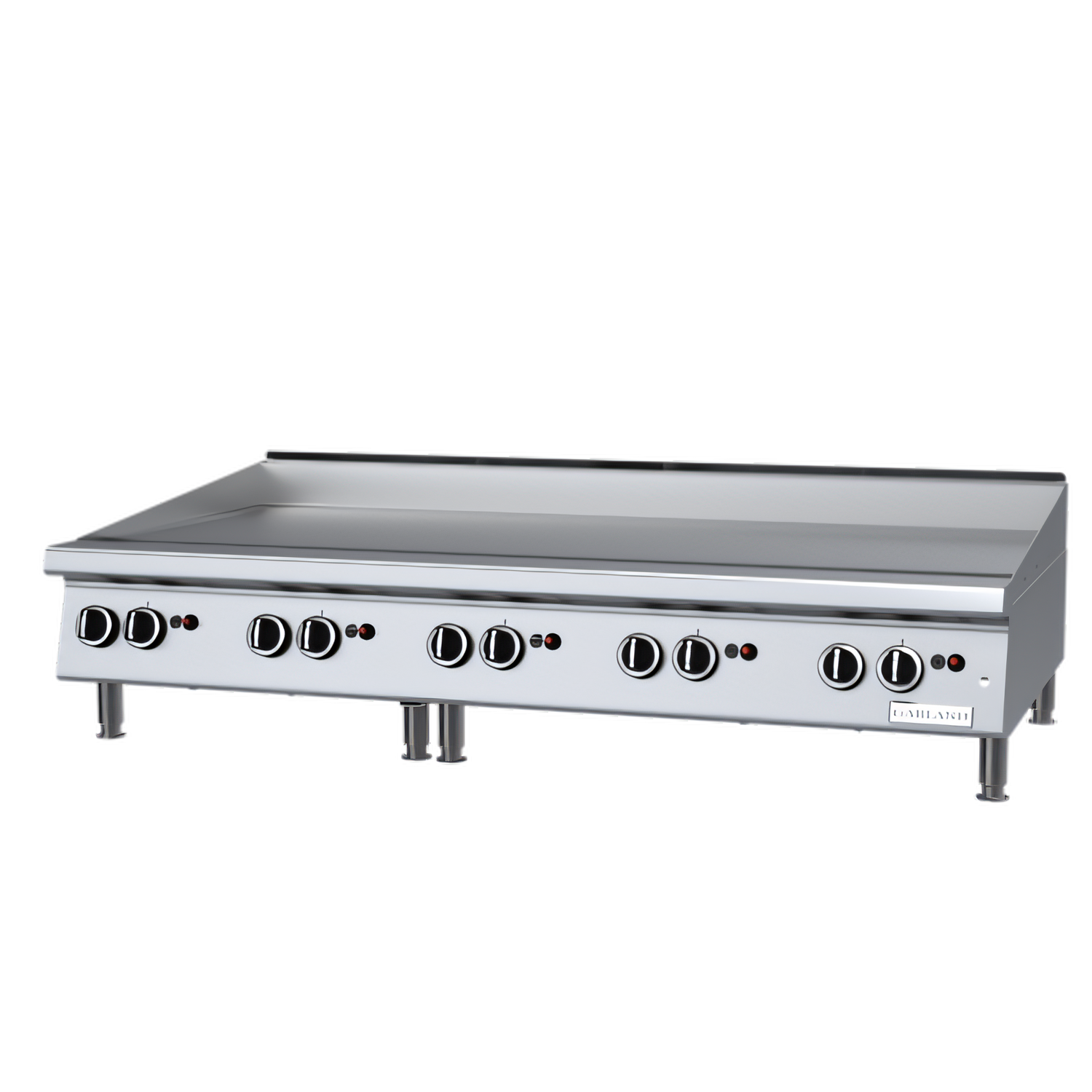

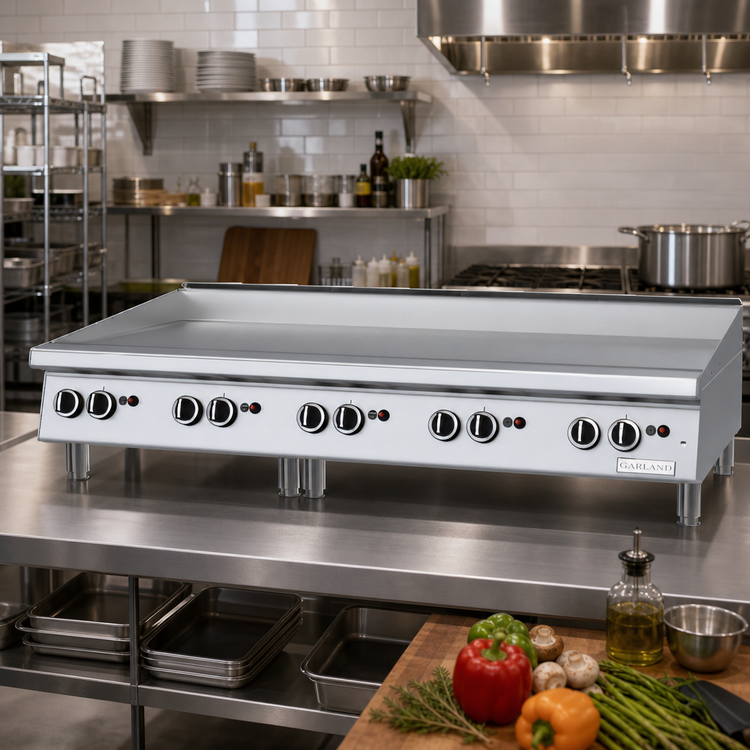

Garland Signature 60" Heavy-Duty Countertop Gas Griddle
Model width 59-1/16" | 140,000 BTU/h total inputEngineered for high-volume kitchens that refuse to compromise on performance, the Garland Signature gas griddle combines five independent thermostat zones, a massive 1" thick plate and rugged stainless construction into one power-packed, countertop footprint.
Key Features
- 59-1/16" (1500 mm) wide × 23" (584 mm) deep cooking surface maximises production capacity.

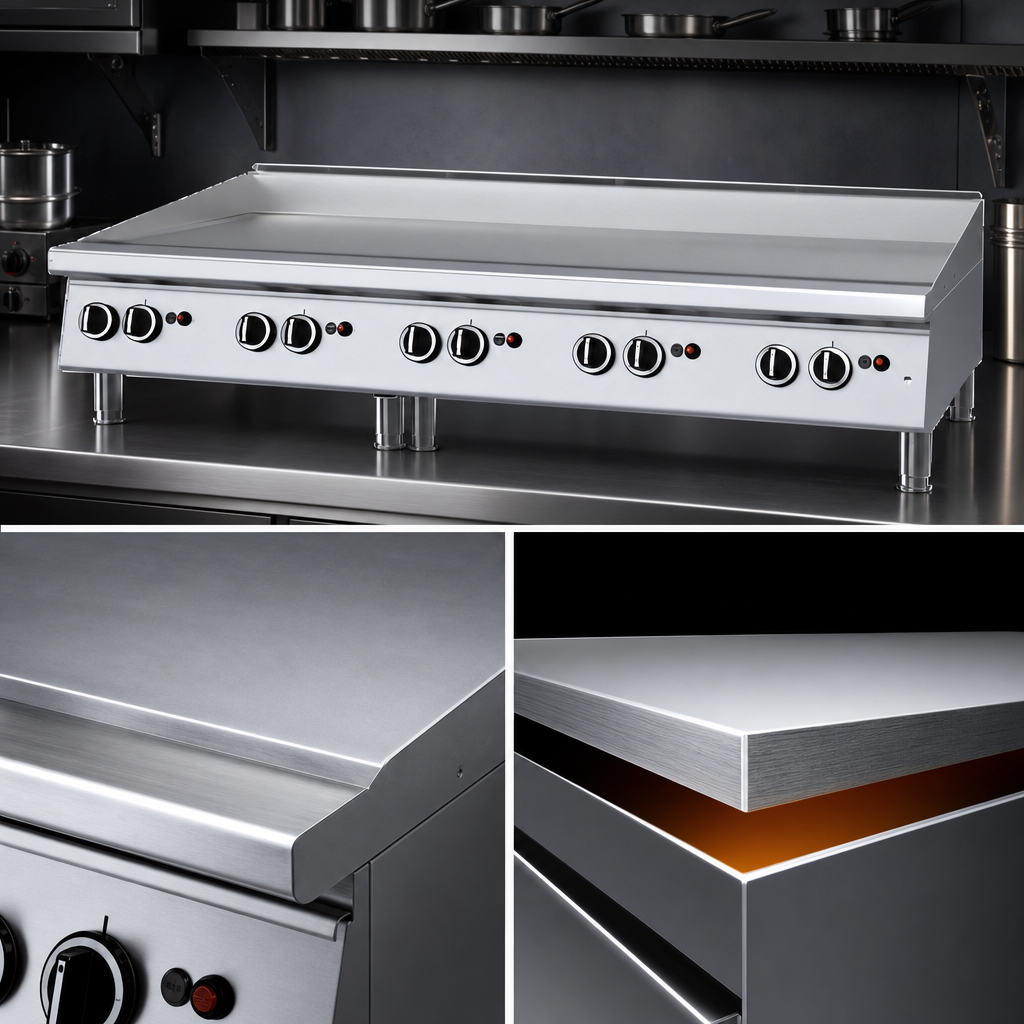

- 1" (25 mm) smooth polished steel plate delivers superior heat retention and quick recovery.

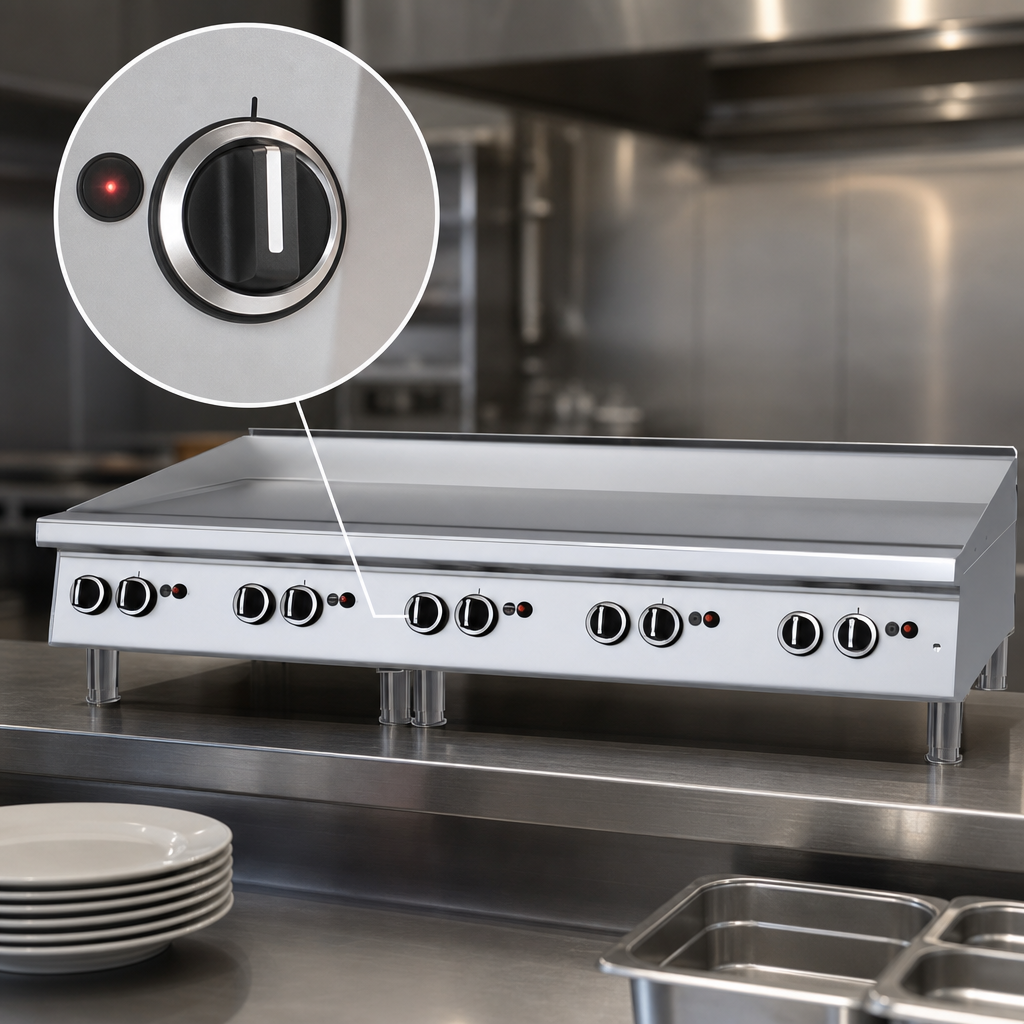

- Five snap-action thermostats (one every 12") allow precise zone control from 200 °F – 550 °F (90 °C – 290 °C).
- Piezo pilot ignition – reliable starts without external power.
- 4" deep full-width front grease trough feeds a removable, large-capacity stainless drawer.
- Stainless steel front, sides and back for easy wipe-down durability.
- 4" adjustable stainless legs level the unit on any surface.
- Natural or propane gas; 3/4" NPT rear connection with built-in pressure regulator.
- Certified NSF, CSA Star & CSA Flame for sanitation and gas safety.
Built-In Advantages
- Create true cook-to-order stations with independent left-to-right temperature zones.
- Polished plate lets pans slide effortlessly for fast plating and service-line efficiency.
- Thermostats hold set temps without constant tweaking—reducing waste and labour.
- Front-mounted grease system removes in seconds for end-of-shift cleaning.
- Low 13" profile (with legs) integrates seamlessly into island suites or food trucks.
Technical Specifications
| Item | Detail |
|---|---|
| Cooking surface | 59-1/16" W × 23" D (1500 mm × 584 mm) |
| Plate thickness | 1" (25 mm) polished steel, smooth finish |
| Burners / zones | 5 burners @ 28,000 BTU/h each | 140,000 BTU/h total |
| Control type | Snap-action thermostats, 200 °F – 550 °F (90 °C – 290 °C) |
| Ignition | Manual piezo spark pilot (no electricity required) |
| Grease management | 4" trough + stainless drawer (≈ 1.4 US gal capacity) |
| Gas connection | 3/4" NPT rear manifold, factory regulator; natural or LP |
| Overall dimensions* | 60" W × 32" D × 13" H (with 4" legs) |
| Certifications | NSF | CSA Star | CSA Flame |
* Overall depth increases by 7" (178 mm) with optional condiment rail.
Popular Options & Accessories
- Chrome-plated or half / full-grooved cooking surface
- Stainless open-frame stand or enclosed cabinet base with undershelf
- Locking swivel casters for mobile installations
- Stainless condiment rail with 1/9-pan cut-outs
Commercial use only: Garland Signature griddles are intended for professional
food-service installations and are not approved for residential use.
$6,932.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Heavy-duty Garland 60" gas countertop griddle with 1" steel plate, 140,000 BTU, snap thermostats, piezo ignition, stainless body, NSF/CSA certified.
Manufacturer
Garland
Brand name
Signature
Certifications
NSF, CSA Star, CSA Flame
Height
13.0in
Width
59.06in
Depth
32.0in
Shipping Weight
705.0lbs
Plate Thickness
1"
Cooking Surface Width (side - side)
55" - 60"
Controls
thermostat / solid state controls
Cooking Surface Depth (front - back)
20" - 23"
Exterior Finish
stainless steel front & sides
Griddle Plate Finish
smooth steel
Specifications
Signature Griddle, countertop, gas, heavy-duty, 59-1/16" W x 23" D cooking surface, 1" thick smooth steel griddle plate, snap action thermostatic controls, piezo pilot igniters, 4" deep front grease trough, stainless steel front, sides and back, 4" adjustable feet, 140,000 BTU (Garland), NSF, CSA Star, CSA Flame
