Garland  |  Signature  |  SKU: GTGG48-G48M-SIGNATURE

Garland GTGG48-G48M-SIGNATURE Signature Gas Griddles

$4,066.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Parts manual Brochure Owner's manual
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

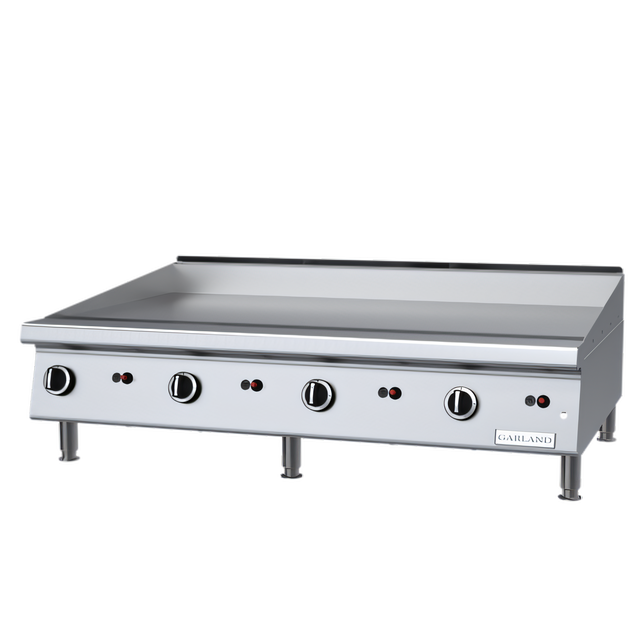

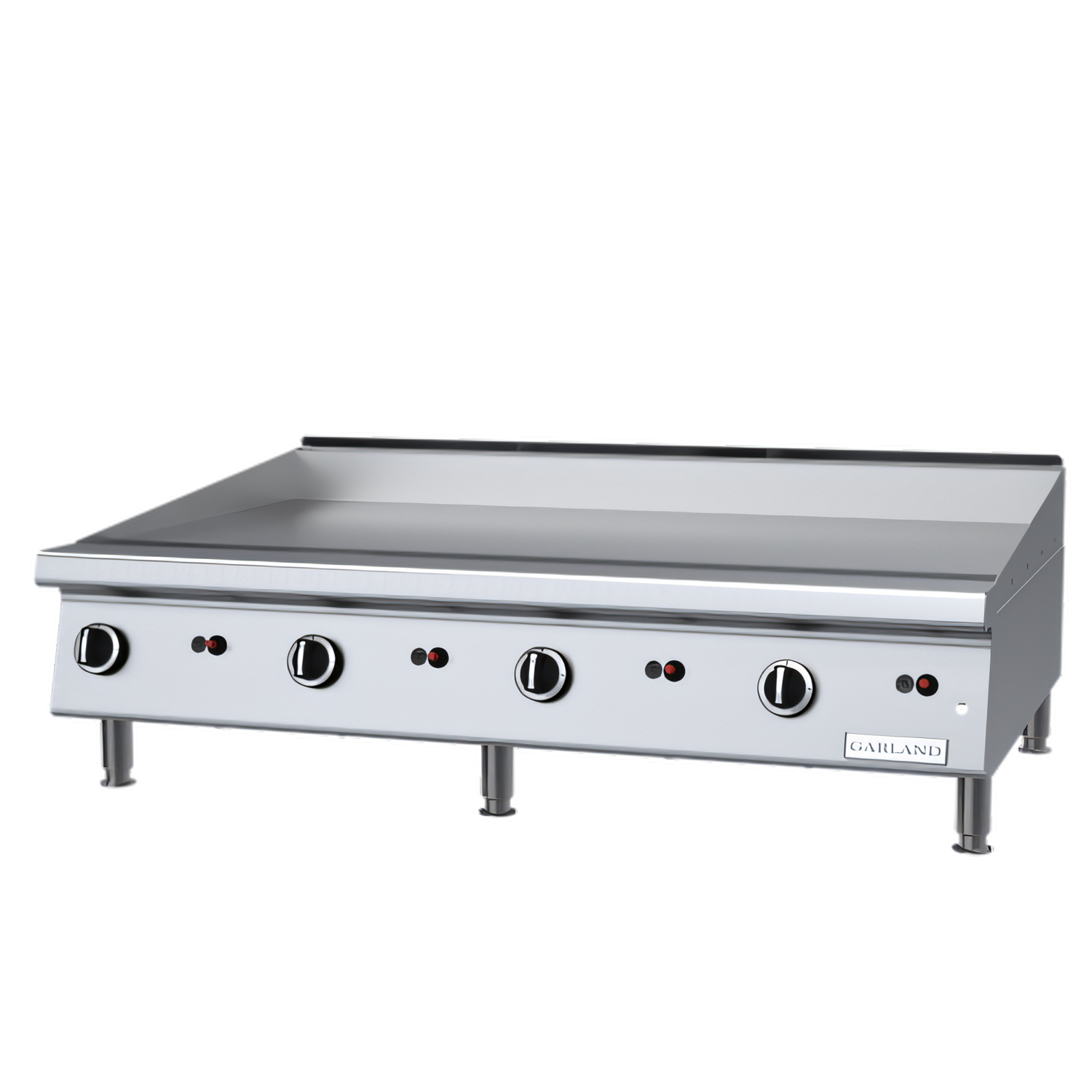

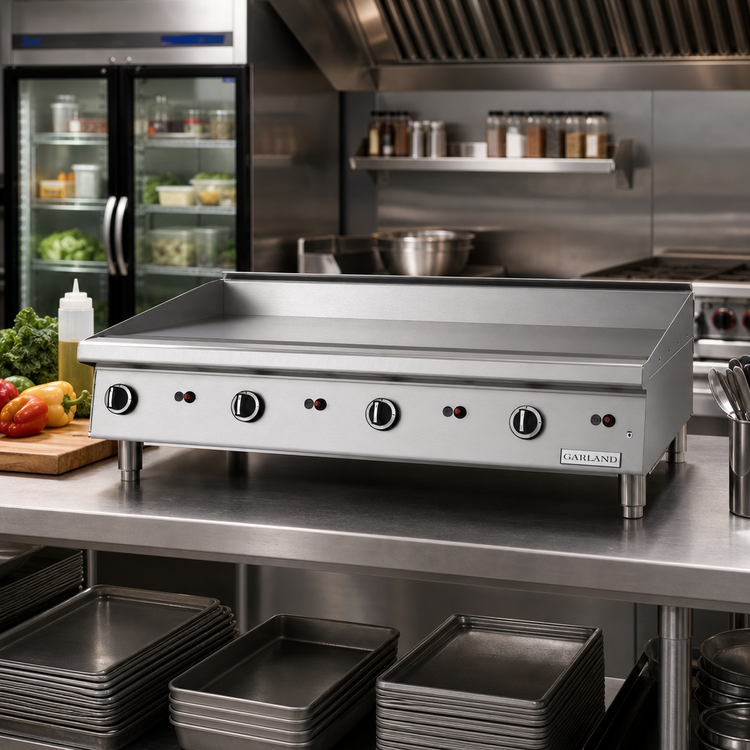

Garland Signature 48" Heavy-Duty Countertop Gas Griddle

Model GTGG48-G48M • 108,000 BTU • Manual Hi-Lo Control

Bring floor-model muscle to your cook-line without giving up valuable space. The Signature 48" Gas Griddle from Garland’s HD Counter Series marries a massive 1" steel plate with four powerful 27,000 BTU burners, giving chefs the even heat, fast recovery and rugged durability they need for all-day production.

Why you’ll love it

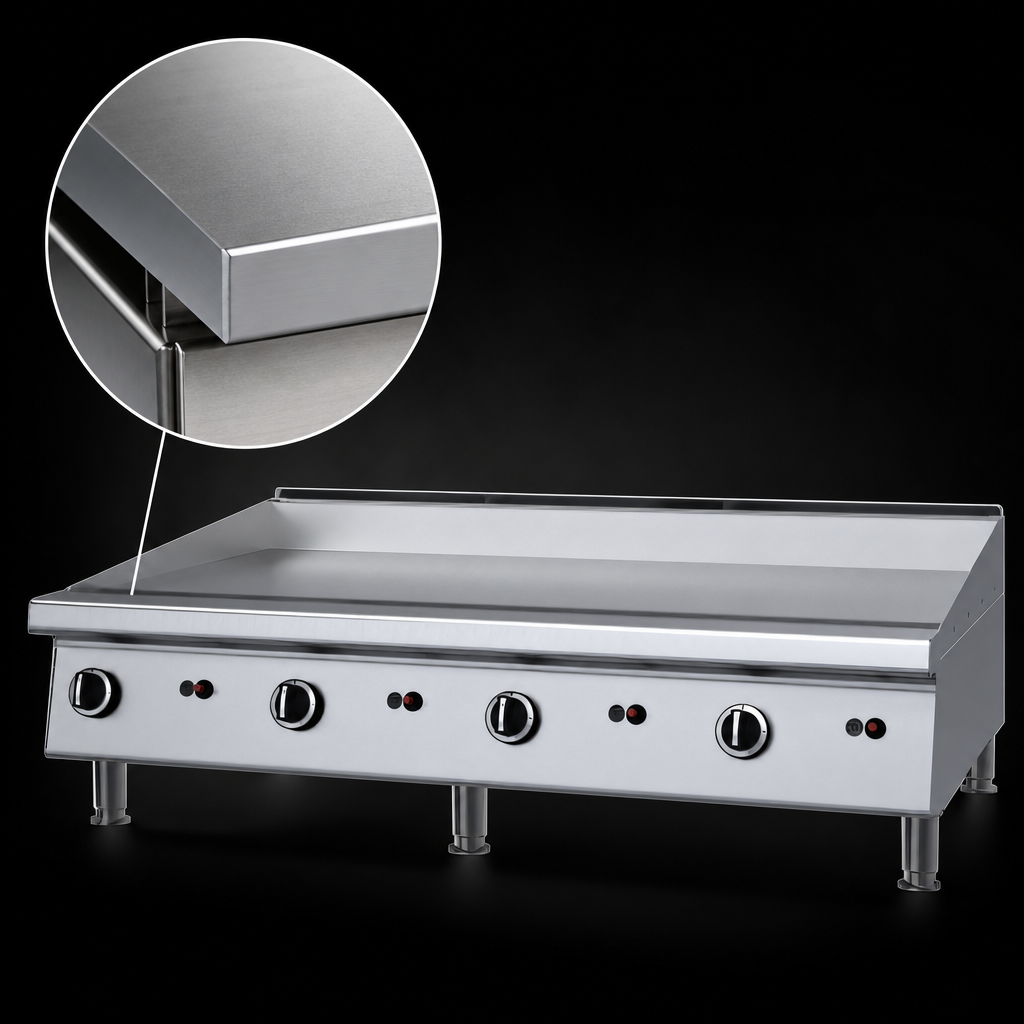

  • 1" (25 mm) thick, smooth polished steel plate—pre-seasoned and ready to work.
  • Expansive 47-1/4" W × 23" D cooking area (1,088 in² / 7,020 cm²).

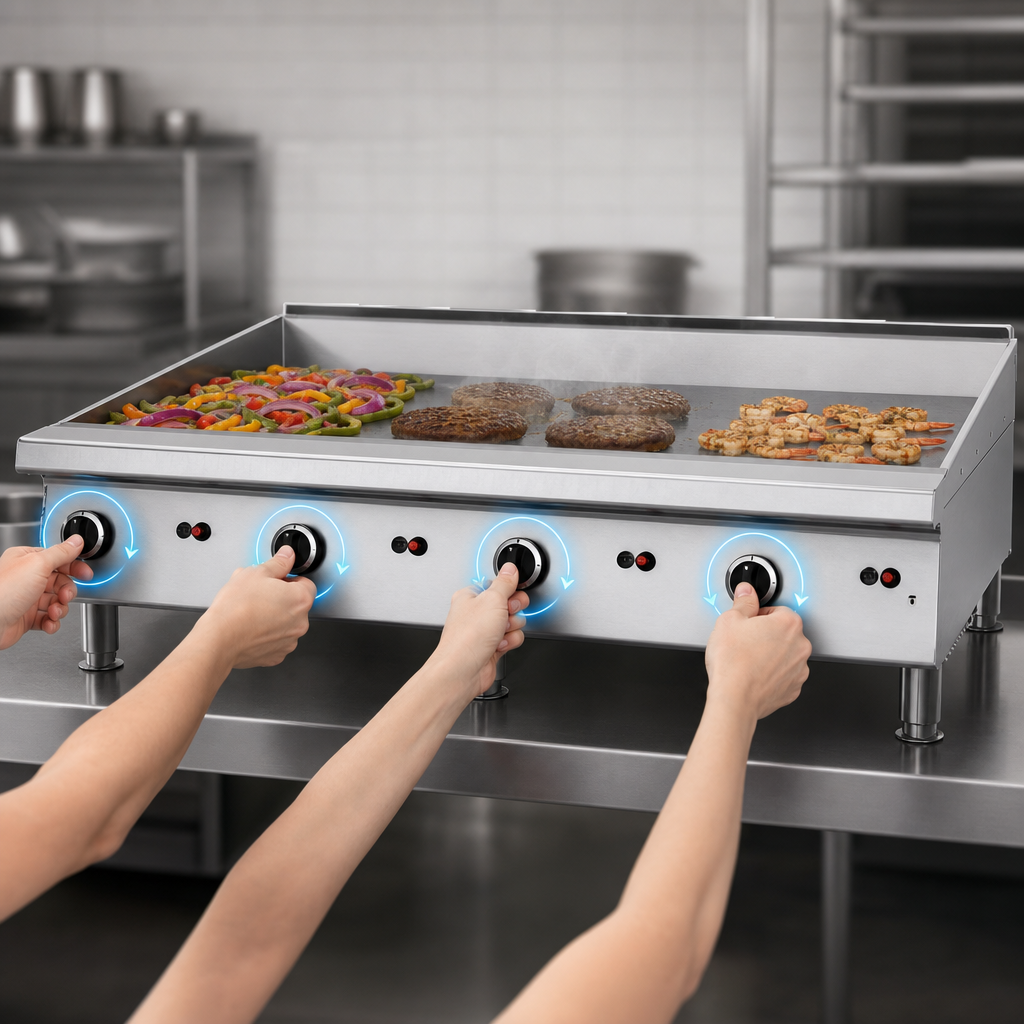

  • Manual hi-lo valve on every 12" section for an approximate 320 °F-730 °F (160 °C-388 °C) range.
  • Four U-shaped burners (27,000 BTU each) for edge-to-edge heat; total input 108,000 BTU/h.
  • Piezo pilot ignition—spark reliability with no external power required.
  • 4" (102 mm) wide, 3.8" deep front grease trough feeds a high-capacity stainless drawer.
  • Stainless steel front, sides and rear panel stand up to heavy use and simplify clean-up.
  • 4" adjustable stainless legs keep the unit level on any countertop.
  • 3/4" NPT rear gas inlet with factory regulator—straight or flush-mount configuration.
  • Matches seamlessly with other Garland HD Counter Series units for a custom line-up.

Certifications

  • NSF
  • CSA Star
  • CSA Flame

Technical specs

Cooking surface (W × D) 47-1/4" × 23" (1,200 × 584 mm)
Overall width 47-1/4" (1,200 mm)
Overall depth 32" (814 mm)
Overall height (with 4" legs) 13" (330 mm)
Plate thickness 1" (25 mm) polished steel
Number of burners 4 (one per 12")
Total heat input 108,000 BTU/h (natural or propane)
Gas connection 3/4" NPT (rear) with regulator
Supply pressure Natural 7" WC • Propane 11" WC
Manifold pressure Natural 4.5" WC • Propane 10" WC
Clearances to combustibles 6" (152 mm) sides & rear
Approx. shipping weight 585 lb (266 kg)

Looking for thermostat control or a different width? Check out the full Garland HD Counter Series from 24" to 72".

Commercial use only: This equipment is engineered for professional kitchens and is not approved for residential installation.

Features & Specs

Manufacturer

Garland

Brand_name

Signature

Certifications

NSF, CSA Star, CSA Flame

Height

13.0in

Width

47.25in

Depth

32.0in

Shipping Weight

585.0lbs

Cooking Surface Depth (front - back)

20" - 23"

Griddle Plate Finish

smooth steel

Cooking Surface Width (side - side)

43" - 48"

Exterior Finish

stainless steel front & sides

Controls

manual controls

Plate Thickness

1"

Specifications

Signature Griddle, countertop, gas, heavy-duty, 47-1/4" W x 23" D cooking surface, 1" thick smooth steel griddle plate, manual hi-lo controls, piezo pilot igniters, 4" deep front grease trough, stainless steel front, sides and back, 4" adjustable feet, 108,000 BTU (Garland), NSF, CSA Star, CSA Flame
