Garland GTGG24-G24M Gas Griddles
Description

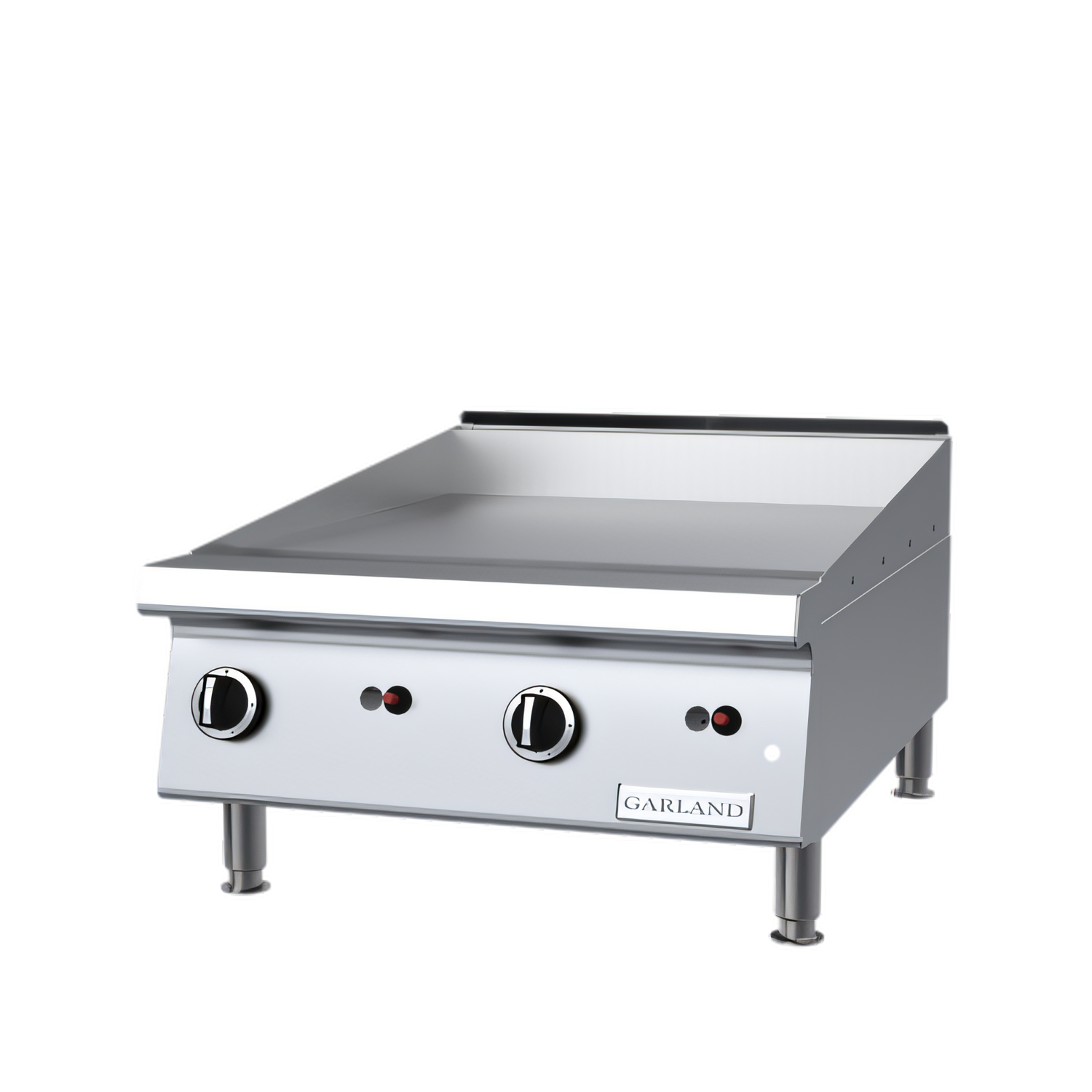

Garland GTGG24-G24M Heavy-Duty Countertop Gas Griddle – 24″
54,000 BTU | Manual Hi-Lo Control | 1″ Polished Steel PlateBuilt for high-volume kitchens that refuse to compromise on power or plate coverage, the Garland GTGG24-G24M delivers full-size griddle performance in a compact 24″ footprint. Two 27,000 BTU U-shaped burners heat an extra-thick 1″ smooth steel plate for fast recovery, even cooking, and the unmistakable sear that keeps tickets moving and customers coming back.
Why You’ll Love It

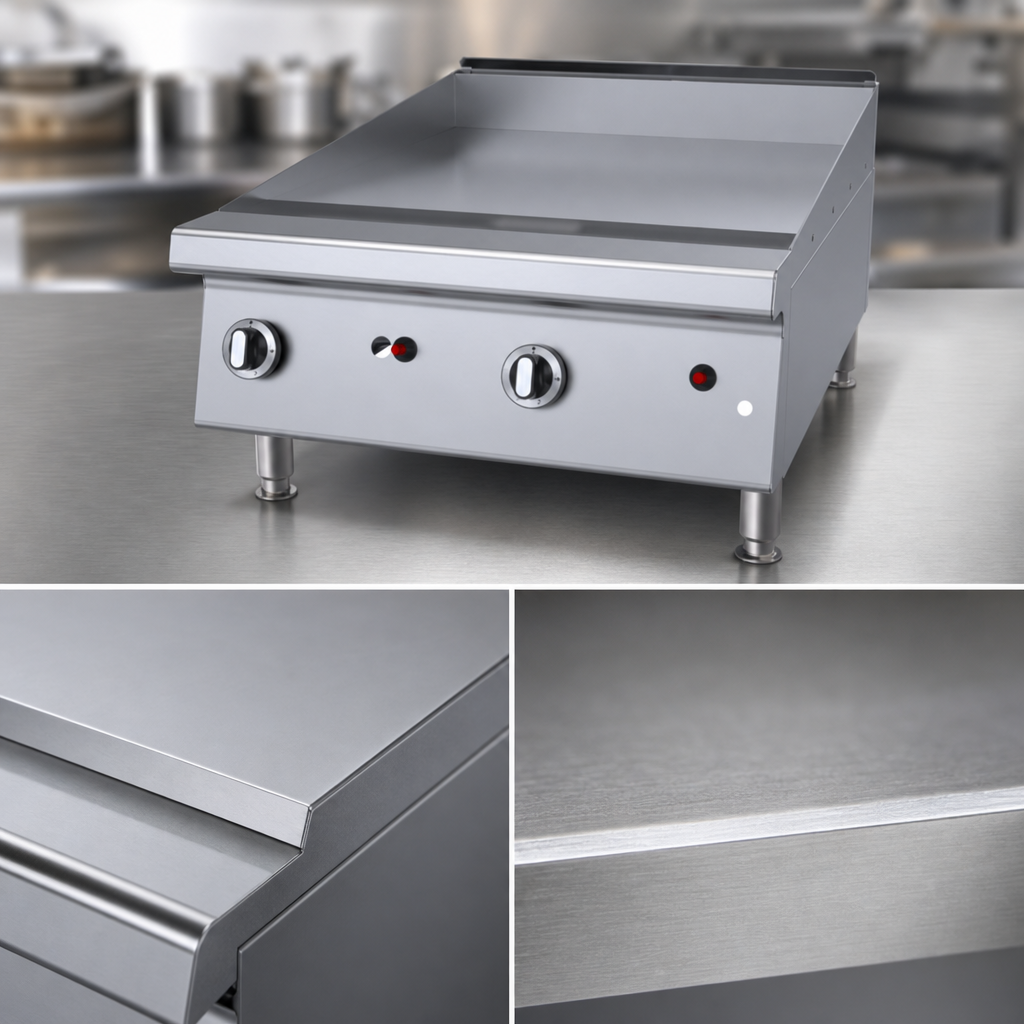

- Heavy-duty 1″ (25 mm) polished steel plate resists warping and maintains consistent heat.
- True 24″ griddle width – 23 5⁄8″ W × 23″ D cooking surface fits breakfast, lunch and dinner menus.

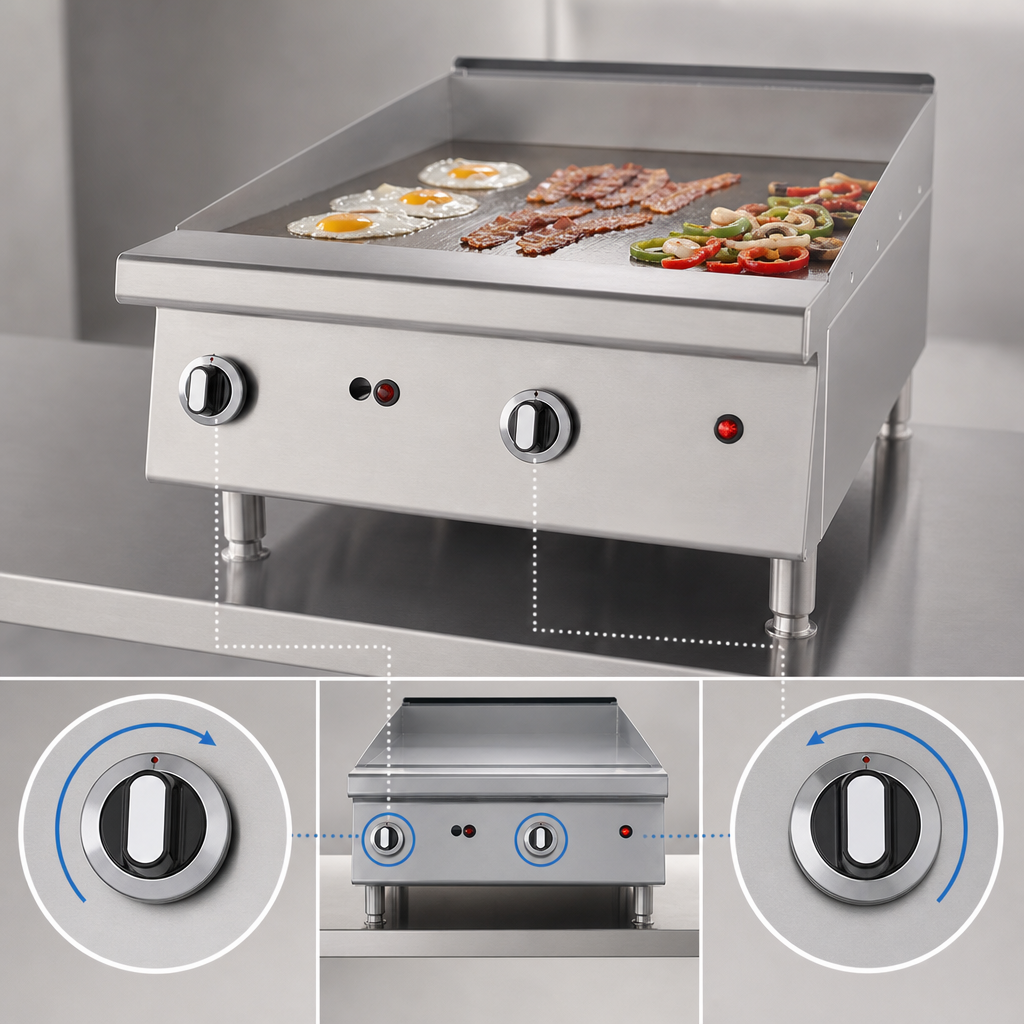

- Manual hi-lo valves (one per burner) give instant flame adjustment from ±320 °F to 730 °F.
- Reliable piezo pilot ignition—no external power required.
- 4″ wide, 3.8″ deep front trough channels drippings into a high-capacity 1.4 gal stainless drawer.
- All-stainless front, sides & back withstand daily scrubbing and harsh commercial environments.
- 4″ stainless adjustable legs level the unit on any counter and provide clearance for cleaning.
- 3⁄4″ NPT rear gas connection with regulator for natural or propane gas.
- Certified NSF, CSA Star & CSA Flame for food-service safety and performance.
Specifications
| Model | GTGG24-G24M |
|---|---|
| Gas Type | Natural or Propane |
| Total Input | 54,000 BTU/h (15.8 kW) |
| Burners | (2) U-shaped steel track – 27,000 BTU each |
| Control Type | Manual hi-lo valves |
| Ignition | Piezo pilot ignition (no electricity required) |
| Cooking Surface | 23 5⁄8″ W × 23″ D (600 × 584 mm) |
| Plate Thickness | 1″ (25 mm) smooth steel |
| Temperature Range* | ≈ 320 °F – 730 °F (160 °C – 388 °C) |
| Overall Dimensions | 23 5⁄8″ W × 32 1⁄8″ D × 13″ H (600 × 814 × 330 mm) |
| Grease Drawer Capacity | 1.4 gal / 5.3 L |
| Gas Connection | 3⁄4″ NPT (rear) with regulator |
| Manifold Pressure | Nat 4.5″ WC • LP 10″ WC |
| Shipping Weight | ≈ 280 lb (127 kg) |
| Certifications | NSF, CSA Star, CSA Flame |
*Temperature range based on factory testing; actual results may vary with load and environmental conditions.
Line-Up Ready
The GTGG24-G24M is part of Garland’s Heavy Duty Counter Series, designed to align flush with matching fryers, charbroilers and ranges—giving you the flexibility to build a seamless, high-performance cook line that grows with your menu.
