Garland

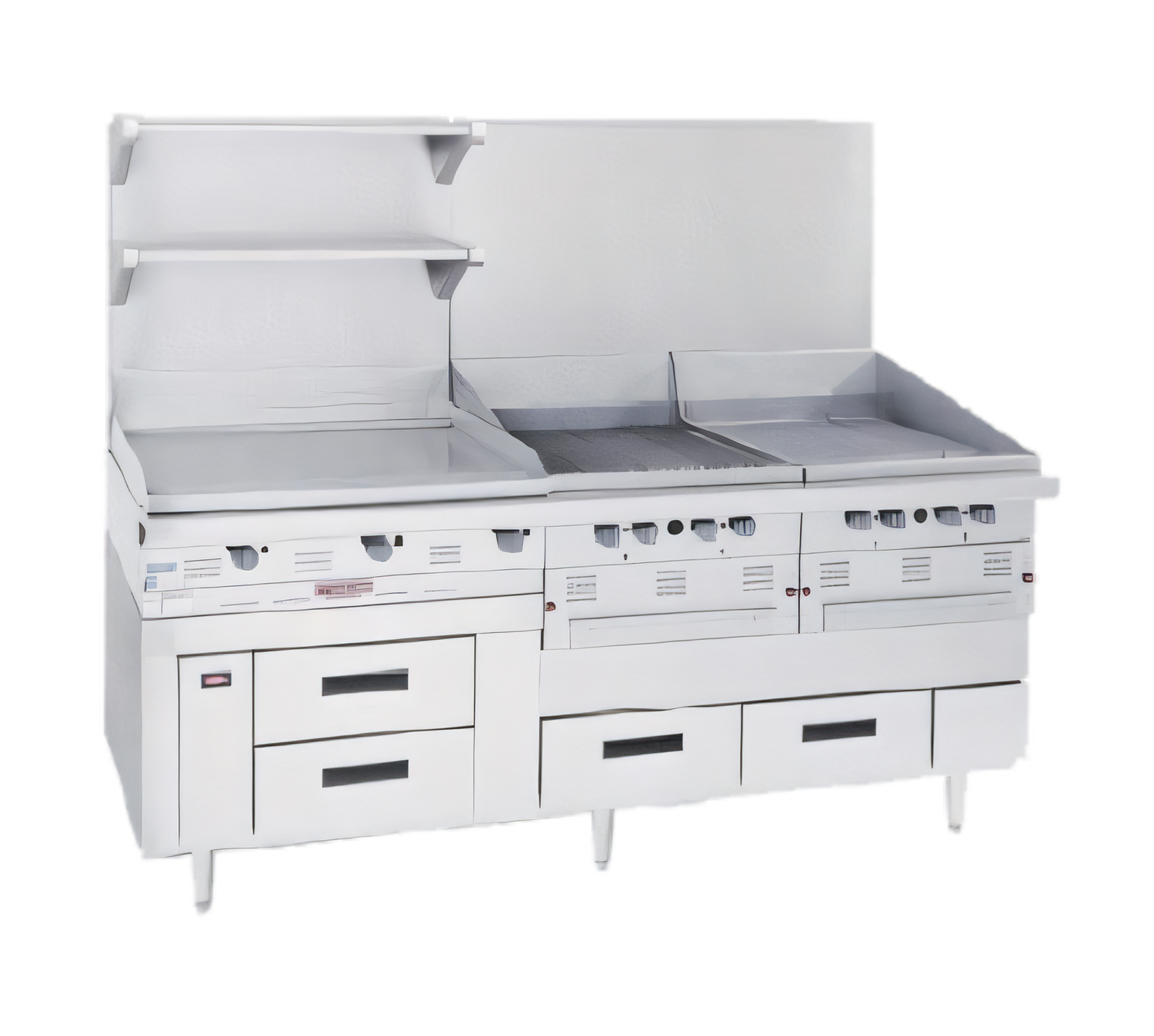

Arctic Fire GN17C102 102-Inch Three-Section Stainless Steel Self-Contained Refrigerator Base with 6 Drawers

SKU: GN17C102
$17,913.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Equipment Stands Garland Kitchen Equipment Tables New Arrivals Restaurant Equipment Undercounter & Worktop Refrigeration

Arctic Fire GN17C102 102-Inch Three-Section Stainless Steel Self-Contained Refrigerator Base with 6 Drawers

Side-Mounted Refrigeration, 115V Single-Phase

Built for modular cook top lines, this stainless steel refrigerator base keeps cold storage organized and within easy reach.

  • Three-section refrigerated base with six self-closing drawers for organized ingredient storage.
  • Self-contained, side-mounted refrigeration simplifies installation and service access.
  • Stainless steel exterior and top deliver durability and easy cleanup in busy kitchens.
  • Center pull handles make drawers easy to open during fast-paced prep and service.
  • 6-inch stainless steel legs provide sturdy support when ordered with compatible modular cook tops.
  • Operates on 115V, 60 Hz, single-phase power at 9.3 amps.

Overall Dimensions:

102.0"W x 34.0"D x 27.0"H

Product Weight:

730.0 lb

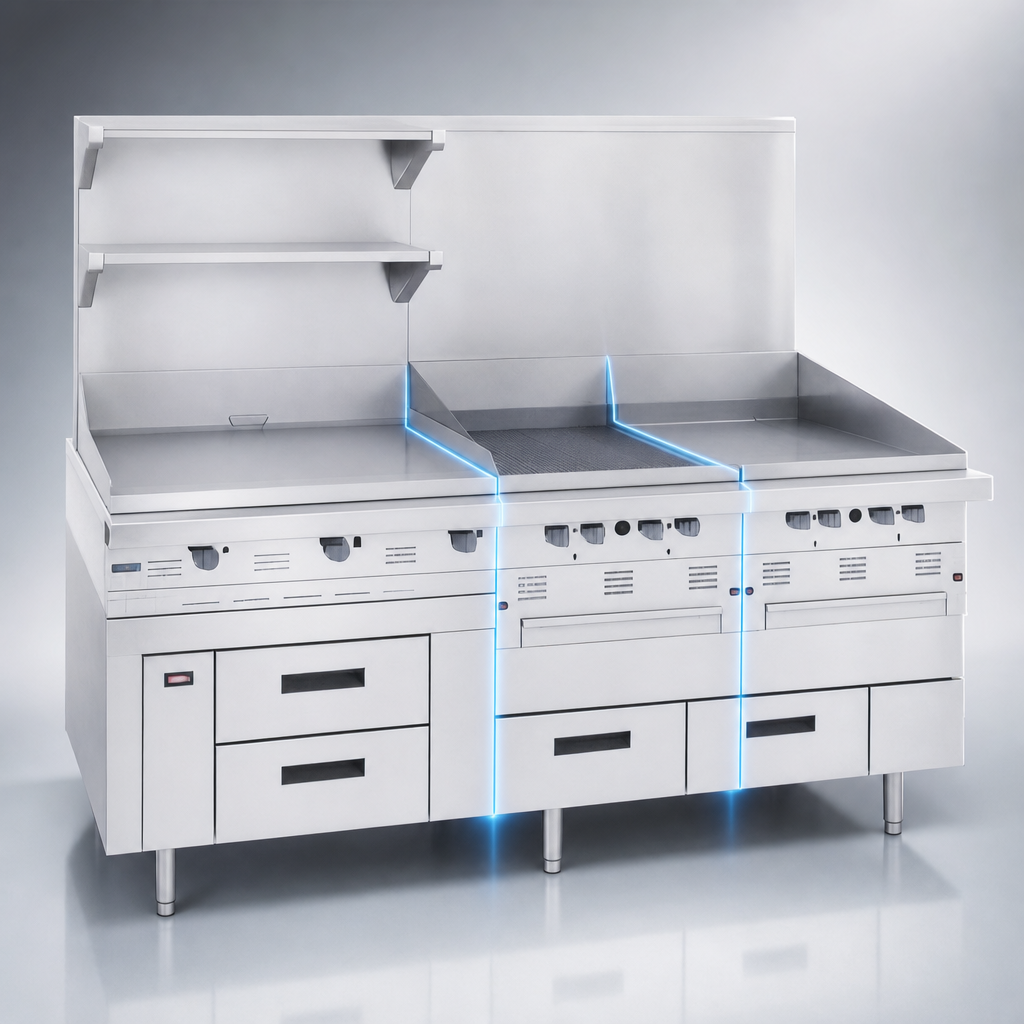

Three-Section Design

Provides three refrigerated sections to help organize ingredients and improve workflow.

Six Self-Closing Drawers

Six drawers keep products separated and accessible while helping reduce cold air loss.

Center Pull Handles

Drawer handles are centered for convenient access during line service.

Self-Contained, Side-Mounted Refrigeration

Integrated refrigeration system is positioned at the side for easier access and installation flexibility.

Stainless Steel Construction

Stainless steel exterior and top offer durability and simple cleaning in demanding commercial kitchens.

6-Inch Stainless Steel Legs

Raised support helps stabilize the base and keeps it elevated off the floor.

Master Series Modular Cook Top Compatibility

Available only when ordered with Master Series modular cook tops.

115V Single-Phase Operation

Requires 115 volts, 60 Hz, single-phase power and draws 9.3 amps.

Type Refrigerator Base
Style Three-Section
Installation Type Floor Model
Refrigeration Type Self-Contained
Material Stainless Steel
Finish Stainless Steel
Drawer Count 6
Compressor HP 1/4 HP
Voltage 115 Volts
Amps 9.3 Amps
Hertz 60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1
Shipping Width 102 Inches
Shipping Depth 34 Inches
Shipping Height 27 Inches
Shipping Weight 730 lb.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has six self-closing drawers with center pull handles.
It uses self-contained, side-mounted refrigeration.
The unit operates on 115V, 60 Hz, single-phase power and draws 9.3 amps.
The unit measures 102 inches wide, 34 inches deep, and 27 inches high.
Yes. It features a stainless steel exterior and stainless steel top, along with 6-inch stainless steel legs.
Yes, it is available only when ordered with Master Series modular cook tops.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.

Talk to a Specialist
or call (888) 307-5030
