Garland GF36-4G12R GF Starfire Pro Gas Ranges
Garland GF36-4G12R GF Starfire Pro Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

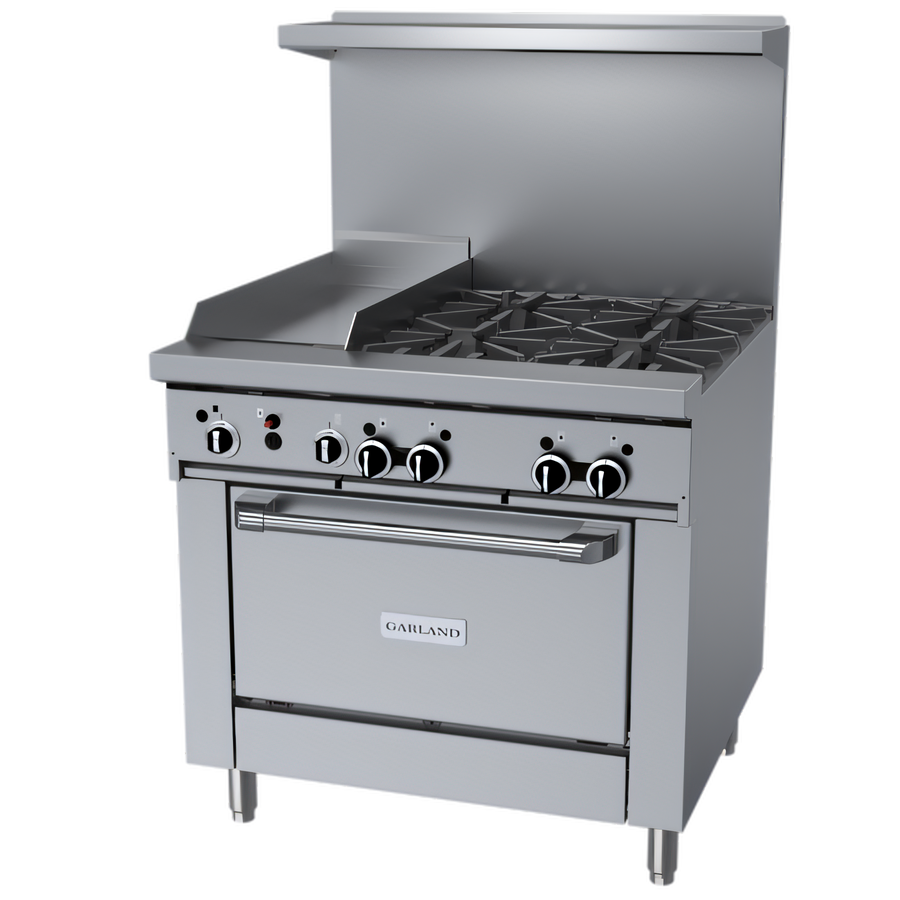

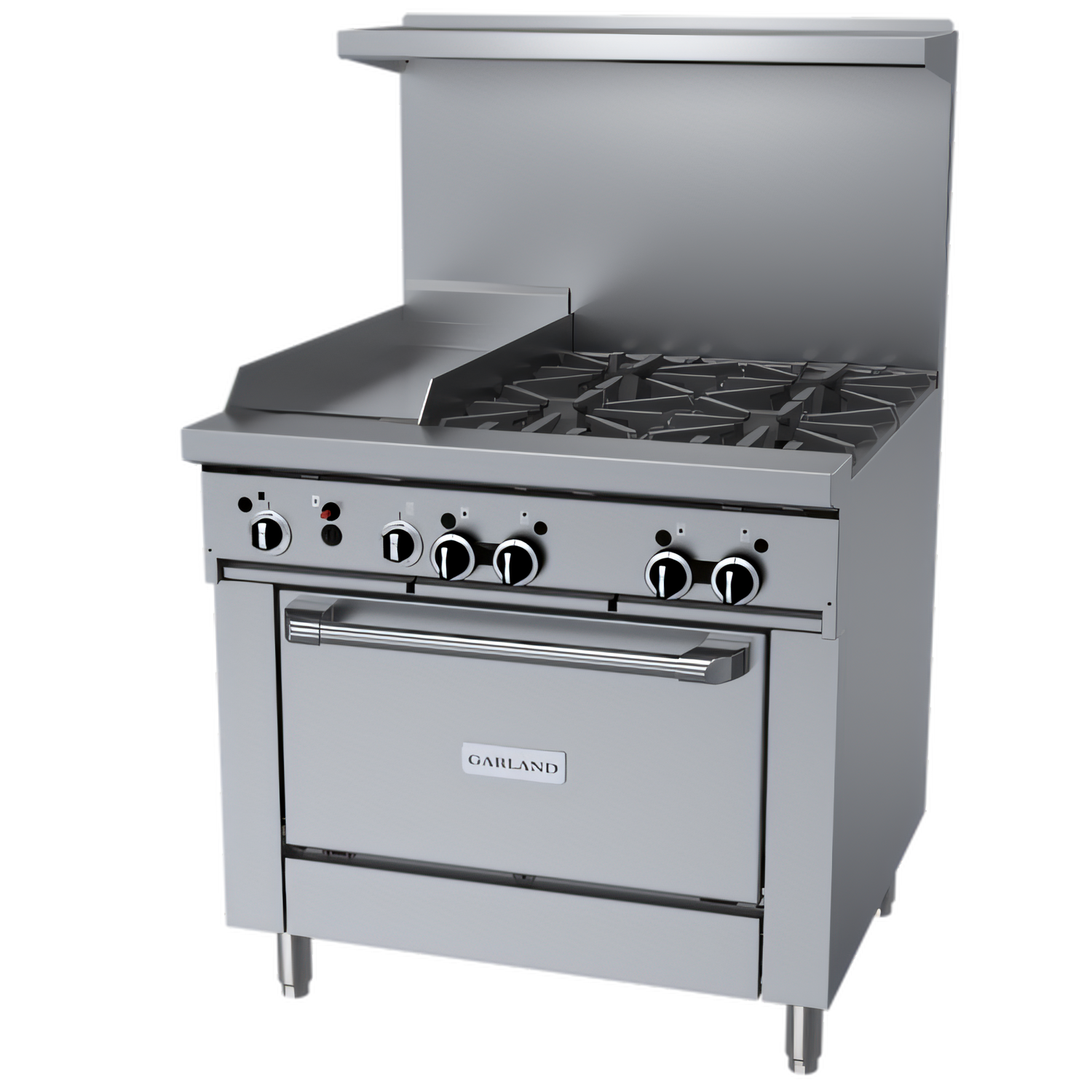

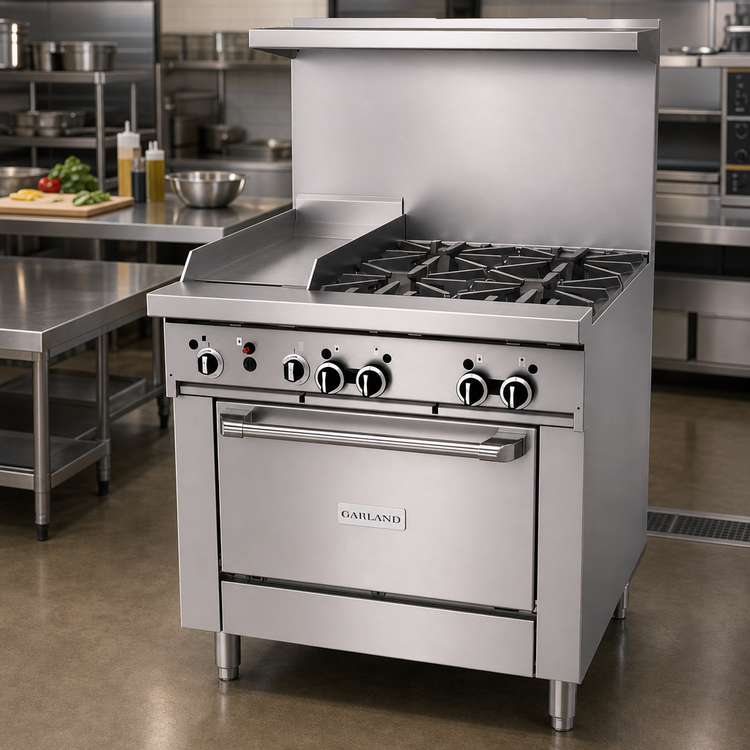

Garland GF Starfire Pro 36" Gas Restaurant Range – 4 Burners / 12" Griddle / Standard Oven
Model GF36-4G12R • 160,000 BTU • Flame-Failure ProtectedGive your kitchen the productivity of a full cookline in just three feet of space. The GF Starfire Pro pairs Garland’s legendary 26,000 BTU open burners with a precision 12" griddle and a chef-sized oven—engineered for day-in, day-out reliability in the busiest restaurants.
Cooktop Highlights

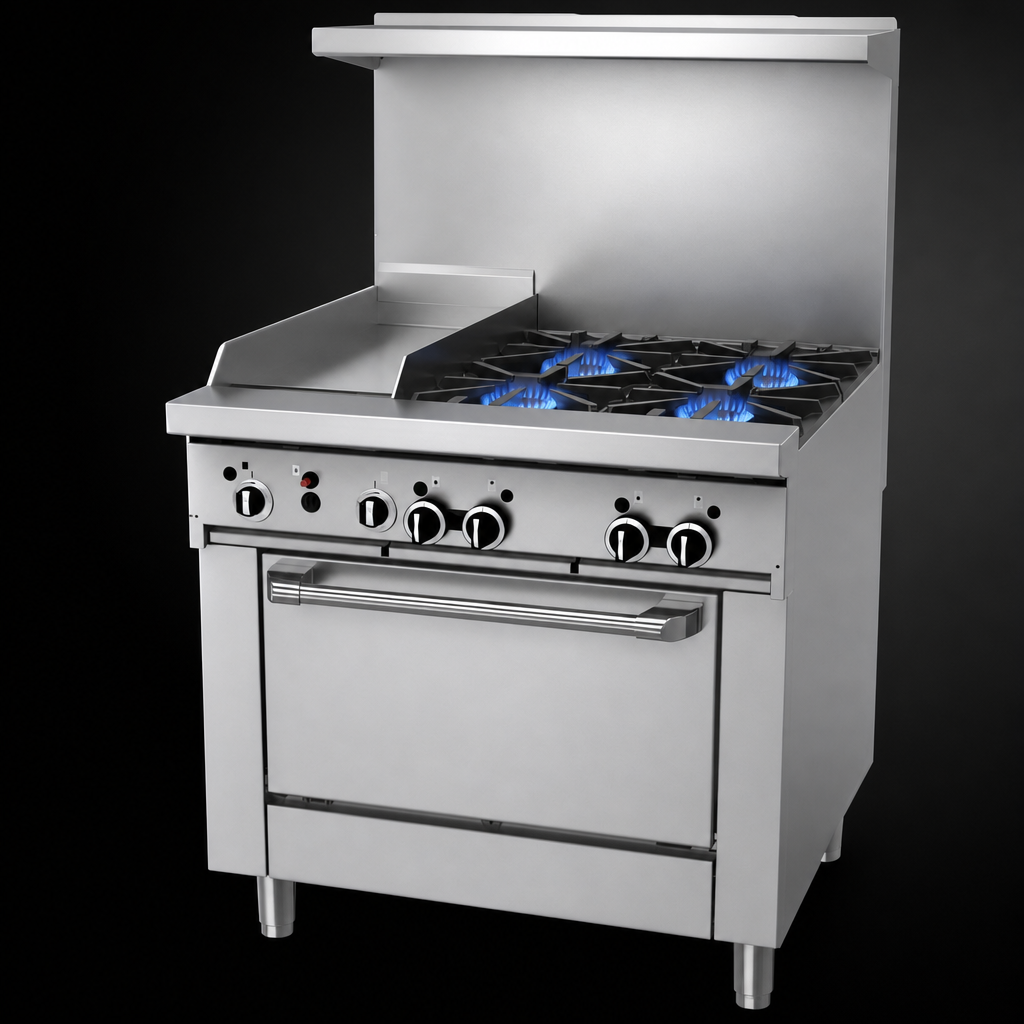

- Four Starfire Pro 26,000 BTU two-piece cast-iron open burners (104,000 BTU total).
- 12" (305 mm) smooth steel griddle, 5/8" (15 mm) thick, with manual hi/lo valve & 18,000 BTU cast-iron “H” burner.
- Ergonomic split cast-iron top ring grates let pans glide easily from burner to burner.
- Extra-large 27" (686 mm) deep work surface holds six 12" pots without crowding.
- 4-1/4" (108 mm) wide grease trough & full-width stamped drip trays for fast cleanup.

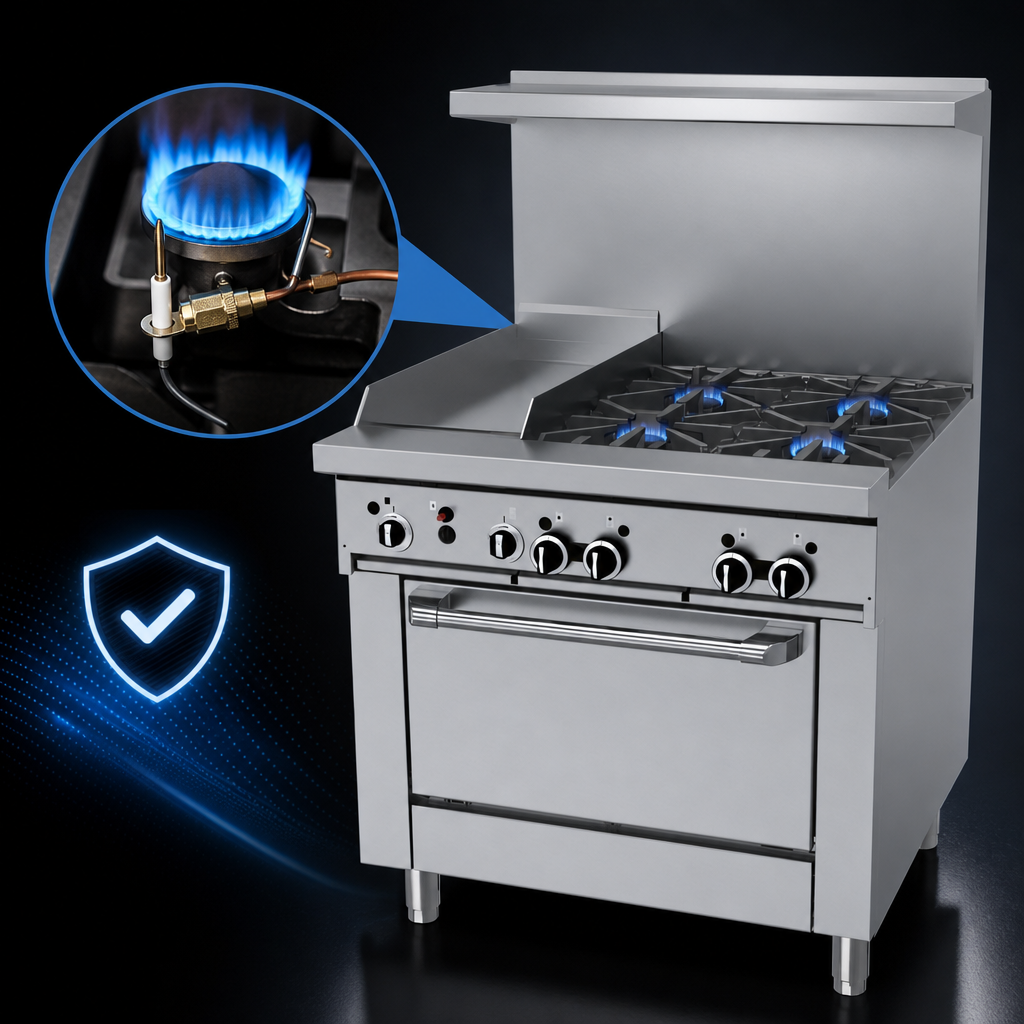

- Total flame-failure protection on every burner; concealed pilots feature spark ignition (open burners light manually).
Chef-Sized Standard Oven
- Porcelain-enameled interior fits full-size sheet pans left-to-right or front-to-back.
- 38,000 BTU cast-iron “H” oven burner with even-bake snap-action thermostat 150–500 °F (65–260 °C).
- Supplied with 1 nickel-plated rack and 3-position removable guides.
- Stay-cool welded door handle and fully insulated door for operator safety.
Built for the Rush
- All-stainless front, sides, 5" plate rail and 10" low-profile back guard.
- Reinforced chassis on 6" (152 mm) adjustable stainless legs.
- Large, heat-resistant control knobs with positive grip and clear indexing.
- Factory-supplied gas regulator & rear 3/4" NPT connection for quick installation.
Technical Specifications
Overall width | 35-1/2" / 900 mm |
---|---|
Overall depth (to front rail) | 34-1/2" / 876 mm |
Work-top depth | 27" / 686 mm |
Height to LP back guard | 45-3/8" / 1 153 mm |
Total input (natural) | 160,000 BTU/h (46.9 kW) |
Open burners | 4 × 26,000 BTU |
Griddle burner | 18,000 BTU cast-iron “H” style |
Oven burner | 38,000 BTU cast-iron “H” style |
Oven interior (H × W × D) | 13" × 26" × 26-1/4" (330 × 660 × 667 mm) |
Gas connection | 3/4" NPT (rear), regulator included |
Manifold pressure | Natural 4.5" WC | Propane 10" WC |
Combustible clearance | Sides 14" (356 mm) | Rear 6" (152 mm) |
Shipping weight | 460 lb / 209 kg |
Certifications | CSA Flame, CSA Star, cCSAus, CE, NSF |
Also available for propane; specify gas type when ordering. Ranges supplied with casters must be secured with an approved restraining device.
