Garland  |  Designer  |  SKU: GD-24GTH

Garland GD-24GTH Designer Gas Griddles

$3,488.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

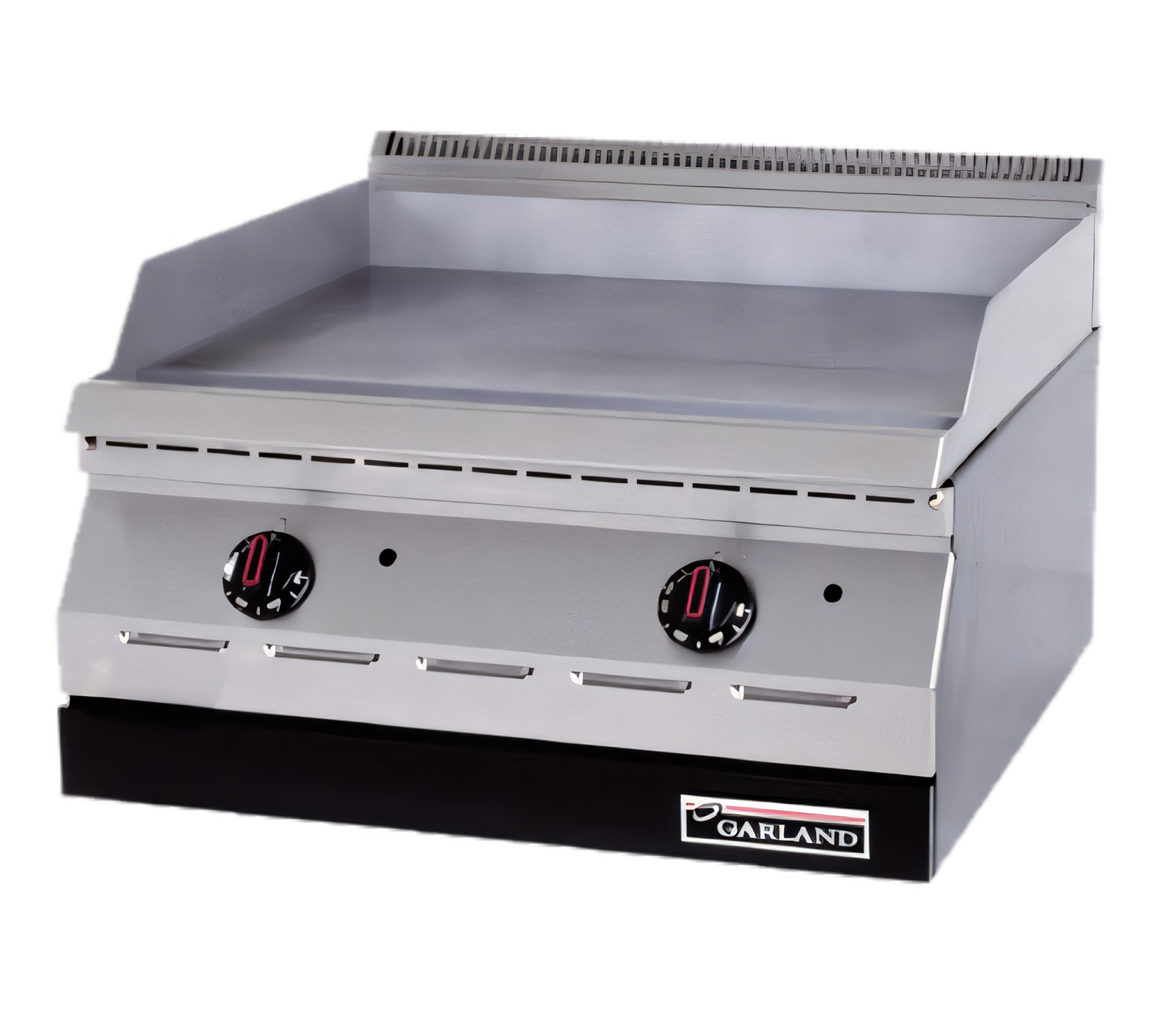

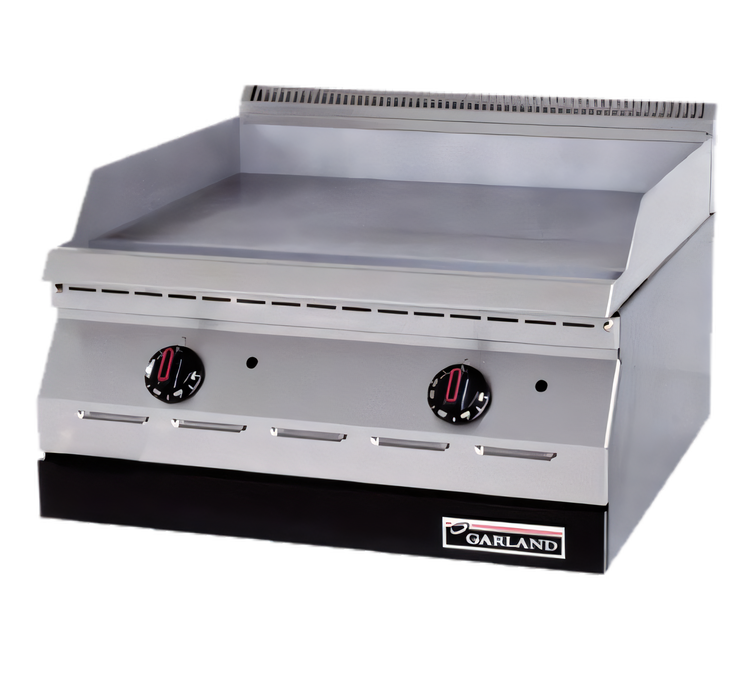

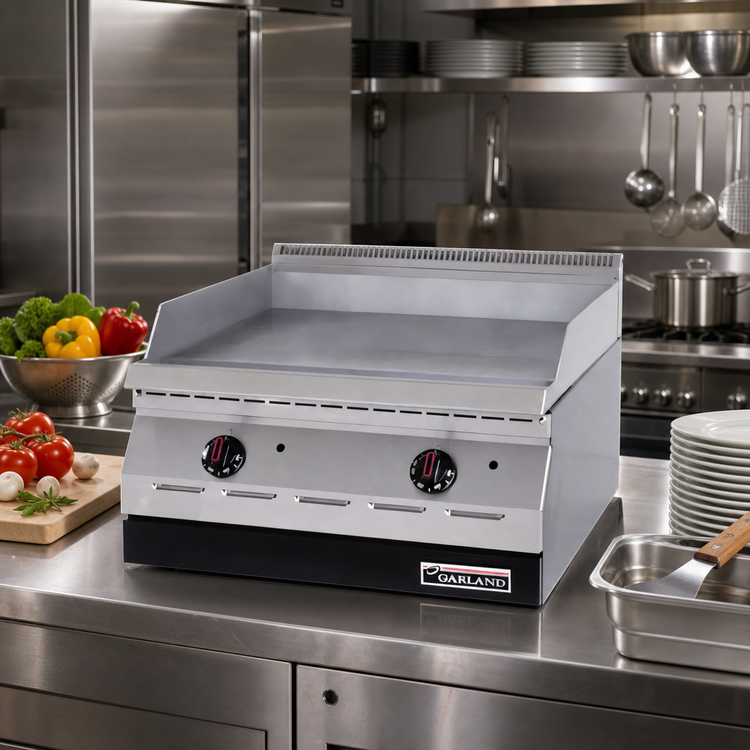

Garland Designer Series 24" Countertop Gas Griddle – Thermostatic

Model GD-24GTH | 40,000 BTU | NSF & CSA Certified

Maximize production, minimize footprint. The Garland GD-24GTH delivers fast recovery, precise temperature control and effortless clean-up in a rugged 24 inch package that’s built for the daily grind of a busy line.

Key Features

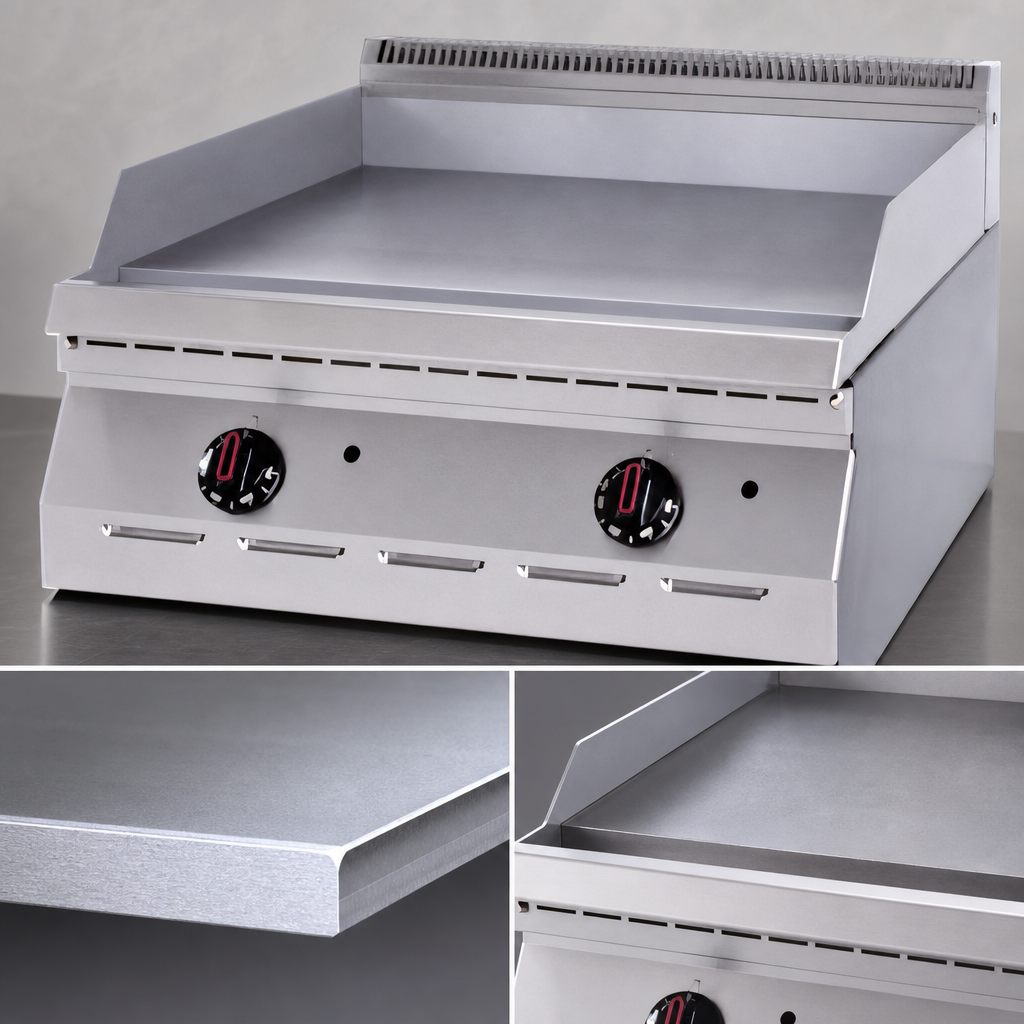

  • 24" W × 18" D cooking surface machined from ½" (13 mm) polished steel for even heat and superior searing.

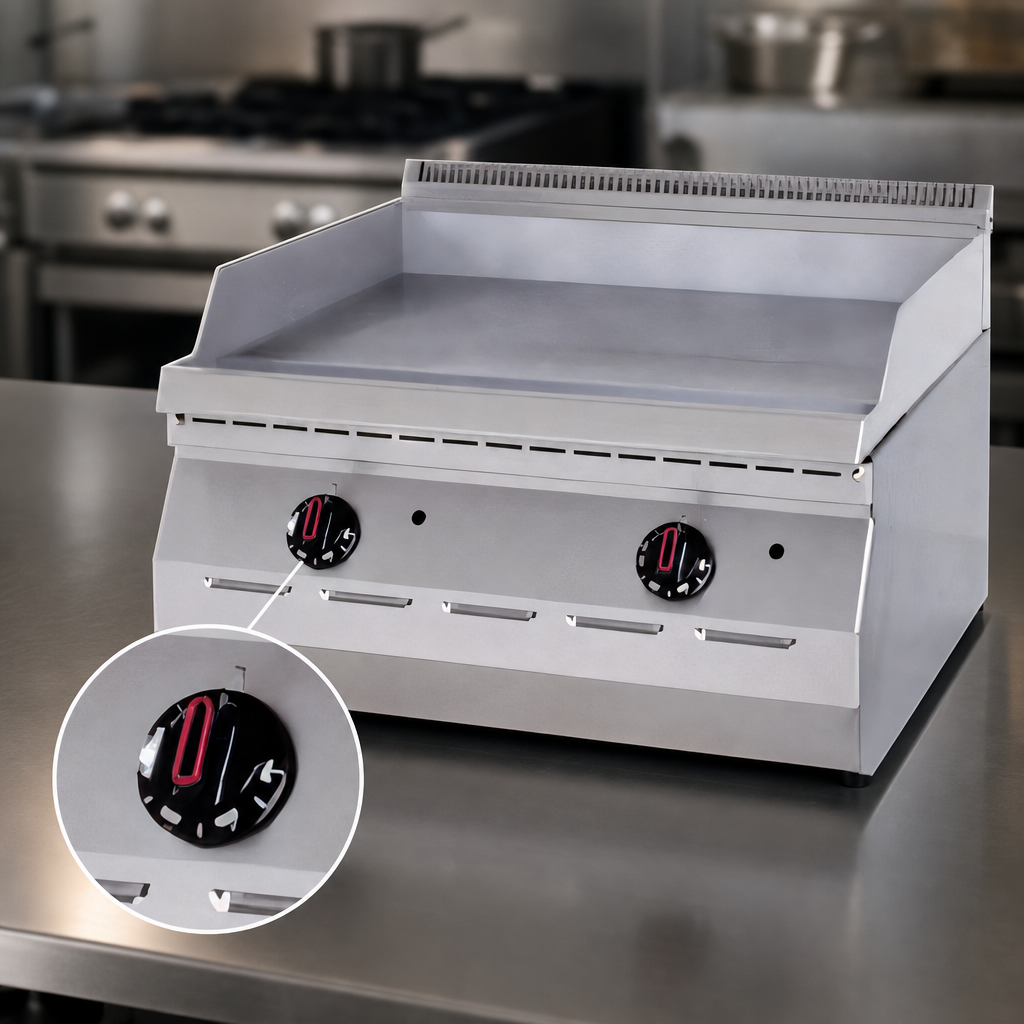

  • Thermostatic controls (approx. 150 – 450 °F / 65 – 232 °C) for repeatable results from breakfast to dinner.
  • Piezo spark ignition—no electrical hook-up required.
  • 2-5/8" (67 mm) fully welded splash guards on rear and sides keep grease where it belongs.
  • Front-mounted, extra-capacity grease drawer with magnetic latch slides out for fast disposal.
  • Stainless-steel front and sides stand up to heavy commercial cleaning.
  • 4" (102 mm) adjustable stainless legs allow level installation on any countertop.
  • Rear ¾" NPT gas connection with factory regulator; field convertible for Natural or LP gas.
  • Total input: 40,000 BTU/h (11.72 kW) for rapid pre-heat and recovery.
Specifications
Model GD-24GTH
Control Type Thermostatic, piezo-spark ignition
Cooking Surface 24" W × 18" D (610 × 457 mm)
Plate Thickness ½" (13 mm) polished steel
Total Input 40,000 BTU/h (11.72 kW)
Gas Connection ¾" NPT (rear)
Nat. 4" WC  / LP 10" WC manifold pressure
Overall Dimensions 24" W × 24" D × 15" H (610 × 610 × 381 mm)
Shipping Weight Approx. 146 lb (66 kg)
Clearances
(combustible)		 6" (152 mm) sides  / 6" (152 mm) rear
Certifications NSF, CSA
Warranty 1-year limited parts & labor (USA & Canada)
Why Choose Garland Designer Series?
  • Embedded thermostat bulb reacts instantly to load changes—perfect for high-volume service.
  • Modular footprint banks flush with other GD equipment to create a seamless cookline.
  • Service-friendly open panel design keeps downtime and maintenance costs low.

Garland equipment is intended for commercial applications only and is not approved for residential use.

Features & Specs

Manufacturer

Garland

Brand_name

Designer

Certifications

NSF, CSA

Height

15.0in

Width

24.0in

Depth

24.0in

Shipping Weight

146.0lbs

Controls

thermostat / solid state controls

Cooking Surface Depth (front - back)

15" - 19"

Exterior Finish

stainless steel front & sides

Cooking Surface Width (side - side)

19" - 24"

Griddle Plate Finish

smooth steel

Plate Thickness

1/2"

Specifications

Designer Series Griddle, countertop, gas, 24" W x 18" D cooking surface, 1/2" thick polished steel griddle, 2-5/8" welded splash guard on sides & rear of plate, thermostatic controls, piezo spark ignition, stainless steel front and sides, internal grease drawer with magnetic door, 4" adjustable legs, 40,000 BTU (Garland), CSA, NSF
