Description

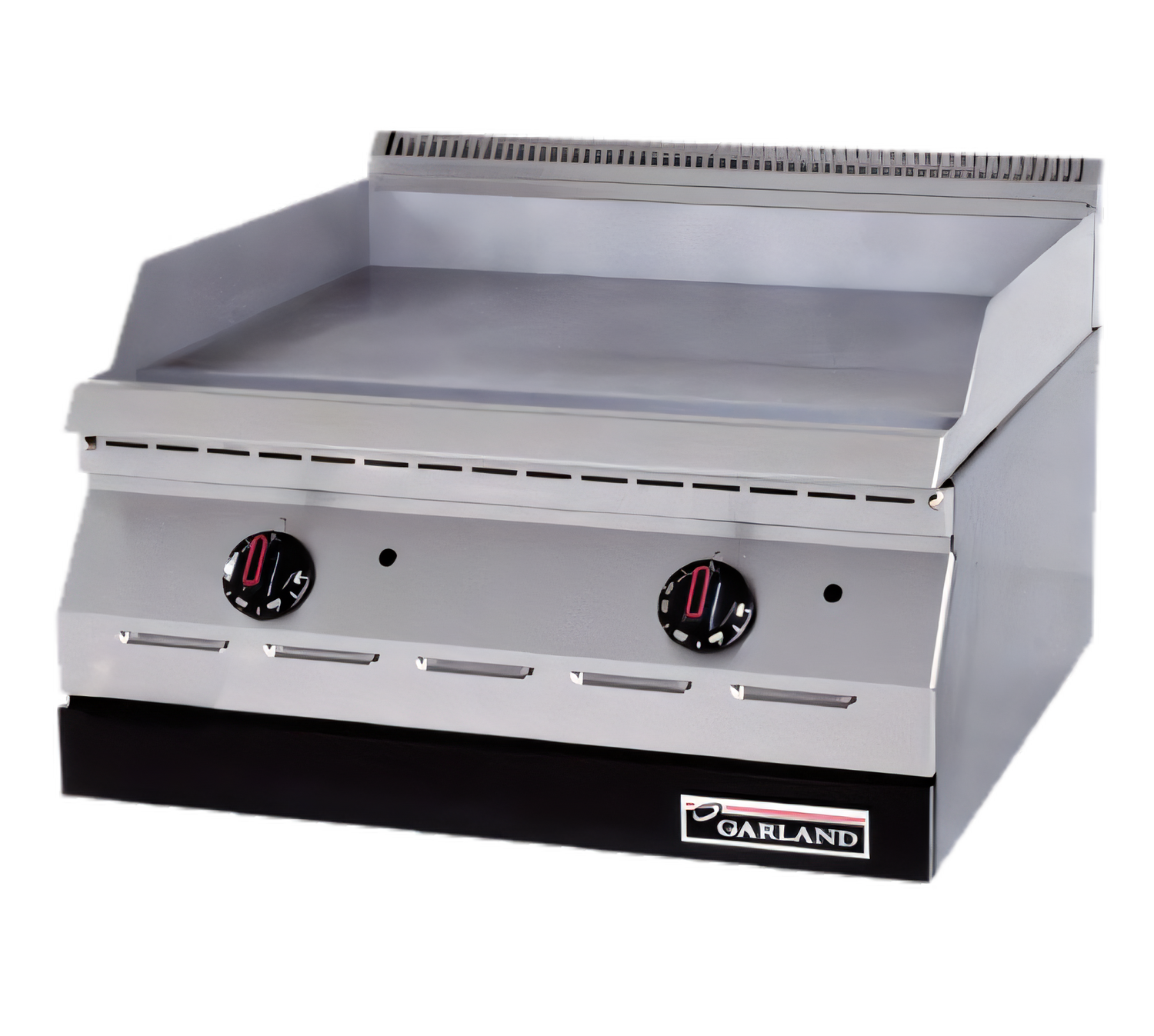

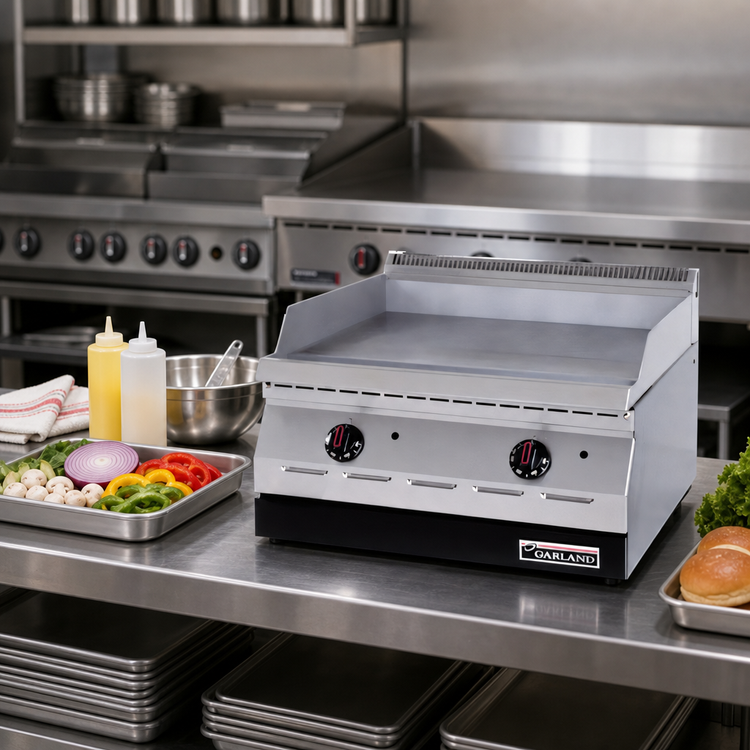

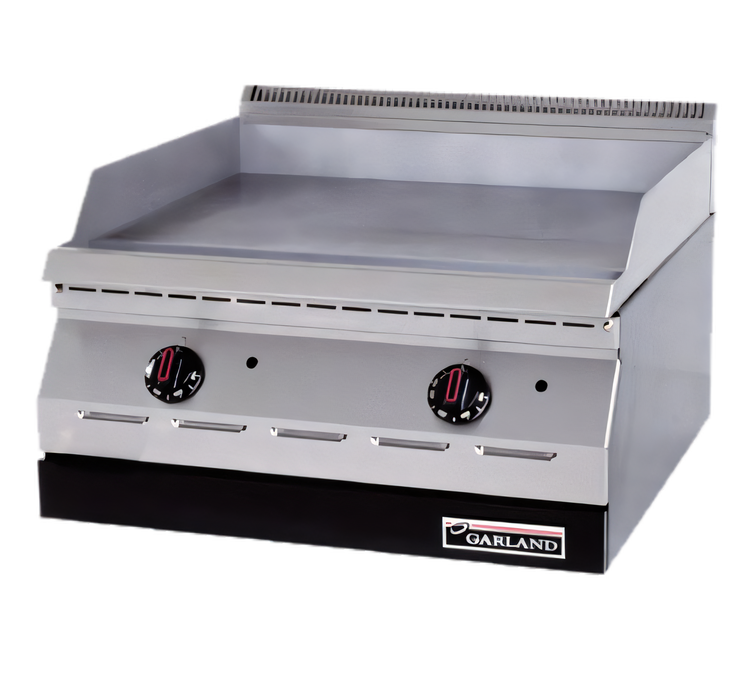

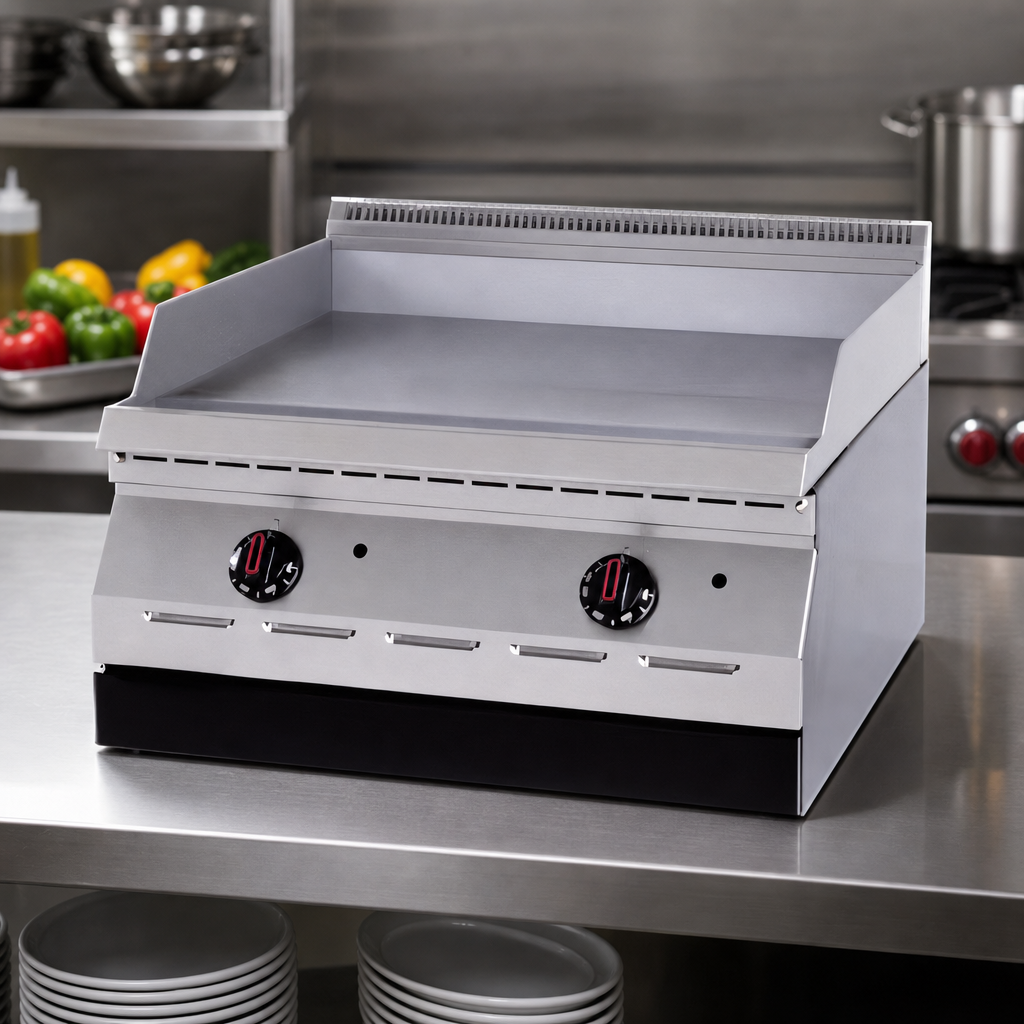

Garland Designer Series 24" Gas Countertop Griddle – 40,000 BTU

Model GD-24GFF  |  CE • CSA • NSF

Compact yet uncompromising, the Garland Designer Series 24" griddle brings heavy-duty performance to any line or prep station. A half-inch polished steel plate, 40,000 BTU burner and integrated Flame-Failure protection deliver the power, precision and peace of mind today’s commercial kitchens demand.

Key Features

  • 24" (610 mm) wide × 18" (457 mm) deep cooking surface—perfect for breakfast, burgers & more

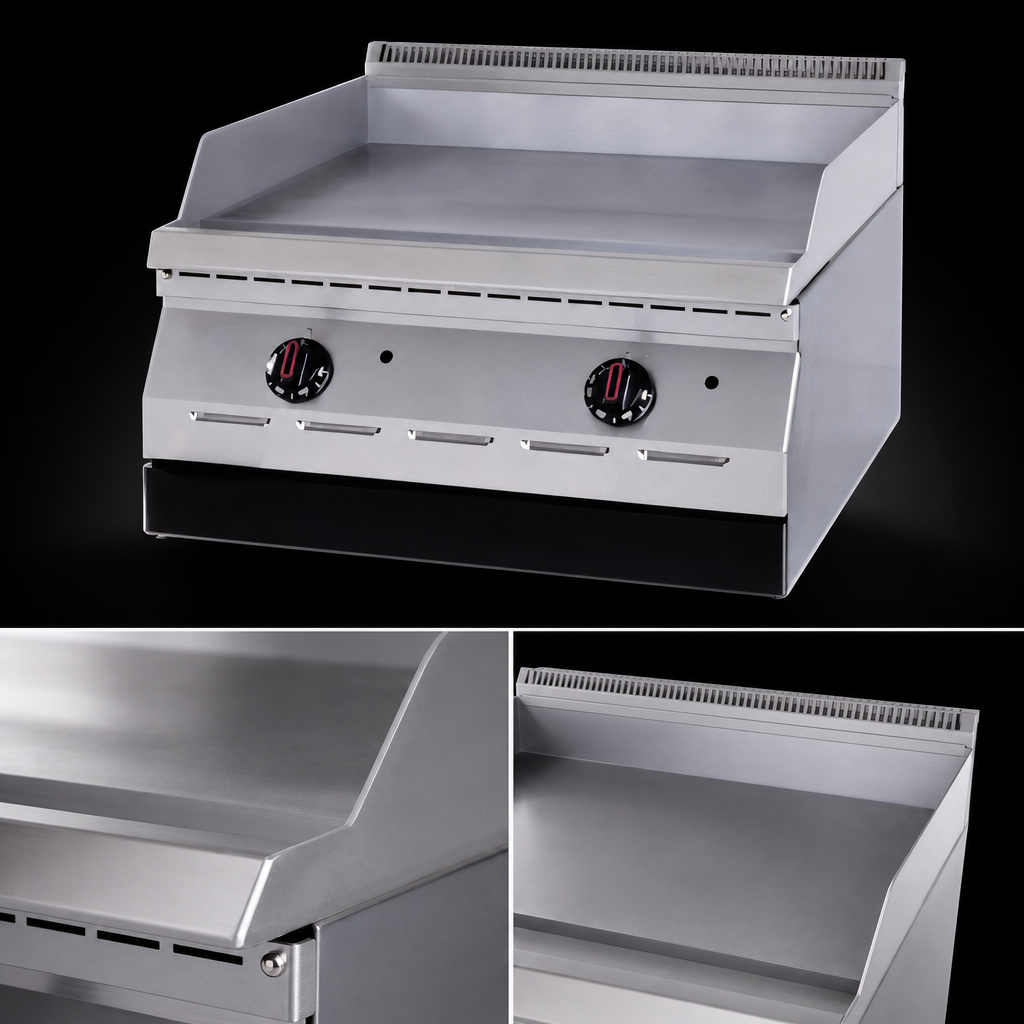

  • ½" (13 mm) thick polished steel plate ensures fast recovery and even heat distribution
  • Single Hi/Lo manual valve burner provides a full 40,000 BTU for rapid searing or gentle holding
  • Piezo spark ignition for reliable, battery-free lighting
  • Flame-Failure safety shuts off gas automatically if the flame is lost (CE compliant)
  • 2-5/8" (67 mm) welded splash guards on rear and sides contain grease splatter
  • Front-mounted, fully enclosed grease drawer with smooth-glide rails and magnetic catch
  • Durable stainless steel front and sides stand up to daily, high-volume use
  • 4" (102 mm) adjustable stainless sanitary legs simplify leveling and cleanup
  • Rear ¾" NPT gas connection with factory-supplied regulator

Specifications

Cooking surface 24" W × 18" D (610 × 457 mm)
Plate thickness ½" (13 mm) polished steel
Total input 40,000 BTU/hr (11.72 kW) – Natural or Propane
Control type Single Hi/Lo manual valve
Ignition Piezo spark
Safety system Integral Flame-Failure protection
Gas connection ¾" NPT (rear) with pressure regulator
Overall dimensions 24" W × 24" D × 15" H (610 × 610 × 381 mm)
Legs 4" (102 mm) adjustable stainless
Certifications CE, CSA, NSF

Ideal Applications

  • Short-order diners and cafés
  • Food trucks & concessions
  • Hotel breakfast service
  • Catering & banquet prep stations
Installation notice: This appliance must be installed by a qualified technician in accordance with all local gas codes. An approved gas shut-off valve and flexible connector are recommended.

One-year limited parts & labor warranty (USA & Canada). Garland reserves the right to modify specifications without prior notice.

Features & Specs

Manufacturer

Garland

Brand_name

Designer

Certifications

NSF, CE, CSA

Height

15.0in

Width

24.0in

Depth

24.0in

Shipping Weight

146.0lbs

Plate Thickness

1/2"

Cooking Surface Width (side - side)

19" - 24"

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

15" - 19"

Exterior Finish

stainless steel front & sides

Controls

manual controls

Specifications

Designer Series Griddle, countertop, gas, 24" W x 18" D cooking surface, 1/2" thick polished steel griddle, 2-5/8" welded splash guard on sides & rear of plate, (1) high/low valve control, piezo spark ignition, flame failure protection, stainless steel front and sides, internal grease drawer with magnetic door, 4" adjustable legs 40,000 BTU (Garland), CE, CSA, NSF
