Garland  |  Designer  |  SKU: GD-15GTH

Garland GD-15GTH Designer Gas Griddles

$2,676.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

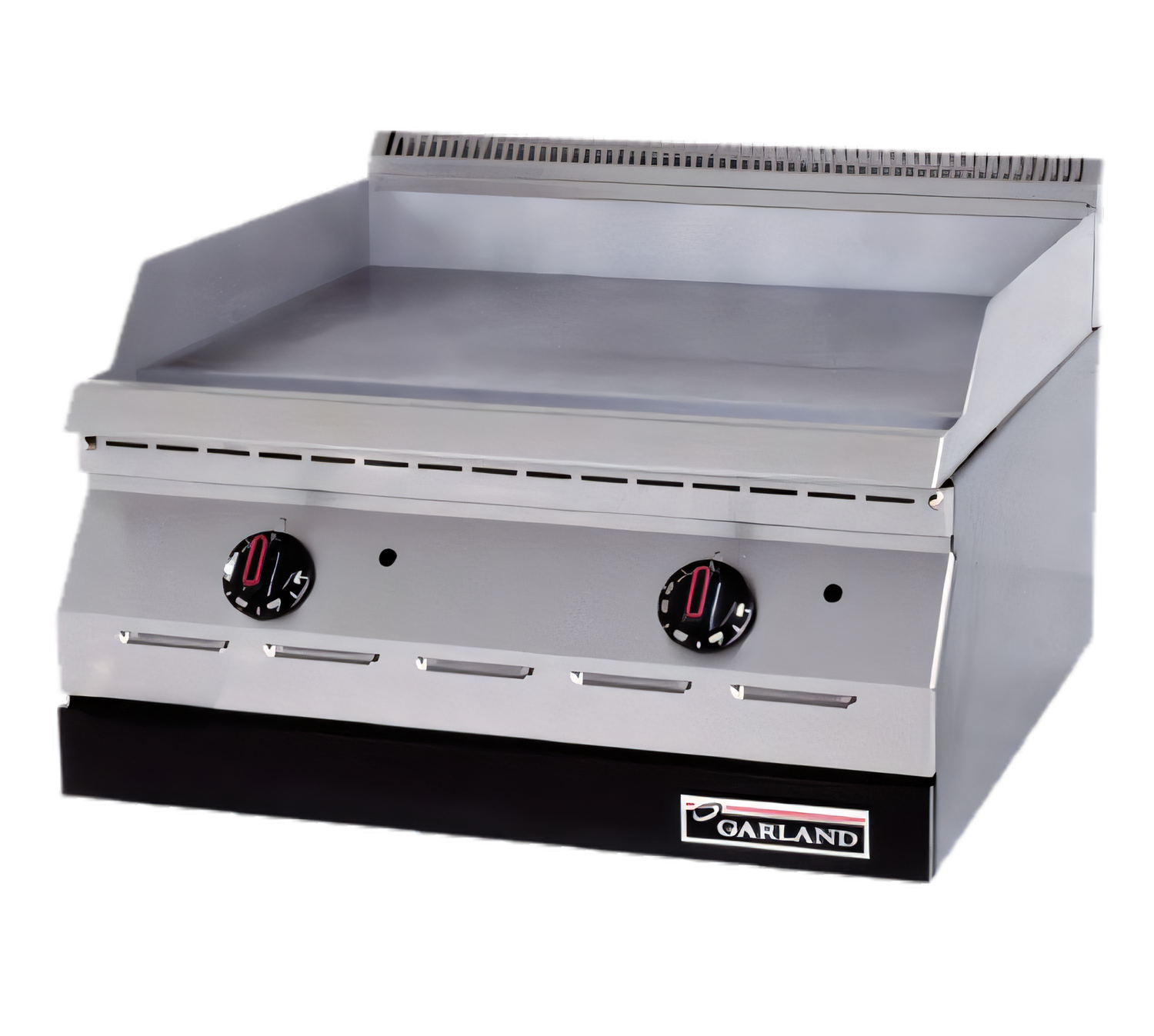

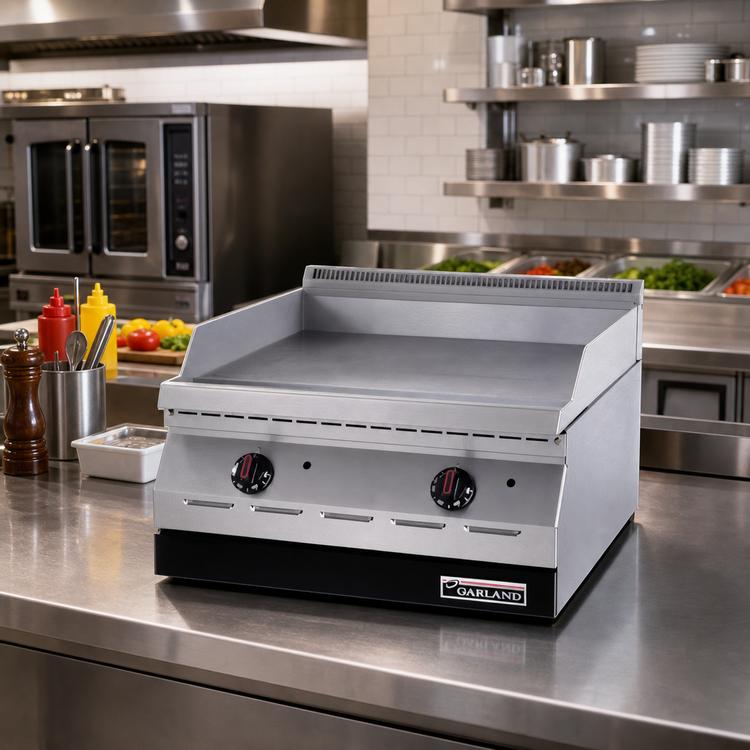

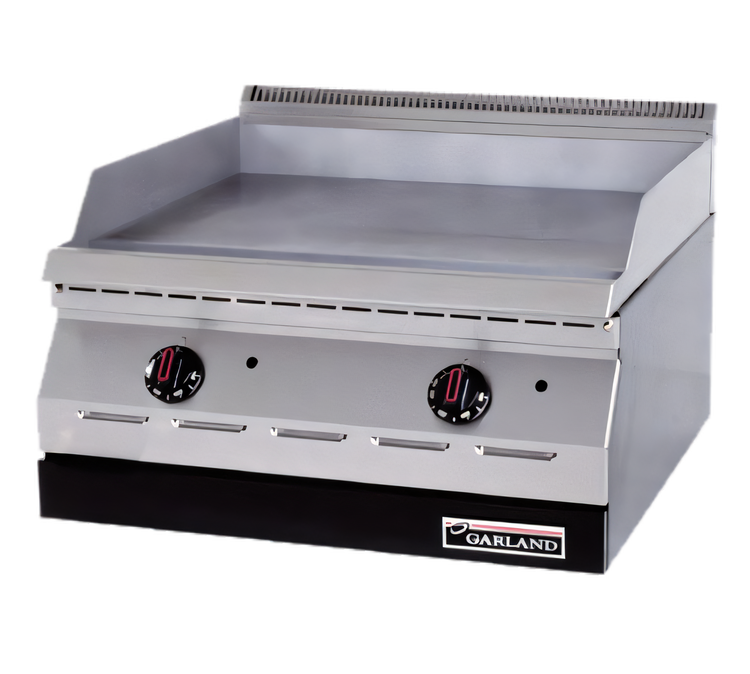

Garland Designer Series 15" Countertop Gas Griddle – Thermostatic

Model GD-15GTH | 20,000 BTU | CSA & NSF Certified

Power, precision, and a space-saving footprint come together in Garland’s 15" Designer Series griddle. The heavy ½" steel plate delivers even heat across an 18" deep cooking surface, while true thermostatic controls let you dial-in exact temperatures for breakfast foods, burgers, tortillas, and more.

Key Features & Benefits

  • Compact 15" (381 mm) width – ideal for tight lines, kiosks, or satellite kitchens.
  • 18" (457 mm) deep cooking surface provides generous production capacity.

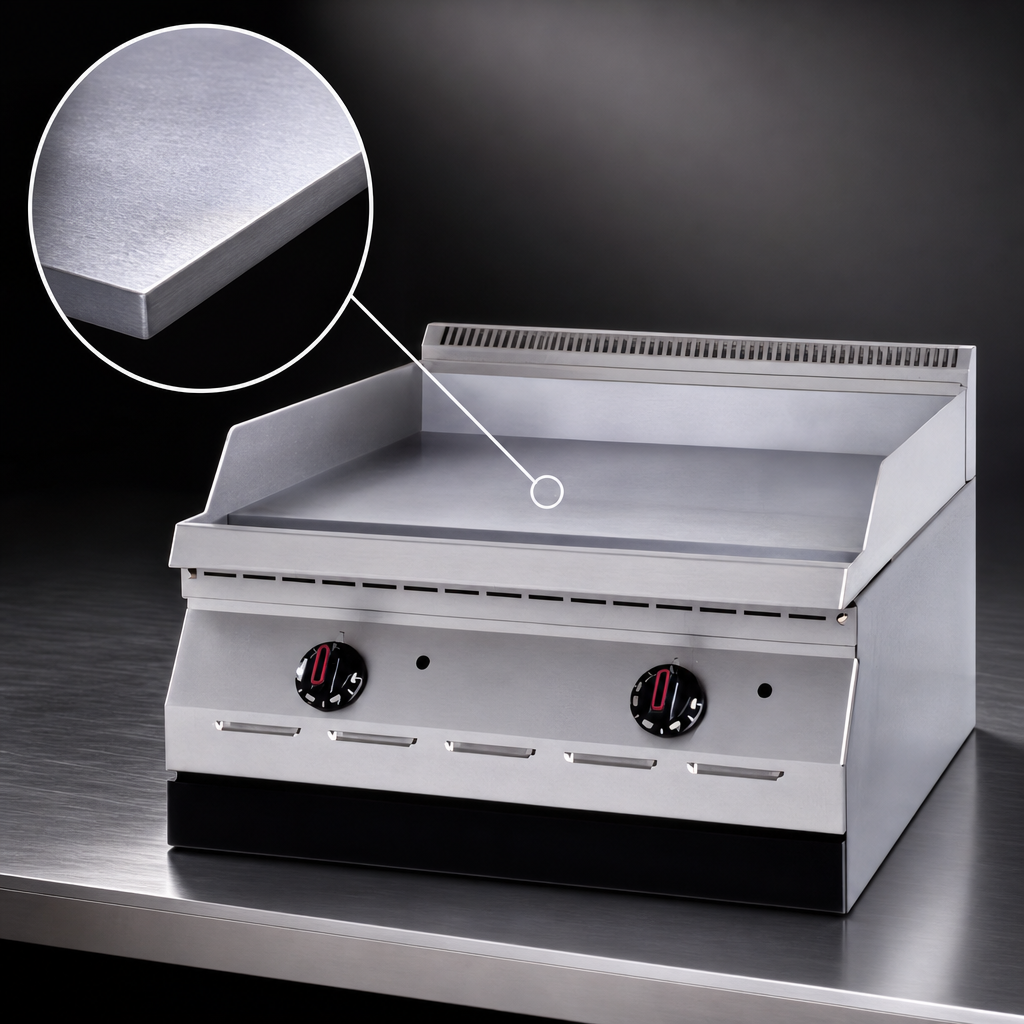

  • ½" (13 mm) polished steel plate for superior heat retention and fast recovery.
  • 2-5/8" (67 mm) welded splash guards on three sides contain grease and debris.

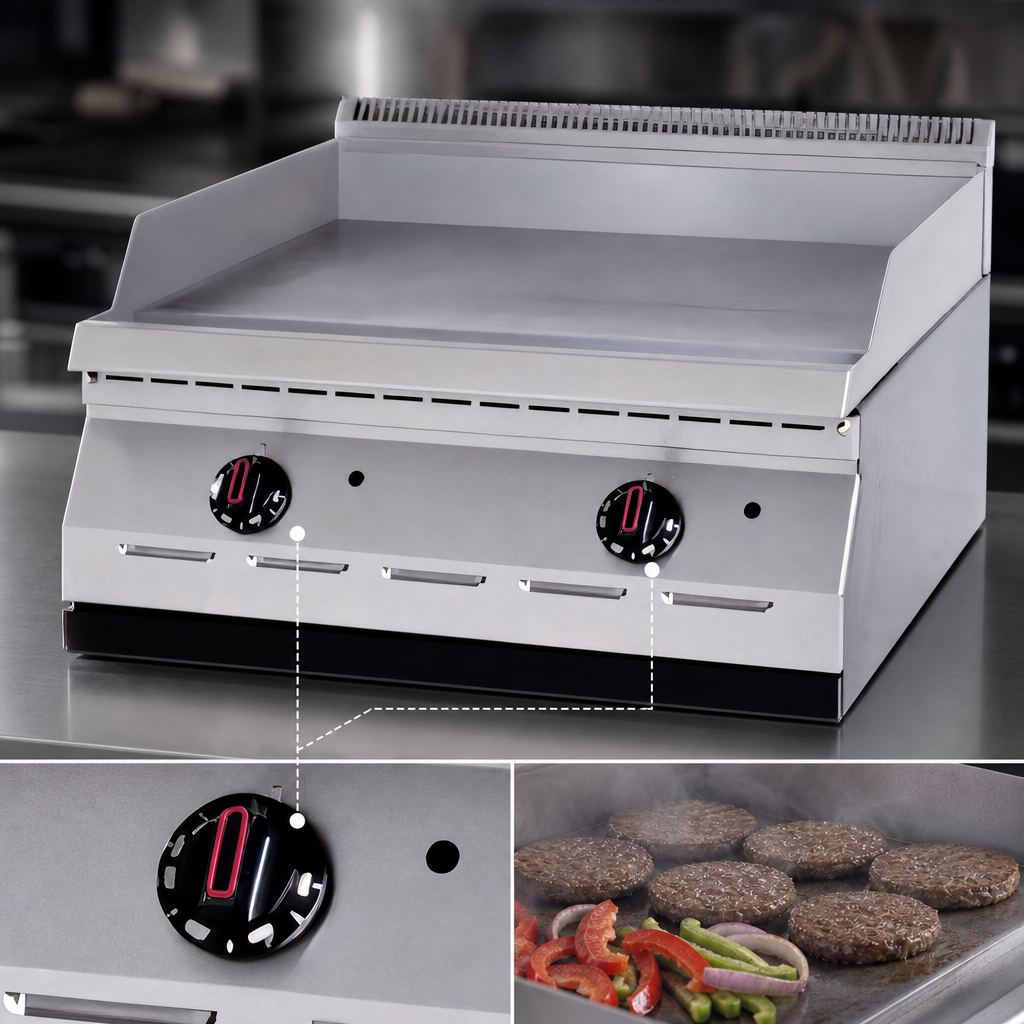

  • Thermostatic control (200-550 °F / 93-288 °C) ensures repeatable results every shift.
  • Reliable piezo-spark ignition – no matches or pilots to relight.
  • Full-width internal grease drawer with magnetic catch prevents spills and slides out for quick cleaning.
  • All-stainless front & sides resist corrosion and wipe clean in seconds.
  • 4" (102 mm) adjustable sanitary legs keep the unit level and lift it for under-counter cleaning.
  • Rear ¾" NPT gas connection with factory regulator – natural or propane.
  • Ships CSA-approved and NSF-listed for code-compliant installation.
  • One-year parts & labor warranty (USA & Canada).

Flame-failure protection is not offered on thermostatic (GTH) models and is not required for CSA certification.

Specifications

Model GD-15GTH
Overall Width 15" / 381 mm
Overall Depth 24" / 610 mm
Overall Height 15" / 381 mm (to plate) + 2-5/8" splash guard
Cooking Surface 15" W × 18" D / 381 mm × 457 mm
Plate Thickness ½" / 13 mm polished steel
Heat Output 20,000 BTU /h (5.86 kW)
Control Type Thermostatic with piezo ignition
Gas Connection ¾" NPT rear inlet, regulator included
Operating Pressure Natural 4" WC  |  Propane 10" WC
Clearances (Combustible) 6" / 152 mm sides & back
Certifications CSA, NSF
Shipping Weight 85 lb / 39 kg
Warranty 1-year limited parts & labor

Optional Accessories

  • Equipment stand (see form CS24/CSD).
  • Stainless steel rear panel and bottom closure.
  • Fully grooved plate (order as model GD-15GU).
Important: Garland equipment is intended for commercial kitchens only and is not approved for residential use.

Features & Specs

Manufacturer

Garland

Brand_name

Designer

Certifications

NSF, CSA

Height

15.0in

Width

15.0in

Depth

24.0in

Shipping Weight

85.0lbs

Cooking Surface Depth (front - back)

15" - 19"

Griddle Plate Finish

smooth steel

Exterior Finish

stainless steel front & sides

Controls

thermostat / solid state controls

Plate Thickness

1/2"

Cooking Surface Width (side - side)

13" - 18"

Specifications

Designer Series Griddle, countertop, gas, 15" W x 18" D cooking surface, 1/2" thick polished steel griddle, 2-5/8" welded splash guard on sides & rear of plate, thermostatic controls, piezo spark ignition, stainless steel front and sides, internal grease drawer with magnetic door, 4" adjustable legs, 20,000 BTU (Garland), CSA, NSF
